SHANTUI L36-B3 PARTS CATALOG 25

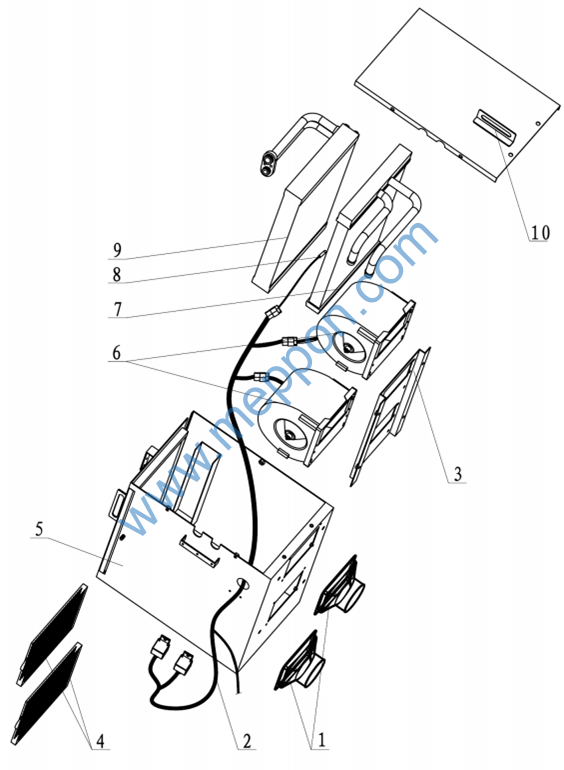

第 43.1 图 蒸发器总成
FIG.43.1 Evaporator
0 |
1434-58G-01000 |
蒸发器总成 Evaporator |
1 |
||
1 |
GKZ33-5.0F8-03 |
下出风口 Air outlet |
2 |
||
2 |
1455-58V-03000 |
线束总成 Wire harness assembly |
1 |
||
3 |
GKZ56-5.0-20 |
风机固定板 Fan fixing plate |
1 |
||
4 |
1455-58-04001 |
回风滤网总成 Air return filter assembly |
2 |
||
5 |
GKZ56-5.0A-10 |
下壳总成 Lower shell assembly |
1 |
||
6 |
TB5102 |
蒸发风机(单轴) Evaporation fan (monopodium) |
2 |
||
7 |
GKZ56-5.0-30 |
制热器 Heat exchanger |
1 |
||
8 |
TB6502 |
感温探头 Sensing temperature probe |
1 |
||
9 |
GKZ56-5.0-40 |
制冷器芯 Cooler core |
1 |
||
10 |
GKZ56-5.0-60 |
盖板 |
Cover plate |
1 |

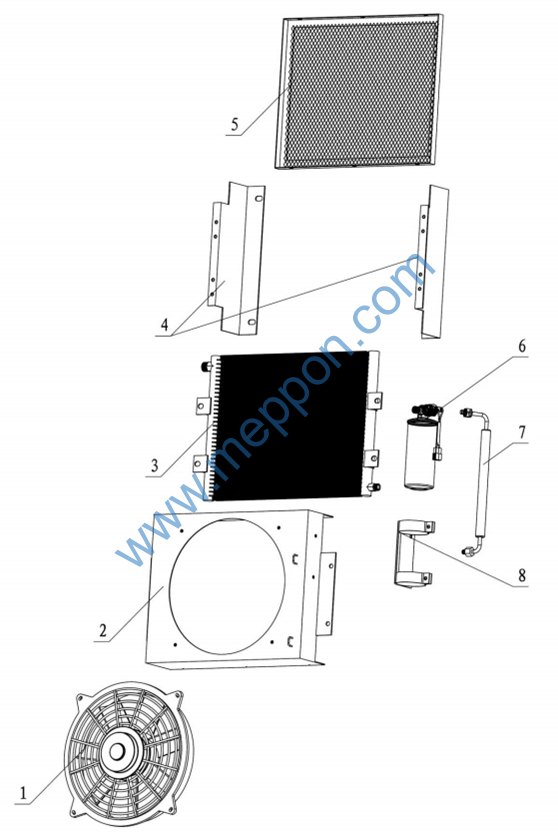

第 43.2 图 冷凝器总成
FIG.43.2 Condenser
0 |
1434-58-03000 |
冷凝器总成 Condenser assembly |
1 |
||
1 |
GKL33-5.0G-40 |
冷凝风机 Condenser fan |
1 |
||
2 |
GKL41-5.0B-10 |
冷凝器壳体 Condenser shell |
1 |
||
3 |
GKL56-5.0A-10 |
冷凝器芯体 Condenser core |
1 |
||
4 |
GKL56-5.0-10 |
冷凝器支架 Condenser bracket |
2 |
||
5 |
GKL41-5.0B-30 |
冷凝器防护网 Condenser protection network |
1 |
||
6 |
T1902-00 |
储液器 |
Reservoir |
1 |
|
7 |
GKL56-5.0-20 |
冷凝器至储液器胶管 Condenser to reservoir hose |
1 |
||
8 |
GKL56-5.0-30 |
储液器支架 Reservoir support |
1 |

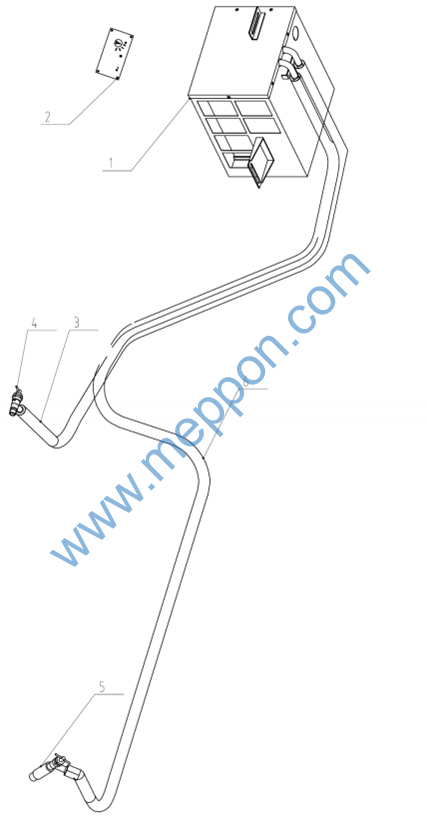

第 44 图 暖风系统
FIG.44 Heater System
1 |
1434-58G-05000 |
N39A暖风机 Heater |
1 |
||
2 |
1434-58G-06000 |
控制面板组件 Manual panel |
1 |
||
3 |
1434-58-00003 |
回水管 |
Hose |
1 |
|
4 |
1455-58-00002 |
水阀Z3/8″ Switch |
2 |
||
5 |
1434-58-00006 |
过渡接头 |
Joint |
1 |
|
6 |
1434-58-00001 |
进水管 |
Hose |
1 |
