SHANTUI L36-C3 PARTS CATALOG 14

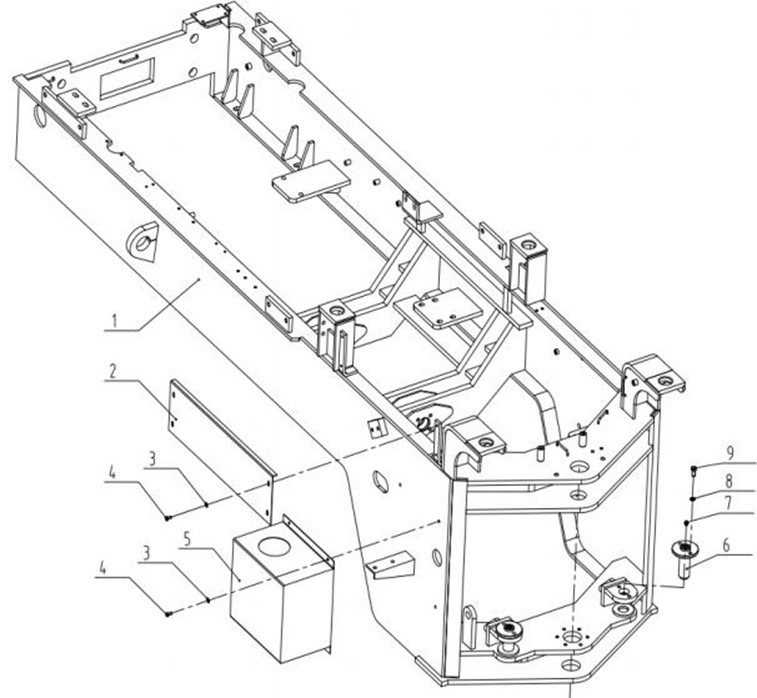

第 32 图 后车架总成
FIG.32 Rear Frame Assembly
1 |
1434-30G-02000 |
后车架 |
Rear frame |
1 |
2 |
1434-30-00001 |
防护板 |
Fenders |
1 |
3 |
GB95-8 |
平垫8 |
Flat pad |
8 |
4 |
GB5783-M8X16 |
螺栓M8X16 |
bolt |
8 |
5 |
1434-30G-05000 |
加力泵护罩 Afterburner guard |
1 |
|
6 |
1434-30-18000 |
转向缸轴 Steering cylinder shaft |
2 |
|
7 |
07020-01021 |
加油杯M10X1 Refueling cup |
2 |
|
8 |
GB93-12 |
弹簧垫圈12 Spring washer |
4 |
|
9 |
GB5783-M12X25 |
螺栓M12X25 bolt |
4 |
第33图 铰接总成
FIG.33 Hinge Assembly
1 |
GB5783-M16X30 |
螺栓M16X30 Bolt |
2 |
|
2 |
GB93-16 |
弹簧垫圈16 Spring washer |
2 |
|
3 |
1434-30-00007 |
上铰接轴压盘 Upper hinge axle pressure plate |
1 |
|
4 |
1434-30-00006 |
上铰接轴 Hinged shaft |
1 |
|
5 |
GB5783-M12X25 |
螺栓M12X25 Bolt |
18 |
|
6 |
GB93-12 |
弹簧垫圈12 Spring washer |
18 |
|
7 |
1434-30-00005 |
定位盘 Positioning disk |
2 |
|
8 |
1434-30-00014 |
防尘圈 |
Dust ring |
2 |
9 |
1434-81-12000 |
关节轴承 Articulated bearing |
2 |
|
10 |
1434-30-00004 |
定位套 Positioning sleeve |
1 |
|
11 |
1434-30-00003 |
圆盘 |
Bisc |
2 |
12 |
GB6182-M36 |
锁紧螺母M36 Fasten the screw nut |
2 |
|
13 |
1455-30-00016 |
丝座 |
Silk seat |
2 |
14 |
07020-01021 |
加油杯M10X1 Refueling cup |
2 |
|
15 |
07303-01016 |
密封垫圈10 Sealing washer |
4 |
|
16 |
1455-30-00002 |
铰接螺栓 Articulated bolt |
2 |
|
17 |
1434-30-00008 |
下铰接轴压盘 Lower hinge axle pressure plate |
1 |
|
18 |
1434-30-00010 |
下铰接轴 Lower hinge axis |
1 |
|
19 |
1434-30-00009 |
定位套 Positioning sleeve |
1 |
|
20 |
1434-81-00014 |
调整垫 Adjustment mats |
3 |
第34图 摇摆架总成
FIG.34 Swing Frame Assembly
1 |
1434-30-06000 |
摇摆架 |
Swing stand |
|
2 |
1434-30-00012 |
轴套 |
Bushing |
2 |
3 |
1434-30-00011 |
调整垫 Adjustment mats |
4 |
|
4 |
1434-30-19000 |
摇摆架轴 Swing frame shaft |
2 |
|
5 |
GB93-12 |
弹簧垫圈12 Spring washer |
8 |
|
6 |
GB5783-M12X25 |
螺栓M12X25 bolt |
8 |
|
7 |
1455-30-00002 |
铰接螺栓 Articulated bolt |
4 |
|
8 |
07303-01016 |
密封垫圈10 Sealing washer |
8 |
|
9 |
1434-30-16000 |
前黄油管 Front butter tube |
1 |
|
10 |
07020-01021 |
加油杯M10X1 Refueling cup |
2 |
|
11 |
1434-30-15000 |
后黄油管 Rear butter tube |
1 |
