SHANTUI L36-C3 PARTS CATALOG 19

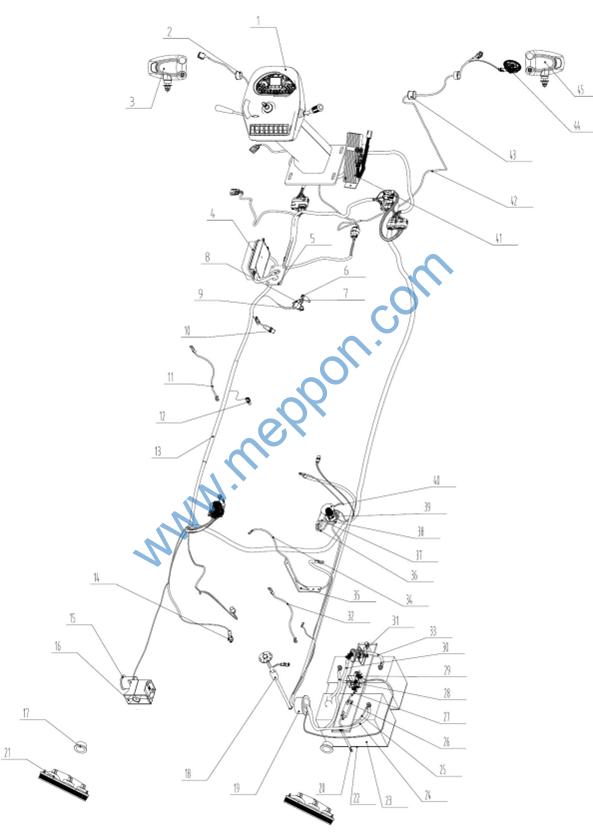

第 47 图 电气系统
FIG.47 Electric System
1 |
1434-07G-01000 |
仪表台 Instrument Desk |
1 |
||
2 |
D2211-03500 |
仪表盘面 Instrument panel |
1 |
||
3 |
1455-07-00010 |
绝缘套2 Insulating sleeve 2 |
ZL18-15021 |
4 |
|
4 |
D2451-00310 |
左前组合大灯 Front Lamp(L) |
D2401-07003 |
1 |
|
5 |
1434-07G-02000 |
中央电气控制盒 Electrical Control Box |
1 |
||
6 |
1455-07V-00003 |
线束密封座 Harness seal seat |
1 |
||
7 |
1434-07-00001 |
铰接螺栓 Hinged bolts |
DG938H-15012 |
1 |
|
8 |
1434-07-04000 |
铰接接头体 Articulated joint |
DG938H-15011 |
1 |
|
9 |
D2301-08000 |
变速压力开关Transmission pressure switch |
1 |
||
10 |
D2301-07010 |
倒车报警开关 Astern alarm switch |
1 |
||
11 |
D2580-01000 |
接近开关 Proximity switch |
1 |
||
12 |
1434-07G-13000 |
台座搭铁线 Earth wire |
1 |
||
13 |
D2320-14090 |
变矩器油温传感器 Torque converter temperature sensor |
1 |
||
14 |
1434-07G-04000 |
后线束 Rear harness |
1 |
||
15 |
D2300-01050 |
气压传感器 Air pressure sensor |
1 |
||
16 |
1455-07-00015 |
绝缘套 Insulating sheath |
ZL50G2-15024 |
2 |
|
17 |
D2730-11020 |
倒车报警器 Reversing buzzer |
1 |
||
18 |
1455-07-00014 |
绝缘套 Insulating sheath |
DG956N1-15007 |
1 |
|
19 |
D2330-41801 |
燃油油位传感器 Fuel oil level sensor |
1 |
||
20 |
1455-07-00017 |
绝缘套 Insulating sheath |
2 |
||
21 |
1455-07-00022 |
螺栓 |
Bolt |
ZL50G2-10203B |
2 |
22 |
D2443-03700 |
后灯 |
Tail lamp |
D2443-03701A |
2 |
23 |
1455-07-00005 |
橡胶板400X180 Rubber sheet |
ZL50G2-15001 |
2 |
|
24 |
D1011-10000 |
免维护蓄电池总成 Battery |
2 |
||
25 |
1434-07G-12000 |
起动机正极线 Starter cable |
1 |
||
26 |
1434-07G-09000 |
保险至电瓶线束 F to Battery harness |
1 |
||
27 |
D2763-08000 |
力特80保险盒 80A fuse box |
1 |
||
28 |
1455-07-07000 |
电磁开关至保险线束 S to F harness |
1 |
||
29 |
1434-07G-11000 |
电瓶连接线 Connect cable |
1 |
||
30 |
D2601-10000 |
电磁式电源总开关 Main switch |
D2610-10002 |
1 |
第 47 图 电气系统
FIG.47 Electric System
31 |
1434-07G-06000 |
搭铁线 Earth cable |
1 |
||
32 |
D2602-20010 |
手动电源开关 Manual power switch |
D2551-30000 |
1 |
|
33 |
1434-07G-00001 |
镀锡铜编织线缆 Braided copper cable |
TZ-75 |
1 |
|
34 |
1434-07G-10000 |
电瓶搭铁线 Earth cable |
1 |
||
35 |
1434-07G-14000 |
预热线束1 Preheat harness 1 |
DG938H-15008 |
1 |
|
36 |
1434-07-14000 |
支架2 |
Holder 2 |
1 |
|
37 |
1434-07G-15000 |
预热线束2 Preheat harness 2 |
DG938H-15009 |
1 |
|
38 |
D2763-15000 |
力特150保险盒 150A fuse box |
1 |
||
39 |
1455-07-00007 |
安装板 |
Plate |
DG956H-15003 |
1 |
40 |
D2611-10020 |
进气加热继电器 Preheat relay |
1 |
||
41 |
1455-07-00006 |
预热继电器护罩 Shield |
DG956H-15014 |
1 |
|
42 |
D2281-00003 |
电子油门踏板 Accelerator pedal |
1 |
||
43 |
1434-07G-08000 |
前线束 Front harness |
1 |
||
44 |
1455-07-00011 |
绝缘套1 Insulating sheath 1 |
2 |
||
45 |
D2711-11800 |
高音喇叭 Horn |
1 |
||
46 |
D2451-00300 |
右前组合大灯 Front Lamp(R) |
D2401-07004 |
1 |

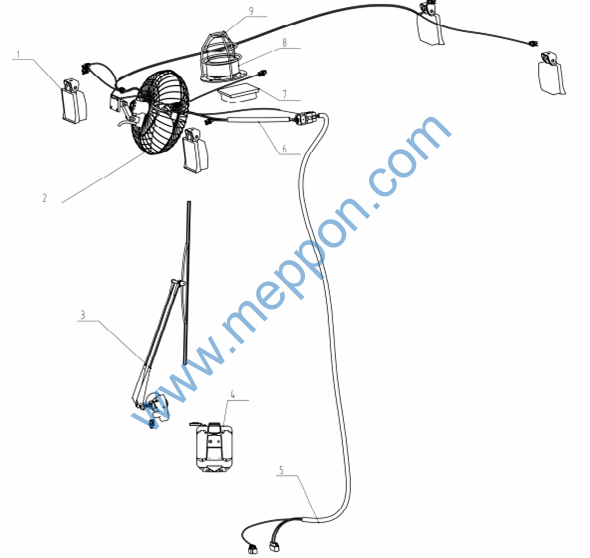

第 48 图 驾驶室线束
FIG.48 Driver Cab Wiring
1 |
D2401-02721 |
LED工作灯 Lamp |
4 |
|
2 |
D2830-00000 |
直柄风扇(6寸) Fan |
1 |
|
3 |
D2801-06411 D2801-06401 |
刮水器(装喷水壶) 刮水器 |
Windshield wiper Assy. Windshield wiper Assy. |
1 1 |
4 |
D2810-02000 |
洗涤器壶 Sprayer |
1 |
|
5 |
1434-08G-02000 |
驾驶室立柱线束 Harness |
1 |
|
6 |
1434-08G-01000 |
驾驶室灯线束 Harness |
1 |
|
7 |
D2430-00500 |
顶灯 |
Lamp |
1 |
8 |
D2446-02100 |
旋转警示灯 Warning lamp |
1 |
|
9 |
1434-07G-14000 |
警示灯护罩 Lamp shield |
1 |
