SINOMACH CHANGLIN 933 wheel loader parts catalog 33

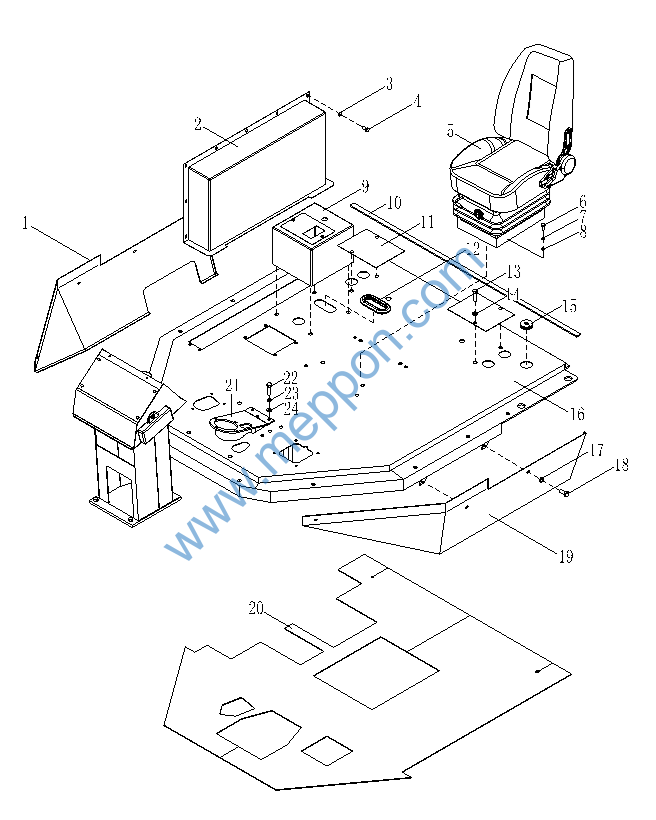

驾驶室总成（III） Cab（III）
驾驶室总成（III） Cab（III）
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
Z30E.16M.3A |
1 |
右盖 |
Right cover |
1 |
00005- |
|
|
2 |
Z30E.16.1 |
1 |
冷凝器罩壳 |
Evaporator cover |
1 |
00005- |
|
|
3 |
B-G00097B-00023 |
1 |
垫圈8ZnD |
Washer |
9 |
00005- |
|
|
4 |
B-G057830-00139 |
1 |
螺栓M8X20ZnD |
Bolt |
9 |
00005- |
|
|
5 |
W-09-00158 |
1 |
座椅FS11K |
Seat |
1 |
00005- |
|
|
6 |
B-G057830-00010 |
1 |
螺栓M10X30ZnD |
Bolt |
4 |
00005- |
|
|
7 |
B-G000930-00001 |
1 |
垫圈10 |
Washer |
4 |
00005- |
|
|
8 |
B-G00097B-00002 |
1 |
垫圈10ZnD |
Washer |
4 |
00005- |
|
|
9 |
933.16.1 |
1 |
操纵箱 |
Control box |
1 |
00005- |
|
|
10 |
Z30.16F-2 |
1 |
垫 |
Cushion |
1 |
00005- |
|
|
11 |
Z40E.16-4 |
1 |
小盖板 |
Cover board |
2 |
00005- |
|
|
12 |
Z30E.16R-2 |
1 |
嵌条 |
Seal |
1 |
00005- |
|
|
13 |
B-G057830-00030 |
1 |
螺栓M12X25ZnD |
Bolt |
2 |
00005- |
|
|
14 |
B-G00097B-00004 |
1 |
垫圈12ZnD |
Washer |
2 |
00005- |
|
|
15 |
955.16-2 |
1 |
出线圈 |
Winding |
2 |
00005- |
|
|
16 |
Z30E.16R.3 |
1 |
底板架 |
Base plate |
1 |
00005- |
|
|
17 |
B-G00097B-00023 |
1 |
垫圈8ZnD |
Washer |
6 |
00005- |
|
|
18 |
B-G057830-00139 |
1 |
螺栓M8X20ZnD |
Bolt |
6 |
00005- |
|
|
19 |
Z30E.16M.4A |
1 |
左盖 |
Right cover |
1 |
00005- |
|
|
20 |
933.16-1 |
1 |
底板垫 |
Carpet |
1 |
00005- |
|
|
21 |
Z30E.16-1 |
1 |
转向器支承板 |
Steering unit support |
1 |
00005- |
|
|
22 |
B-G057830-00010 |
1 |
螺栓M10X30ZnD |
Bolt |
3 |
00005- |
|
|
23 |
B-G000930-00001 |
1 |
垫圈10 |
Washer |
3 |
00005- |
|
|
24 |
B-G00097B-00002 |
1 |
垫圈10ZnD |
Washer |
3 |
00005- |
|
|
|
|||||||

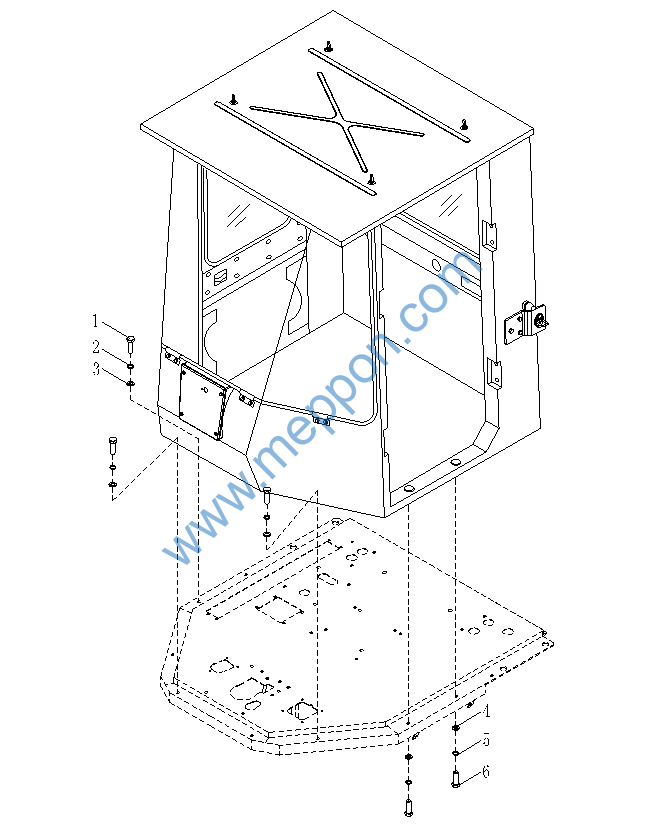

驾驶室总成（IV） Cab（IV）
驾驶室总成（IV） Cab（IV）
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
B-G057830-00037 |
1 |
螺栓M12X35ZnD |
Bolt |
6 |
00005- |
|
|
2 |
B-G000930-00003 |
1 |
垫圈12 |
Washer |
6 |
00005- |
|
|
3 |
B-G00097B-00004 |
1 |
垫圈12ZnD |
Washer |
6 |
00005- |
|
|
4 |
B-G00097B-00004 |
1 |
垫圈12ZnD |
Washer |
2 |
00005- |
|
|
5 |
B-G000930-00003 |
1 |
垫圈12 |
Washer |
2 |
00005- |
|
|
6 |
B-G057830-00037 |
1 |
螺栓M12X35ZnD |
Bolt |
2 |
00005- |
|
|
|
|||||||

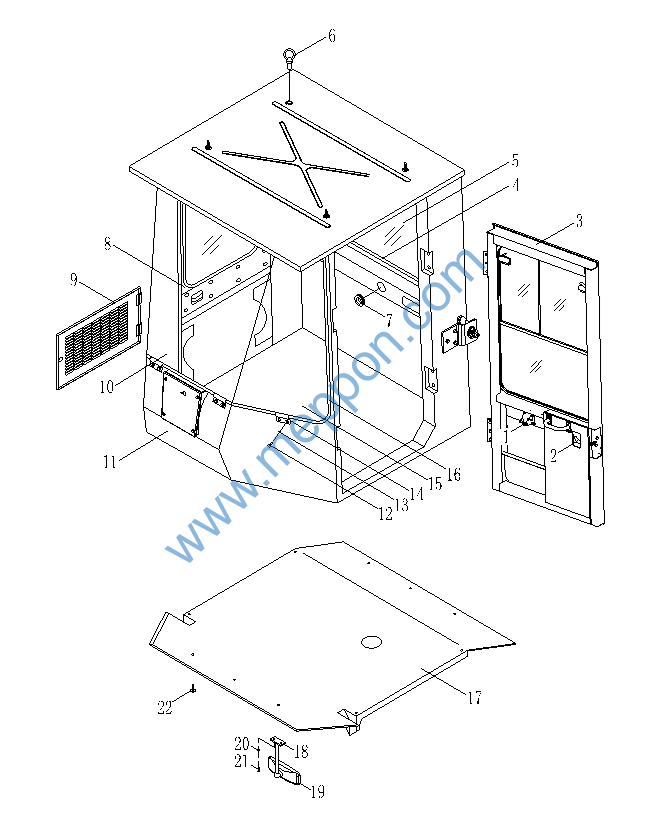

驾驶室总成（V） Cab（V）
驾驶室总成（V） Cab（V）
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
933.16.2 W-09-00009 |
1 1 |
驾驶室 碰锁|NBS510 |
Cab Collide lock |
1 2 |
00005- 00005- |
|
|
2 |
W-09-00008 |
1 |
门锁|NBS502 |
Door lock |
2 |
00005- |
|
|
3 |
Z30.16.4F.2 |
1 |
右门 |
Door,R.H |
1 |
00005- |
|
|
4 |
Z30.16.4E-11 |
1 |
密封嵌条(后) |
Seal stripe, rear |
1 |
00005- |
|
|
5 |
Z30.16.4E-12 |
1 |
玻璃(后) |
Glass |
1 |
00005- |
|
|
6 |
Z50E.16F.4-8 |
1 |
螺塞 |
Plug |
4 |
00005- |
|
|
7 |
Z30.16.4-4 |
1 |
塞 |
Plug |
1 |
00005- |
|
|
8 |
Z30.16.4E.2B |
1 |
左门 |
Door,L.H |
1 |
00005- |
|
|
9 |
Z50E.16Q.1.2 |
1 |
盖板 |
Cover board |
1 |
00005- |
|
|
10 |
Z50E.16F.4-2 |
1 |
前玻璃 |
Glass |
1 |
00005- |
|
|
11 |
Z30E.16R.1A.1 |
1 |
驾驶室骨架 |
Cab |
1 |
00005- |
|
|
12 |
B-G057830-00139 |
1 |
螺栓M8x20ZnD |
Bolt |
16 |
00005- |
|
|
13 |
B-G00097B-00023 |
1 |
垫圈8ZnD |
Washer |
16 |
00005- |
|
|
14 |
Z50E.16F.4-6 |
1 |
板 |
Plate |
8 |
00005- |
|
|
15 |
Z50E.16F.4-4 |
1 |
侧玻璃 |
Side Glass |
2 |
00005- |
|
|
16 |
Z50E.16F.4-5 |
1 |
前密封嵌条 |
Seal stripe |
1 |
00005- |
|
|
17 |
Z30.16M.1A.1 |
1 |
顶板 |
Plate |
1 |
00005- |
|
|
18 |
Z30.16.4E.10 |
1 |
支撑 |
Support |
1 |
00005- |
|
|
19 |
W-09-00021 |
1 |
室内反光镜 |
Reflector |
1 |
00005- |
|
|
20 |
B-G000930-00015 |
1 |
垫圈6 |
Washer |
2 |
00005- |
|
|
21 |
B-G008180-00028 |
1 |
螺钉M6x16ZnD |
Bolt |
2 |
00005- |
|
|
22 |
Z40E.16F.6 |
1 |
塑料扣 |
Plastic button |
16 |
00005- |
|
|
|
|||||||
