SINOMACH CHANGLIN 933 wheel loader parts catalog 34

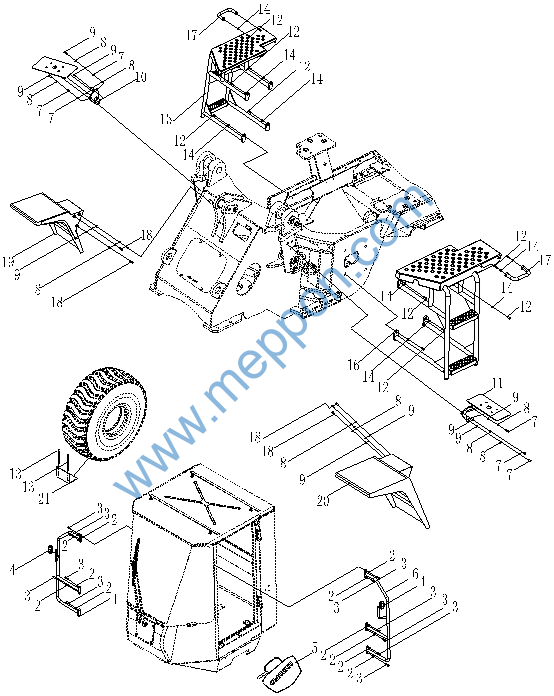

十八、车身及附件
Automobile Body & Accessories
车身及附件Automobile Body & Accessories
车身及附件Automobile Body & Accessories
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
Z30.17M.10A |
1 |
右反光镜支架 |
R Reflector supporting |
1 |
00005- |
|
|
2 |
B-G00097B-00023 |
1 |
垫圈8ZnD |
Washer |
12 |
00005- |
|
|
3 |
B-G057830-00143 |
1 |
螺栓M8x25ZnD |
Bolt |
12 |
00005- |
|
|
4 |
W-09-00023 |
1 |
室外反光镜 |
Viewfinder |
2 |
00005- |
|
|
5 |
933.17.1 |
1 |
随机备件工具包 |
Spare part tool box |
1 |
00005- |
|
|
6 |
Z30.17M.9A |
1 |
左反光镜支架 |
Reflector supporting |
1 |
00005- |
|
|
7 |
B-G057830-00006 |
1 |
螺栓 M10×25 ZnD |
Bolt |
6 |
00005- |
|
|
8 |
B-G000930-00001 |
1 |
垫圈 10 |
Washer |
12 |
00005- |
|
|
9 |
B-G00097B-00002 |
1 |
垫圈10ZnD |
Washer |
12 |
00005- |
|
|
10 |
Z30E.17R.3 |
1 |
右前大灯支架 |
Right front lamp supporting |
1 |
00005- |
|
|
11 |
Z30E.17R.2 |
1 |
左前大灯支架 |
Left front lamp supporting |
1 |
00005- |
|
|
12 |
B-G057830-00034 |
1 |
螺栓 M12×30 ZnD |
Bolt |
12 |
00005- |
|
|
13 |
Z30.17-4 |
1 |
钉子 |
Screw |
16 |
00005- |
|
|
14 |
B-G00097B-00004 |
1 |
垫圈 12 ZnD |
Spring washer |
12 |
00005- |
|
|
15 |
Z30.17M.7 |
1 |
右梯 |
R Ladder |
1 |
00005- |
|
|
16 |
Z30.17M.5 |
1 |
左梯 |
L Ladder |
1 |
00005- |
|
|
17 |
Z30.17M.8 |
1 |
后扶手 |
Rear hand rail |
2 |
00005- |
|
|
18 |
B-G057830-00043 |
1 |
螺栓M10×45 ZnD |
Bolt |
6 |
00005- |
|
|
19 |
Z30E.17R.7 |
1 |
前右挡泥板 |
R front dishboard |
1 |
00005- |
|
|
20 |
Z30E.17R.6 |
1 |
前左挡泥板 |
L front dishboard |
1 |
00005- |
|
|
21 |
Z30.17-1 |
1 |
三角垫 |
Pad |
1 |
00005- |
|

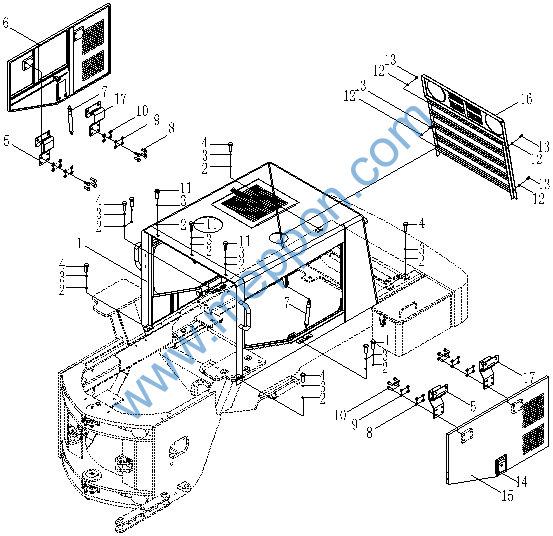

发动机护罩Engine Hood Assembly
发动机护罩
Engine Hood Assembly
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
Z30E.17R.1.1 |
1 |
发动机护罩(玉柴) |
Engine hood（YuChai） |
1 |
00005- |
|
|
Z30.17M.1.1 |
1 |
发动机护罩(洛拖) |
Engine hood（LuoTuo） |
1 |
00005- |
||
|
2 |
B-Q020490-00003 |
1 |
垫圈12 |
Washer |
11 |
00005- |
|
|
3 |
B-G000930-00003 |
1 |
垫圈12 |
Washer |
11 |
00005- |
|
|
4 |
B-G057830-00030 |
1 |
螺栓M12x25ZnD |
Bolt |
8 |
00005- |
|
|
5 |
Z30E.17R.1.1.1 |
1 |
铰链 |
Hinge |
2 |
00005- |
|
|
6 |
Z30E.17R.1.3 |
1 |
右门 |
R.Door |
1 |
00005- |
|
|
7 |
W-09-00013 |
1 |
气弹簧 JY2307 |
Air spring |
2 |
00005- |
|
|
8 |
B-G057830-00006 |
1 |
螺栓M10x25ZnD |
Bolt |
16 |
00005- |
|
|
9 |
B-G000930-00001 |
1 |
垫圈10 |
Washer |
16 |
00005- |
|
|
10 |
B-G00097B-00002 |
1 |
垫圈10ZnD |
Washer |
16 |
00005- |
|
|
11 |
B-G057830-00043 |
1 |
螺栓M10×45 ZnD |
Bolt |
3 |
00005- |
|
|
12 |
B-G00097B-00023 |
1 |
垫圈 8 ZnD |
Washer |
4 |
00005- |
|
|
13 |
B-G057830-00137 |
1 |
螺栓 M8×16 ZnD |
Bolt |
4 |
00005- |
|
|
14 |
W-09-00030 |
1 |
锁|NBS504 |
Lock |
2 |
00005- |
|
|
15 |
Z30E.17R.1.2 |
1 |
左门 |
L.Door |
1 |
00005- |
|
|
16 |
Z30.17M.1.4 |
1 |
格栅 |
Grille |
1 |
00005- |
|
|
17 |
Z30E.17R.1.1.3 |
1 |
铰链 |
Hinge |
2 |
00005- |
|
