序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

1

B-J07940A-00001

1

油杯 M10×1

Grease fitting

11

955L0005-

2

B-G057830-00066

1

螺栓 M16×25 ZnD

Bolt

5

955L0005-

3

B-Q01201E-00003

1

垫圈 16

Washer

5

955L0005-

4

Z50B.12.13A

1

上铰销组件

Upper hinge pin assembly

2

955L0005-

5

B-Q01201C-00008

1

垫片 97×150

Pad

4

955L0005-

7

Z50B.12B.2

1

铰销组95×280A

Hunger pin assembly

1

955L0005-

8

B-G00097B-00004

1

垫圈 12ZnD

Washer

4

955L0005-

9

B-G057830-00028

1

螺栓 M12×20 ZnD

Bolt

8

955L0005-

10

B-G000930-00003

1

垫圈 12

Washer

4

955L0005-

11

Z50B.12.1A

1

前盖板

Front cover

1

955L0005-

17

955L.12.1

1

前车架

Front frame

1

955L0005-

18

B-G057830-00066

1

螺栓 M16×25 ZnD

Bolt

1

955L0005-

19

B-Q01201E-00003

1

垫圈 16

Washer

1

955L0005-

20

Z50E.12Q.2

1

上铰接轴

Upper hinge shaft

1

955L0005-

21

B-G000730-00003

1

螺钉 M6×8

Screw

8

955L0005-

22

Z50B.12-11

1

轴套

Bushing

2

955L0005-

23

B-G057830-00043

1

螺栓 M12×45 ZnD

Bolt

24

955L0005-

24

B-G000930-00003

1

垫圈 12

Washer

24

955L0005-

25

B-G10708C-00006

1

骨架防尘圈 FB80×90×7

Dust ring

2

955L0005-

26

Z50B.12-2

1

上轴承盖

Upper bearing cover

1

955L0005-

27

B-G091630-00007

1

关节轴承 GE80ES

Joint bearing

2

955L0005-

28

Z50B.12A-5

1

上轴承座

Upper bearing seat

1

955L0005-

29

Z50E.12Q-1

1

下铰接轴

Lower hinge shaft

1

955L0005-

30

B-G10708C-00007

1

骨架防尘圈 FB90×100×7

Dust ring

2

955L0005-

31

Z50B.12-6

1

下轴承盖

Lower hinge shaft

1

955L0005-

32

Z50B.12A-4

1

下轴承座

Lower bearing cover

1

955L0005-

33

Z50E.12Q-3

1

轴套

Bushing

1

955L0005-

34

Z50E.12Q-2

1

板

Plate

1

955L0005-

35

B-Q020490-00003

1

垫圈 12

Washer

8

955L0005-

36

B-G057820-00042

1

螺栓 M12×55 10.9 ZnD

Bolt

8

955L0005-

37

Z50E.12Q-7

1

槽形螺母

Castle nut

1

955L0005-

38

B-G000910-00068

1

销 8×90 ZnD

Pin

1

955L0005-

39

B-Q01201E-00001

1

垫圈 12

Washer

4

955L0005-

40

Z50B.12B.3

1

铰销组件40×132A

Hinge pin assembly

2

955L0005-

41

Z50B.12-9

1

支架垫

Pad

2

955L0005-

42

Z50B.12.12A

1

下铰销组件

Lower hinge assembly

2

955L0005-

43

B-G057830-00057

1

螺栓 M14×35 ZnD

Bolt

2

955L0005-

44

B-G000930-00005

1

垫圈 14

Washer

2

955L0005-

45

Z50B.12.2E.2

1

板

Plate

1

955L0005-

46

Z50E.12Q-4

1

调整垫片 t0.5

Adjusting shim

4

955L0005-

47

Z50E.12Q-5

1

调整垫片 t1

Adjusting shim

2

955L0005-

48

Z50E.12Q-6

调整垫片 t0.2

Adjusting shim

4

955L0005-

序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

1

955L.12.2

1

后车架

Rear frame

1

955L0005-

2

B-G057820-00150

1

螺栓M24X80-10.9 ZnD

Bolt

5

955L0005-

3

B-Q020490-00015

1

垫圈24

Washer24

5

955L0005-

4

B-G00097B-00023

1

垫圈8 ZnD

Washer

2

955L0005-

5

B-G057830-00139

1

螺栓M8X20 ZnD

Bolt

2

955L0005-

6

955L.12.3

1

配重

Balance weight

1

955L0005-

7

Z50B.12.17

1

保险销

Locking pin

1

955L0005-

8

Z50B.12-12

牵引销

Draw pin

1

955L0005-

9

B-G061700-00003

1

螺母M10ZnD

Nut

8

955L0005-

10

B-G057830-00103

1

螺栓 M20×70 ZnD

Bolt

2

955L0005-

11

B-G00097B-00002

1

垫圈10ZnD

Washer

2

955L0005-

12

Z30H.12B.2.2

1

压框

Pressed frame

8

955L0005-

13

955.12.2A-1

1

螺杆

Screw

2

955L0005-

14

B-G000930-00008

1

垫圈 20

Washer

2

955L0005-

15

955.12-4

1

大垫圈

Washer

2

955L0005-

16

955.12-1

1

调整垫片t0.2

Adjust Plate

4

955L0005-

17

955.12-2

1

调整垫片t0.5

Adjust Plate

4

955L0005-

18

955.12-3

1

调整垫片t1

Adjust Plate

4

955L0005-

19

Z50F.12-2

1

压板

Plate

4

955L0005-

20

Z50F.12-1

1

摆架销轴

Axis pin

2

955L0005-

21

Z50B.12-7

1

垫板

Pad

2

955L0005-

22

Z50B.12-10A

1

摆架轴套

Bushing

2

955L0005-

23

Z50B.12-7A

1

垫板

Pad

2

955L0005-

24

Z50B.12-7B

1

垫板

Pad

2

955L0005-

25

955.12.3

1

摆架

balanced frame

1

955L0005-

26

B-G057830-00030

1

螺栓M12X25 ZnD

Bolt

8

955L0005-

27

B-G000930-00003

1

垫圈 12

Washer

8

955L0005-

28

Z50B.12.15

1

销

Pin

1

955L0005-

29

Z50B.12A.3

1

车架锁

Frame pin

1

955L0005-

30

Z50B.12.14

1

销

Pin

1

955L0005-

31

B-G057830-00028

1

螺栓 M12×20 ZnD

Bolt

2

955L0005-

32

B-Q01201E-00001

1

垫圈 12

Washer

2

955L0005-

33

B-J07940A-00001

1

油杯 M10×1

Grease fitting

2

955L0005-

34

Z50B.12B.3

1

铰销组件 40×132A

Hinge pin

2

955L0005-

35

Z50B.12-9

1

支承垫

Supporting pad

2

955L0005-

36

Z50B.12-9A

1

支承垫

Supporting pad

2

955L0005-

37

Z50B.12-9B

1

支承垫

Supporting pad

2

955L0005-

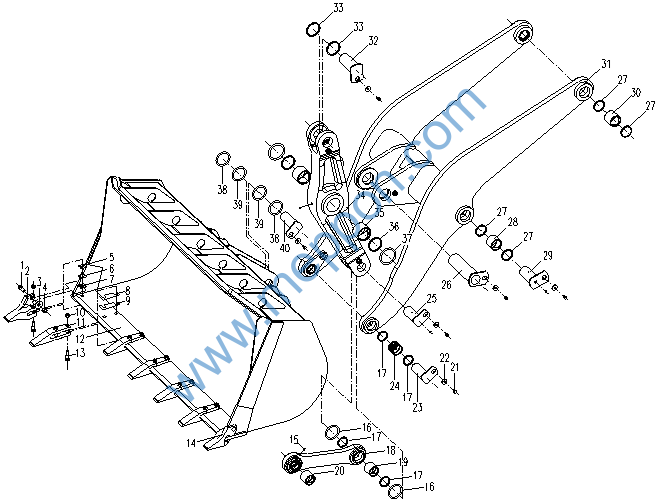

序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

1

Z50B.13-6

1

螺栓

Bolt

2

955L0005-

2

Z50B.13-11A

1

右边齿

Right tooth

1

955L0005-

3

B-G051750-00001

1

螺母 M24ZnD

Nut

2

955L0005-

4

B-Q020490-00015

1

垫圈 24

Washer

2

955L0005-

5

Z50B.13-16

1

垫片

Pad

4

955L0005-

6

Z50B.13-14

1

垫片

Pad

2

955L0005-

7

Z50B.13-13

1

垫片

Pad

2

955L0005-

8

Z50B.13-9

1

垫片

Pad

5

955L0005-

9

Z50B.13-8

1

垫片

Pad

5

955L0005-

10

Z50B.13-5

1

螺母

Nut

12

955L0005-

11

Z50B.13-10A

1

中间齿

Bucket tooth

5

955L0005-

Z50E.31.G55.1

1

通用铲斗

Universal bucket

1

955L0005-

13

Z50B.13-4

1

螺栓

Bolt

12

955L0005-

14

Z50B.13-12A

1

左边齿

Left tooth

1

955L0005-

15

B-J07940A-00001

1

油杯M10×1

Grease cup

8

955L0005-

16

Z50B.13-1

1

外防尘圈115

Outer dust ring

8

955L0005-

17

Z50B.13.1

1

内防尘圈100

Inner dust ring

8

955L0005-

18

Z50E.13P.2.1

1

焊接连杆

Linkage

1(*)

955L0005-

Z50E.13R.2.1

1

焊接连杆

Linkage

1(#$)

955L0005-

19

Z50B.13.8-2A

1

轴套

Bushing

1

955L0005-

20

Z50B.13.8-1A

1

轴套

Bushing

1

955L0005-

21

B-G057830-00066

1

螺栓 M16×25ZnD

Bolt

8

955L0005-

22

B-Q01201E-00003

1

垫圈 16

Washer

8

955L0005-

23

Z50E.13N.3

1

销轴组件

Shaft assembly

2

955L0005-

24

Z50E.13P.1-1

1

动臂前轴套

Frontal bushing

2

955L0005-

25

Z50E.13N.5

1

销轴组件

Shaft assembly

1

955L0005-

26

Z50B.13.4

1

销轴组件

Shaft assembly

1

955L0005-

27

Z50B.13.13

1

内防尘圈110

Inner dust ring

12

955L0005-

28

Z50B.13.7-3A

1

动臂中轴套

Mid bushing

2

955L0005-

29

Z50B.13.5A

1

销轴组件

Shaft assembly

2

955L0005-

30

Z50B.13.7-1A

1

动臂后轴套

Tail bushing

2

955L0005-

31

Z50E.13P.1.1

1

焊接动臂

Lift arm

1(*)

955L0005-

Z50E.13R.1.1

1

焊接动臂

Lift arm

1(#)

955L0005-

Z50E.13S.1.1

1

焊接动臂

Lift arm

1($)

955L0005-

32

Z50E.13N.6

1

销轴组件

Shaft assembly

1

955L0005-

33

Z50B.13.12

1

内防尘圈 115

Inner dust ring

2

955L0005-

34

Z50E.13P.3-1

1

铸钢摇臂

Rocker arm

1

955L0005-

35

Z50B.13.9-1A

1

轴套

Bushing

2

955L0005-

36

Z50B.13.11

1

内防尘圈 135

Inner dust ring

2

955L0005-

37

Z50B.13-15

1

垫片

Pad

3

955L0005-

38

Z50B.13-2

1

垫片

Pad

3

955L0005-

39

Z50B.13-3

1

垫片

Pad

3

955L0005-

40

Z50E.13N.4

1

销轴组件

Shaft assembly

2

955L0005-
