SINOMACH CHANGLIN 955N wheel loader parts catalog 09

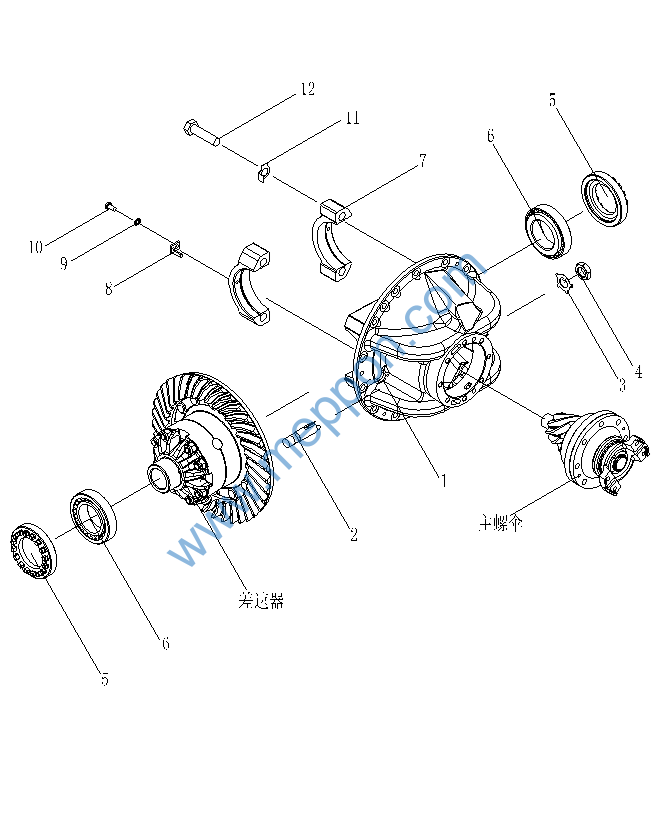

后桥主传动（Ⅲ） Rear Axle Main Drive（Ⅲ）
后桥主传动（Ⅲ）
Rear Axle Main Drive（Ⅲ）
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
Z50B.6.1-3 |
1 |
托架 |
Bracket |
2 |
955N0005- |
|
|
2 |
Z50B.6.1.2 |
1 |
止推螺栓 |
Bolt |
2 |
955N0005- |
|
|
3 |
Z50B.6.1-4 |
1 |
锁紧垫片 |
Lock blade |
2 |
955N0005- |
|
|
4 |
B-G061730-00014 |
1 |
螺母M27×2 |
Nut |
2 |
955N0005- |
|
|
5 |
Z50B.6.1-5 |
1 |
差速器螺母 |
Nut |
4 |
955N0005- |
|
|
6 |
B-G002970-00021 |
1 |
轴承32216 |
Bearing |
4 |
955N0005- |
|
|
7 |
Z50B.6.1-14 |
1 |
瓦盖 |
Cover |
4 |
955N0005- |
|
|
8 |
Z50B.6.1-6 |
1 |
锁紧片 |
Lock spacer |
4 |
955N0005- |
|
|
9 |
B-G008550-00001 |
1 |
垫圈10 |
Washer |
4 |
955N0005- |
|
|
10 |
B-G057860-00001 |
1 |
螺栓M10×1×20 |
Bolt |
4 |
955N0005- |
|
|
11 |
B-G008550-00003 |
1 |
垫圈22 |
Washer |
8 |
955N0005- |
|
|
12 |
B-G057820-00239 |
1 |
螺栓M22×85 |
Bolt |
8 |
955N0005- |
|

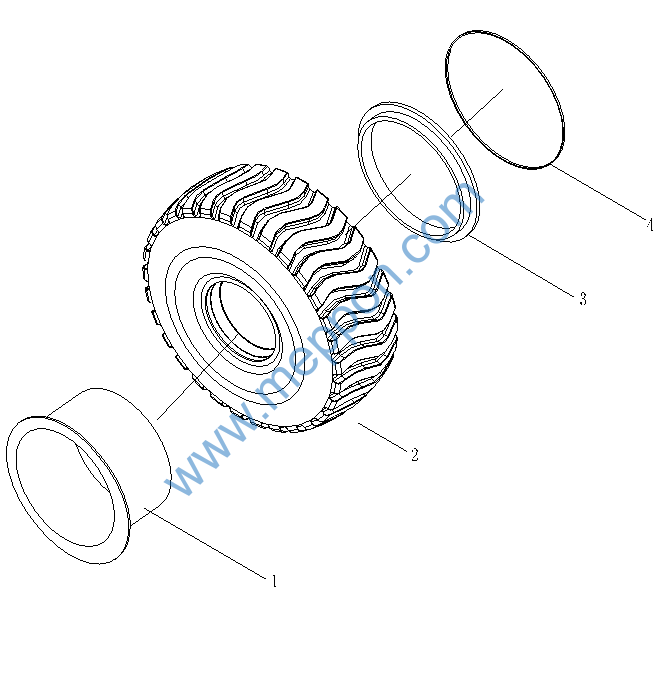

车 轮 Wheel Ass’y
车 轮 Wheel Ass’y
|
序号 No. |
零 Part No. |
版本 Ver. |
名 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
Z50B.6.2A-1 |
1 |
轮辋体-轮辐组件I |
Rim wheel |
4 |
0005-0089 |
|
|
956.6A.2-1 |
1 |
轮辋体 |
Rim wheel |
4 |
00090- |
||
|
2 |
W-14-00013 |
1 |
轮胎23.5-25-16PR L-3 |
Tire |
4 |
955N0005- |
|
|
3 |
Z50B.6.2A-3 |
1 |
挡座圈 |
Snap race ring |
4 |
0005-0089 |
|
|
956.6A.2-3 |
1 |
外轮缘 |
Snap race ring |
4 |
0090- |
||
|
4 |
Z50B.6.2A-2 |
1 |
锁圈 |
Lock ring |
4 |
0005-0089 |
|
|
956.6A.2-2 |
1 |
锁圈 |
Lock ring |
4 |
0090- |
||

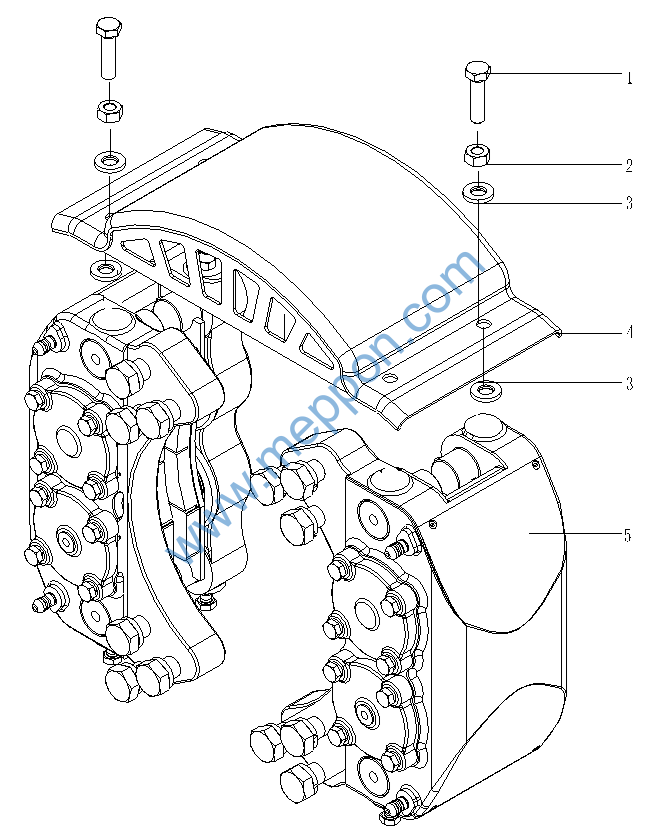

制动钳保护罩 Protective Cover
制动钳保护罩 Protective Cover
|
序号 No. |
零 件 代 号 Part No. |
版本 Ver. |
名 称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
选装 Cho |
|
|
1 |
B-G057830-00015 |
1 |
螺栓M10×40ZnD |
Bolt |
8 |
955N0005- |
|
|
2 |
B-G061700-00003 |
1 |
螺母M10ZnD |
Nut |
8 |
955N0005- |
|
|
3 |
B-Q020490-00001 |
1 |
垫圈10 |
Washer |
16 |
955N0005- |
|
|
4 |
955L.6.1A |
1 |
制动钳保护罩 |
protective cover |
2 |
955N0005- |
|
|
5 |
W-18-00059 |
1 |
制动器总成75700444F |
Washer |
4 |
955N0005- |
|
