序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

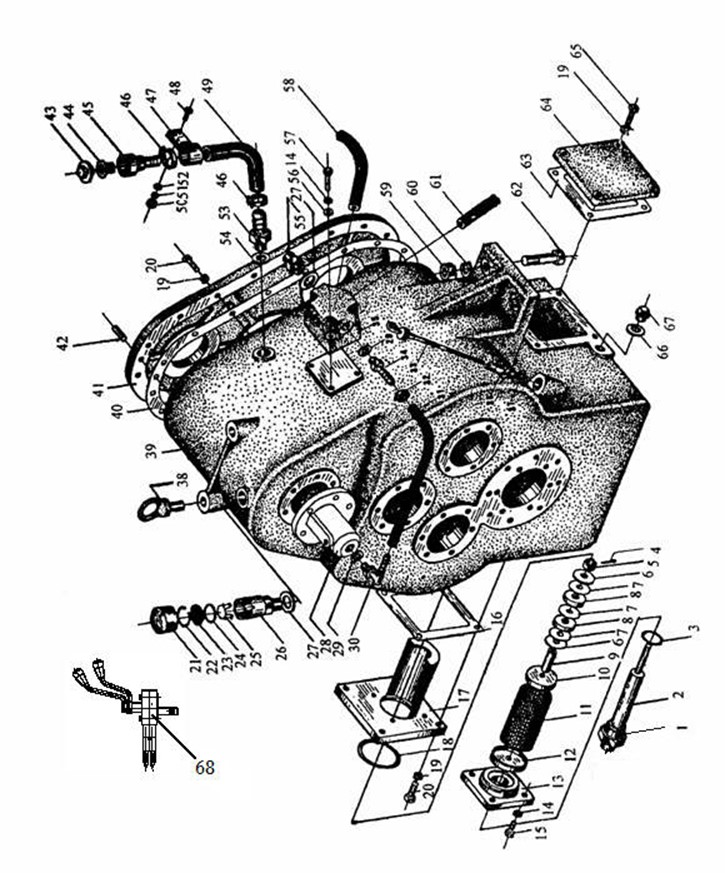

44

Z50B.4.16.1

1

滤网

Strainer

1

9560007-

45

Z50B.4.16-2

1

加油口

Oil filler mouth

1

9560007-

46

B-J088700-00015

1

喉箍 d40

Clip

2

9560007-

47

Z50B.4.16-4

1

夹板

Clamped plate

1

9560007-

48

B-G057830-00130

1

螺栓 M6×16 ZnD

Bolt

2

9560007-

49

Z50B.4.16-3

1

输油胶管φ25×35×1000

Hose

1

9560007-

50

B-G061700-00034

1

螺母 M6 ZnD

Nut

2

9560007-

51

B-G000930-00015

1

垫圈 6

Washer

2

9560007-

52

B-G00097B-00021

1

垫圈 6 ZnD

Washer

2

9560007-

53

B-Q01202L-00002

1

接头体 M30×1.5

Joint body

1

9560007-

54

B-J010020-00010

1

垫圈 30

Washer

1

9560007-

55

Z30.2M.4-1

1

接头

Joint

1

9560007-

56

B-G00097B-00023

1

垫圈 8

Washer

3

9560007-

57

B-G057820-00162

1

螺栓 M8×50 ZnD

Bolt

3

9560007-

58

Z50B.4.15-4

1

输油胶管
φ16×26×720

Hose

1

9560007-

59

B-G061720-00008

1

螺母M20ZnD

Nut

4

9560007-

60

B-G000930-00008

1

垫圈 20

Washer

4

9560007-

61

Z50B.4.15-3

1

输油胶管
φ16×26×560

Hose

1

9560007-

62

Z50B.4-5

1

纸垫

Paper pad

1

9560007-

63

Z50B.4-6

1

盖

Cover

1

9560007-

64

B-G057830-00012

1

螺栓M10×35ZnD

Bolt

4

9560007-

65

B-J010020-00008

1

垫圈 24 ZnD

Washer

1

9560007-

66

B-J010000-00010

1

螺塞 M24×1.5 ZnD

Plug

1

9560007-

67

B-G057830-00104

1

螺栓 M20×80 ZnD

Bolt

4

9560007-

68

W-03-00213

1

变速操纵WJ11-50-24-956

Flexibl shaft manipulation

1

9560007-

30+1

Z30.4M.1.1

1

管接头

Joint

3

9560007-

序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

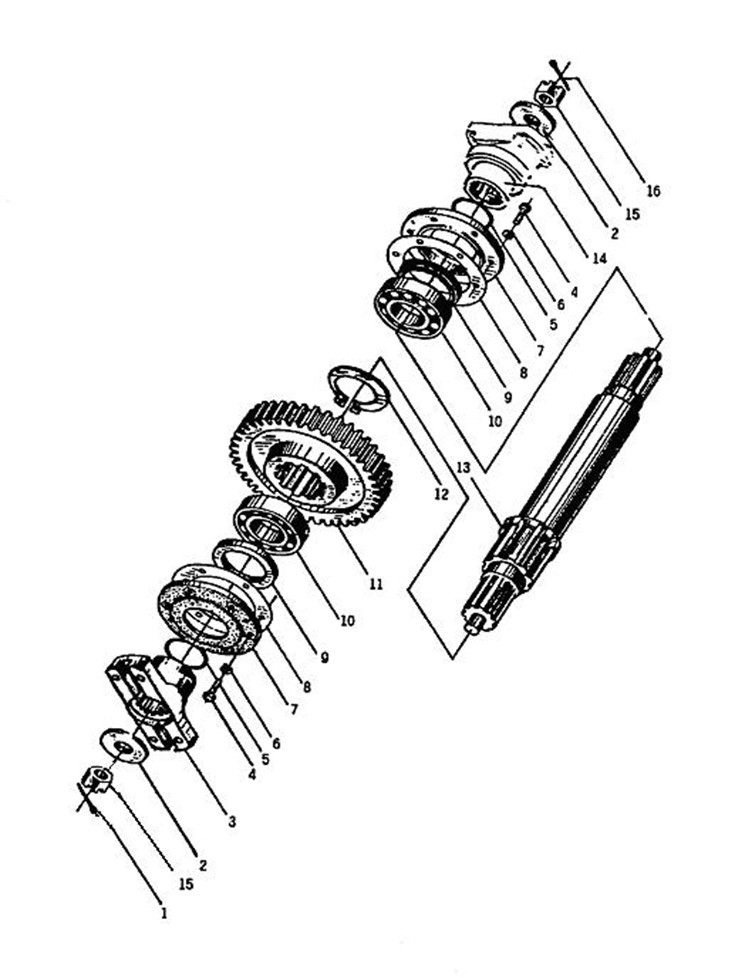

1

B-G000910-00049

1

开口销 5×45

Cotter pin

1

9560007-

2

Z50B.4.1-6

1

垫圈

Washer

2

9560007-

3

Z50B.4.1A-1

1

前法兰

Front flange

1

9560007-

4

B-G057830-00010

1

螺栓 M10×30 ZnD

Bolt

12

9560007-

5

B-Q020710-00088

1

O形密封圈 65×5.7

O-ring

2

9560007-

6

B-G000930-00001

1

垫圈 10

Spring washer

12

9560007-

7

Z50B.4.1-2

1

轴承盖

Bearing cover

2

9560007-

8

Z50B.4.1-3

1

纸垫

Paper pad

2

9560007-

9

B-G09877A-00049

1

油封 FB75×100×12B

Oil seal

2

9560007-

W-15-00115

1

油封AE3618A0(NOK)

Oil seal

2

9560007-

10

B-G002970-00019

1

滚动轴承32212

Bearing

2

9560007-

11

Z50E.4.1-1L

1

输出轴齿轮

Output shaft gear

1

9560007-

12

B-G00894A-00023

1

挡圈 82

Retainer

1

9560007-

13

Z50B.4.1A-2

1

输出轴

Output shaft

1

9560007-

14

Z50E.4E.1-5

1

后法兰

Rear flange

1

9560007-

15

B-G094590-00003

1

螺母 M24×1.5

Nut

2

9560007-

16

B-G000910-00049

1

开口销 5×45

Cotter pin

1

9560007-

序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

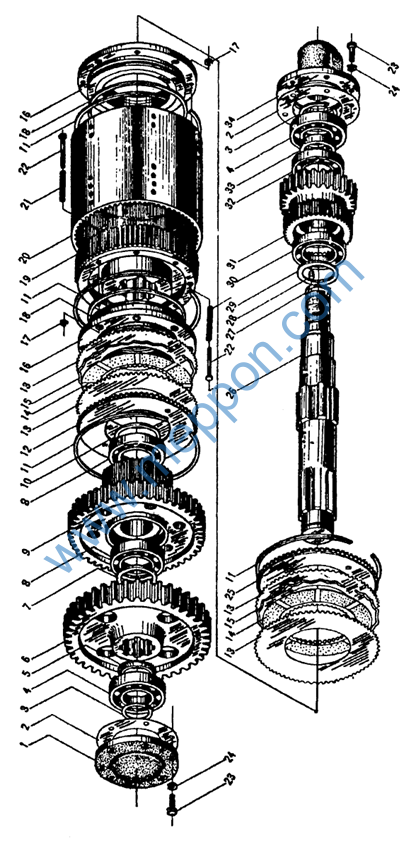

1

Z50B.4.2-1

1

轴承盖

Bearing cover

1

9560007-

2

Z50B.4.2-19

1

纸垫

Paper pad

2

9560007-

3

B-G00894A-00019

1

挡圈 55

Snap ring

2

9560007-

4

B-G002760-00032

1

轴承 6311

Bearing

2

9560007-

5

Z50B.4.2-2

1

垫环

Spacer ring

1

9560007-

6

Z20E.4.2-1A

1

输出齿轮

Output gear

1

9560007-

7

Z50B.4.2-25

1

轴套

Bushing

1

9560007-

8

B-G002760-00010

1

轴承 6013

Bearing

2

9560007-

9

956.4A.1-1L

1

二档离合器齿轮

Gear

1

9560007-

10

Z50B.4.2-14

1

垫环

Spacer ring

1

9560007-

11

Z50B.4.2-11

1

卡环

Snap ring

4

9560007-

12

Z50B.4.2-26

1

二挡压盖

1st and 2nd cover

1

9560007-

13

Z50B.4.2-7

1

主动摩擦片

Drive disc

20

9560007-

14

Z50B.4.2-8

1

从动摩擦片

Driven disc

18

9560007-

15

Z50B.4.2-15

1

波形弹簧

Wave spring

36

9560007-

16

Z50B.4.2-12

1

活塞

Piston

2

9560007-

17

Z50B.4.2-23

1

挡圈

Snap ring

8

9560007-

18

Z50B.4.2-24

1

矩形密封圈

Searing

2

9560007-

19

Z50B.4.2-13

1

缸体

Cylinder body

1

9560007-

20

Z50B.4.2-5

1

齿圈

Gear ring

1

9560007-

21

Z50B.4.2-10

1

活塞回位弹簧

Retraction spring

8

9560007-

22

Z50B.4.2-9

1

活塞回位拉杆

Retraction drag rod

8

9560007-

23

B-G057830-00010

1

螺栓 M10×30 ZnD

Bolt

12

9560007-

24

B-G000930-00001

1

垫圈 10

Spring washer

12

9560007-

25

Z50B.4.2-22

1

压盖

Cover

1

9560007-

26

Z50B.4.2-21

1

轴

Shaft

1

9560007-

27

Z30.4.1-19

1

油封环

Oil seal ring

4

9560007-

28

B-G000780-00006

1

螺钉 M12×12

Screw

2

9560007-

29

Z50B.4.2-16

1

轴承垫

Bearing washer

1

9560007-

30

B-G002760-00009

1

轴承 6012

Bearing

1

9560007-

31

Z50E.4.2-3

1

齿轮

Gear

1

9560007-

32

B-G002760-00008

1

轴承 6011

Bearing

1

9560007-

33

Z50B.4.2-18

1

轴套

Bushing

1

9560007-

34

Z50B.4.2-20

1

轴承盖

Bearing cover

1

9560007-

序号

No.

零
件
代
号

Part No.

版本

Ver.

名
称

Part Name

数量

Q’ty

适用车号

Suit Num.

选装

Cho

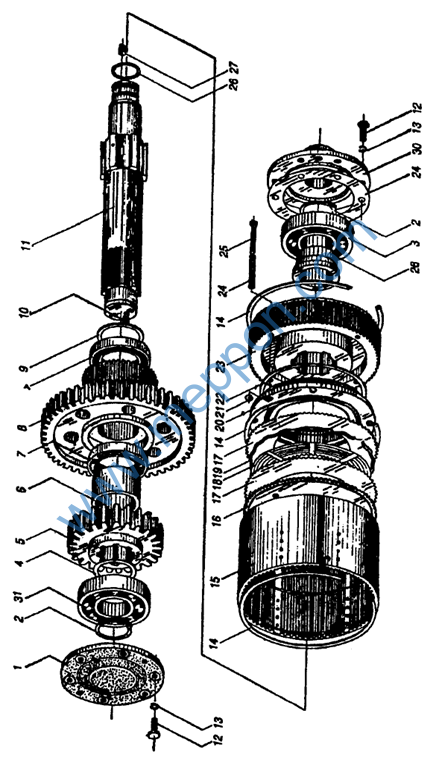

1

Z50B.4.2-1

1

轴承盖

Bearing cover

1

9560007-

2

B-G00894A-00019

1

挡圈 55

Snap ring

2

9560007-

3

B-G002760-00032

1

滚动轴承6311

Bearing

1

9560007-

4

Z50B.4.2-2

1

垫环

Spacer ring

1

9560007-

5

Z50B.4.3A-2

1

输出齿轮

Output gear

1

9560007-

6

Z50B.4.3-2

1

轴套

Bushing

1

9560007-

7

B-G002760-00010

1

滚动轴承6013

Bearing

2

9560007-

8

Z50E.4.3-2

1

齿轮

Gear

1

9560007-

9

Z50B.4.2-14

1

垫圈

Spacer ring

1

9560007-

10

Z50B.4.2-6

1

螺塞

Plug

1

9560007-

11

Z50E.4.3-5

1

轴

Shaft

1

9560007-

12

B-G057830-00010

1

螺栓 M10×30 ZnD

Bolt

12

9560007-

13

B-G000930-00001

1

垫圈 10

Washer

12

9560007-

14

Z50B.4.2-11

1

卡环

Snap ring

3

9560007-

15

Z50B.4.3-5

1

齿圈

Gear ring

1

9560007-

16

Z50B.4.3-4

1

一挡压盖

1st cover

1

9560007-

17

Z50B.4.2-7

1

主动摩擦片

Drive disc

14

9560007-

18

Z50B.4.2-8

1

从动摩擦片

Driven disc

13

9560007-

19

Z50B.4.2-15

1

波形弹簧

Wave spring

26

9560007-

20

Z50B.4.2-12

1

活塞

Piston

1

9560007-

21

Z50B.4.2-23

1

挡圈

Retainer

4

9560007-

22

Z50B.4.2-24

1

矩形密封圈

Seal ring

1

9560007-

23

Z50E.4.3-3

1

缸体

Cylinder body

1

9560007-

24

Z50B.4.2-10

1

活塞回位弹簧

Retraction spring

4

9560007-

25

Z50B.4.2-9

1

活塞回位拉杆

Retraction drag rod

4

9560007-

26

Z30.4.1-19

1

油封环

Oil seal ring

2

9560007-

27

B-G000780-00006

1

螺钉 M12×12

Screw

1

9560007-

28

Z50E.4.3-4

1

隔套

Collar

1

9560007-

29

Z50B.4.2-19

1

纸垫

Paper pad

1（组）

9560007-

30

Z50B.4.3-7

1

轴承盖

Bearing cover

1

9560007-

31

W-03-00102

1

滚动轴承6411(TWB)

Bearing

1

9560007-
