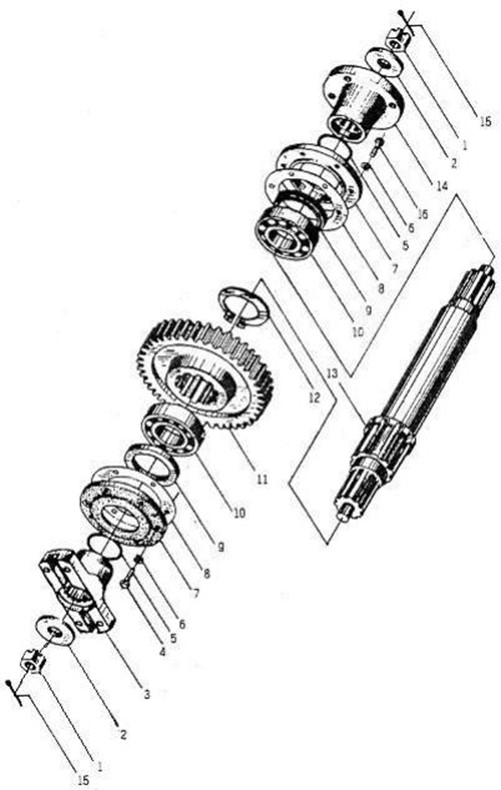

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

W-04-00009

1

孔用弹性挡圈

Snap ring

8

9570001-

2

W-04-00029

1

防尘圈

Seal ring

8

9570001-

3

W-04-00013

1

十字轴滚针轴承总成 Needle bearing ass’y

8

9570001-

4

B-J07940A-00001

1

油杯 M10×1

Grease fitting

4

9570001-

5

Z50B.3-1

1

套管叉

Spline yoke

2

9570001-

6

W-04-00016

1

堵盖

Spider

2

9570001-

7

W-04-00012

1

十字轴

Cover

2

9570001-

8

Z30.3B-2

1

突缘叉

Yoke

2

9570001-

9

B-G008890-00005

1

螺母 M14×1.5 ZnD Nut

8

9570001-

10

B-G00097B-00006

1

垫圈 14 ZnD

Washer

8

9570001-

11

Z50B.3-1

1

中间轴管

Shaft Pipeline

1

9570001-

12

B-G057850-00013

1

螺栓 M14×1.5×45 Bolt

8

9570001-

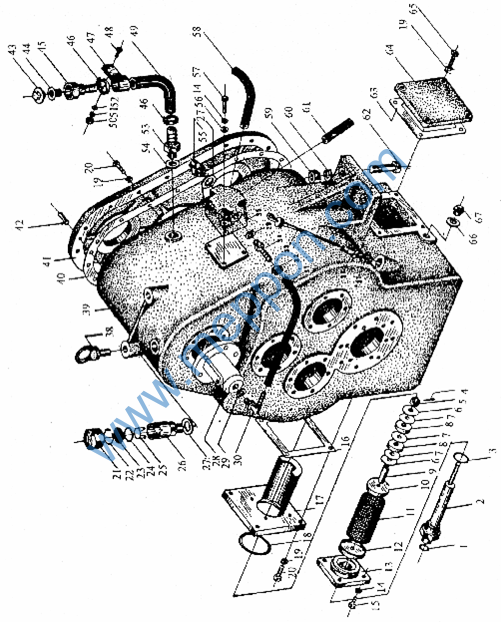

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

1

B-Q020710-00042

1

O 形密封圈 25×2.4 O-ring

1

9570001-

2

Z30.4.21-4

1

管

Tube

11

9570001-

3

B-Q020710-00070

1

O 形密封圈 45×3.5 O-ring

1

9570001-

4

B-G000910-00023

1

销 2×36 ZnD

Pin

1

9570001-

5

B-G061780-00002

1

螺母 M10ZnD

Nut

1

9570001-

6

Z30.4.21-12

1

铝垫

Al-washer

2

9570001-

7

Z30.14.8.3-3

1

隔垫

Spacer washer

15

9570001-

8

Z30.14.8.3-2

1

永磁铁

Magnet iron

4

9570001-

9

Z30.4.21-1

1

铝管

Al-pipe

1

9570001-

10

Z30.4.21-3

1

滤清器下端盖 Filter lower cover

1

9570001-

11

Z30.4.21-10

1

滤清器骨架及滤网 Filter frame and gauze

1

9570001-

12

Z30.4.21-5

1

滤清器上端盖 Filter upper cover

1

9570001-

13

Z30.4.21-8

1

法兰盘

Flange disk

1

9570001-

14

B-G000930-00017

1

垫圈 8

Washer

7

9570001-

15

B-G057830-00143

1

螺栓 M8×25 ZnD

Bolt

4

9570001-

16

Z30.4.21-6

1

垫

Washer

1

9570001-

17

Z30.4.21-7

1

盖板及罩

Cover and cap

1

9570001-

18

B-Q020710-00104

1

O 形密封圈 90×3.1 O-ring

1

9570001-

19

B-J010020-00001

1

垫圈 10

Washer

32

9570001-

20

B-G057830-00012

1

螺栓 M10×35 ZnD

Bolt

28

9570001-

21

Z30.4.16-3

1

外套

Outer cover

1

9570001-

22

B-G00895A-00001

1

挡圈 40

Retainer

1

9570001-

23

Z30.4.16.1

1

过滤盘

Filter plate

1

9570001-

24

B-Q020710-00064

1

O 形密封圈 40×3.5 O-ring

1

9570001-

25

Z30.4.16-2

1

杯盖

Cover

1

9570001-

26

Z30.4.16-1

1

通气杯

Aerate cup

1

9570001-

27

B-J010020-00010

1

垫圈 30

Washer

2

9570001-

28

Z50B.4.6-1

1

轴承盖

Bearing cover

1

9570001-

29

B-J010020-00009

1

垫圈 27

Washer

6

9570001-

30

Z30.4M.1.1

1

管接头

Elbow

3

9570001-

31

Z50B.4.15-2

1

输油胶管φ16×26×430 Hose

1

9570001-

32

B-J088700-00014

1

喉箍 d32

Clip

6

9570001-

33

Z50B.4.9

1

油尺

Oil gauge

1

9570001-

34

Z30.4.17-3

1

管接头

Joint body

3

9570001-

35

Z50B.4.15-1

1

冷却器分流体

Diverter

1

9570001-

36

Z50B.4.9-2

1

油尺座

Gauge seat

1

9570001-

37

B-J010020-00007

1

垫圈 22

Washer

1

9570001-

38

B-G008250-00003

1

吊环螺钉 M20ZnD Screw

2

9570001-

39

Z50E.4A-1B

1

箱体

Case

1

9570001-

序号

No.

零 件 代 号

Part No.

版本

Ver.

名 称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装

Cho

40

Z50E.4-4

1

纸垫

Paper pad

1

9570001-

41

Z50E.4-3

1

箱盖

Cover

1

9570001-

42

B-G001180-00002

1

销 A12×35

Pin

2

9570001-

43

Z50B.4.16-1

1

加油口盖

Cover

1

9570001-

44

Z50B.4.16.1

1

滤网

Strainer

1

9570001-

45

Z50B.4.16-2

1

加油口

Oil filler mouth

1

9570001-

46

B-J088700-00015

1

喉箍 d40

Clip

2

9570001-

47

Z50B.4.16-4

1

夹板

Clamped plate

1

9570001-

48

B-G057830-00130

1

螺栓 M6×16 ZnD

Bolt

2

9570001-

49

Z50B.4.16-3

1

输油胶管φ25×35×1100 Hose

1

9570001-

50

B-G061700-00034

1

螺母 M6 ZnD

Nut

2

9570001-

51

B-G000930-00015

1

垫圈 6

Washer

2

9570001-

52

B-G00097B-00021

1

垫圈 6

Washer

2

9570001-

53

B-Q01202L-00002

1

接头体 M30×1.5 Joint body

1

9570001-

54

B-J010020-00010

1

垫圈 30

Washer

1

9570001-

55

Z30.2M.4-1

1

接头

Joint body

1

9570001-

56

B-G00097B-00023

1

垫圈 8ZnD

Washer

3

9570001-

57

B-G057820-00162

1

螺栓 M8×50 ZnD

Bolt

3

9570001-

58

Z50B.4.15-4

1

输油胶管φ16×26×720 Hose

1

9570001-

59

B-G061720-00008

B-G061700-00018

1

1

螺母 M20ZnD(双螺母型) 螺母 M20ZnD

Nut

Nut

4

4

9570001-

9570001-

60

B-G000930-00008

1

垫圈 20

Washer

4

9570001-

61

Z50B.4.15-3

1

输油胶管φ16×26×560 Hose

1

9570001-

62

B-G057830-00104

1

螺栓 M20X80ZnD

Bolt

4

9570001-

63

B-J010020-00008

1

垫圈 24

Washer

1

9570001-

64

B-J010000-00010

1

螺塞M24×1.5

Plug

1

9570001-
