SINOMACH CHANGLIN 957H wheel loader parts catalog cummins engine 07

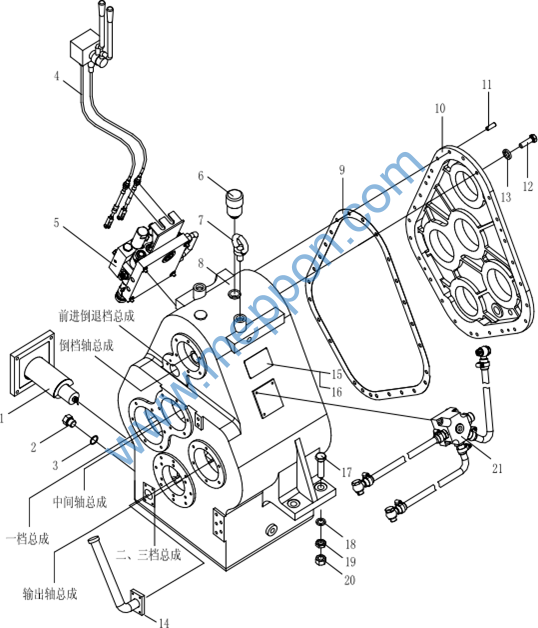

变速箱体及附件 Transmission And Accessories
变速箱体及附件 Transmission And Accessories
序号 No. |
零件代号 Part No. |
版本 Ver. |
名称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
是否配件 Spare Parts |
选装 Cho |
|
Z-95H-04C-00000 |
1 |
变速箱总成 957H.4C Transmission Ass’y |
1 |
957H0556- |
||||
1 |
Z-956-040-00002 |
1 |
滤清器总成 956.4.7 Filter ass’y |
1 |
957H0556- |
|||
2 |
B-J010000-00010 |
1 |
螺塞 M24×1.5 Plug |
1 |
957H0556- |
|||
3 |
B-J010020-00008 |
1 |
垫圈 24 变速操纵 |
Washer |
1 |
957H0556- |
||
4 |
W-03-00480 |
1 |
Flexible shaft manipulation WJ11-50- 151-956M |
1 |
957H0556- |
|||
5 |
Z-956-040-00012 |
1 |
档位阀 956.4.8 Clutch valve |
1 |
957H0556- |
|||
6 |
YZ16. 14D.6 |
1 |
通气塞 |
Aerate plug |
1 |
957H0556- |
||
7 |
B-G008250-00003 |
1 |
吊环螺钉 M20ZnD Screw |
2 |
957H0556- |
|||
8 |
Z-95M-040-00005 |
1 |
箱体 956M.4- 1 Case |
1 |
957H0556- |
|||
9 |
Z- 15E-040-00014 |
1 |
纸垫 Z50E.4-4 Paper pad |
1 |
957H0556- |
|||
10 |
Z- 15E-040-00013 |
1 |
箱盖 Z50E.4-3 Cover |
1 |
957H0556- |
|||
11 |
B-G001180-00002 |
1 |
销 A12×35 |
Pin |
2 |
957H0556- |
||
12 |
B-G057830-00012 |
1 |
螺栓 M10×35ZnD Bolt |
25 |
957H0556- |
|||
13 |
B-G000930-00001 |
1 |
垫圈 10 |
Washer |
25 |
957H0556- |
||
14 |
Z-95M-040-00001 |
1 |
加油管总成 956M.4.2 Oil filler hose ass’y |
1 |
957H0556- |
|||
15 |
Z-95M-040-00006 |
1 |
标牌 956M.4-2 Signs |
1 |
957H0556- |
|||
16 |
B-G008270-00005 |
1 |
铆钉 2×6 |
Rivet |
4 |
957H0556- |
||
17 |
B-G057830-00104 |
1 |
螺栓 M20×80ZnD Bolt |
4 |
957H0556- |
|||
18 |
B-G000930-00008 |
1 |
垫圈 20 |
Washer |
4 |
957H0556- |
||
19 |
B-G061720-00008 |
1 |
螺母 M20ZnD |
Nut |
4 |
957H0556- |
||
20 |
B-G061700-00018 |
1 |
螺母 M20ZnD |
Nut |
4 |
957H0556- |
||
21 |
Z-956-040-00011 |
1 |
冷却油分路器 956.4.6 Oil diverter |
1 |
957H0556- |

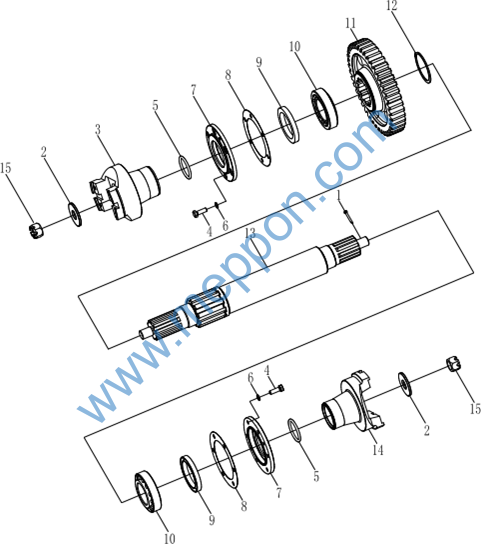

输出轴总成 Output Shaft Ass‘y
输出轴总成 Output Shaft Ass‘y
序号 No. |
零件代号 Part No. |
版本 Ver. |
名称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
是否配件 Spare Parts |
选装 Cho |
||
Z-95H-04C-00002 |
1 |
输出轴总成 957H.4C. 1 Output Shaft Ass’y |
1 |
957H0556- |
|||||
1 |
B-G000910-00049 |
1 |
销 5×45ZnD |
Pin |
2 |
957H0556- |
|||
2 |
Z- 15B-040-00003 |
1 |
垫圈 Z50B.4. 1-6 Washer |
2 |
957H0556- |
||||
3 |
Z- 15B-040-00058 |
1 |
前法兰 Z50B.4. 1A- 1 Front flange |
1 |
957H0556- |
||||
4 |
B-G057830-00010 |
1 |
螺栓 M10×30ZnD Bolt |
12 |
957H0556- |
||||
5 |
B-Q020710-00088 |
1 |
O 形密封圈 65×5.7 O-ring |
2 |
957H0556- |
||||
6 |
B-G000930-00001 |
1 |
垫圈 10 |
Spring washer |
12 |
957H0556- |
|||
7 |
Z- 15B-040-00001 |
1 |
轴承盖 Z50B.4. 1-2 Bearing cover |
2 |
957H0556- |
||||
8 |
Z- 15B-040-00002 Z- 15B-040-00067 Z- 15B-040-00042 |
1 1 1 |
纸垫 Z50B.4. 1-3A 纸垫 Z50B.4. 1-3B 纸垫 Z50B.4. 1-3C |
Paper Paper Paper |
pad pad pad |
4 4 4 |
957H0556- 957H0556- 957H0556- |
||
9 |
W- 15-00115 |
1 |
油封 AE3618A0(NOK) Oil seal |
2 |
957H0556- |
||||
10 |
B-G002970-00019 |
1 |
滚动轴承 32212 Bearing |
2 |
957H0556- |
||||
11 |
Z- 15E-040-00020 |
1 |
齿轮 Z50E.4. 1- 1A Gear |
1 |
957H0556- |
||||
12 |
B-G00894A-00023 |
1 |
挡圈 82 |
Retainer |
1 |
957H0556- |
|||
13 |
Z- 15B-040-00074 |
1 |
输出轴 Z50B.4. 1A-2 Output shaft |
1 |
957H0556- |
||||
14 |
Z- 15E-04E-00001 |
1 |
后法兰 Z50E.4E. 1-5 Rear flange |
1 |
957H0556- |
||||
15 |
B-G094590-00003 |
1 |
螺母 M24×1.5ZnD Nut |
2 |
957H0556- |

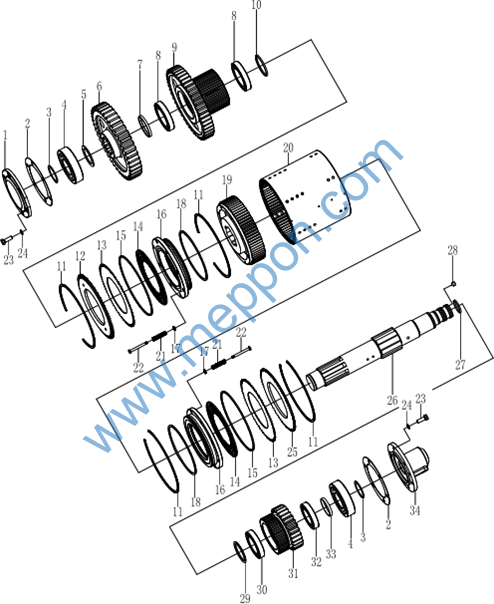

二、三档总成 2nd and 3rd Clutch Ass‘y
二、三档总成 2nd and 3rd Clutch Ass‘y
序号 No. |
零件代号 Part No. |
版本 Ver. |
名称 Part Name |
数量 Q’ty |
适用车号 Suit Num. |
是否配件 Spare Parts |
选装 Cho |
||
Z-95H-040-00002 |
1 |
二、三档总成 957H.4.2 2nd and 3rd Clutch Ass’y |
1 |
957H0556- |
|||||
1 |
Z- 15B-040-00086 |
1 |
轴承盖 Z50B.4.4A-5 Bearing cover |
1 |
957H0556- |
||||
2 |
Z- 15B-040-00073 Z- 15B-040-00011 Z- 15B-040-00012 |
1 1 1 |
纸垫 Z50B.4.2- 19A 纸垫 Z50B.4.2- 19B 纸垫 Z50B.4.2- 19C |
Paper Paper Paper |
pad pad pad |
4 4 4 |
957H0556- 957H0556- 957H0556- |
||
3 |
B-G00894A-00019 |
1 |
挡圈 55 |
Snap ring |
2 |
957H0556- |
|||
4 |
B-G002760-00032 |
1 |
轴承 6311 |
Bearing |
2 |
957H0556- |
|||
5 |
Z- 15B-040-00071 |
1 |
垫环 Z50B.4.2-2 Spacer ring |
1 |
957H0556- |
||||
6 |
Z- 15E-040-00028 |
1 |
输出齿轮 Z50E.4.2- 1A Output gear |
1 |
957H0556- |
||||
7 |
Z- 15B-040-00010 |
1 |
轴套 Z50B.4.2-25 Bushing |
1 |
957H0556- |
||||
8 |
B-G002760-00010 |
1 |
轴承 6013 |
Bearing |
2 |
957H0556- |
|||
– – – |
. . – |
– |
|||||||
10 |
Z- 15B-040-00019 |
1 |
垫环 Z50B.4.2- 14 Spacer ring |
1 |
957H0556- |
||||
11 |
Z- 15B-040-00020 |
1 |
卡环 Z50B.4.2- 11 Snap ring |
4 |
957H0556- |
||||
12 |
Z- 15B-040-00083 |
1 |
一挡压盖 Z50B.4.3-4 1st cover |
1 |
957H0556- |
||||
13 |
Z- 15B-040-00014 |
1 |
主动摩擦片 Z50B.4.2-7 Drive disc |
20 |
957H0556- |
||||
14 |
Z- 15B-040-00033 |
1 |
从动摩擦片 Z50B.4.2-8 Driven disc |
18 |
957H0556- |
||||
15 |
Z- 15B-040-00029 |
1 |
波形弹簧 Z50B.4.2- 15 Wave spring |
36 |
957H0556- |
||||
16 |
Z- 15B-040-00035 |
1 |
活塞 Z50B.4.2- 12 Piston |
2 |
957H0556- |
||||
17 |
Z- 15B-040-00016 |
1 |
挡圈 Z50B.4.2-23 Snap ring |
8 |
957H0556- |
||||
– – – |
. . – |
– |
|||||||
19 |
Z- 15B-040-00006 |
1 |
缸体 Z50B.4.2- 13 Cylinder body |
1 |
957H0556- |
||||
20 |
Z- 15B-040-00004 |
1 |
齿圈 Z50B.4.2-5 Gear ring |
1 |
957H0556- |
||||
21 |
Z- 15B-040-00017 |
1 |
活塞回位弹簧 Z50B.4.2-10 Retraction spring |
8 |
957H0556- |
||||
22 |
Z- 15B-040-00021 |
1 |
活塞回位拉杆 Z50B.4.2-9 Retraction drag rod |
8 |
957H0556- |
||||
23 |
B-G057830-00010 |
1 |
螺栓 M10×30ZnD Bolt |
12 |
957H0556- |
||||
24 |
B-G000930-00001 |
1 |
垫圈 10 |
Spring washer |
12 |
957H0556- |
|||
25 |
Z- 15B-040-00032 |
1 |
压盖 Z50B.4.2-22 Cover |
1 |
957H0556- |
||||
26 |
Z- 15B-040-00009 |
1 |
轴 Z50B.4.2-21 Shaft |
1 |
957H0556- |
||||
27 |
Z- 130-040-00024 |
1 |
油封环 Z30.4. 1- 19 Oil seal ring |
4 |
957H0556- |
||||
28 |
B-G000780-00006 |
1 |
螺钉 M12×12 Screw |
2 |
957H0556- |
||||
29 |
Z- 15B-040-00088 |
1 |
轴承垫 Z50B.4.2- 16 Bearing washer |
1 |
957H0556- |
||||
30 |
B-G002760-00009 |
1 |
轴承 6012 |
Bearing |
1 |
957H0556- |
|||
– – – |
. . – |
– |
|||||||
32 |
B-G002760-00008 |
1 |
轴承 6011 |
Bearing |
1 |
957H0556- |
|||
33 |
Z- 15B-040-00072 |
1 |
轴套 Z50B.4.2- 18 Bushing |
1 |
957H0556- |
||||
34 |
Z- 15B-040-00008 |
1 |
轴承盖 Z50B.4.2-20 Bearing cover |
1 |
957H0556- |
