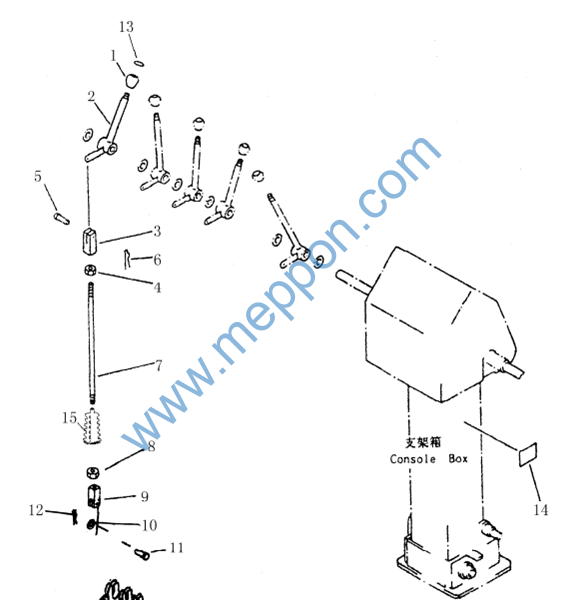

FIG.9401 前推土板操纵杆 HYDRAULIC CONTROL LEVER (FOR FRONT BLADE)













FIG.9401 前推土板操纵杆 HYDRAULIC CONTROL LEVER (FOR FRONT BLADE)

序号 No.

零 件 代 号

Part No.

版本 Ver.



名

称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装 Cho

1

722.15.2

1

操纵杆



LEVER

1

19030729-

Y

2

190C.15A.5

1

球形柄



KNOB

1

19030729-

Y

3

190C.15A-8

1

横夹(左螺纹)



YOKE, L.H.THREAD

1

19030729-

Y

4

B-G061720-00018

1

螺母M8-L-ZnD



NUT, L.H.THREAD

1

19030729-

Y

5

B-G008820-00040

1

销轴B8×22ZnD



PIN

1

19030729-

Y

6

190C.15A-17

1

开口销



PIN,SNAP

1

19030729-

Y

7

722.15-3

1

连杆



ROD

1

19030729-

Y

8

722.15-4

1

横夹



YOKE

1

19030729-

Y

9

B-G061700-00036

1

螺母M8 ZnD



NUT

1

19030729-

Y

10

190C.15A-2

1

销



PIN

1

19030729-

Y

11

190C.15A-17

1

开口销



PIN, SNAP

1

19030729-

Y

12

B-G008480-00010

1

垫圈6ZnD



SPACER

1

19030729-

Y

13

190C.15D-1

1

标贴



PLATE, OPERATING

1

19030729-

Y

14

722.15-1

1

橡皮套



LEATHER CASE

1

19030729-

Y

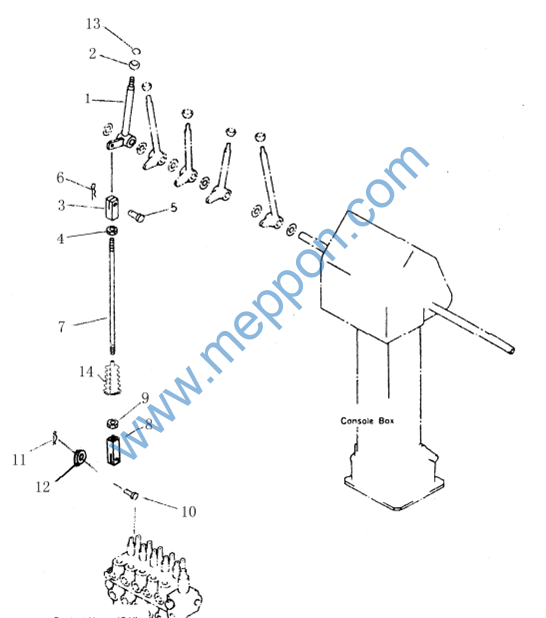

FIG.9403 前松土器液压操纵杆 HYDRAULIC CONTROL LEVER ( FOR SCARIFIER)







FIG.9403 前松土器液压操纵杆 HYDRAULIC CONTROL LEVER ( FOR SCARIFIER)

序号 No.

零 件 代 号

Part No.

版本 Ver.



名

称

Part Name

数量 Q’ty

适用车号

Suit Num.

选装 Cho

1

190C.15A.5

1

球形柄



KNOB

1

19030729-

Y

2

722.15.2

1

操纵杆



LEVER

1

19030729-

Y

3

190C.15A-8

1

横夹(左螺纹)



YOKE, L.H.THREAD

1

19030729-

Y

4

B-G061720-00018

1

螺母M8-L-ZnD



NUT, L.H.THREAD

1

19030729-

Y

5

B-G008820-00040

1

销轴B8×22ZnD



PIN

1

19030729-

Y

6

190C.15A-17

1

开口销



PIN,SNAP

1

19030729-

Y

7

722.15-3

1

连杆



ROD

1

19030729-

Y

8

B-G061700-00036

1

螺母M8 ZnD



NUT

1

19030729-

Y

9

722.15-4

1

横夹



YOKE

1

19030729-

Y

10

B-G008480-00010

1

垫圈6ZnD



SPACER

1

19030729-

Y

11

190C.15A-2

1

销



PIN

1

19030729-

Y

12

190C.15A-17

1

开口销



PIN, SNAP

1

19030729-

Y

13

190C.15B-2

1

标贴



PLATE OPERATING

1

19030729-

Y

14

190C.15B-1

1

标贴



PLATE, OPERATING

1

19030729-

Y

15

722.15-1



橡皮套



LEATHER CASE

1

19030729-

Y
