SINOMACH CHANGLIN YZK12HD road roller parts catalog 08
YZ14HD.14 振动液压系统 Hydraulic System
|
序号 Index |
零件代号 Part No. |
名 称 Description |
数量 Q’ty |
|
|
1 |
W-17-00041 |
马达|A10FM45/52W |
Motor |
1 |
|
2 |
YZ14HD.14-1 |
纸垫 |
Mat |
1 |
|
3 |
B-G057830-00033 |
螺栓M12x30-10.9ZnD |
Bolt |
2 |
|
4 |
B-Q020490-00003 |
垫圈12 |
Washer |
2 |
|
5 |
W-15-00171 |
O形圈24.99×3.53 |
O-ring |
4 |
|
6 |
W-15-00087 |
分离式法兰|FHS63 |
Flange |
8 |
|
7 |
B-G000930-00001 |
垫圈10 |
Washer |
16 |
|
8 |
B-G057830-00011 |
螺栓M10x35-10.9ZnD |
Bolt |
16 |
|
9 |
YZ14HD.19.1-2 |
橡胶夹 |
Nip |
6 |
|
10 |
YZ14HD.19.1-1 |
板 |
Plank |
3 |
|
11 |
B-G000930-00003 |
垫圈12 |
Washer |
6 |
|
12 |
B-G057820-00055 |
螺栓M12x80ZnD |
Bolt |
6 |
|
13 |
B-J010020-00011 |
垫圈33 |
Washer |
1 |
|
14 |
YZ14HD.14-3 |
接头体 |
Joint |
1 |
|
15 |
W-16-00729 |
软管总成 |
Hose ass’y |
1 |
|
16 |
W-16-00730 |
软管总成 |
Hose ass’y |
3 |
|
17 |
B-J010020-00002 |
垫圈12 |
Washer |
2 |
|
18 |
YZ14HD.19-14 |
接头体 |
Joint |
2 |
|
19 |
B-J010020-00003 |
垫圈14 |
Washer |
1 |
|
20 |
YZ14HD.19-13 |
接头体 |
Joint |
1 |
|
21 |
W-16-00728 |
软管总成 |
Hose ass’y |
1 |
|
22 |
B-J010020-00007 |
垫圈22 |
Washer |
1 |
|
23 |
YZ14HD.19-15 |
接头体 |
Joint |
1 |
|
24 |
W-16-00727 |
软管总成 |
Hose ass’y |
1 |
|
25 |
W-16-00726 |
软管总成 |
Hose ass’y |
1 |
|
26 |
W-16-00725 |
软管总成 |
Hose ass’y |
1 |
|
27 |
YZ14HD.14-2 |
接头体 |
Joint |
1 |
|
28 |
W-15-00003 |
O形圈ORAR00910(19.18×2.46) |
O-ring |
1 |

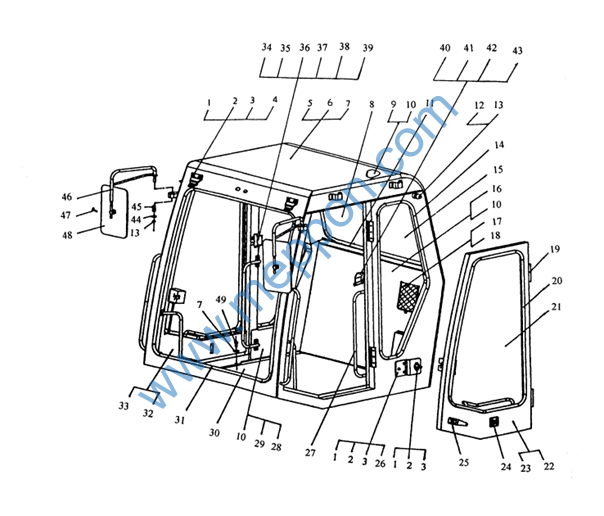

YZ14HD.16 驾驶室（一） Cab（1）
YZ14HD.16 驾驶室（一） Cab（1）
|
序号 Index |
零件代号 Part No. |
名 称 Description |
数量 Q’ty |
|
|
1 |
B-G057830-00146 |
螺栓M8x30ZnD |
Blot |
14 |
|
2 |
B-G000930-00017 |
垫圈8 |
Washer |
26 |
|
3 |
B-G00097B-00023 |
垫圈8ZnD |
Washer |
26 |
|
4 |
YZ18F.16B.4-5 |
灯架 |
Lamp suport |
2 |
|
5 |
YZ18F.16B.4.3 |
驾驶室骨架 |
Cab |
1 |
|
6 |
B-G057830-00050 |
螺栓M12x65ZnD |
Blot |
3 |
|
7 |
B-Q020490-00003 |
垫圈12ZnD |
Washer |
15 |
|
8 |
YZ18F.16B.4-9 |
玻璃（后） |
Glass |
1 |
|
9 |
YZ18F.16B.4.4 |
顶板 |
Tip plate |
1 |
|
10 |
W-09-00028 |
塑扣 |
Plastic button |
50 |
|
11 |
YZ18F.16B.4-10 |
压条（后） |
Pressure stripe |
1 |
|
12 |
190C.16E.2.9 |
缓冲器 |
Shock rubber |
2 |
|
13 |
B-G061700-00003 |
螺母M10ZnD |
Nut |
4 |
|
14 |
YZ18F.16B.4-2 |
压条（侧） |
Pressure stripe |
2 |
|
15 |
YZ18F.16B.4-3 |
玻璃（侧） |
Glass |
2 |
|
16 |
YZ14H.16.2 |
后胡板 |
Rear plate |
1 |
|
17 |
Z30.16.4E.18 |
袋 |
Bag |
1 |
|
18 |
B-G008180-00008 |
螺钉M4x16ZnD |
Screw |
3 |
|
19 |
Z30.16.4E.2.5 |
铰链 |
Hinge |
4 |
|
20 |
YZ18F.16B.4.1-1 |
压条 |
Pressure stripe |
2 |
|
21 |
YZ18F.16B.4.1-2 |
玻璃 |
Glass |
2 |
|
22 |
YZ18F.16B.4.1.1 |
左门框 |
Door L.H |
1 |
|
23 |
YZ18F.16B.4.1.3 |
左门护板 |
Left plate |
1 |
|
24 |
W-09-00009 |
碰锁 |
Lock |
2 |
|
25 |
W-09-00008 |
门锁 |
Lock |
左右各一 |
|
26 |
YZ18F.16B.4-1 |
板 |
Plate |
2 |
|
27 |
YZ18F.16B.4.3.12 |
扶手 |
Handdrail |
2 |
|
28 |
YZ18F.16B.4.8 |
左板 |
Left plate |
1 |
YZ14HD.16 驾驶室（一） Cab（1）
|
序号 Index |
零件代号 Part No. |
名 称 Description |
数量 Q’ty |
|
|
29 |
YZ18F.16B.4.9 |
右板 |
Right plate |
1 |
|
30 |
YZ18F.16B.4-6 |
玻璃（前） |
Glass |
1 |
|
31 |
YZ18F.16B.4-7 |
压条（前） |
Pressure stripe |
1 |
|
32 |
YZ18F.16B.4.2.1 |
右门框 |
Door R.H |
1 |
|
33 |
YZ18F.16B.4.2.3 |
右门护板 |
Right plate |
1 |
|
34 |
YZ18F.16B.4.7 |
支架 |
Bracket |
1 |
|
35 |
W-09-00026 |
水杯座 |
Water cup seat |
1 |
|
36 |
B-G057830-00139 |
螺栓M8x20ZnD |
Blot |
2 |
|
37 |
B-G008180-00010 |
螺钉M4x20ZnD |
Blot |
6 |
|
38 |
B-G000930-00013 |
垫圈4 |
Washer |
6 |
|
39 |
B-G00097B-00021 |
垫圈4 ZnD |
Washer |
6 |
|
40 |
190C.16E.2.14 |
烟灰缸 |
Ashtray |
1 |
|
41 |
190C.16E.2.15 |
支架 |
Bracket |
1 |
|
42 |
B-G057830-00126 |
螺栓M6x10ZnD |
Blot |
2 |
|
43 |
B-G008190-00003 |
螺钉M4x6ZnD |
Blot |
1 |
|
44 |
YZ18F.16.4-11 |
垫圈 |
Washer |
2 |
|
45 |
YZ18F.16.4-10 |
弹簧 |
Spring |
2 |
|
46 |
YZ18F.16.4.4 |
反光镜支架 |
Reflector support |
2 |
|
47 |
B-G000910-00006 |
开口销1.6×25 |
Pin |
2 |
|
48 |
W-09-00023 |
室外反光镜 |
Reflector |
2 |
|
49 |
B-G057830-00034 |
螺栓M12x30ZnD |
Blot |
12 |

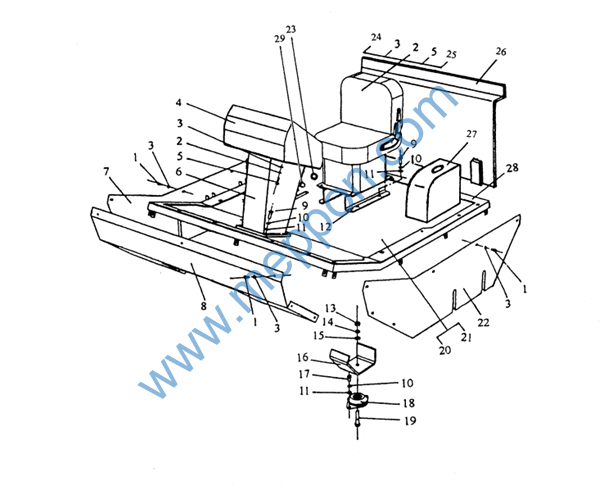

YZ14HD.16 驾驶室（二） Cab（2）
YZ14HD.16 驾驶室（二） Cab（2）
|
序号 Index |
零件代号 Part No. |
名 称 Description |
数量 Q’ty |
|
|
1 |
B-G057830-00139 |
螺栓M8x20ZnD |
Blot |
15 |
|
2 |
B-G000930-00017 |
垫圈8 |
Washer |
8 |
|
3 |
B-G00097B-00023 |
垫圈8ZnD |
Washer |
23 |
|
4 |
YZ14HD.16.2 |
仪表盒 |
Instrument box |
1 |
|
5 |
B-G057830-00146 |
螺栓M8x30ZnD |
Blot |
8 |
|
6 |
YZ14HD.16.3 |
仪表立柱 |
Instrument support |
1 |
|
7 |
YZ14HD.16-4 |
右盖 |
Right cover |
1 |
|
8 |
YZ14HD.16.5 |
前盖 |
Front cover |
1 |
|
9 |
B-G057830-00037 |
螺栓M12x35ZnD |
Blot |
8 |
|
10 |
B-G000930-00003 |
垫圈12 |
Washer |
16 |
|
11 |
B-G00097B-00004 |
垫圈12ZnD |
Washer |
16 |
|
12 |
YZ14H.16-4 |
椅下支架 |
Support |
2 |
|
13 |
B-G061700-00014 |
螺母M16 ZnD |
Nut |
4 |
|
14 |
B-G000930-00006 |
垫圈16 |
Washer |
4 |
|
15 |
B-G00097B-00008 |
垫圈16 ZnD |
Washer |
4 |
|
16 |
YZ14.16C.1-3 |
板 |
Plate |
2 |
|
17 |
B-G057830-00030 |
螺栓M12x25 ZnD |
Blot |
8 |
|
18 |
Zc-40A |
减震器 |
Shock rubber |
4 |
|
19 |
YZ12.16-2 |
安全螺栓 |
Blot |
4 |
|
20 |
YZ14HD.16.1 |
底板架 |
Bottom plate support |
1 |
|
21 |
YZ14HD.16-1 |
底板垫 |
Bottom plate washer |
1 |
|
22 |
YZ14HD.16-3 |
左盖 |
Left cover |
1 |
|
23 |
Z30.16.4-16 |
光线圈 |
Loop |
1 |
|
24 |
SC1 |
座椅 |
Shock seat |
1 |
|
25 |
B-G061700-00036 |
螺母M8ZnD |
Nut |
4 |
|
26 |
YZ14H.16.2 |
后护板 |
Back board |
1 |
|
27 |
YZ14HD.16.4 |
制动箱 |
Brake case |
1 |
|
28 |
YZ18F.16B-2 |
胶垫 |
Rubber washer |
1 |
