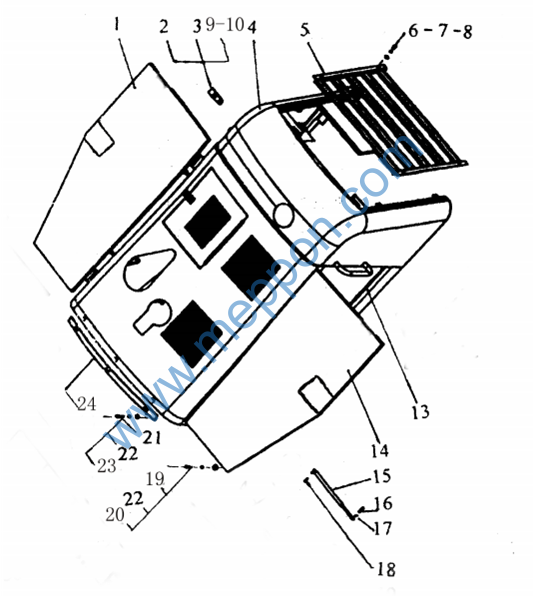

序号

No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

1

Z50G. 16B.6

顶板

Plate

1

2

Z40H. 16.2.3

驾驶室骨架

Cab

1

3

雨刮器

Wiper

1

4

Z50E. 16F.4-2

(前)玻璃

Glass

1

5

Z40H. 16.2.4.2

右门护板

Plate.R.H

1

6

Z40H. 16.2.4

小门

Door.R.H

1

7

塑料扣

Plastic button

35

8

Z50E. 16F.4-8

螺塞

Plug

4

9

B-J010020-00004

垫圈 16

Washer

4

10

B-G008250-00001

螺钉 M16ZnD

Screw

4

11

Z30. 16.4E- 12

(后)玻璃

Glass

1

12

Z30. 16.4E- 11

(后)压条

Pressure stripe

1

13

Z40H 16 2 2

左门

Door L H

1

14

Z40H.16.2.2.2

左门护板

Plate.L.H

1

15

Z50E. 16F.4-5

(前)压条

Pressure stripe

1

16

Z50E.16F.4-4

(侧)玻璃

Glass ，side

2

17

Z50E.16F.4-6

板

Plate

4

18

B-G057830-00164

螺栓 M5×20ZnD

Bolt

8

19

B-G008590-00007

垫圈 5

Washer

8

20

Z40E.16F.5

左前面板

Plate

1

21

Z40E.16F.7

右前面板

Plate

1

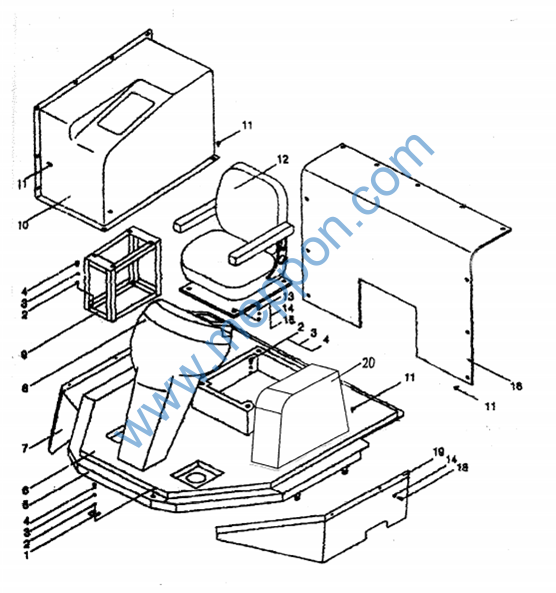

序号

No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

1

Z30. 16-6

调整垫片

Adjusting spacer

按需

2

Z30. 16-7

B-G00097B-00004

调整垫片

垫圈 12ZnD

Adjusting spacer

Washer

按需 8

3

B-G000930-00003

垫圈 12

Washer

4

4

B-G057830-00037

螺栓 M12×35ZnD

Bolt

16

5

Z40H 16 1

底板架

Bottom plate rack

1

6

Z40H. 16- 1

底板垫

Rubber plate

1

7

Z40E. 16F.3

右盖板

Right cover

1

8

Z40E 16F 15

仪表台

Instrument table

1

9

Z40H. 16.3

操纵阀架

Support

1

10

Z40E. 16F. 19

操纵箱

Control case body

1

11

塑料扣

Plastic button

24

12

W-09-00050

座椅 SG4

Shock seat

1

13

B-G057830-00146

螺栓 M8×30ZnD

Bolt

4

14

B-G00097B-00023

垫圈 8ZnD

Washer

11

15

B-G000930-00017

垫圈 8

Washer

7

16

Z40H. 16.6

后板

Rear plate

1

18

B-G057830-00139

螺栓 M8×20ZnD

Bolt

7

19

Z40E. 16F. 12

左盖板

Left cover

1

20

Z40E. 16F.23

制动操纵箱

Brake case

1

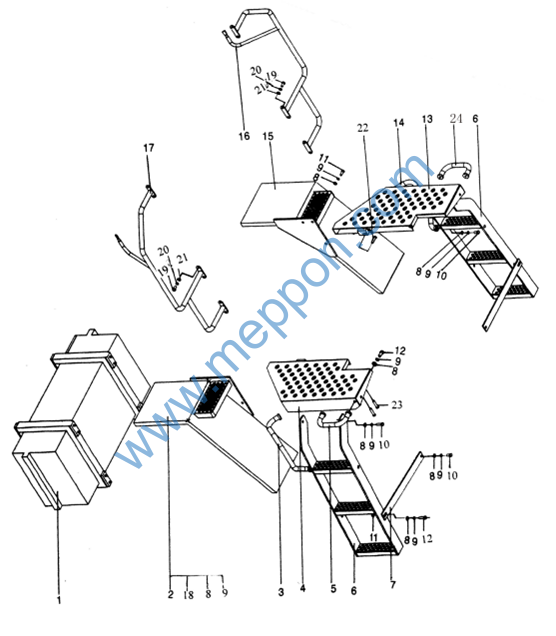

序号

No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

1

Z40H. 17. 12

随机备件工具箱

Spare part tool box

1

2

Z40H. 17. 13

前左挡泥板

L front dash board

1

3

Z40H 17 4

左前扶手

Left hand rail

1

4

Z40H. 17.2

左脚踏板

Left pedal

1

5

Z40H. 17.6

左后扶手

Rear hand rail

1

6

Z40H 17 9

梯子

Ladder

2

7

Z40E. 17F-2

撑铁

Block

2

8

B-G00097B-00004

垫圈 12ZnD

Washer

28

9

B-G000930-00003

弹垫 12

Spring washer

28

10

B-G057830-00041

螺栓 M12×40ZnD

Bolt

4

11

B-G061700-00007

螺母 M12ZnD

Nut

2

12

B-G057830-00030

螺栓 M12×25ZnD

Bolt

8

13

Z40H. 17.3

右脚踏板

Right pedal

1

14

Z40H. 17.5

右前扶手

Right hand rail

1

15

Z40H 17 4

前右挡泥板

R front dash board

1

16

Z30. 17Q.5A

右反光镜支架

R front hand rail

1

17

Z30. 17Q.4A

左反光镜支架

L front hand rail

1

18

B-G057830-00015

螺栓 M10×40ZnD

Bolt

6

19

B-G057830-00143

螺栓 M8×25ZnD

Bolt

12

20

GB/T93- 1987

垫圈 8

Washer

12

21

B-G00097B-00023

垫圈 8ZnD

Washer

12

22

B-G057830-00041

螺栓 M12×45ZnD

Bolt

2

23

B-G057830-00037

螺栓 M12×35ZnD

Bolt

4

24

Z40H. 17.7

右后扶手

Rear hand rail

1
