SINOMACH CHANGLIN ZL75H wheel loader parts catalog 04

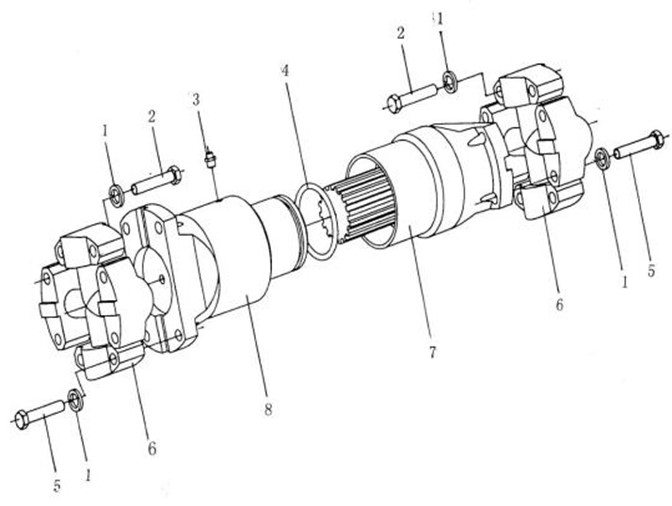

Z75H.7 后传动轴 Rear Drive Shaft
|
|
Z75H.7 后传动轴 Rear Drive Shaft
|
序号 No. |
零 件 代 号 Part No. |
名 称 Part Name |
数量 Q’ty |
|
|
1 |
Z60F.5-5 |
垫圈 |
Washer |
8 |
|
2 |
Z60F.5-1 |
螺栓 |
Bolt |
4 |
|
3 |
B-J07940A-00001 |
油杯 M10×1 Crease fitting |
1 |
|
|
4 |
B-Q020710-00105 |
O 形圈 90×5.7 O-ring |
1 |
|
|
5 |
Y2-20VNF-2A |
螺栓 |
Bolt |
8 |
|
6 |
2V7153 |
万向节总成 Cross shaft ass‘y |
1 |
|
|
7 |
1A14003-3 |
防尘套 花键轴叉 |
Sleeve Spline shaft |
1 1 |
|
8 |
85Z.01.3.2-2 |
花键轴 防尘盖 |
Sppine shaft Dust cover |
1 1 |
|
9 |
万向节总成 Cross shaft ass‘y |
1 |
||

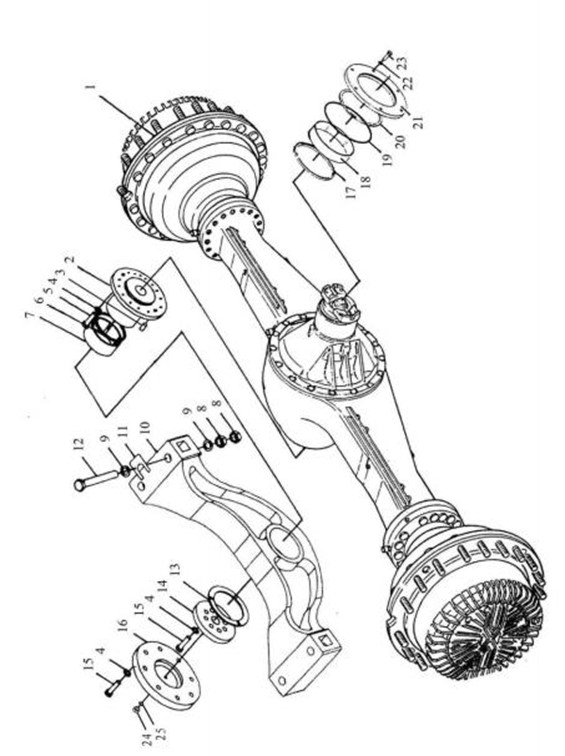

Z75H.8 后桥 Rear Axle
Z75H.8 后桥 Rear Axle
|
序号 No. |
零 件 代 号 Part No. |
名 称 Part Name |
数量 Q’ty |
|
|
1 |
W-03-00105 |
后桥 4474 054 046 Rear axle |
1 |
|
|
2 |
Z75H.8-6 |
后桥支撑 |
support |
1 |
|
3 |
B-Q001190-00036 |
销 A20×40 |
Pin |
2 |
|
4 |
B-Q020490-00007 |
垫圈 16 |
Washer |
30 |
|
5 |
B-G057860-00048 |
螺栓 M16×1.5×50-10.9ZnD Bolt |
14 |
|
|
6 |
B-Q020790-00001 |
YQ 型密封圈 d120 YQ-ring |
1 |
|
|
7 |
Z60F.8-5A |
后衬套 |
Rear bushing |
1 |
|
8 |
B-G061710-00028 |
螺母 M30×2-10ZnD Nut |
8 |
|
|
9 |
B-Q020490-00019 |
垫圈 30 |
Washer |
8 |
|
10 |
Z75H.8-1 |
摆架 |
Walking beam |
1 |
|
11 |
Z60F.8-11 |
调整垫 |
Spacer |
1 组 |
|
12 |
B-G057850-00093 |
螺栓 M30×2×220-10.9ZnD Bolt |
4 |
|
|
13 |
Z60F.8-4A |
止推垫 |
Thrust spacer |
2 |
|
14 |
Z60F.8-3 |
止推板 |
Thrust Plate |
1 |
|
15 |
B-G057820-00082 |
螺栓 M16×60-10.9ZnD Bolt |
16 |
|
|
16 |
Z60F.8-2 |
盖板 |
Cover |
1 |
|
17 |
Z75H.8-5 |
密封圈 |
Ring |
1 |
|
18 |
Z75H.8-3 |
前衬套 |
Front bushing |
1 |
|
19 |
B-Q020520-00008 |
O 形圈 319.4×5.7 O-ring |
1 |
|
|
20 |
Z75H.8-4 |
密封圈 |
Ring |
1 |
|
21 |
Z75H.8-2 |
前座圈 |
seat ring |
1 |
|
22 |
B-Q020490-00003 |
垫圈 12 |
Washer |
6 |
|
23 |
B-G057830-00040 |
螺栓 M12×40-10.9ZnD Blot |
6 |
|
|
24 |
B-J010000-00001 |
外六角螺塞 M10×1 Screw Plug |
1 |
|
|
25 |
B-J010020-00001 |
垫圈 10 |
Washer |
1 |
|
序号 NO. |
零 件 代 号 Part No. |
名 称 Part Name |
数量 Q‘ty |
|
|
1 |
B-Q020710-00006 |
0 形圈 11×1.9 |
O-ring |
13 |
|
2 |
Z50G.9C-2 |
接头 |
Joint |
4 |
|
3 |
Z50G.9C-3 |
0 形圈 |
O-ring |
4 |
|
4 |
Z75H.9.1 |
制动油管Ⅰ |
T |
2 |
|
5 |
Z75H.9.4 |
制动油管Ⅱ |
Tube |
2 |
|
6 |
Z75H.9-1 |
支撑板 |
Plate |
2 |
|
7 |
Z75H.9.12 |
三通接头 |
Tee joint |
2 |
|
8 |
B-G000930-00017 |
垫圈 8 |
Whsher |
12 |
|
9 |
B-G00097B-00023 |
垫圈 8ZnD |
Whsher |
8 |
|
10 |
B-G057830-00143 |
螺栓 M8x25ZnD |
Bolt |
2 |
|
11 |
W-16-00278 |
软管总成|F481CACA101005-2700 Tube |
1 |
|
|
12 |
Z75H.9-4 |
接头 |
Joint |
9 |
|
13 |
Z50G.9C-12 |
0 形圈 |
O-ring |
13 |
|
14 |
Z75H.9.2 |
接头体 |
Joint |
4 |
|
15 |
Z75H.9-8 |
接头 |
Joint |
1 |
|
16 |
Z75H.9-9 |
0 形圈 |
O-ring |
13 |
|
17 |
B-G057830-00146 |
螺栓 M8x30ZnD |
Bolt |
6 |
|
18 |
B-G061700-00036 |
螺母 M8ZnD |
Nut |
6 |
|
19 |
W-18-00052 |
双踏阀|06-466-954 Valve |
1 |
|
|
20 |
Z75H.9-1 |
接头 |
Joint |
1 |
|
21 |
Z50G.9C-3 |
0 形圈 |
O-ring |
1 |
|
22 |
Z50G.9C-2 |
接头 |
Joint |
1 |
|
23 |
Z75H.9.7 |
接管 |
Joint tube |
1 |
|
24 |
Z75H.9.8 |
接头体 |
Joint |
1 |
|
25 |
W-11-00076 |
动力切断开关|PMN80A/60BAR Switch |
1 |
|
|
26 |
W-16-00669 |
软管总成|F481CACF101005-550 Tube |
3 |
|
|
27 |
W-16-00671 |
软管总成|F481CFCF101005-750 (V9) Tube |
1 |
|
|
28 |
W-16-00606 |
软管总成|F481CACF101005-1100 Tube |
2 |
|
|
29 |
W-16-00809 |
软管总成|F481CACA101005-450 Tube |
2 |
|
|
30 |
W-16-00411 |
软管总成|F481CACF101005-500 Tube |
1 |
|
|
31 |
W-16-00673 |
软管总成|F481CACF101005-650 Tube |
1 |
|
|
32 |
W-18-00054 |
刹车阀块|CL22362/Z50G-7 Valve |
1 |
|
