SINOMACH CHANGLIN 3YJ2125-3 road roller parts catalog 10
3Y25. 12 车架总成 (1) Frame Ass’y (1)
名称
|
NO. |
Part No. |
Part |
Name |
Q’ty |
|
1 |
3Y25.12.1.1 |
框架 |
Frame |
1 |
|
2 |
B-G057830-00137 |
螺栓 M8x16ZnD |
Bolt |
12 |
|
3 |
B-G000930-00017 |
垫圈 8 |
Washer |
12 |
|
4 |
B-G00097B-00023 |
垫圈 8ZnD |
Washer |
12 |
|
5 |
3Y25.12.1-1 |
水箱盖 |
Cover |
2 |
|
6 |
3Y25.12.1-5 |
销轴 |
Pin shaft |
4 |
|
7 |
B-G091630-00011 |
关节轴承 GE25ES |
Joint bearing |
4 |
|
8 |
B-G000910-00060 |
销 6.3x65ZnD |
Pin |
4 |
|
9 |
B-G057830-00045 |
螺栓 M12x50ZnD |
Bolt |
12 |
|
10 |
B-G000930-00003 |
垫圈 12 |
Washer |
12 |
|
11 |
B-G00097B-00004 |
垫圈 12ZnD |
Washer |
12 |
|
12 |
3Y25.12.1-3 |
盖 |
Cover |
2 |
|
13 |
W-03-00062 |
轴承 GAC85S/K |
Bearing |
4 |
|
14 |
3Y25.12.1-2 |
V形圈 |
Cushion |
4 |
|
15 |
3Y25.12.1.2 |
铰接架 |
Articulated Frame |
1 |
|
16 |
3Y25.12.1-4 |
铰接轴盖 |
Articulated Cover |
1 |
|
17 |
B-G00097B-00014 |
垫圈 24ZnD |
Washer |
10 |
|
18 |
B-G000930-00010 |
垫圈 24 |
Washer |
10 |
|
19 |
B-G057820-00130 |
螺栓 M24x120ZnD |
Bolt |
10 |
|
20 |
B-J07940A-00001 |
油杯 M10x1 |
Grease cup |
4 |
|
21 |
B-J010000-00009 |
螺塞 M22x1.5ZnD |
Screw plug |
1 |
|
22 |
B-J010020-00007 |
垫圈 22 |
Washer |
1 |
|
23 |
B-J010020-00011 |
垫圈 33 |
Washer |
2 |
|
24 |
B-J010000-00014 |
螺塞 M33x2ZnD |
Screw plug |
2 |

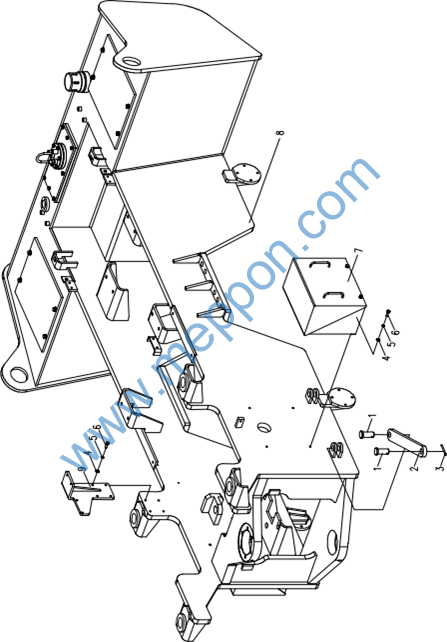

3Y25. 12 车架总成 (2) Frame Ass’y (2)
3Y25. 12 车架总成 (2) Frame Ass’y (2)
52
|
序号 |
零件代号 |
名称 |
数量 |
|
|
NO. |
Part No. |
Part Name |
Q’ty |
|
|
1 |
3Y24.12-1 |
销 Pin |
2 |
|
|
2 |
3Y24.12-2 |
连杆 |
Frame lock |
1 |
|
3 |
B-G000910-00060 |
销 6.3x65ZnD Pin |
1 |
|
|
4 |
B-G00097B-00002 |
垫圈 10ZnD Washer |
12 |
|
|
5 |
B-G000930-00001 |
垫圈 10 |
Washer |
12 |
|
6 |
B-G057830-00010 |
螺栓 M10x30ZnD Bolt |
12 |
|
|
7 |
3Y25.12.3 |
电瓶箱 Accumulator box |
2 |
|
|
8 |
3Y25.12.2 |
后车架 |
Rear frame |
1 |
|
9 |
3Y25.12.4 |
手制动支架 Hand brake support |
1 |
|

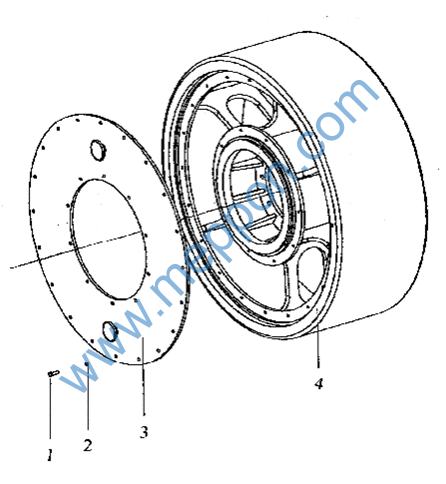

3Y25. 13 后钢轮总成 Rear Roll Ass’y
3Y25. 13 后钢轮总成 Rear Roll Ass’y
|
序号 |
零件代号 |
名 称 |
数量 |
|
|
No. |
Part No. |
Part Name |
Q’ty |
|
|
1 |
GB/T5783-1986 |
螺栓 16x40ZnD Bolt |
30 |
|
|
2 |
GB/T93-1987 |
垫圈 16 |
Washer |
30 |
|
3 |
3Y25.13.1 |
轮辐 |
Plate |
1 |
|
4 |
3Y25.13-1 |
后钢轮体 |
Rear roll |
1 |
3Y25. 14 前钢轮刮泥板总成 Front Roll Scraper Ass’y
