SINOMACH CHANGLIN 3YJ2125-3 road roller parts catalog 11
3Y25. 14 前钢轮刮泥板总成 Front Roll Scraper Ass’y
|
序号 |
零件代号 |
名称 |
数量 |
|
|
No |
Part No |
Part Name |
Q’ty |
|
|
1 |
3Y25.14-1 |
刮泥板 Scraper blade |
2 |
|
|
2 |
3Y24.14-7 |
扭力弹簧 Spring |
2 |
|
|
3 |
GB/T6170-1986 |
螺母 M24 ZnD Nut |
8 |
|
|
4 |
GB/T93-1987 |
垫圈 24 Spring washer |
4 |
|
|
5 |
3Y24.14-3 |
小轴 |
Pin |
4 |
|
6 |
GB/T5783-1986 |
螺栓 M10X16 ZnD Bolt |
4 |
|
|
7 |
GB/T97..2-1985 |
垫圈 10 |
Washer |
4 |
|
8 |
3Y24.14-8 |
扭力弹簧 Spring |
2 |
|
|
9 |
GB/T5783-1986 |
螺栓 M10X30 ZnD Bolt |
4 |
|
|
10 |
3Y24.14-2 |
刮泥板脚 Scraper holder |
4 |
|
|
11 |
3Y24.14-5 |
弯脚 |
Swivel fult |
4 |
|
12 |
3Y24.14-4 |
销子 |
Pin |
8 |
|
13 |
3Y24.14-6 |
销柄 |
Pin |
4 |
|
14 |
GB/T6170-1986 |
螺母 M10 ZnD Nut |
4 |
|
|
15 |
GB/T93-1987 |
垫圈 10 Spring washer |
4 |
|
3Y24. 15 后钢轮刮泥板总成 Rear roll Axle Ass’y
3Y25. 15 后钢轮刮泥板总成 Rear roll Axle Ass’y
|
序号 |
零件代号 |
名称 |
数量 |
|
|
No. |
Part No. |
Part Name |
Q’ty |
|
|
1 |
3Y24.15-2 |
转臂 |
Swivel arm |
2 |
|
2 |
3Y24.15-3 |
弹簧 |
Spring |
1 |
|
3 |
GB/T5783-1986 |
螺栓 M10X25ZnD Bolt |
2 |
|
|
4 |
GB/T97.1-1985 |
垫圈 10 |
Washer |
2 |
|
5 |
3Y24.15.1 |
调整座 Adjust bracket |
1 |
|
|
6 |
3Y24.15-1 |
刮泥板轴 Rear roll scraper shaft |
1 |
|
|
7 |
3Y24.15-4 |
弹簧 |
Spring |
1 |
|
8 |
GB/T6170-1986 |
螺母 M12 ZnD Nut |
7 |
|
|
9 |
3Y24.15-5 |
刮泥板座 Scraper biade |
1 |
|
|
10 |
3Y25.15-1 |
刮泥板 Scraper blade |
1 |
|
|
11 |
GB/T5783-1986 |
螺栓 M12X40 ZnD Blot |
5 |
|
|
12 |
GB/T93-1987 |
垫圈 12 |
Washer |
9 |
|
13 |
GB/T5783-1986 |
螺栓 M12X70ZnD Blot |
1 |
|
|
14 |
GB/T97.1-1985 |
垫圈 12 |
Washer |
2 |
|
15 |
GB/T5783-1986 |
螺栓 M12X35ZnD Bolt |
4 |
|
|
16 |
GB/T5783-1986 |
螺栓 M12x50ZnD Bolt |
1 |
|
|
17 |
3Y24.15-6 |
转臂连板 Swivel arm blade |
1 |
|
|
18 |
GB/T93-1987 |
垫圈 10 |
Washer |
2 |

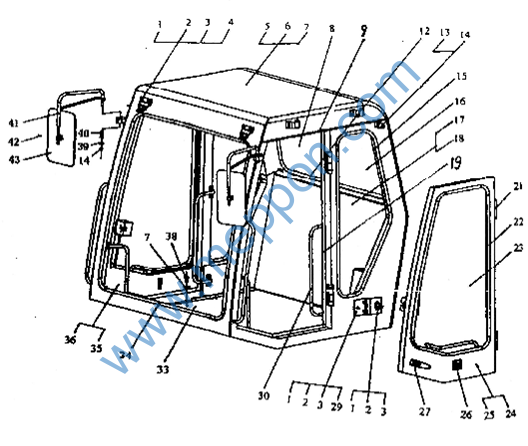

3Y25. 16 驾驶室 (1) Cab (1)
3Y25. 16 驾驶室 (1) Cab (1)
|
序号 |
零件代号 |
名 |
称 |
数量 |
|
No. |
Part No. |
Part |
Name |
Q’ty |
|
1 |
GB/T5783-1986 |
螺栓 M8x30ZnD |
Blot |
14 |
|
2 |
GB/T93-1987 |
垫圈 8 |
Washer |
26 |
|
3 |
GB/T97.2-1985 |
垫圈 8ZnD |
Washer |
26 |
|
4 |
YZ18F.16B.4-5 |
灯架 |
Lamp suport |
2 |
|
5 |
3Y25.16.4.3 |
驾驶室骨架 |
Cab |
1 |
|
6 |
GB/T5783-1986 |
螺栓 M12x65ZnD |
Blot |
3 |
|
7 |
|
垫圈 12ZnD |
Washer |
15 |
|
8 |
YZ18F.16B.4-9 |
玻璃 (后) |
Glass |
1 |
|
9 |
YZ18F.16B.4-4 |
橡胶封条 |
Stripe |
2 |
|
12 |
YZ18F.16B.4-10 |
压条 (后) |
Pressure stripe |
1 |
|
13 |
190C.16E.2.9 |
缓冲器 |
Shock rubber |
2 |
|
14 |
GB/T6170-1986 |
螺母 M10ZnD |
Nut |
4 |
|
15 |
YZ18F.16B.4-2 |
压条 (侧) |
Pressure stripe |
2 |
|
16 |
YZ18F.16B.4-3 |
玻璃 (侧) |
Glass |
2 |
|
17 |
3Y25.16.4.5 |
后板 |
Rear plate |
1 |
|
18 |
GB/T818-1986 |
螺钉 M5X12 ZnD |
Screw |
30 |
|
19 |
YZ18F.16B.4-8 |
门密封条 |
Stripe |
2 |
|
21 |
Z30.16.4E.2.5 |
铰链 |
Hinge |
4 |
|
22 |
YZ18F.16B.4.1-1 |
压条 |
Pressure stripe |
2 |
|
23 |
YZ18F.16B.4.1-2 |
玻璃 |
Glass |
2 |
|
24 |
3Y25.16.4.1.1 |
左门框 |
Door L.H |
1 |
|
25 |
3Y25.16.4.1.2 |
左门护板 |
Left plate |
1 |
|
26 |
W-09-00009 |
碰锁 |
Lock |
2 |
|
27 |
W-09-00008 |
门锁 |
Lock |
左右各一 |
|
29 |
YZ18F.16B.4-1 |
板 |
Plate |
2 |
|
30 |
YZ18F.16B.4.3.12 |
扶手 |
Handdrail |
2 |
3Y25. 16 驾驶室 (1) Cab (1)
