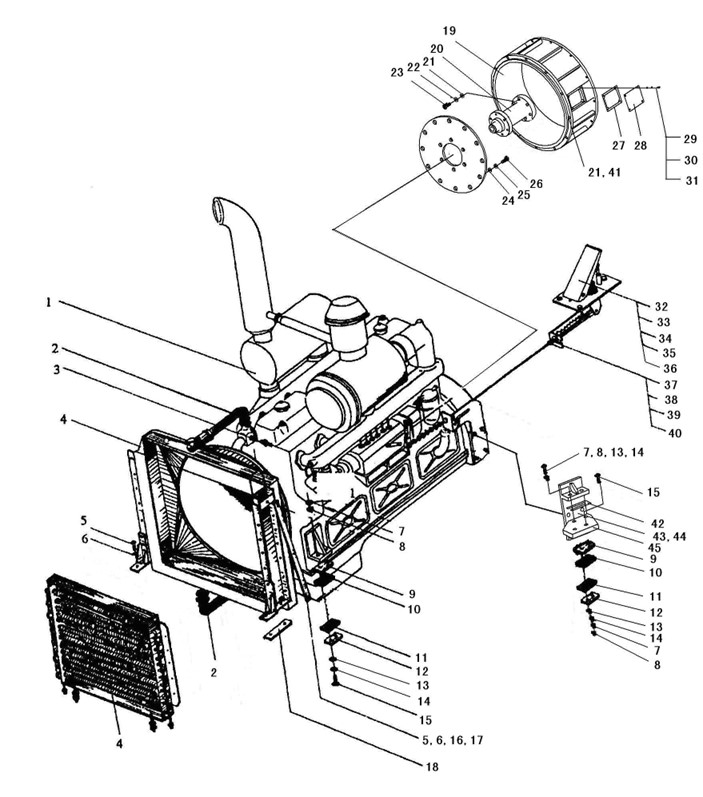

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

W-02-00003

B-J088700-00017

Z50B.1-3

Z50E.1B.1

B-G057830-00060

B-Q020490-00005

B-G061730-00005

B-G061710-00007

Z50B.1.6-1

Z50B.1.6.1

Z50B.1.6.2

Z50B.1.6-6

B-G00097B-00006

B-G000930-00005

Z50B.1-13

Z50B.1-2

B-G061700-00010

Z50F.1-8

Z50F.1-7

B-G00097B-00004

B-G000930-00003

B-G057830-00047

B-G00097B-00002

B-G000930-00001

B-G057860-00001

Z50F.1-9

Z50F.1-10

B-G00097B-00023

B-G000930-00017

柴油机                    Diesel engine

喉箍d60 Clamp

柴油机出水管（柴油机附件） Hose

接头体                    Joint body

水箱散热器组件         Radiator ass’y

螺栓M14×40ZnD            Bolt

垫圈 14                Washer

螺母M14×1.5ZnD         Nut

螺母M14×1.5ZnD            Nut

上盖板                 Upper plate

减震垫                 Cushion

减震垫                 Cushion

下盖板                 Lower plate

垫圈14 Washer

垫圈14 Washer

螺栓                 Bolt

水箱—机油散热器左右撑杆Support rod

螺母M14ZnD Nut

减震垫（水箱附件）     Rubber pad

飞轮壳连接壳体 Flier cover connecting shell

飞轮连接壳体 Flier connecting shell

垫片12 Washer

垫片12 Washer

螺栓M12×55ZnD Bolt

垫圈10ZnD Washer

垫圈10 Washer

螺栓M10×1×20ZnD Bolt

垫 Sealing plate

板 Plate

垫片8 Washer

垫片8 Washer

1

4

1

1

1

6

6

12

12

4

4

4

4

12

20

8

2

2

2

1

1

6

18

6

12

12

12

2

2

8

8

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

B-G057810-00054

W-02-00067

B-G061700-00034

B-G057830-00132

B-G00097B-00021

B-G000930-00015

B-G061720-00016

B-G00097B-00021

W-02-00073

B-G057830-00043

Z50F.1-1

Z50F.1-2

Z50F.1-3

Z50F.1-4

Z50F.1.1

Z50F.1.2

Z50F.1-5

螺栓M8×20ZnD Bolt

油门踏板(行程75) Accelerator pedal

螺母M6ZnD Nut

螺栓M6×25ZnD Bolt

垫圈6ZnD Washer

垫圈6 Washer

薄螺母M6ZnD Nut

垫圈6ZnD Washer

熄火线 Flameout line

油门软轴（柴油机附件）Flexible shaft

螺栓M12×45ZnD Bolt

调整垫 Adjusting shim

调整垫 Adjusting shim

调整垫 Adjusting shim

调整垫 Adjusting shim

柴油机右支撑座 Poling bed（Right）

柴油机左支撑座 Poling bed（Left）

过渡板 Transition plate

8

1

3

3

6

3

2

2

1

1

12

2

2

2

2

1

1

1

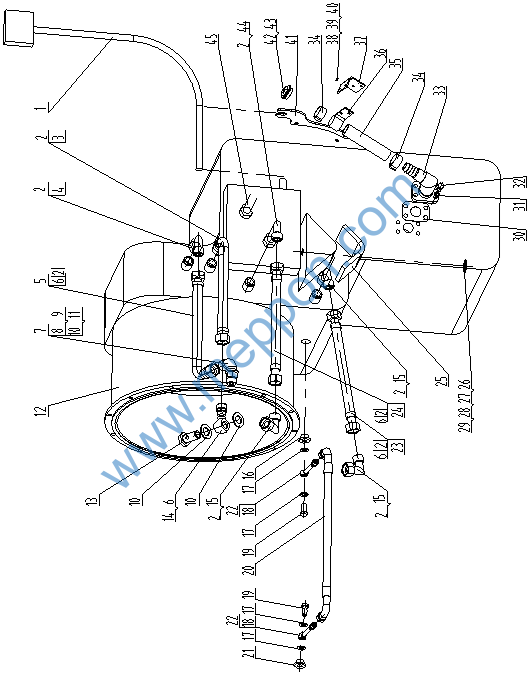

序号

No.

零
件
代
号

Part No.

名
称

Part Name

数量

Q’ty

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

B-J010020-00003 B-J009990-00001

Z50B.1.1

Z50B.1-14

B-J07757B-00001 Z50B.1.4

W-15-00084 B-Q020490-00015

W-02-00034 B-G057830-00003

B-G000930-00001 B-G00097B-00002 Z50B.1-5

Z50B.1-6

Z50B.1.7

Z50B.1-4

Z50B.1.5

B-G057830-00111

Z50B.1-12

Z50B.1.11

Z50B.1-15

Z50B.1.8A

Z50E.1B-3

B-Q020710-00039

B-J088700-00012

垫圈 14                    Washer

铰接螺栓 M14×1.5×32        Bolt

柴油箱                     Fuel tank

螺塞                        Plug

O形圈 S10（26501600）        O-ring

盖                         Cover

粗滤器                     Rough filter

垫圈 24                    Washer

加油口带锁盖                Cover

螺栓 M10×20                Bolt

垫圈 10                    Washer

垫圈 10                    Washer

盖                         Cover

垫                         Gasket

盖                         Cover

接头体                     Joint body

通气管                     Air pipe

螺栓M24×50ZnD                Bolt

螺塞 Plug

接管 Hose

夹布输油胶管Ф19×900 Hose

接管 Hose

接头 Joint

O形圈24×2.4 O-ring

喉箍d25 Clamp

4

2

1

1

1

1

1

3

1

2

2

2

1

4

2

2

2

4

1

1

1

1

1

1

2
