序号 No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

1

Z40E.13-5

左边齿

Left tooth

1

2

Z40E.13.12

铲斗

Bucket

1

3

Z40E.13-7

中间齿

Bucket tooth

6

4

Z50B.13-8

垫片

Pad

6

5

Z50B.13-9

垫片

Pad

6

6

GB/T6175-1986

螺母 M24

Nut

2

7

Z50B.13-14

垫片

Pad

2

8

Z50B.13-13

垫片

Pad

2

9

10

Z40E.13-8

Z50B.13-6

右边齿

螺栓

Right tooth

Bolt

1

2

11

Z50B.13-4

螺栓

Bolt

14

12

Z50B.13-5

螺母

Nut

14

13

CHL02.049-1999

垫因 24

Washer

2

14

GB/T5783-1986

螺栓 M16×25ZnD

Bolt

13

15

Z50B.13-7

垫圈 16

Washer

13

16

17

Z40E.13.3

Z40E.13.14.1

销轴组件

连杆

Shaft assembly

Linkage

2

1

18

19

GB/T1152-19899

Z40E.13-4

油杯M10×1

垫片

Grease fitting

Pad

10

8

20

Z40E.13.1

防尘圈 100

Dust ring

16

21

22

23

Z40E.13.14-1

Z40E.13.2

Z40E.13-1

轴套 75×85B

销轴组件

外防尘圈 100

Bushing

Pin shaft assembly

Out dust ring

2

2

4

24

Z40E.13-2

垫片

Pad

4

25

26

Z40E.13.13-1

Z40E.13-3

轴套 75×85A

垫片

Bushing

Pad

2

4

27

Z40E.13.15.1

摇臂

Rocker arm

1

28

29

Z50B.13.13

Z40E.13.9

防尘圈

销轴组件

Dust ring

Pin shaft assembly

4

1

30

31

32

Z40E.13.15-1

Z40E.13.4

Z40E.13.7

轴套 95×80A

销轴组件

销轴组件

Bushing

Pin shaft assembly

Pin shaft assembly

2

1

2

33

34

35

Z40E.13.13-2

GB/T1153-1989

Z40E.13.11

轴套 75×65A

轴杯 45o M10×1 销轴组件

Bushing

Grease fitting

Pin shaft assembly

2

2

2

36

Z40E.13-6

垫片

Pad

4

37

38

Z40E.13.10

Z40E.13.13-3

防尘圈

轴套 85×80A

Dust ring

Bushing

4

2

39

Z40E.13.13.1

动臂

Lift arm

1

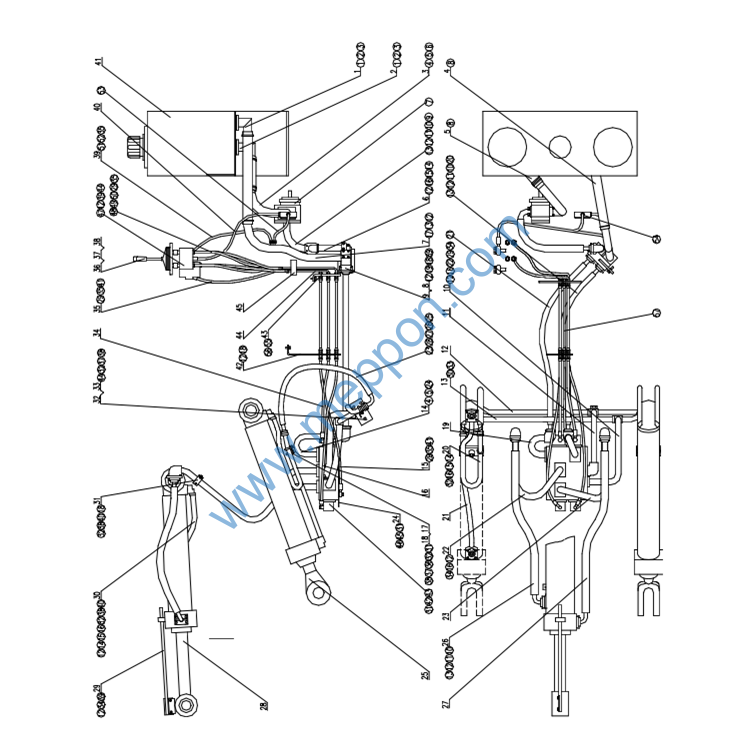

序号 No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

1

Z40E.14.1

油管

Tube

1

2

Z40E.14.2

油管

Tube

1

3

Z40E.14.3

油管

Tube

1

4

Z40E.14-1

Φ51 低压胶管

Hose

1

5

Z40E.14-2

Φ51 低压胶管

Hose

1

6

Z40E.14.4

油管

Tube

1

7

Z40E.14B.1

油管

Tube

1

8

Z40E.14.6

联接板

Coupling plate

1

9

Z30.14.20-2

螺塞

Plug

1

10

Z40E.14B.2

油管

Tube

1

11

Z40E.14B.3

油管

Tube

1

12

Z40E.14B.4

油管

Tube

1

13

Z40E.14B.5

油管

Tube

1

14

Z50E.14.13

多路阀回油管

Tube

1

15

Z40E.14B.15

胶管接头

Hose joint

1

16

Z50E.14.10

胶管接头

Hose joint

3

17

Z40E.14-3

板

Plate

2

18

Z40E.14.4

衬垫

Pad

2

19

Z50E.14.14

多路阀进油管

Tube

1

20

Z40E.14.15

油管

Tube

2

21

Z40E.14.16

油管

Tube

2

22

Z40E.14B.6

油管

Tube

1

23

Z40E.14B.7

油管

Tube

1

24

Z40B.14-1

板

Plate

1

25

Z40E.14.20A

动臂油缸

Cylinder

2

26

Z40E.14.28

软管总成

Hose ass’y

1

27

Z40E.14.29

软管总成

Hose ass’y

1

28

Z40E.14.21A

转斗油缸

Cylinder

1

29

Z40E.14.22

标示杆

Rod

1

30

Z40E.14.23

油管

Tube

1

31

Z50B.14-6

板

Plate

2

32

Z50B.14.26

支板

Plate

1

33

Z50B.14.27

支板

Plate

1

34

Z40E.14B.16

胶管接头

Hose joint

3

35

Z50E.14.21

胶管接头

Hose joint

1

序号 No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

36

Z50B.14.24.4

捏手

Knob

2

37

Z50E.14-4

转斗操纵杆

Control rod

1

38

Z50E.14-5

动臂操纵杆

Control rod

1

39

Z40E.14B.8

胶管接头

Hose joint

1

40

Z40E.14B.9

胶管接头

Hose joint

1

41

Z40E.14.27

油箱

Hydraulic tan d

1

42

Z40E.14B-2

前联接板

Coupling plate

1

43

Z40E.14B-3

后联接板

Coupling plat e

1

44

Z40E.14B.14

先导阀至联接板油管

Tube

1

45

Z50B.14.25

油管夹

Tube clip

1

序号 No.

零件代号

Part
No.

零 件 名 称

Part
Name

数量 Q’ty

1

GB/T5783-1986

螺栓 M6×20ZnD

Bolt

8

2

GB/T93-1987

垫圈 6

Washer

8

3

GB1235-1976

O 形圈 60×3.1

O-ring

2

4

GB/T5783-1986

螺栓 M12×30ZnD

Bolt

12

5

GB/T93-1987

垫圈 12

Washer

8

6

GB1235-1976

O 形圈 55×3.5

O-ring

1

7

CBGJ3140

齿轮油泵(左旋)

Bump

1

8

ZBJ15001-87

喉箍 d70

Clamp

8

9

CHL02.016-1999

软管总成 31.5-750

Hose ass’y

1

10

CHL02.014-1999

分离式法兰 AФ44. 1/21

Flange

20

11

GB/T5783-1986

螺栓 M10×35ZnD

Bolt

36

12

GB/T93-1987

垫圈 10

Washer

60

13

GB1235-1976

O 形圈44×3.5

O-ring

11

14

GB/T5782-1986

螺栓 M10×50ZnD

Bolt

12

15

GB/T5782-1986

螺栓 M10×60ZnD

Bolt

12

16

GB1235-1976

O 形圈 41 ×3.5

O-ring

16

17

GB/T5782-1986

螺栓 M10×75ZnD

Bolt

4

18

GB/T5783-1986

螺栓 M10×20ZnD

Bolt

6

19

GB1235-1976

O 形圈 11 × 1.9

O-ring

1

20

Z40E.14.30

软管总成

Hose ass’y

1

21

CHL02.019-1999

软管总成 31.5- 1330

Hose ass’y

1

22

JB/T1000-1977

螺塞 M14×1.5

Plug

2

23

GB/T93-1987

垫圈 8

Washer

24

24

GB1235-76

O 形圈 54×3.5

O-ring

2

25

CHL02.016-1999

软管总成 19- 1000

Hose ass’y

4

26

GB/T5783-1986

螺栓 M8×30ZnD

Bolt

32

27

CHL02.014-1999

分离式法兰 AФ32.6/35

Bolt

24

28

GB1235-1976

O 形圈 31 ×3.5

O-ring

8

29

JB/T1002-1977

垫圈 14

Washer

27

30

GB/T5782-1986

螺栓 M8×30-10.9ZnD

Bolt

8

31

CHL02.049-1999

垫圈 12

Washer

8

32

CHL02.049-1999

垫圈 10

Washer

8

33

GB1235-1976

O 形圈 36×3.1

O-ring

6

34

GB/T5783-1986

螺栓 M10×30ZnD

Bolt

12

35

GB1235-1976

O 形圈 11 × 1.9

O-ring

35
