SINOMACH CHANGLIN ZLM40E wheel loader parts catalog 10
Z40E.14C
工作液压系统 Hydraulic
System
|
序号 |
零件代号 |
零 件 名 称 |
数量 |
|
|
No. |
Part |
Part |
Q’ty |
|
|
36 |
GB/T5782-1986 |
螺栓 M12×55ZnD Bolt |
2 |
|
|
37 |
|
U 形管夹 A28 U-clip |
8 |
|
|
38 |
GB/T6176-1986 |
螺母 M10×1.25ZnD Nut |
22 |
|
|
39 |
GB/T6170-1986 |
螺母 M10ZnD |
Nut |
8 |
|
40 |
|
U 形管夹 A34 U-clip |
3 |
|
|
41 |
JB/T999-1977 |
螺栓 M14×1.5×32ZnD Bolt |
9 |
|
|
42 |
D32Ⅱ |
多路换向阀 Control valve |
1 |
|
|
43 |
GB/T5782-1986 |
螺栓 M12×120ZnD Bolt |
2 |
|
|
44 |
GB/T5783-1986 |
螺栓 M10×25ZnD Bolt |
10 |
|
|
45 |
GB/T6170-1986 |
螺栓 M12ZnD |
Nut |
4 |
|
46 |
GB/T5783-1986 |
螺栓 M12×35ZnD Bolt |
4 |
|
|
47 |
DJS2-UX/UU |
先导阀 Precursor valve |
1 |
|
|
48 |
JB/T1885-1977 |
胶管接头 8 Ⅰ-900 Hosejoint |
2 |
|
|
49 |
JB/T1885-1977 |
胶管接头 8 Ⅰ– 1000 Hosejoint |
2 |
|
|
50 |
JB/T984-1977 |
接头体 10/M14×1.5 Adapter |
8 |
|
|
51 |
JB/T999-1977 |
螺栓 M18×1.5×38ZnD Bolt |
1 |
|
|
52 |
JB/T1002-1977 |
垫圈 18 |
Washer |
2 |
|
53 |
JB/T1885-1977 |
胶管接头 8 Ⅰ-400 Hosejoint |
1 |
|
|
54 |
CBGj2063/1016 |
双联泵 |
Bump |
1 |
|
55 |
JB/T992-1977 |
接头体 10 |
Adapter |
5 |
|
56 |
JB/T994-1977 |
螺母 M16×1.5 Nut |
10 |
|
|
57 |
JB/T1885-1977 |
胶管接头 8 Ⅰ-520 Hosejoint |
5 |
|

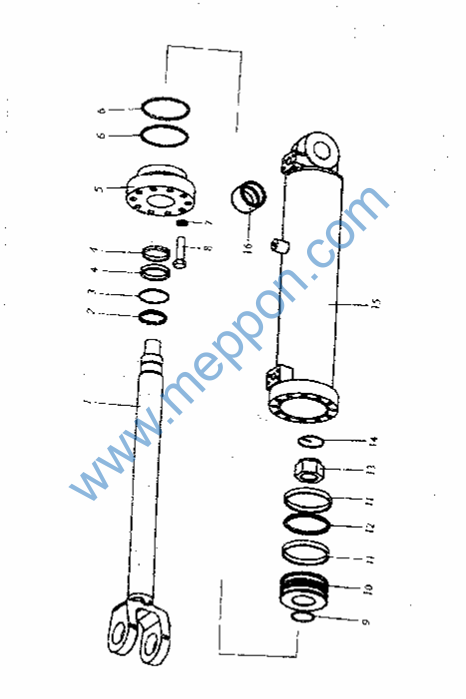

Z40E.14.20A
动臂油缸 LiftArm
Cylinder
|
|
Z40E.14.20A
动臂油缸 LiftArm
Cylinder
|
序号 |
零件代号 |
零 件 名 称 |
数量 |
|
|
No. |
Part |
Part |
Q’ty |
|
|
1 |
Z40E.14.20.1 |
活塞杆 |
Piston rod |
1 |
|
2 |
GB/T10708.3-1989 |
防尘圈FC80×90×6 |
Dust ring |
1 |
|
3 |
GB1235-1976 |
O 形圈 85×3.1 |
O-ring |
1 |
|
4 |
GB/T10708.1-1989 |
轴用 KY 密封圈 d80×95×12.5 |
Ky-ring |
2 |
|
5 |
Z40E.14.20A-1 |
缸头 |
Cylinder heard |
1 |
|
6 |
GB1235-1976 |
O 形圈 150×5.7 |
O-ring |
2 |
|
7 |
GB/T93-1987 |
垫圈 16 |
Washer |
12 |
|
8 |
GB/T5785-1986 |
螺栓 M16×1.5×55 |
Bolt |
12 |
|
9 |
GB1235-1976 |
O 形圈 70×3.1 |
O-ring |
1 |
|
10 |
Z40E.14.20-3 |
活塞 |
Piston |
1 |
|
11 |
Z40E.14.20-4 |
支承环 |
Back-up ring |
2 |
|
12 |
S-55044 |
格莱圈 1500 |
O-ring |
1 |
|
13 |
Z40E.14.20-5 |
螺母 |
Nut |
1 |
|
14 |
GB/T91-1986 |
销 10×100 |
Pin |
1 |
|
15 |
Z40E.14.20A.2 |
缸体 |
Cylinder body |
1 |
|
16 |
Z40E.14.20-6 |
轴套 |
Bushing |
1 |

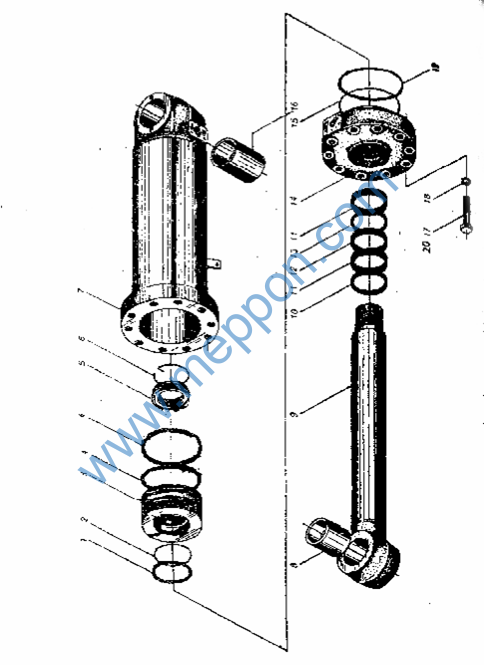

Z40E.14.21A
转斗油缸 Dump
Cylinder
|
|
Z40E.14.21A
转斗油缸 Dump
Cylinder
|
序号 |
零件代号 |
零 件 名 称 |
数量 |
|
|
No. |
Part |
Part |
Q’ty |
|
|
1 |
S-55044 |
格莱圈 1800 |
O-ring |
1 |
|
2 |
GB1235-1976 |
O 形圈 70×3.1 |
O-ring |
1 |
|
3 |
Z40E.14.21-4 |
活塞 |
Piston |
1 |
|
4 |
Z50B.14.18A-2 |
支承环 |
Back-up ring |
2 |
|
5 |
Z40E.14.20-5 |
螺母 |
Nut |
1 |
|
6 |
GB/T91-1986 |
销 10×100 |
Pin |
1 |
|
7 |
Z40E.14.21A.1 |
缸体 |
Cylinder body |
1 |
|
8 |
Z40E.14.21-1 |
轴套 |
Bushing |
1 |
|
9 |
Z40E.14.21.1 |
活塞杆 |
Piston rod |
1 |
|
10 |
GB/T10708.3-1989 |
防尘圈FC90×100×6 |
Bust ring |
1 |
|
11 |
Z40E.14.21-5 |
支承环 |
Back-up ring |
2 |
|
12 |
GB/T10708.1-1989 |
活塞杆密封圈d90×100×6 |
Seal ring |
1 |
|
13 |
S-55013 |
斯特封 0900 |
Seal |
1 |
|
14 |
Z50B.14.18B-1 |
缸头 |
Cylinder heard |
1 |
|
15 |
GB1235-1976 |
O 形圈 180×5.7 |
O-ring |
1 |
|
16 |
Z40E.14.21-6 |
轴套 |
Bushing |
1 |
|
17 |
GB/T5785-1986 |
螺栓 M24×2×90 |
Bolt |
10 |
|
18 |
GB/T93-1987 |
垫圈 24 |
Washer |
12 |
|
19 |
GB1235-1976 |
O 形圈 205×5.7 |
O-ring |
1 |
|
20 |
GB/T5785-1986 |
螺栓 M24×2×105ZnD |
Bolt |
2 |

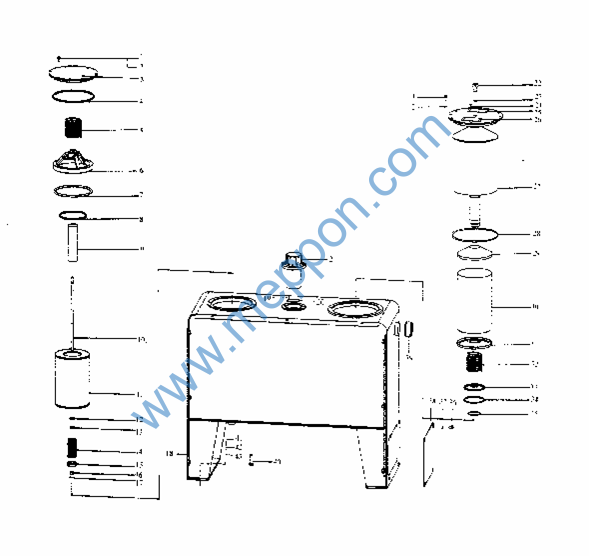

Z40E.14.27
油箱 Tank
|
|
