序号 No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

1

GB/T5783-1986

螺栓 M8×16ZnD

Bolt

12

2

GB/T93-1987

垫圈 8

Washer

12

3

Z30.14.8-7

滤油器盖

Filter cover

1

4

GB1235-1976

O 形圈 200×5.7

O-ring

1

5

Z30.14.8-6

弹簧

Spring

1

6

Z30.14.8-5

支架

Support

1

7

GB1235-1976

O 形圈 185×5.7

O-ring

1

8

GB1235-1976

O 形圈 130×5.7

O-ring

1

9

Z30.14.8.3

磁铁芯

Magnetic core

1

10

Z50B.14.21-3

拉杆

Drag rod

1

11

Z50B.14.21.4

滤网总成

Oil screen ass’y

1

12

Z30.14.8-3

铜垫

Copper pad

1

13

GB/T6172-1986

螺母 M12ZnD

Nut

1

14

Z30.14.8-2

弹簧

Spring

1

15

Z30.14.8-1

弹簧压盖

Spring pressure cover

1

16

GB/T6178-1986

螺母 M10ZnD

Nut

1

17

GB/T91-1986

开口销2×20

Pin

1

18

Z40E.14.27.1

箱体

Tank body

1

19

GB/T827-1986

标牌钉2×4

Screw

4

20

Z30.14.8-21

标牌

Name plate

1

21

QUQ2.5-A

液压空气滤清器

Air filter

1

22

Z30.14.8-18

螺塞

Plug

1

23

GB1235-1976

O 形圈 16×2.4

O-ring

1

24

GB/T827-1986

标牌钉2×8

Screw

8

25

Z40E.14.27-2

标牌

Name plate

1

26

Z30.14.8-19

标牌

Name plate

1

27

Z40E.14.27.2

油滤器罩

Oil filter cap

1

28

GB1235-1976

O 形圈 230×5.7

O-ring

1

29

Z50B.14.21-2

上压盖

Upper pressure cover

1

30

Z50B.14.21.3

滤芯架

Filter core rack

1

31

Z50B.14.21-1

下压盖

Lower pressure cove

1

32

Z30.14.8-15

弹簧

Spring

1

33

Z30.14.8-16

弹簧压盖

Spring pressure cove

1

序号 No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

34

Z30.14.8-17

弹簧卡圈

Snap ring

1

35

GB1235-1976

O 形圈 50×3.5

O-ring

1

36

GB/T5783-1986

螺栓 M8×16ZnD

Bolt

8

37

GB/T97.2-1985

垫圈 8

Washer

8

38

Z40E.14.27-1

盖板

Cover plate

2

39

Z30.14A.8.7

油标

Oil gauge

1

40

Z50B.14.21-5

螺塞

Plug

1

41

GB/T5783-1986

螺栓 M14×45ZnD

Bolt

4

42

GB/T93-1987

垫圈 14

Washer

4

43

GB/T97.2-1985

垫圈 14ZnD

Washer

4

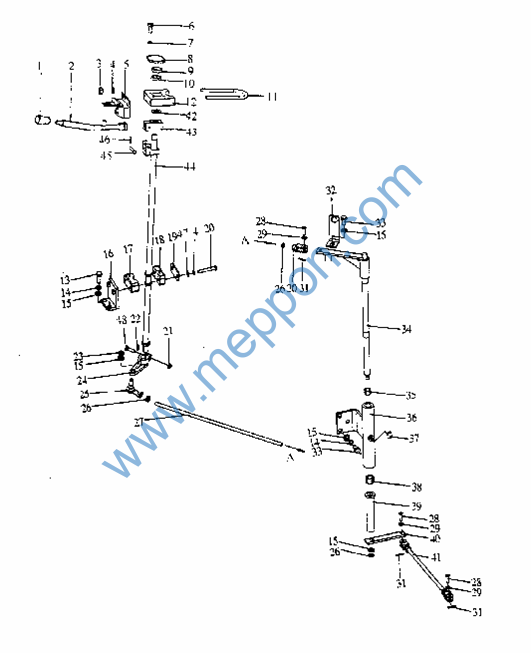

序号 No.

零件代号

Part
No.

零

件 名 称

Part
Name

数量 Q’ty

1

Z50B.14.24.4

捏手

Knob

1

2

Z40E.15A.4

操纵杆

Rod

1

3

GB/T6184-1987

螺母 M8

Nut

2

4

GB/T93-1987

垫圈 8

Washer

5

5

Z40E.15A.3

手柄座

Bracket

1

6

GB/T67-1986

螺钉M5×16

Screw

4

7

GB/T93-1986

垫圈 5

Washer

4

8

Z40E.15A-6

压板

Plate

1

9

Z40E.15A-2

压板

Plate

1

10

GB/T276-1994

轴承 6001

Bearing

1

11

Z40E.15A-5

U 形螺栓

U-bolt

1

12

Z40E.15A-1

轴承座

Bracket

1

13

GB/T5783-1986

螺栓 M10×30ZnD

Bolt

2

14

GB/T93-1987

垫圈 10

Washer

5

15

GB/T97.2-1985

垫圈 10ZnD

Washer

8

16

Z40E.15.4

支架

Bracket

1

17

Z40E.15-10

支座

Bracket

1

18

Z40E.15-9

支座

Bracket

1

19

Z40E.15-8

压板

Clamping plate

1

20

GB/T5782-1986

螺栓 M8×55ZnD

Bolt

2

21

GB/T6170-1986

螺母 M8ZnD

Nut

1

22

GB/T1096-1979

键 A5×20

Key

1

23

GB/T6184-1986

螺母 M10ZnD

Nut

1

24

Z40E.15.8

摇臂

Rocker arm

1

25

Z50B.15.2.1

接头体

Adapter

1

26

GB/T6172-1986

螺母 M10ZnD

Nut

3

27

Z40E.15-2

连杆

Conndcting rod

1

28

GB/T882-1986

销轴 B8×24

Pin

3

29

GB/T848-1985

垫圈 8

Washer

3

30

Z50B.15.1.1

左拉杆接头

Adapter

1

31

GB/T91-1986

销 3.2×16

Pin

3

32

Z40E.15-3

倒车开关支架

Bracket

1

序号

零件代号

零 件 名 称

数量

No.

Part
No.

Part
Name

Q’ty

33

GB/T5783-1986

螺栓 M10×20ZnD Bolt

4

34

Z40E.15.3

轴

Shaft

1

35

9243/20

滚针轴承 20×24×17 Needle bearing

1

36

Z40E.15.2

支架

Bracket

1

37

GB/T1152-1989

油杯 M10×1 Grease fitting

1

38

9243/17

滚针轴承 17×21× 17 Needle bearing

1

39

Z40E.15.6

压套

Bushing

1

40

Z40E.15-11

板

Plate

1

41

Z40E.15.1

拉杆

Rod

1

42

Z40E.15A-3

毡圈

Seal

1

43

Z40E.15A-4

导向块

Block

1

44

Z40E.15A.2

拉杆

Rod

1

45

GB/T882-1986

销轴 A6×40

Pin

1

46

GB/T91-1986

开口销2×12

Pin

1

47

GB/T97.2-1985

垫圈 8

Washer

2

48

GB/T5783-1986

螺栓 M8×25ZnD Bolt

1
