SINOMACH CHANGLIN ZLM40E wheel loader parts catalog 12
Z40E.16B
驾驶室(一)
Cab(1)
|
序号 No. |
零件代号 Part |
零 |
件 名 称 Part |
数量 Q’ty |
|
1 |
Z30.16.4-3 |
工作灯支承 |
Work lamp suppout |
2 |
|
2 |
Z30.16.4F.2 |
右门 |
Door.RH |
1 |
|
3 |
Z30.16.4E-3 |
(前)玻璃 |
Glass |
1 |
|
4 |
Z30.16.4E-4 |
(前)压条 |
Pressure stripe |
1 |
|
5 |
雨刮器 |
Wiper |
1 |
|
|
6 |
Z30.16.4F.1 |
驾驶室 |
Cab |
1 |
|
7 |
Z30.16.4E-6 |
(侧)压条 |
Pressure stripe |
2 |
|
8 |
Z30.16.4E-5 |
(侧)玻璃 |
Glass |
2 |
|
9 |
GB/T5783-1986 |
螺栓 M12×30ZnD |
Bolt |
4 |
|
10 |
GB/T93-1987 |
垫圈 12 |
Washer |
4 |
|
11 |
GB/T97.2-1985 |
垫圈 12ZnD |
Washer |
8 |
|
12 |
GB/T5783-1986 |
螺栓 M12×25ZnD |
Bolt |
4 |
|
13 |
Z30.16.4E-12 |
(后)玻璃 |
Glass |
1 |
|
14 |
Z30.16.4E-11 |
(后)压条 |
Pressure stripe |
1 |
|
15 |
Z50E.16.1 |
后板 |
Rear plate |
1 |
|
16 |
Z30.16.4E.2.2-4 |
玻璃 |
Glass |
2 |
|
17 |
Z30.16.4.2.2.1 |
锁 |
Lock |
2 |
|
18 |
Z30.16.4E.2.2-9 |
玻璃 |
Glass |
2 |
|
19 |
Z30.16.4E.2.3 |
左门 |
Door.L.H |
1 |
|
20 |
Z30.16.4E.2.2-1 |
压条 |
Pressure stripe |
2 |
|
21 |
NBS502 |
锁 |
Lock |
2 |
|
22 |
Z30.16.4.2.1.2 |
铰链 |
Hinge |
4 |
|
23 |
Z30.16.4.2.2.2 |
锁 |
Lock |
2 |

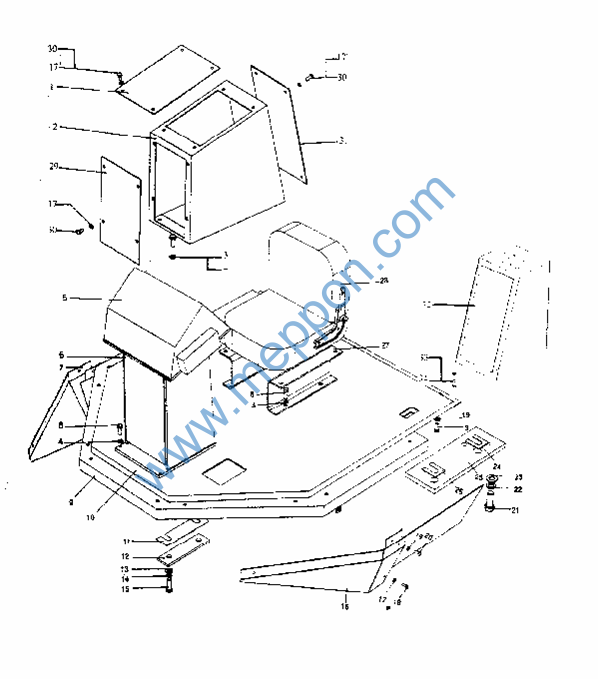

Z40E.16B
驾驶室(二)
Cab(2)
|
|
Z40E.16B
驾驶室(二)
Cab(2)
|
序号 No. |
零件代号 Part |
零 |
件 名 称 Part |
数量 Q’ty |
|
1 |
Z50E.16.3-1 |
上盖板(Z40E) |
Plate |
1 |
|
2 |
Z50E.16.3.1 |
操纵箱体 |
Control case body |
1 |
|
3 |
GB/T5783-1986 |
螺栓 M12×30 |
Bolt |
7 |
|
4 |
GB/T93-1987 |
垫圈 12 |
Washer |
26 |
|
5 |
Z30.16.3 |
仪表盒 |
Instrument box |
1 |
|
6 |
Z40E.16.2 |
仪表支架 |
Instrument support |
1 |
|
7 |
Z40E.16.3 |
右盖 |
Right cover |
1 |
|
8 |
GB/T5783-1986 |
螺栓 M12×35ZnD |
Bolt |
16 |
|
9 |
Z40E.16B.2 |
底板架 |
Bottom plate rack |
1 |
|
10 |
Z40E.16B-1 |
底板架 |
Bottom plate rack |
1 |
|
11 |
Z50B.16-3 |
调整垫片 |
Adjusting spacer |
2 |
|
12 |
Z40E.16-1 |
前减震垫 |
Front cushion |
2 |
|
13 |
GB/T97.2-1985 |
垫圈 14ZnD |
Washer |
8 |
|
14 |
GB/T93-1987 |
垫圈 14 |
Washer |
8 |
|
15 |
GB/T5782-1986 |
螺栓 M14×55ZnD |
Bolt |
8 |
|
16 |
Z40E.16.1 |
左盖 |
Left cover |
1 |
|
17 |
GB/T97.2-1985 |
垫圈 8ZnD |
Washer |
18 |
|
18 |
GB/T5783-1986 |
螺栓 M8×20ZnD |
Bolt |
13 |
|
19 |
GB/T97.2-1985 |
垫圈 12ZnD |
Washer |
26 |
|
20 |
GB/T5783-1986 |
螺栓 M12×25ZnD |
Bolt |
5 |
|
21 |
GB/T5783-1986 |
螺栓 M24×65ZnD |
Bolt |
4 |
|
22 |
GB/T93-1987 |
垫圈 24 |
Washer |
4 |
|
23 |
GB/T97.2-1985 |
垫圈 24ZnD |
Washer |
4 |
|
24 |
Z30.16-6 |
调整垫片 |
Adjusting spacer |
按需 |
|
25 |
Z50E.16-2 |
后减震垫 |
Rear cushion |
2 |
|
26 |
Z30.16-7 |
调整垫片 |
Adjusting spacer |
按需 |
|
27 |
Z30.16-12 |
椅下支座 |
Support |
2 |
|
28 |
ZJIB-2 |
座椅 |
Shock seat |
1 |
|
29 |
Z50E.16.3-2 |
前盖板 |
Plate |
1 |
|
30 |
GB/T5783-1986 |
螺栓 M8×16ZnD |
Bolt |
12 |
|
31 |
Z50E.16.3-3 |
后盖板 |
Plate |
1 |
|
32 |
Z40E.16.3-3 |
制动操纵箱 |
Brake case |
1 |
|
33 |
GB/T5783-1986 |
螺栓 M10×25ZnD |
Bolt |
4 |
|
34 |
GB/T97.2-1985 |
垫圈 10ZnD |
Washer |
4 |

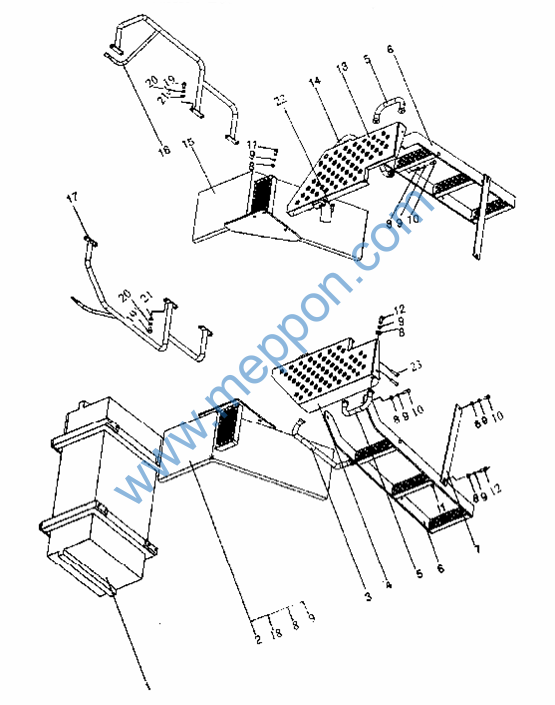

Z40E.17
车身及附件 Vehicle
Body
And
Accessory
Structure
|
|
Z40E.17
车身及附件 Vehicle
Body
And
Accessory
Structure
|
序号 No. |
零件代号 Part |
零 |
件 名 称 Part |
数量 Q’ty |
|
1 |
Z40E.17.1A |
随机备件工具箱 |
Spare part tool box |
1 |
|
2 |
Z40E.17.2 |
前左挡泥板 |
L front dash board |
1 |
|
3 |
Z30.17.5 |
左扶手 |
Left hand rail |
1 |
|
4 |
Z30.17.17 |
左脚踏板 |
Left pedal |
1 |
|
5 |
Z30.17.9 |
后扶手 |
Rear hand rail |
2 |
|
6 |
Z40E.17.4 |
梯子 |
Ladder |
2 |
|
7 |
Z40E.17-1 |
撑铁 |
Block |
2 |
|
8 |
GB/T97.2-1985 |
垫圈 12ZnD |
Washer |
28 |
|
9 |
GB/T93-1987 |
弹垫 12 |
Spring washer |
28 |
|
10 |
GB/T5783-1986 |
螺栓 M12×40ZnD |
Bolt |
4 |
|
11 |
GB/T6170-1986 |
螺母 M12ZnD |
Nut |
2 |
|
12 |
GB/T5783-1986 |
螺栓 M12×25ZnD |
Bolt |
8 |
|
13 |
Z30.17.8 |
右脚踏板 |
Right pedal |
1 |
|
14 |
Z30.17.7 |
右扶手 |
Right hand rail |
1 |
|
15 |
Z40E.17.3 |
前右挡泥板 |
R front dash board |
1 |
|
16 |
Z30.17.13 |
前右扶手 |
R front hand rail |
1 |
|
17 |
Z30.17.12 |
前左扶手 |
L front hand rail |
1 |
|
18 |
GB/T5783-1986 |
螺栓 M12×3ZnD |
Bolt |
6 |
|
19 |
GB/T5783-1986 |
螺栓 M8×25ZnD |
Bolt |
12 |
|
20 |
GB/T93-1987 |
垫圈 8 |
Washer |
12 |
|
21 |
GB/T97.2-1985 |
垫圈 8ZnD |
Washer |
12 |
|
22 |
GB/T5783-1986 |
螺栓 M12×45ZnD |
Bolt |
2 |
|
23 |
GB/T5783-1986 |
螺栓 M12×35ZnD |
Bolt |
4 |

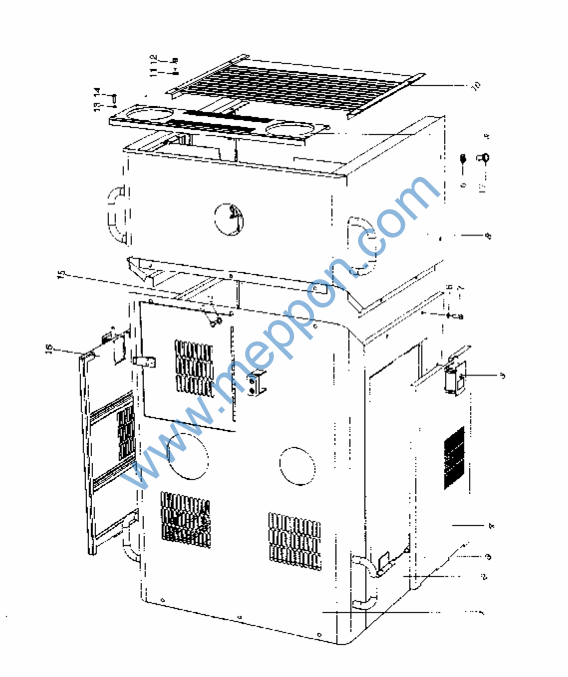

Z40E.17.5
发动机护罩 Engine
Shroud
Assembly
|
|
