SANY SY135C SY135C8I2K EXCAVATOR parts catalog 24
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

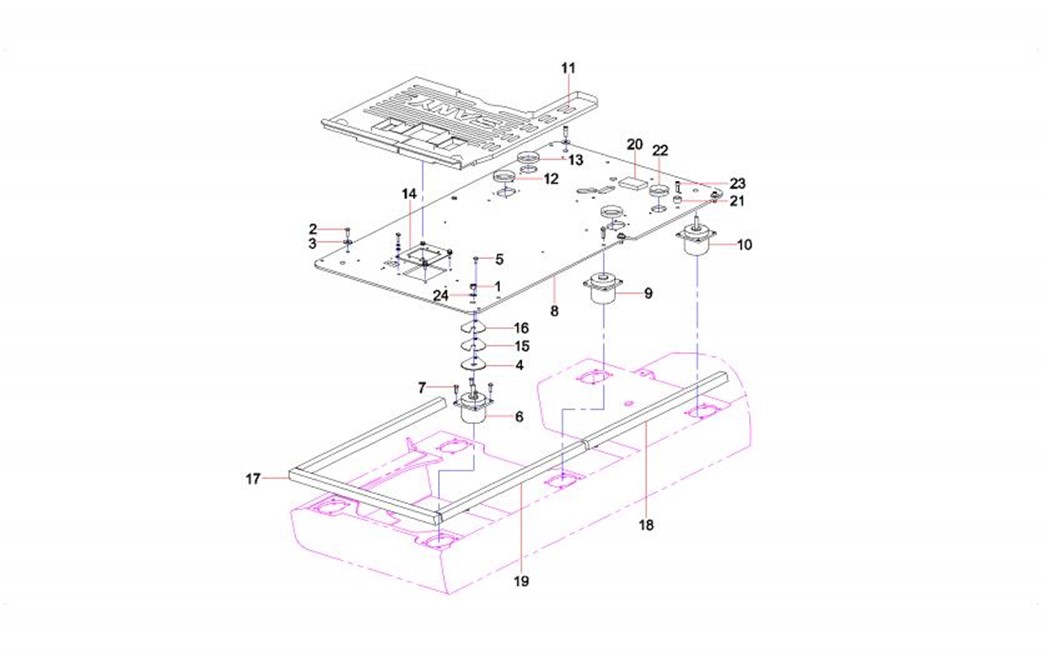

2-253-1 |
1 |
A210307000028 |
4 |
螺母M16GB6170 10级 |
False |
2-253-2 |
2 |
A210111000204 |
2 |
螺栓M12×40GB5783 10.9级 |
Bolt |
2-253-3 |
3 |
A210404000004 |
2 |
垫圈 |
False |
2-253-4 |
4 |
11546613 |
4 |
垫板 |
Plate |
2-253-5 |
5 |
A210111000195 |
8 |
螺栓 |
Bolt |
2-253-6 |
6 |
B229900000244 |
2 |
司机室支承 |
Support, cab |
2-253-7 |
7 |
A210111000024 |
24 |
螺栓M10×30GB5783 10.9级 |
Bolt |
2-253-8 |
8 |
12372269 |
1 |
底板 |
Base Plate |
2-253-9 |
9 |
A222000000019 |
2 |
减震器 |
Damper |
2-253-10 |
10 |
B229900000245 |
2 |
司机室支承 |
Support, cab |
2-253-11 |
11 |
12650474 |
1 |
地板垫 |
Floor Cushion |
2-253-12 |
12 |
A820606030056 |
2 |
护孔环 |
Grommet |
2-253-13 |
13 |
10898697 |
1 |
护孔环 |
Grommet |
2-253-14 |
14 |
A810402050021 |
1 |
连接板 |
Board, connecting |
2-253-15 |
15 |
11593942 |
4 |
垫片 |
Shim |
2-253-16 |
16 |
11594064 |
4 |
垫片 |
Shim |
2-253-17 |
17 |
A820699000679 |
1 |
驾驶室底板海绵 |
Sponge, bottom plate, cab |
2-253-18 |
18 |
A820699000678 |
2 |
驾驶室底板海绵 |
Sponge, bottom plate, cab |
2-253-19 |
19 |
A820699000677 |
1 |
驾驶室底板海绵 |
Sponge, bottom plate, cab |
2-253-20 |
20 |
A820699000215 |
2 |
背部海绵 |
Sponge, back |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-255-21 |
21 |
A820299000383 |
3 |
套 |
Sleeve |
2-255-22 |
22 |
A820606030059 |
1 |
护孔环 |
Grommet |
2-255-23 |
23 |
A210204000028 |
3 |
螺钉 |
Screw |
2-255-24 |
24 |
A210405000003 |
4 |
垫圈 |
Washer |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

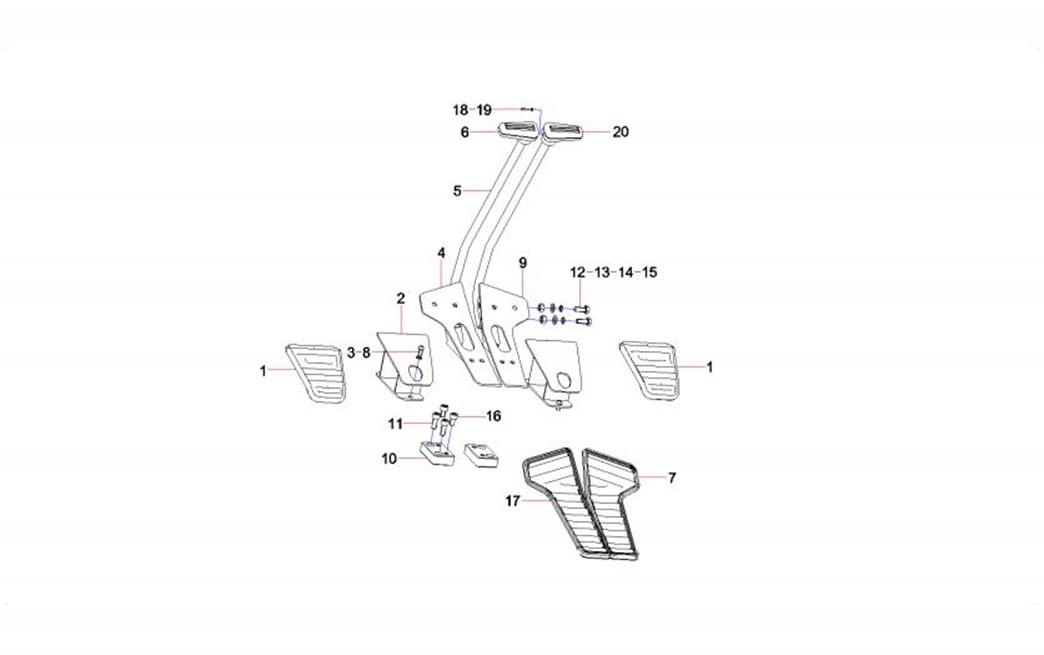

2-257-1 |
1 |
12002592 |
2 |
脚踏套 |
Sleeve, foot valve |
2-257-2 |
2 |
12846550 |
2 |
脚踏板 |
PedalSY75CAI2H.1.5.6.2 |
2-257-3 |
3 |
A210401000017 |
4 |
垫圈 |
False |
2-257-4 |
4 |
12003641 |
1 |
脚踏阀垫板总成左 |
Plate GP,foot valve |
2-257-5 |
5 |
A810201073015 |
2 |
操纵杆 |
Lever, control |
2-257-6 |
6 |
12688927 |
1 |
左手柄 |
Handle, left |
2-257-7 |
7 |
12010268 |
1 |
脚踏阀垫板套右 |
Sleeve, plate,foot valve |
2-257-8 |
8 |
A210210000019 |
4 |
螺钉 |
Screw |
2-257-9 |
9 |
12009972 |
1 |
脚踏阀垫板总成右 |
Plate GP,foot valve |
2-257-10 |
10 |
11571909 |
2 |
联接块 |
Block, connection |
2-257-11 |
11 |
23000066 |
4 |
螺钉M10×25GB70.1 10.9级 |
Screw |
2-257-12 |
12 |
A210307000017 |
4 |
螺母 |
Nut |
2-257-13 |
13 |
A210111000018 |
4 |
螺栓 |
Bolt |
2-257-14 |
14 |
A210405000011 |
4 |
垫圈 |
False |
2-257-15 |
15 |
A210401000001 |
4 |
垫圈 |
False |
2-257-16 |
16 |
A210204000202 |
4 |
螺钉 |
Screw |
2-257-17 |
17 |
12009258 |
1 |
蝶形脚踏垫板套 |
Sheath, plate, butterfly footrest |
2-257-18 |
18 |
A210210000059 |
2 |
螺钉 |
Screw |
2-257-19 |
19 |
A210405000027 |
2 |
垫圈 |
Washer3GB97.1 |
2-257-20 |
20 |
12691132 |
1 |
右手柄 |
Handle, right |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

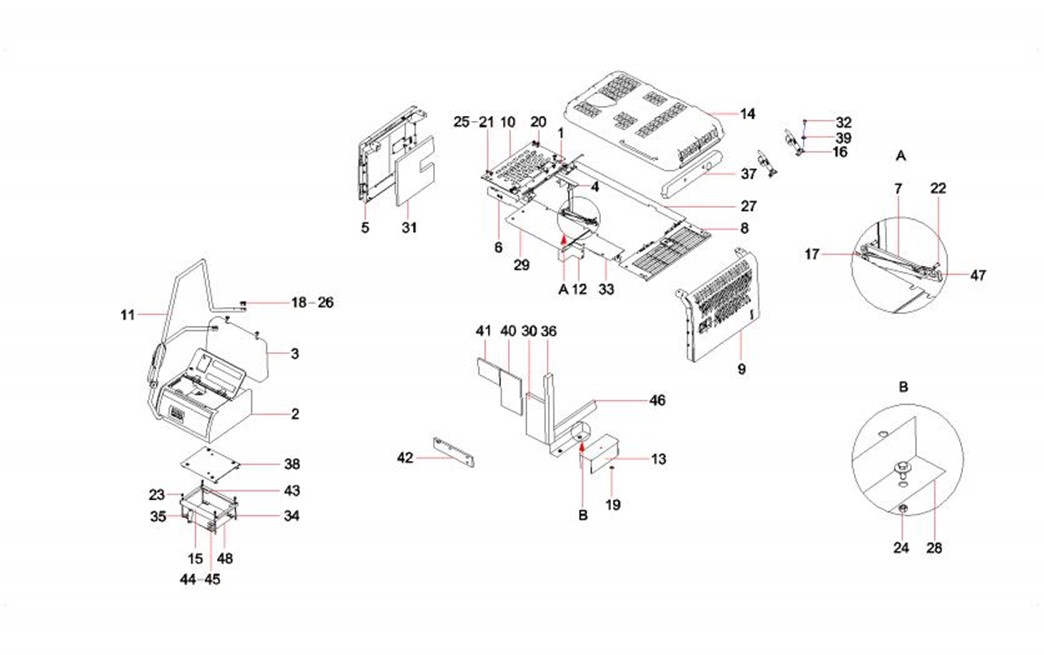

2-259-1 |
1 |
A810502015254 |
1 |
托架 |
Bracket |
2-259-2 |
2 |
A810502017041 |
1 |
电瓶箱总成 |
Box GP, battery |
2-259-3 |
3 |
A810502990185 |
1 |
装饰盖 |
Cover, ornament |
2-259-4 |
4 |
A810502015256 |
1 |
右后支架 |
Bracket, rear, right |
2-259-5 |
5 |
12110958 |
1 |
右门总成 |
Door GP, right |
2-259-6 |
6 |
A810502015255 |
1 |
前横梁 |
Beam, cross, front |
2-259-7 |
7 |
A810502015323 |
1 |
撑杆 |
Bar, support |
2-259-8 |
8 |
12440890 |
1 |
左上后盖板 |
Coverplate, rear, upper left |
2-259-9 |
9 |
12111249 |
1 |
左门总成 |
Door GP, left |
2-259-10 |
10 |
A810502012252 |
1 |
右上后盖板 |
Coverplate, rear, upper right |
2-259-11 |
11 |
A810599001056 |
1 |
扶手 |
Handhold |
2-259-12 |
12 |
11463987 |
1 |
前盖板支架 |
Bracket, front coverplate |
2-259-13 |
13 |
12079495 |
1 |
工具箱 |
Toolbox |
2-259-14 |
14 |
12150256 |
1 |
机顶罩总成 |
Engine hood GP |
2-259-15 |
15 |
12403409 |
1 |
电池压板总成 |
Plate, pressure, battery |
2-259-16 |
16 |
A222200000065 |
2 |
门锁 |
Lock, door |
2-259-17 |
17 |
A210491000014 |
3 |
销 |
Pin |
2-259-18 |
18 |
A210491000121 |
6 |
垫圈 |
Washer |
2-259-19 |
19 |
A210401000002 |
6 |
垫圈 |
Washer |
2-259-20 |
20 |
A210404000004 |
89 |
垫圈 |
False |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-261-21 |
21 |
A210405000001 |
3 |
垫圈 |
Washer |
2-261-22 |
22 |
A210508000009 |
3 |
销轴 |
Roll, pin |
2-261-23 |
23 |
A210307000036 |
8 |
螺母 |
Nut |
2-261-24 |
24 |
A210307000031 |
2 |
螺母 |
Nut |
2-261-25 |
25 |
A210111000202 |
78 |
螺栓 |
Bolt |
2-261-26 |
26 |
A210111000203 |
10 |
螺栓M12×35GB5783 10.9级 |
Bolt |
2-261-27 |
27 |
10072949 |
1 |
后横梁 |
Beam, cross, rear |
2-261-28 |
28 |
10072952 |
1 |
散热器下隔板 |
Partition, lower, radiator |
2-261-29 |
29 |
11769240 |
1 |
前盖板 |
Coverplate, front |
2-261-30 |
30 |
10118648 |
1 |
右隔板吸音海绵 |
Sponge, noise absorbing, right |
2-261-31 |
31 |
A820699001180 |
1 |
门降噪海绵 |
Sponge, noise reduction, cab door |
2-261-32 |
32 |
A210111000089 |
8 |
螺栓 |
Bolt |
2-261-33 |
33 |
11464041 |
1 |
侧盖板 |
Cover plate, side |
2-261-34 |
34 |
A820301015908 |
4 |
双头螺柱 |
Stud |
2-261-35 |
35 |
A820101324589 |
1 |
灯安装座 |
Mount, lamp |
2-261-36 |
36 |
A820601991116 |
1 |
底密封海棉板 |
Sponge, sealing, bottom |
2-261-37 |
37 |
11041135 |
1 |
散热器顶部海绵 |
Sponge, top, radiator |
2-261-38 |
38 |
11991710 |
1 |
蓄电池保护罩 |
Cover, protection, battery |
2-261-39 |
39 |
A210401000017 |
8 |
垫圈 |
False |
2-261-40 |
40 |
11826921 |
1 |
隔板海绵 |
Sponge, partition |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-263-41 |
41 |
11827070 |
1 |
隔板海绵 |
Sponge, partition |
2-263-42 |
42 |
11827108 |
1 |
隔板海绵 |
Sponge, partition |
2-263-43 |
43 |
A820606030643 |
4 |
蓄电池胶垫 |
Cushion, battery |
2-263-44 |
44 |
A820101210711 |
8 |
垫片 |
Gasket |
2-263-45 |
45 |
A820101210712 |
8 |
垫片 |
Gasket |
2-263-46 |
46 |
A820699000269 |
1 |
底海绵 |
Sponge, bottom |
2-263-47 |
47 |
A820302010101 |
1 |
支杆 |
Rod, bearing |
2-263-48 |
48 |
A820606020243 |
1 |
蓄电池胶垫 |
Cushion, battery |
