识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

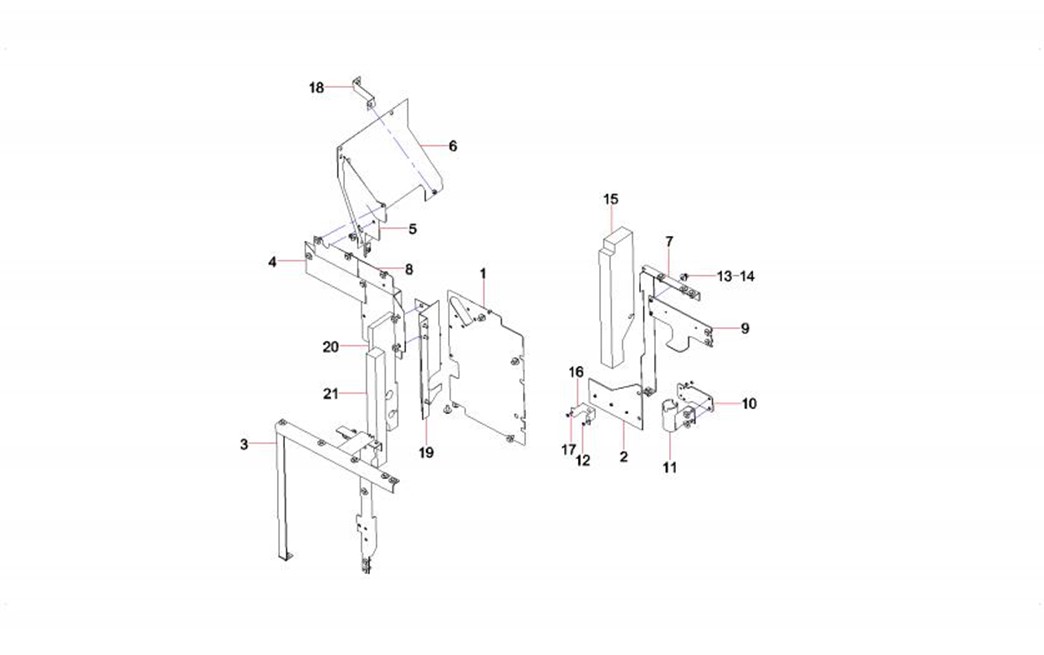

2-265-1

1

A810502012312

1

左隔板

Partition, left

2-265-2

2

10138594

1

固定板

Plate, fixing

2-265-3

3

A810502015257

1

左前支架

Bracket, front, left

2-265-4

4

10684013

1

右隔板

Partition, right

2-265-5

5

A810502012313

1

中隔板

Partition, middle

2-265-6

6

A810502012285

1

侧隔板

Partition, side

2-265-7

7

A810502015268

1

左后支架

Bracket, rear, left

2-265-8

8

A810502012286

1

右前侧隔板

Baffle, front, right

2-265-9

9

12076680

1

副水箱支架

Bracket, reserve tank

2-265-10

10

12076827

1

干燥瓶安装板

Plate, mounting, drying bottle

2-265-11

11

A810502015055

1

门轴焊接件

Weldment, pivot, cab door

2-265-12

12

A210405000007

10

垫圈

False

2-265-13

13

A210404000003

2

垫圈

Washer

2-265-14

14

A210111000197

2

螺栓M10×25GB5783 10.9级

Bolt

2-265-15

15

11826613

1

散热器左侧海绵

Sponge, left side, radiator

2-265-16

16

A820101216763

1

检修灯安装支架零件图

Parts book, mounting bracket,

2-265-17

17

A210210000019

2

螺钉

Screw

2-265-18

18

A820101351600

1

侧隔板固定板

Plate, fixing, side partition

2-265-19

19

10200730

1

中侧隔板

Partition, middle

2-265-20

20

11756151

1

中侧隔板海绵

Sponge, partition, middle

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-267-21

21

11756388

1

隔板海绵

Sponge, partition

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

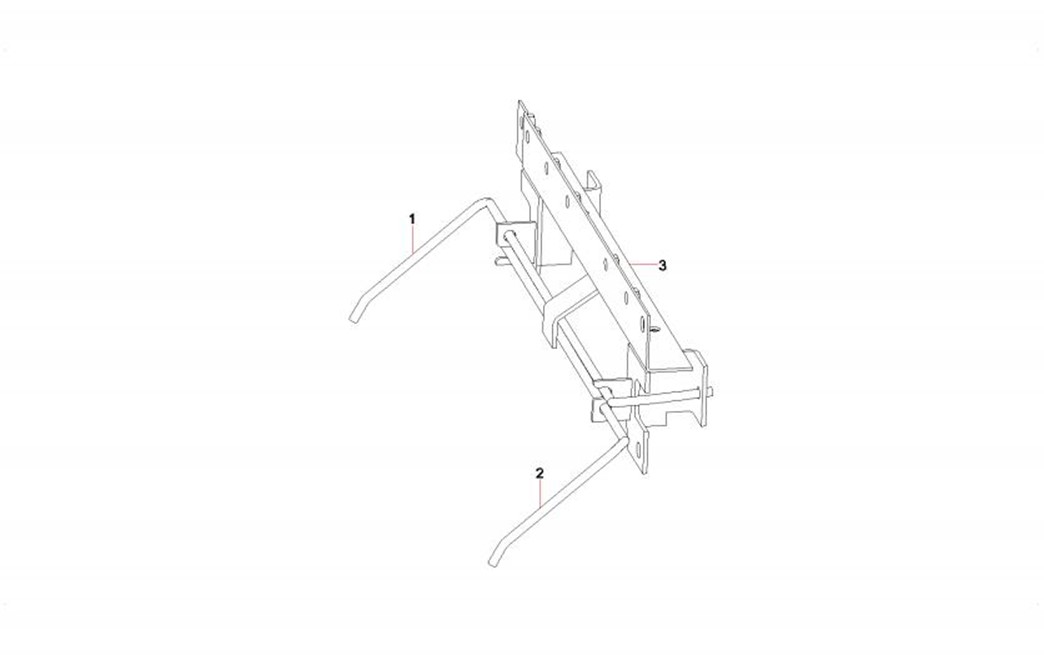

2-269-1

1

A829900002715

1

后部弹簧

Spring, rear

2-269-2

2

A829900002716

1

前部弹簧

Spring, front

2-269-3

3

10217480

1

托架

Bracket

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

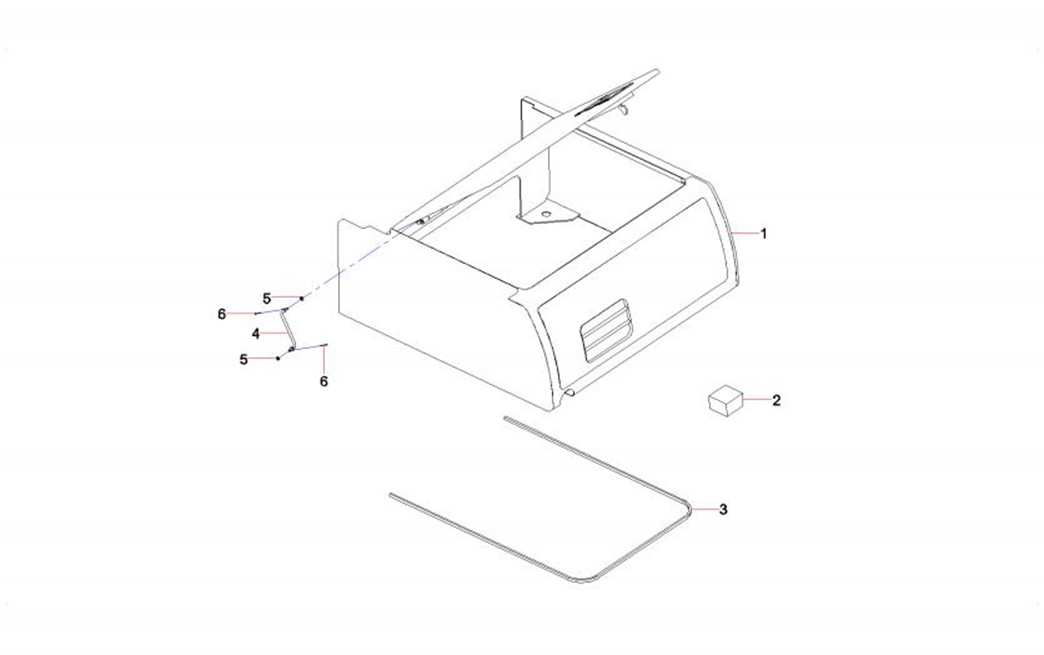

2-271-1

1

A810502017042

1

电瓶箱主体

Body, battery box

2-271-2

2

A820606030559

1

缓冲垫

Cushion

2-271-3

3

A820606030886

1

密封条

Strip, sealing

2-271-4

4

A810502990125

1

支杆

Rod, bearing

2-271-5

5

A210404000009

2

垫圈

Washer

2-271-6

6

A210491000007

2

销

Pin

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

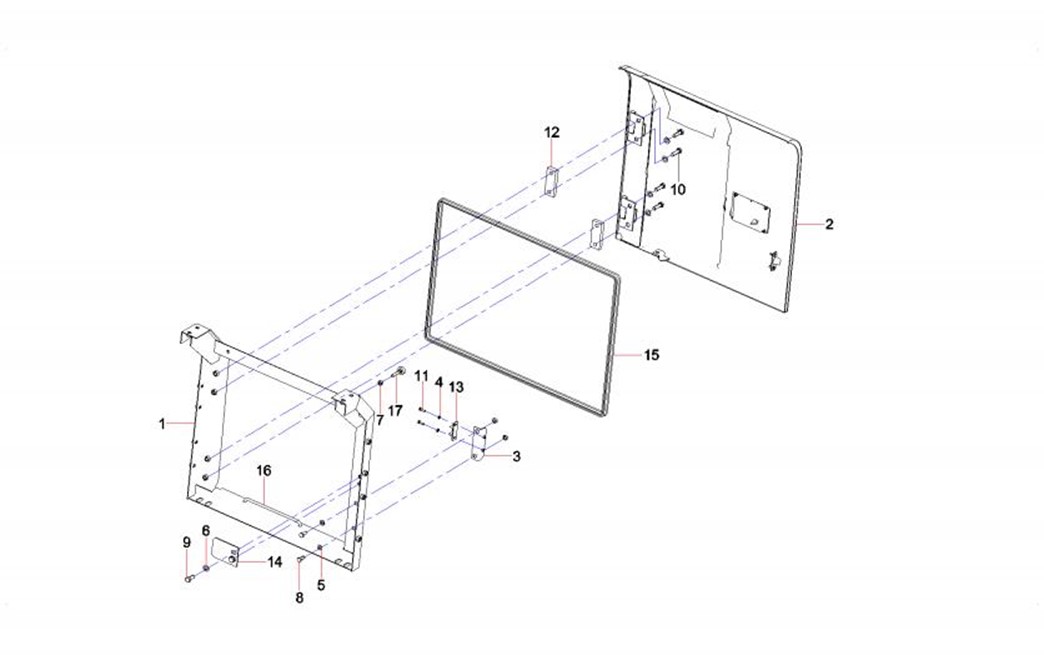

2-273-1

1

12110361

1

右门安装架

Frame, mounting, right door

2-273-2

2

12110645

1

右门

Door, right

2-273-3

3

A810502015054

1

固定块

Block, fixing

2-273-4

4

A210405000006

2

垫圈

Washer

2-273-5

5

A210405000011

2

垫圈

False

2-273-6

6

A210405000001

6

垫圈

Washer

2-273-7

7

A210307000017

3

螺母

Nut

2-273-8

8

A210111000018

2

螺栓

Bolt

2-273-9

9

A210111000038

2

螺栓

Bolt

2-273-10

10

A210111000040

4

螺栓

Bolt

2-273-11

11

A210111000080

2

螺栓

Bolt

2-273-12

12

12107734

2

安装块

Retainer GP

2-273-13

13

A820405000009

1

卡座

Holder

2-273-14

14

A820101118440

1

锁卡板

Plate, locking

2-273-15

15

A820606030378

1

密封条

Strip, sealing

2-273-16

16

A820301012423

1

风钩

Catch

2-273-17

17

A810502019056

1

定位螺钉

Setscrew

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

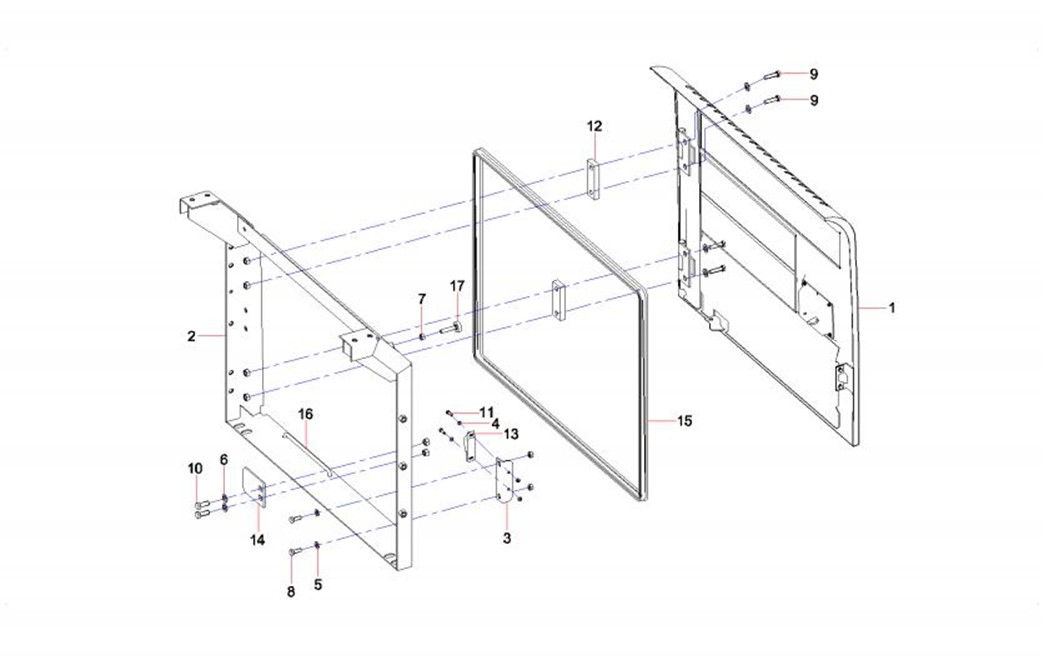

2-275-1

1

12111250

1

左门

Door, left

2-275-2

2

12111145

1

左门安装架

Frame, mounting, left door

2-275-3

3

A810502015054

1

固定块

Block, fixing

2-275-4

4

A210405000006

2

垫圈

Washer

2-275-5

5

A210405000011

2

垫圈

False

2-275-6

6

A210405000001

6

垫圈

Washer

2-275-7

7

A210307000017

3

螺母

Nut

2-275-8

8

A210111000018

2

螺栓

Bolt

2-275-9

9

A210111000027

4

螺栓

Bolt

2-275-10

10

A210111000038

2

螺栓

Bolt

2-275-11

11

A210111000080

2

螺栓

Bolt

2-275-12

12

12107734

2

安装块

Retainer GP

2-275-13

13

A820405000009

1

卡座

Holder

2-275-14

14

A820101118440

1

锁卡板

Plate, locking

2-275-15

15

A820606030378

1

密封条

Strip, sealing

2-275-16

16

A820301012423

1

风钩

Catch

2-275-17

17

A810502019056

1

定位螺钉

Setscrew
