SANY SY135C SY135C8I2K EXCAVATOR parts catalog 31
| 识别码 IC | 序号 INDEX | 零件代码 PART NUMBER | 数量 QTY | 名称 PART NAME | |
| 4-21-21 | 21 | 60065354 | 1 | 轴用密封圈 | Ring, seal |
| 4-21-22 | 22 | 60065309 | 1 | 开口挡圈 | Ring, retainer, switch |
| 4-21-23 | 23 | 60065201 | 1 | 缓冲圈 | Ring, buffer |
| 4-21-24 | 24 | 60084730 | 1 | 滑动轴套 | Sleeve, sliding |
| 4-21-25 | 25 | 60065243 | 1 | 挡圈 | Ring, retaining |
| 4-21-26 | 26 | 24001034 | 1 | O形圈 | O-ring |
| 4-21-27 | 27 | 60084726 | 1 | 挡圈 | Ring, retaining |
| 4-21-28 | 28 | 60084735 | 1 | 缓冲环 | Ring, buffer |
| 4-21-29 | 29 | 60065334 | 2 | 成型导向环 | Ring, guide |
| 4-21-30 | 30 | 60065348 | 1 | 孔用密封圈 | Ring, seal |
| 4-21-31 | 31 | 60065214 | 1 | 纳污环 | Ring, contaminant |
| 4-21-32 | 32 | 60084748 | 1 | 缓冲环 | Ring, buffer |
| 4-21-33 | 33 | 60038830 | 4 | 防尘圈 | Ring, dust |
| 4-21-34 | 34 | 21018402 | 1 | O形圈 | O-ring |
| 4-21-35 | 35 | A210204000163 | 4 | 螺钉 | Screw |
| 4-21-36 | 36 | 60021558 | 2 | 螺栓 | Bolt |
| 4-21-37 | 37 | 24000867 | 2 | 螺母GB6170 10级 | Nut |
| 4-21-38 | 38 | A210400000001 | 3 | 垫圈 | Washer |
| 4-21-39 | 39 | A210108000004 | 1 | 螺栓 | Bolt |
| 4-21-40 | 40 | 60082862 | 1 | 斗杆油缸维修包 | Repair kit, arm cylinder |
| 识别码 IC | 序号 INDEX | 零件代码 PART NUMBER | 数量 QTY | 名称 PART NAME | |
| 4-23-1 | 1 | 60084691 | 2 | B型轴套 | Sleeve, shaft |
| 4-23-2 | 2 | 60084705 | 1 | 活塞杆 | Rod, piston |
| 4-23-3 | 3 | A210204000298 | 12 | 螺钉 | Screw |
| 4-23-4 | 4 | 60080485 | 1 | 缓冲套 | Sleeve, buffer |
| 4-23-5 | 5 | 60084703 | 1 | 活塞 | Piston |
| 4-23-6 | 6 | 60084742 | 1 | 螺母 | Nut |
| 4-23-7 | 7 | 60084696 | 1 | 端盖 | Cover, end |
| 4-23-8 | 8 | 60084690 | 1 | (右)动臂油管组件 | Pipe GP, boom, right |
| 4-23-9 | 9 | 60084689 | 1 | (右)动臂油管组件 | Pipeline GP, boom |
| 4-23-10 | 10 | A880899010002 | 2 | 油杯 | Cup, oil |
| 4-23-11 | 11 | 60084701 | 1 | 缸体 | Cylinder block |
| 4-23-12 | 12 | 60084716 | 2 | 压板 | Plate, pressure |
| 4-23-13 | 13 | 60084709 | 1 | 卡箍组件 | Clamp GP |
| 4-23-14 | 14 | 60084741 | 1 | 螺钉 | Screw |
| 4-23-15 | 15 | 60080467 | 1 | 钢球 | Ball, steel |
| 4-23-16 | 16 | 60084694 | 1 | 垫片 | Gasket |
| 4-23-17 | 17 | 60084712 | 1 | 铜套 | Bushing, copper |
| 4-23-18 | 18 | A880808070027 | 1 | DKBI防尘圈 | Ring, dust |
| 4-23-19 | 19 | 60084740 | 1 | 挡圈 | Ring, retaining |
| 4-23-20 | 20 | 60080538 | 1 | 轴用密封圈 | Ring, seal |
| 识别码 IC | 序号 INDEX | 零件代码 PART NUMBER | 数量 QTY | 名称 PART NAME | |
| 4-25-21 | 21 | 60084711 | 1 | 开口挡圈 | Ring, retainer, switch |
| 4-25-22 | 22 | 60084719 | 1 | 缓冲圈 | Ring, buffer |
| 4-25-23 | 23 | 60084729 | 1 | 滑动轴套 | Sleeve, sliding |
| 4-25-24 | 24 | 60084693 | 1 | 挡圈 | Ring, retaining |
| 4-25-25 | 25 | A210609000089 | 1 | O形圈 | O-ring |
| 4-25-26 | 26 | 60084692 | 1 | O形圈挡圈 | Ring, retaining |
| 4-25-27 | 27 | 60084745 | 1 | 缓冲环 | Ring, buffer |
| 4-25-28 | 28 | 60084734 | 2 | 成形导向环 | Ring, guide |
| 4-25-29 | 29 | 60084737 | 1 | 孔用密封圈 | Ring, seal |
| 4-25-30 | 30 | 60084723 | 2 | 纳污环 | Ring, contaminant |
| 4-25-31 | 31 | 60038830 | 4 | 防尘圈 | Ring, dust |
| 4-25-32 | 32 | A210204000164 | 8 | 螺钉 | Screw |
| 4-25-33 | 33 | B230101000656 | 2 | O形圈 | O-ring |
| 4-25-34 | 34 | 60021558 | 2 | 螺栓 | Bolt |
| 4-25-35 | 35 | A210307000036 | 2 | 螺母 | Nut |
| 4-25-36 | 36 | A210400000001 | 2 | 垫圈 | Washer |
| 4-25-37 | 37 | A210110000030 | 1 | 螺栓 | Bolt |
| 4-25-38 | 38 | A210401000003 | 1 | 垫圈 | Washer |
| 4-25-39 | 39 | A210307000025 | 1 | 螺母 | Nut |
| 4-25-40 | 40 | 60082858 | 1 | 动臂油缸维修包 | Repair kit, cylinder, boom |
| 识别码 IC | 序号 INDEX | 零件代码 PART NUMBER | 数量 QTY | 名称 PART NAME | |
| 4-27-1 | 1 | 60084691 | 2 | B型轴套 | Sleeve, shaft |
| 4-27-2 | 2 | A210204000298 | 12 | 螺钉 | Screw |
| 4-27-3 | 3 | 60084705 | 1 | 活塞杆 | Rod, piston |
| 4-27-4 | 4 | 60080485 | 1 | 缓冲套 | Sleeve, buffer |
| 4-27-5 | 5 | 60084703 | 1 | 活塞 | Piston |
| 4-27-6 | 6 | 60084742 | 1 | 螺母 | Nut |
| 4-27-7 | 7 | 60084689 | 1 | (右)动臂油管组件 | Pipeline GP, boom |
| 4-27-8 | 8 | 60084690 | 1 | (右)动臂油管组件 | Pipe GP, boom, right |
| 4-27-9 | 9 | 60084716 | 2 | 压板 | Plate, pressure |
| 4-27-10 | 10 | A210307000025 | 1 | 螺母 | Nut |
| 4-27-11 | 11 | A880899010002 | 2 | 油杯 | Cup, oil |
| 4-27-12 | 12 | 60084709 | 1 | 卡箍组件 | Clamp GP |
| 4-27-13 | 13 | 60084701 | 1 | 缸体 | Cylinder block |
| 4-27-14 | 14 | 60084696 | 1 | 端盖 | Cover, end |
| 4-27-15 | 15 | 60084741 | 1 | 螺钉 | Screw |
| 4-27-16 | 16 | 60080467 | 1 | 钢球 | Ball, steel |
| 4-27-17 | 17 | 60084694 | 1 | 垫片 | Gasket |
| 4-27-18 | 18 | 60084712 | 1 | 铜套 | Bushing, copper |
| 4-27-19 | 19 | A880808070027 | 1 | DKBI防尘圈 | Ring, dust |
| 4-27-20 | 20 | 60084740 | 1 | 挡圈 | Ring, retaining |
| 识别码 IC | 序号 INDEX | 零件代码 PART NUMBER | 数量 QTY | 名称 PART NAME | |
| 4-29-21 | 21 | 60080538 | 1 | 轴用密封圈 | Ring, seal |
| 4-29-22 | 22 | 60084711 | 1 | 开口挡圈 | Ring, retainer, switch |
| 4-29-23 | 23 | 60084719 | 1 | 缓冲圈 | Ring, buffer |
| 4-29-24 | 24 | 60084729 | 1 | 滑动轴套 | Sleeve, sliding |
| 4-29-25 | 25 | 60084693 | 1 | 挡圈 | Ring, retaining |
| 4-29-26 | 26 | A210609000089 | 1 | O形圈 | O-ring |
| 4-29-27 | 27 | 60084692 | 1 | O形圈挡圈 | Ring, retaining |
| 4-29-28 | 28 | 60084745 | 1 | 缓冲环 | Ring, buffer |
| 4-29-29 | 29 | 60084734 | 2 | 成形导向环 | Ring, guide |
| 4-29-30 | 30 | 60084737 | 1 | 孔用密封圈 | Ring, seal |
| 4-29-31 | 31 | 60084723 | 2 | 纳污环 | Ring, contaminant |
| 4-29-32 | 32 | 60038830 | 4 | 防尘圈 | Ring, dust |
| 4-29-33 | 33 | A210204000164 | 8 | 螺钉 | Screw |
| 4-29-34 | 34 | B230101000656 | 2 | O形圈 | O-ring |
| 4-29-35 | 35 | 60021558 | 2 | 螺栓 | Bolt |
| 4-29-36 | 36 | A210307000036 | 2 | 螺母 | Nut |
| 4-29-37 | 37 | A210400000001 | 2 | 垫圈 | Washer |
| 4-29-38 | 38 | A210110000030 | 1 | 螺栓 | Bolt |
| 4-29-39 | 39 | A210401000003 | 1 | 垫圈 | Washer |
| 4-29-40 | 40 | 60082858 | 1 | 动臂油缸维修包 | Repair kit, cylinder, boom |

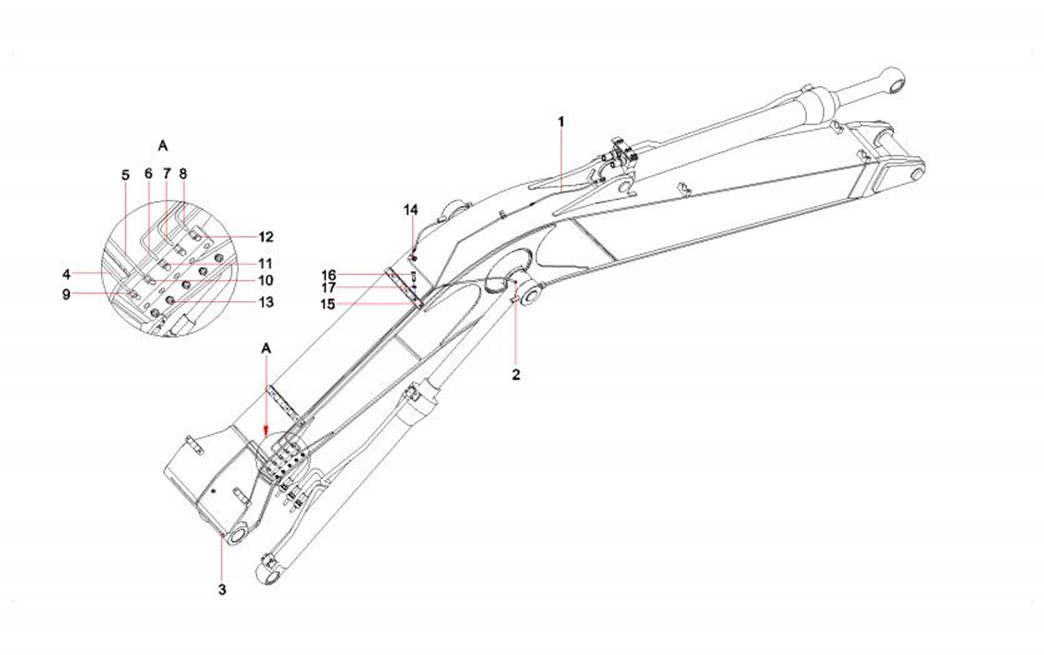

| 识别码 IC | 序号 INDEX | 零件代码 PART NUMBER | 数量 QTY | 名称 PART NAME | |
| 4-31-1 | 1 | B230103000815 | 3 | 胶管 | Hose, rubber |
| 4-31-2 | 2 | A820205000858 | 3 | 管接头 | Connector |
| 4-31-3 | 3 | A210715000008 | 2 | 管接头 | Connector, pipe |
| 4-31-4 | 4 | A820207010415 | 1 | 黄油管 | Tube, grease |
| 4-31-5 | 5 | A820207010416 | 1 | 黄油管 | Tube, grease |
| 4-31-6 | 6 | A820207010417 | 1 | 黄油管 | Tube, grease |
| 4-31-7 | 7 | A820207010418 | 1 | 黄油管 | Tube, grease |
| 4-31-8 | 8 | A820207010419 | 1 | 黄油管 | Tube, grease |
| 4-31-9 | 9 | B210770000085 | 2 | 管接头 | Joint, pipe |
| 4-31-10 | 10 | A210434000005 | 2 | 垫圈 | Washer |
| 4-31-11 | 11 | A810201031035 | 6 | 过渡接头 | Connector |
| 4-31-12 | 12 | A210434000007 | 3 | 垫圈 | Washer |
| 4-31-13 | 13 | B229900000686 | 5 | 黄油嘴 | Fitting, grease |
| 4-31-14 | 14 | A230200000170 | 2 | 线夹 | Clip |
| 4-31-15 | 15 | A820101345161 | 2 | 管夹 | Clamp, pipe |
| 4-31-16 | 16 | A210204000339 | 7 | 螺钉 | Screw |
| 4-31-17 | 17 | A210401000017 | 4 | 垫圈 | False |
