SANY SY135C SY135C8I2K EXCAVATOR parts catalog 32
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
4-33-1 |
1 |
B210780000191 |
1 |
螺母 |
Connector, pipe |
|
4-33-2 |
2 |
B229900001092 |
1 |
特型卡套 |
Sleeve, special |
|
4-33-3 |
3 |
A820205001235 |
1 |
管接头 |
Connector |
第5章
电气系统
(Electrical system)
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

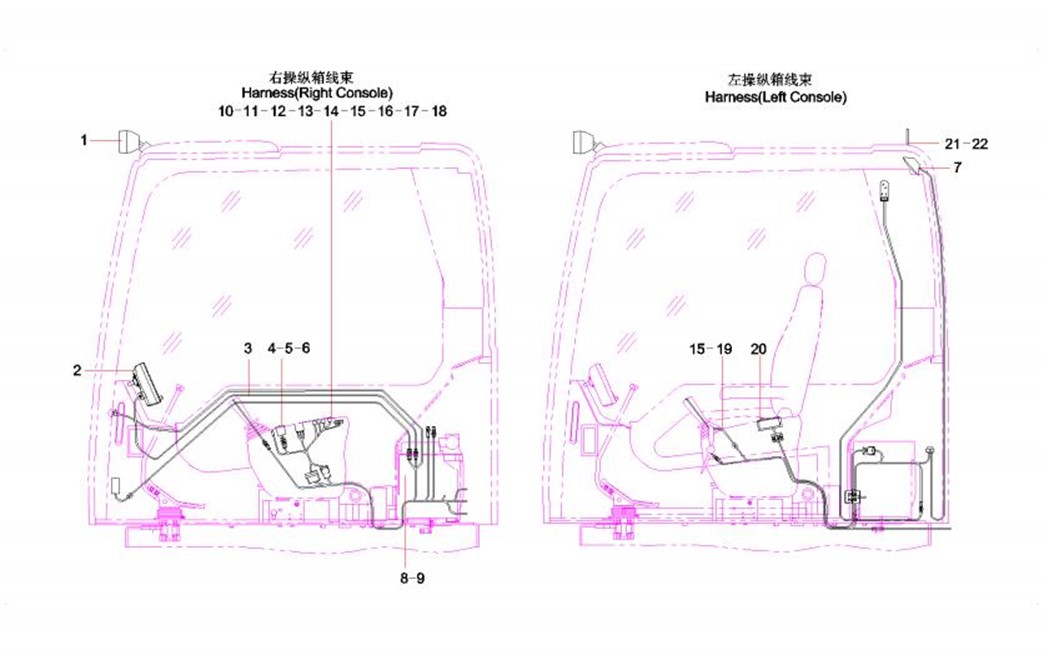

5-3-1 |
1 |
B241100000391 |
2 |
工作灯 |
Lamp, working |
|
5-3-2 |
2 |
变更或见其他配置 |
1 |
三一显示屏 |
Sany monitor |
|
5-3-3 |
3 |
变更或见其他配置 |
1 |
驾驶室线束 |
Driver’s Cab |
|
5-3-4 |
4 |
60117463 |
1 |
旋钮开关 |
Dial, fuel control |
|
5-3-5 |
5 |
A241200001217 |
1 |
启动开关 |
Switch, start |
|
5-3-6 |
6 |
A230200000021 |
1 |
PVC电气胶带 |
Tape, electric, PVC |
|
5-3-7 |
7 |
60023703 |
1 |
喇叭 |
Horn |
|
5-3-8 |
8 |
A210111000199 |
20 |
螺栓 |
Bolt |
|
5-3-9 |
9 |
A210401000002 |
20 |
垫圈 |
Washer |
|
5-3-10 |
10 |
A210202000011 |
7 |
螺钉 |
Screw |
|
5-3-11 |
11 |
A210401000013 |
7 |
垫圈 |
Washer |
|
5-3-12 |
12 |
60053220 |
1 |
LED指示灯LAS3/24V 红 |
Lamp, indicator, LED, red |
|
5-3-13 |
13 |
60053221 |
1 |
LED指示灯LAS3/24V 黄 |
Lamp, indicator, LED, yellow |
|
5-3-14 |
14 |
12110110 |
1 |
控制开关线束 |
Control harness |
|
5-3-15 |
15 |
60086355 |
6 |
线束固定夹 |
Clamp, harness |
|
5-3-16 |
16 |
A210111000011 |
2 |
螺栓 |
Bolt |
|
5-3-17 |
17 |
A210111000088 |
12 |
螺栓 |
Bolt |
|
5-3-18 |
18 |
A210401000017 |
12 |
垫圈 |
False |
|
5-3-19 |
19 |
11742013 |
1 |
喇叭开关线束 |
Harness, horn switch |
|
5-3-20 |
20 |
A240500000113 |
1 |
收音机 |
Radio |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
5-5-21 |
21 |
60090606 |
1 |
天线 |
Antenna |
|
5-5-22 |
22 |
60060300 |
1 |
天线延长线 |
Extension, antenna |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

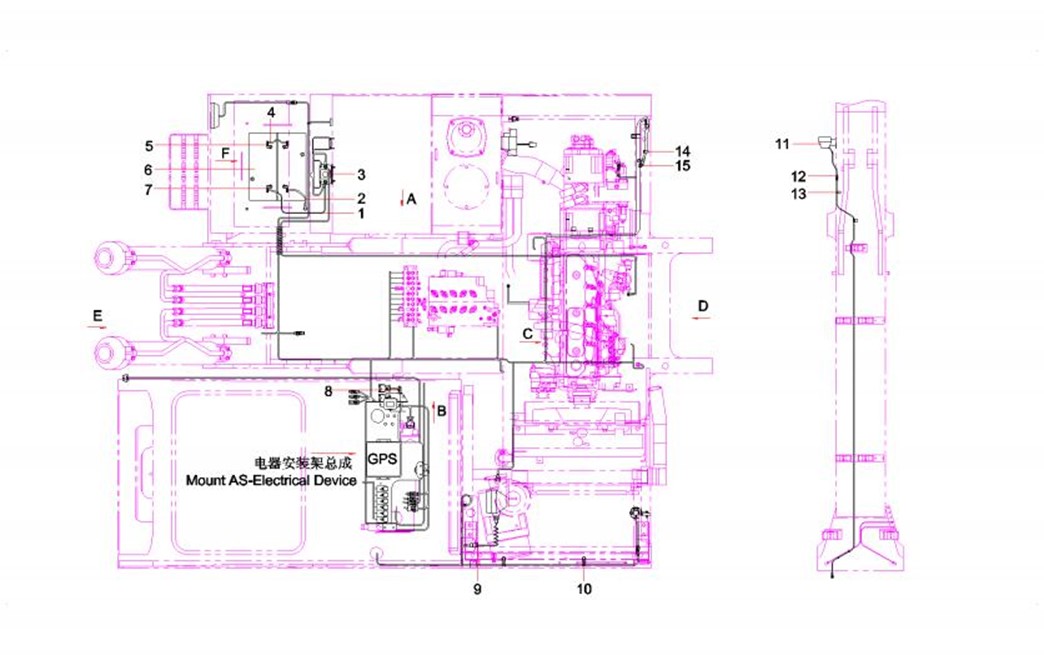

5-7-1 |
1 |
60012805 |
1 |
电源线 |
Line, power |
|
5-7-2 |
2 |
60012803 |
1 |
电源线 |
Wire, power supply |
|
5-7-3 |
3 |
B240700000383 |
1 |
电池继电器 |
Relay |
|
5-7-4 |
4 |
60012792 |
1 |
电源线 |
Wire, power supply |
|
5-7-5 |
5 |
60013321 |
1 |
A型蓄电池负极接头总成 |
Connector GP, cathode, battery, A |
|
5-7-6 |
6 |
A242200000027 |
2 |
蓄电池 |
Battery |
|
5-7-7 |
7 |
60013322 |
1 |
A型蓄电池正极接头总成 |
Connector GP, anode, battery, A- |
|
5-7-8 |
8 |
60086357 |
4 |
线束固定夹 |
Clamp, harness |
|
5-7-9 |
9 |
B241000000022 |
1 |
2芯圆形插座 |
Socket, two-wire |
|
5-7-10 |
10 |
60086356 |
4 |
线束固定夹 |
Clamp, harness |
|
5-7-11 |
11 |
A241100000352 |
1 |
工作灯 |
Lamp, working |
|
5-7-12 |
12 |
11400099 |
1 |
线夹 |
Clip |
|
5-7-13 |
13 |
60086353 |
2 |
线束固定夹 |
Clamp, harness |
|
5-7-14 |
14 |
60197034 |
1 |
带扣扎带 |
Cluster fixed lace |
|
5-7-15 |
15 |
60202078 |
2 |
带扣扎带 |
Cluster fixed lace |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|

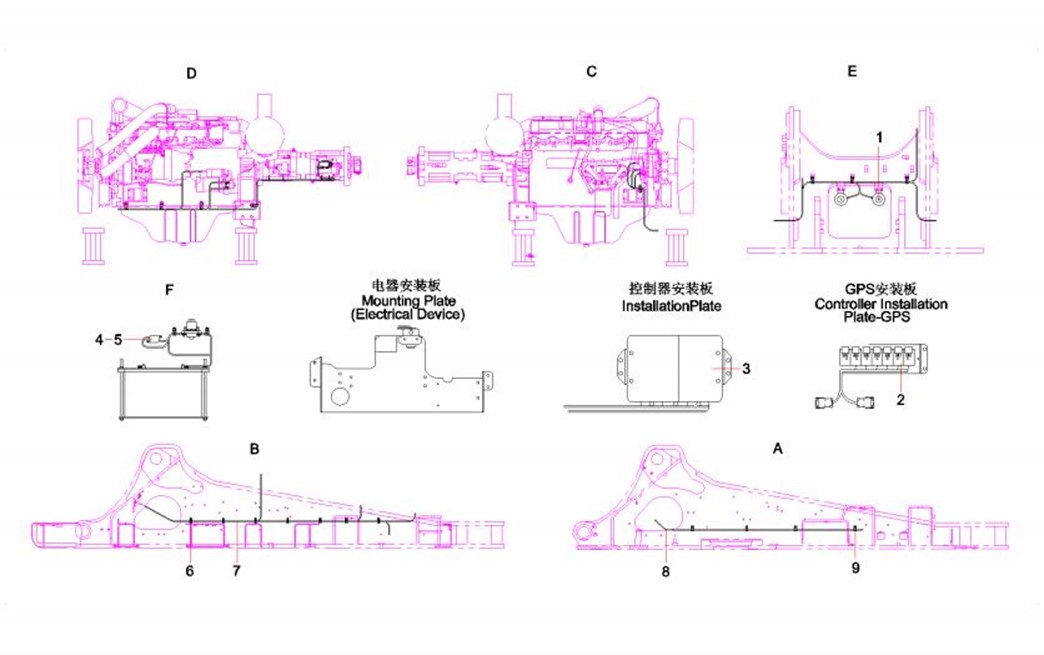

5-9-1 |
1 |
A229900001896 |
1 |
喇叭 |
Horn |
|
5-9-2 |
2 |
变更或见其他配置 |
5 |
中间继电器 |
Relay |
|
5-9-3 |
3 |
变更或见其他配置 |
1 |
三一可组态液压控制器 |
Sany Encourage Hydraulic Control |
|
5-9-4 |
4 |
A241300000059 |
1 |
熔断器盒 |
Box, fuse |
|
5-9-5 |
5 |
A239900000053 |
4 |
尼龙扎带 |
Tape, binding, nylon |
|
5-9-6 |
6 |
60083322 |
10 |
线夹 |
Clip, wire |
|
5-9-7 |
7 |
变更或见其他配置 |
1 |
车身线束 |
Vehicle Body |
|
5-9-8 |
8 |
60012795 |
1 |
电源线 |
Wire, power supply |
|
5-9-9 |
9 |
60086354 |
9 |
线束固定夹 |
Clamp, harness |
