SANY SY215C SY215C9M2KS EXCAVATOR parts catalog 17

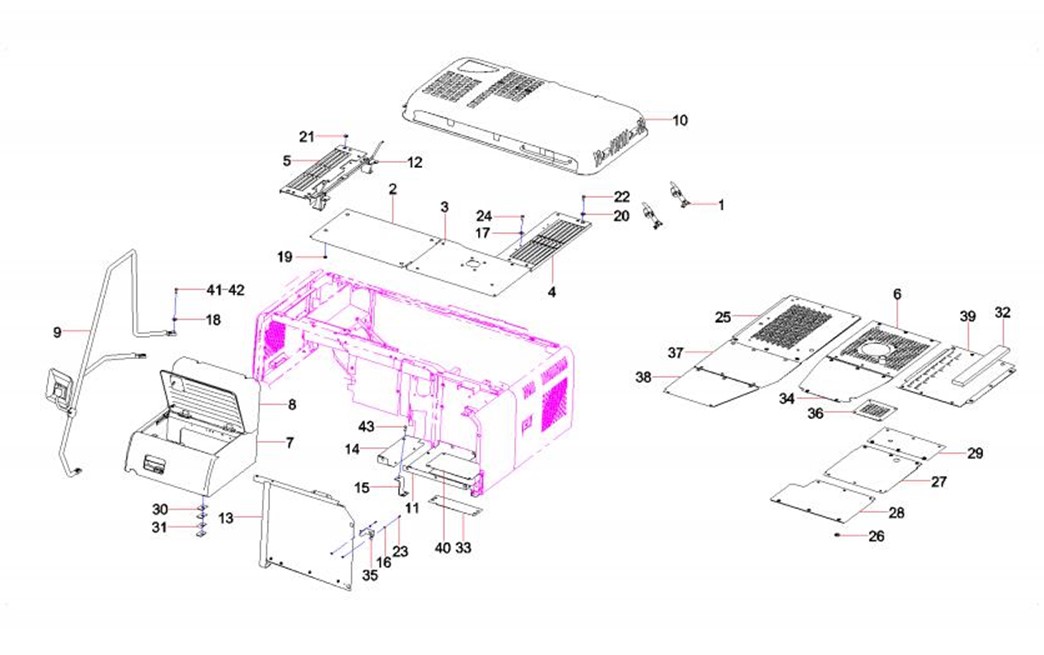

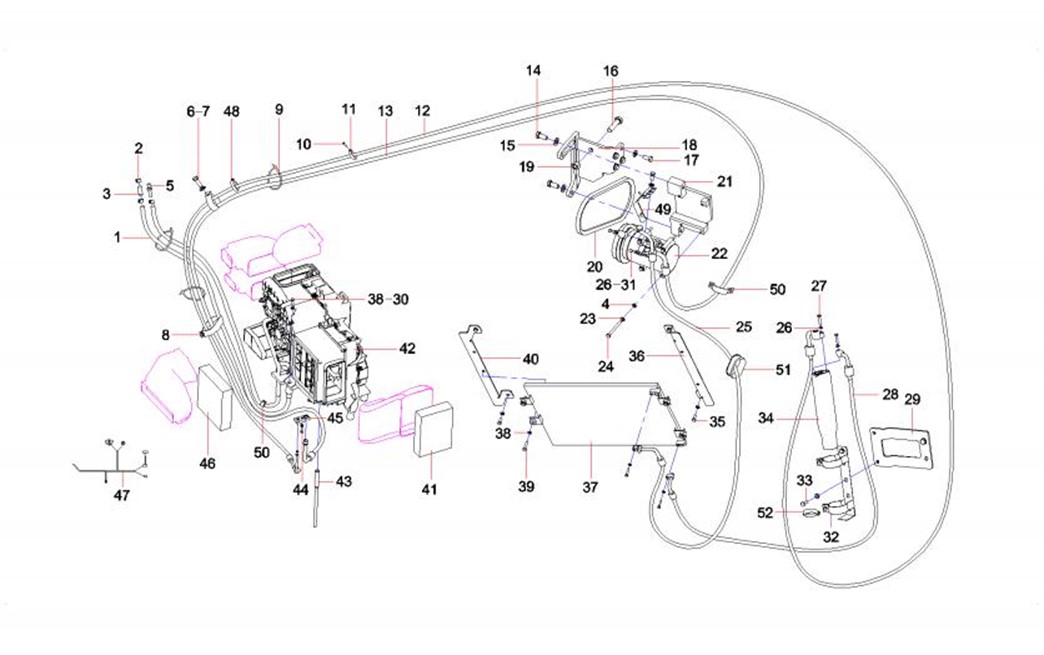

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-169-21 |
21 |
10062285 |
1 |
调整板 |
Plate, adjusting |
2-169-22 |
22 |
B220203000007 |
1 |
压缩机 |
Compressor |
2-169-23 |
23 |
24000633 |
6 |
垫圈8GB97.1 达克锈 |
Washer |
2-169-24 |
24 |
A210108000097 |
4 |
螺栓 |
Bolt |
2-169-25 |
25 |
60001232 |
1 |
排气胶管 |
Hose, exhaust |
2-169-26 |
26 |
24000632 |
8 |
垫圈6GB97.1 达克锈 |
Washer |
2-169-27 |
27 |
A210111000081 |
4 |
螺栓 |
Bolt |
2-169-28 |
28 |
60167256 |
1 |
液体胶管(冷—储) |
Liquid rubber hose |
2-169-29 |
29 |
10368409 |
1 |
干燥瓶支架 |
Bracket, drying bottle |
2-169-30 |
30 |
A210111000323 |
14 |
螺栓M8×25GB5783 10.9级 |
False |
2-169-31 |
31 |
A210111000082 |
2 |
螺栓 |
Bolt |
2-169-32 |
32 |
A229900008784 |
1 |
储液器支架 |
Support, container, liquid storage |
2-169-33 |
33 |
A210204000340 |
2 |
螺钉M8×16GB70.1 10.9级 |
Screw |
2-169-34 |
34 |
B229900005141 |
1 |
储液器 |
Container, liquid storage |
2-169-35 |
35 |
A210111000343 |
4 |
螺栓M8×20GB5783 10.9级 |
Bolt |
2-169-36 |
36 |
10368407 |
1 |
冷凝器右支架 |
Bracket, condenser |
2-169-37 |
37 |
A220700000028 |
1 |
冷凝器总成 |
Condenser AS |
2-169-38 |
38 |
60060565 |
15 |
垫圈8GB96.1 达克锈 |
Washer |
2-169-39 |
39 |
A210111000092 |
4 |
螺栓 |
Bolt |
2-169-40 |
40 |
10368408 |
1 |
冷凝器左支架 |
Bracket, condenser |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-171-41 |
41 |
B222100000660 |
1 |
外气过滤器 |
Filter, air, external |
2-171-42 |
42 |
60168171 |
1 |
空调单元总成 |
Air conditioner unit AS |
2-171-43 |
43 |
A229900009481 |
1 |
排水管 |
Pipe, drainage |
2-171-44 |
44 |
A210204000132 |
1 |
螺钉 |
Screw |
2-171-45 |
45 |
B229900005758 |
1 |
管接头 |
Connector, pipe |
2-171-46 |
46 |
B222100000711 |
1 |
内气过滤器 |
Filter, air, inner |
2-171-47 |
47 |
10473304 |
1 |
空调电气系统 |
Electrical system, air conditioner |
2-171-48 |
48 |
60166393 |
3 |
管夹 |
Clamp, pipe |
2-171-49 |
49 |
12049464 |
1 |
压缩机接插件固定夹 |
The fixed bracket for the |
2-171-50 |
50 |
60149606 |
5 |
线束固定夹 |
Clamp, harness |
2-171-51 |
51 |
11779657 |
1 |
胶套 |
Sleeve, rubber |
2-171-52 |
52 |
A230200000170 |
1 |
线夹 |
Clip |

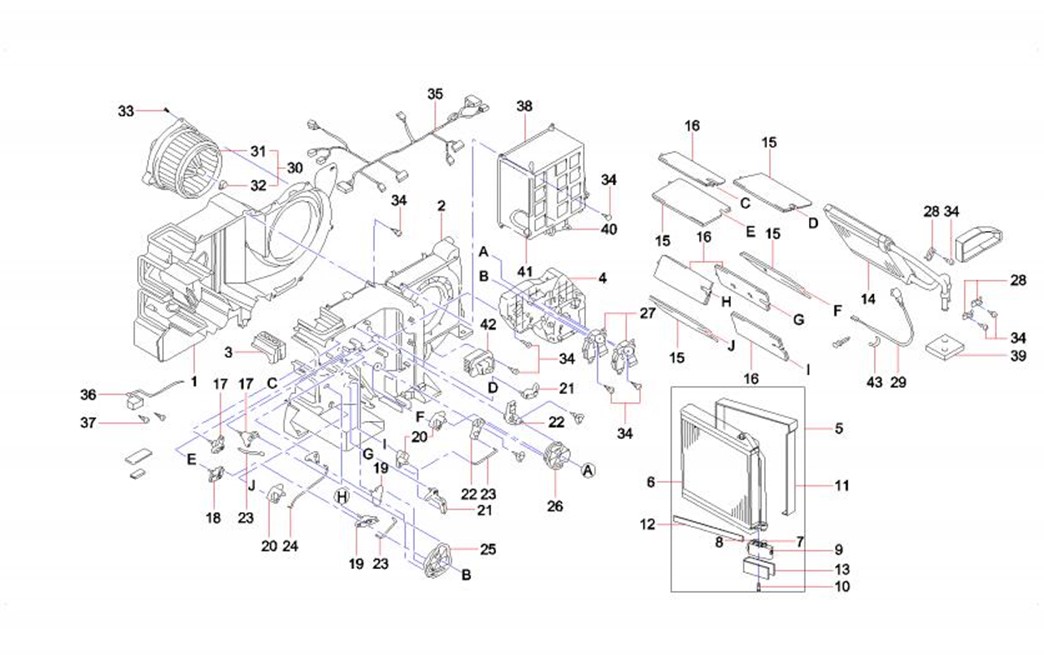

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-173-1 |
1 |
60153212 |
1 |
冷却机组外壳 |
Cooling motor group outer shell |
2-173-2 |
2 |
60153213 |
1 |
冷却机组外壳 |
Cooling motor group outer shell |
2-173-3 |
3 |
60153195 |
1 |
片 |
Plate |
2-173-4 |
4 |
60153196 |
1 |
片 |
Plate |
2-173-5 |
5 |
60153202 |
1 |
带部件蒸发器总成 |
Evaporator assembly with parts |
2-173-6 |
6 |
60153218 |
1 |
蒸发器分总成 |
Evaporator SUB |
2-173-7 |
7 |
60153192 |
1 |
O型环 |
O-type ring |
2-173-8 |
8 |
60153193 |
1 |
O型环 |
O-type ring |
2-173-9 |
9 |
60153197 |
1 |
膨胀阀 |
Valve, expansion |
2-173-10 |
10 |
60153215 |
2 |
螺栓 |
Bolt |
2-173-11 |
11 |
60153203 |
1 |
隔热密封垫 |
Seal, insulation |
2-173-12 |
12 |
60153205 |
3 |
隔热密封垫 |
Seal, insulation |
2-173-13 |
13 |
60153204 |
1 |
隔热密封垫 |
Seal, insulation |
2-173-14 |
14 |
60153242 |
1 |
加热器芯分总成 |
Core SUB, heater |
2-173-15 |
15 |
60049962 |
4 |
门分总成 |
Door SUB |
2-173-16 |
16 |
60153216 |
4 |
门分总成 |
Door SUB |
2-173-17 |
17 |
60049956 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-173-18 |
18 |
60049957 |
1 |
连杆分总成 |
Rod SUB, connecting |
2-173-19 |
19 |
60049958 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-173-20 |
20 |
60049959 |
3 |
连杆分总成 |
Rod SUB, connecting |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-175-21 |
21 |
60049941 |
2 |
杆 |
Rod |
2-175-22 |
22 |
60049960 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-175-23 |
23 |
60049963 |
3 |
轴 |
Shaft |
2-175-24 |
24 |
60049964 |
1 |
轴 |
Shaft |
2-175-25 |
25 |
60049943 |
1 |
片 |
Plate |
2-175-26 |
26 |
60049944 |
1 |
片 |
Plate |
2-175-27 |
27 |
60049947 |
2 |
伺服电机总成 |
Motor AS, servo |
2-175-28 |
28 |
60049955 |
3 |
夹具 |
Clamp |
2-175-29 |
29 |
60033039 |
1 |
水温传感器 |
Sensor, water temperature |
2-175-30 |
30 |
60153199 |
1 |
带风扇电机总成 |
Motor As, with fan |
2-175-31 |
31 |
60049951 |
1 |
风扇叶 |
Blade, fan |
2-175-32 |
32 |
60049954 |
1 |
夹具 |
Clamp |
2-175-33 |
33 |
60049950 |
3 |
带垫圈自攻螺钉 |
Screw, tapping, with washer |
2-175-34 |
34 |
60049965 |
32 |
自攻螺钉 |
Screw, self-tapping |
2-175-35 |
35 |
60049948 |
1 |
空调机电束总成 |
Harness AS, air conditioner |
2-175-36 |
36 |
60049966 |
1 |
防结霜传感器 |
Sensor, anti-frost |
2-175-37 |
37 |
60049949 |
2 |
带垫圈螺钉 |
Screw, with washer |
2-175-38 |
38 |
60049942 |
1 |
盒分总成 |
Box, SUB |
2-175-39 |
39 |
60049953 |
1 |
隔热密封垫 |
Seal, insulation |
2-175-40 |
40 |
60049945 |
1 |
带附件伺服电机总成 |
Motor AS, servo |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-177-41 |
41 |
60153240 |
1 |
热敏电阻总成 |
Thermistor AS |
2-177-42 |
42 |
60049968 |
1 |
空调功率晶体管总成 |
Transistor AS, air conditioner |
2-177-43 |
43 |
60049952 |
1 |
感温包零件支架 |
Bracket, thermo-bulb parts |

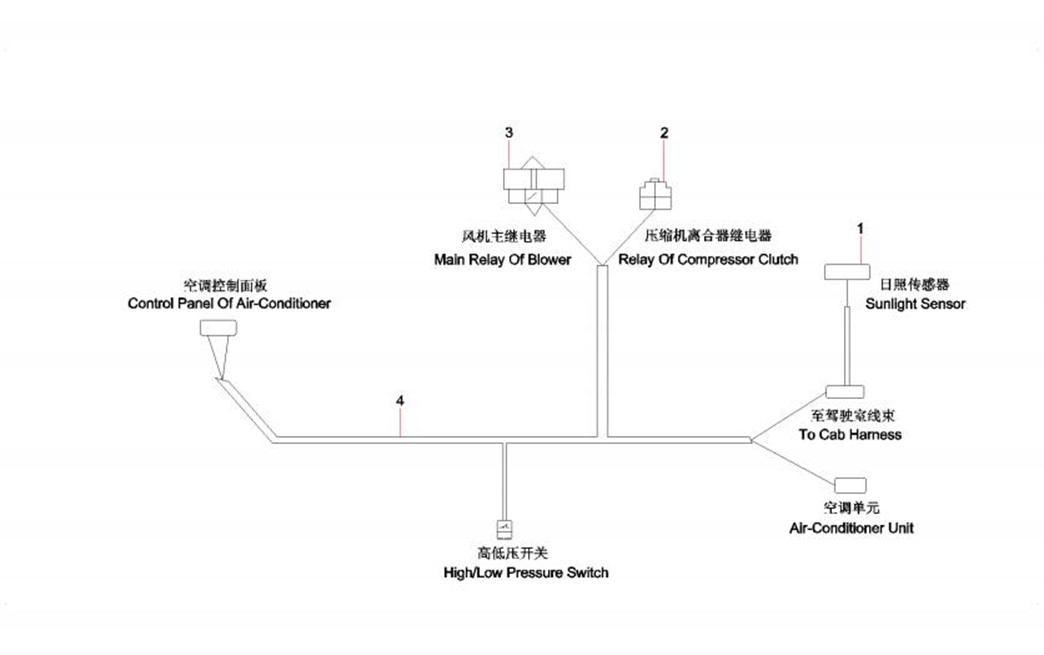

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-179-1 |
1 |
B240600000334 |
1 |
日照传感器 |
Sensor, sunlight |
2-179-2 |
2 |
B240700000473 |
1 |
继电器 |
Relay |
2-179-3 |
3 |
B240700000472 |
1 |
继电器 |
Relay |
2-179-4 |
4 |
10448933 |
1 |
空调连接线 |
Wire, connecting, air conditioner |
