识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

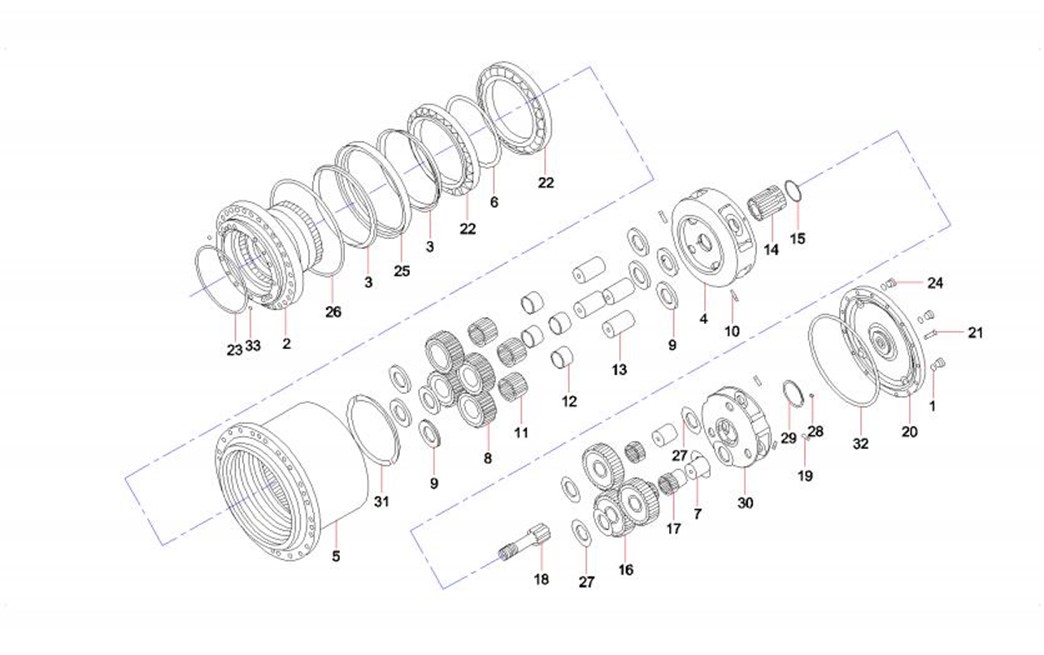

3-29-1

1

60082995

5

O形圈

O-ring

3-29-2

2

60158986

1

心轴

Spindle

3-29-3

3

60159004

2

浮动密封圈

Seal floating

3-29-4

4

60158938

1

齿轮架

Carrier

3-29-5

5

60158974

1

轮毂

Hub

3-29-6

6

60158913

1

隔垫

Spacer

3-29-7

7

60158987

3

行星齿轮轴

Bearing shaft

3-29-8

8

60158943

4

行星齿轮

Gear, planetary

3-29-9

9

60158993

8

止推垫圈

Washer thrust

3-29-10

10

60158952

4

弹簧销

Pin spring

3-29-11

11

60158934

4

滚针轴承

Bearing needle

3-29-12

12

60158960

4

浮动衬套

Bush floating

3-29-13

13

60158988

4

行星齿轮轴

Bearing shaft

3-29-14

14

60158941

1

太阳轮

Gear sun

3-29-15

15

60158972

1

卡环

Ring snap

3-29-16

16

60158942

3

行星齿轮

Gear planetary

3-29-17

17

60158933

3

滚针轴承

Bearing needle

3-29-18

18

60158940

1

驱动齿轮

Gear drive

3-29-19

19

60158951

3

弹簧销

Pin spring

3-29-20

20

60158959

1

端盖

Cover

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-31-21

21

60158980

16

内六角螺栓

Screw, socket head

3-31-22

22

60158937

2

径向推力滚珠轴承

Bearing angular ball

3-31-23

23

60159001

1

O形圈

O-ring

3-31-24

24

60158916

5

丝堵

Plug, screw

3-31-25

25

60159006

1

密封圈

Seal ring

3-31-26

26

60159000

1

O形圈

O-ring

3-31-27

27

60158992

6

止推垫圈

Washer thrust

3-31-28

28

60158991

1

止推垫圈

Washer, thrust

3-31-29

29

60158990

1

止推板

Plate, thrust

3-31-30

30

60158939

1

齿轮架

Carrier

3-31-31

31

60158954

2

垫板

Shim plate

3-31-32

32

60159003

1

O形圈

O-ring

3-31-33

33

60082998

2

O形圈

O-ring

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

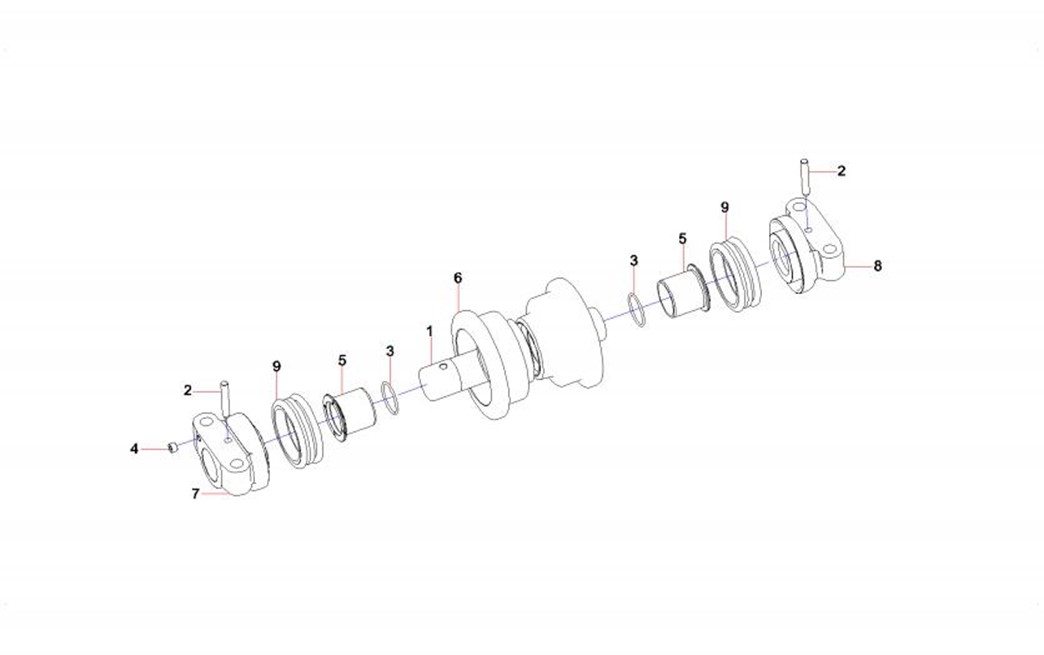

3-33-1

1

10999959

1

轴

Shaft

3-33-2

2

60029251

2

圆柱销

Pin,cylindrical

3-33-3

3

A210608000081

2

O形圈

O-ring

3-33-4

4

60027515

1

闷头螺塞

Plug, screw

3-33-5

5

60027516

2

轴套

Sleeve, shaft

3-33-6

6

10999964

1

支重轮轮体

Thrust wheel body

3-33-7

7

10999961

1

右轴端盖

Cover,shaft,right

3-33-8

8

10999960

1

左轴端盖

left_cover

3-33-9

9

60027514

2

浮封

Seal，floating

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

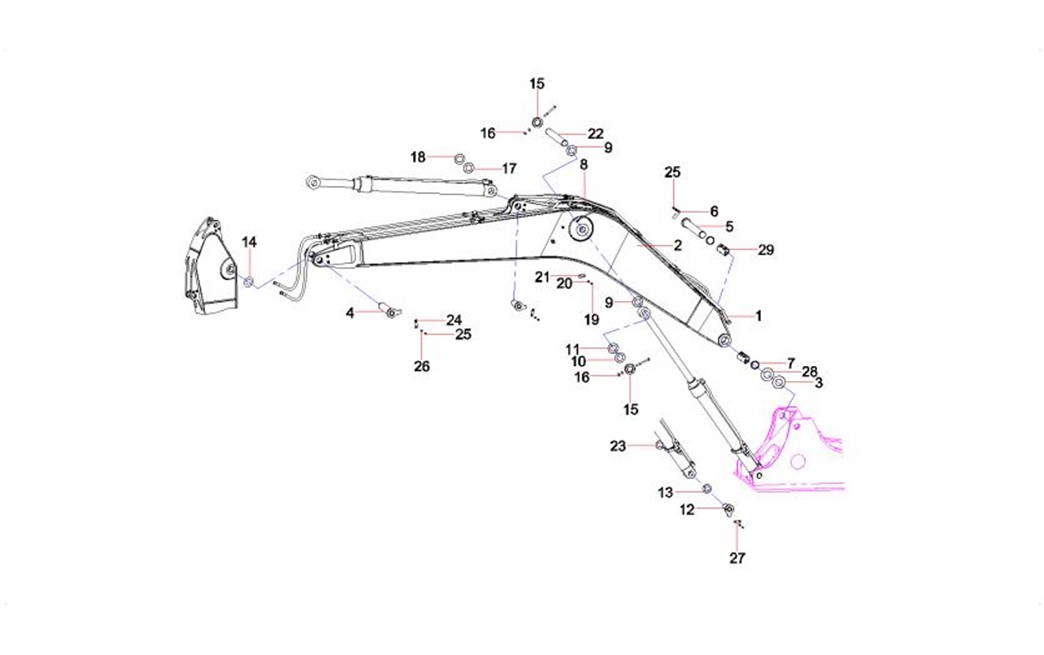

4-3-1

1

12352767

1

工作装置液压管路

Pipeline, hydraulic, work equipment

4-3-2

2

12597002

1

动臂

Boom

4-3-3

3

11041901

1

树脂垫片

Gasket, resin

4-3-4

4

A810312110019

1

销轴

Roll, pin

4-3-5

5

11856384

1

销轴

Roll, pin

4-3-6

6

11324336

1

压板

Plate, pressure

4-3-7

7

60055872

4

DLI防尘圈

DLI-ring, dustproof

4-3-8

8

11777805

1

工作装置润滑管路

Pipeline, greasing, work equipment

4-3-9

9

11169582

2

树脂垫片

Gasket, resin

4-3-10

10

11112320

1

树脂垫片

Gasket, resin

4-3-11

11

11041905

1

树脂垫片

Gasket, resin

4-3-12

12

A810312110017

2

销轴

Roll, pin

4-3-13

13

11041902

2

树脂垫片

Gasket, resin

4-3-14

14

A820102010387

4

垫片

Gasket

4-3-15

15

A820202002009

2

板

Plate

4-3-16

16

A210307000029

12

螺母M20GB6170 10级

Nut

4-3-17

17

A820102010381

6

垫片

Gasket

4-3-18

18

A820102010382

6

垫片

Gasket

4-3-19

19

A210111000263

2

螺栓M16×30GB5783 10.9级

Bolt

4-3-20

20

24000514

2

垫圈16GB93 达克锈

WASHER

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

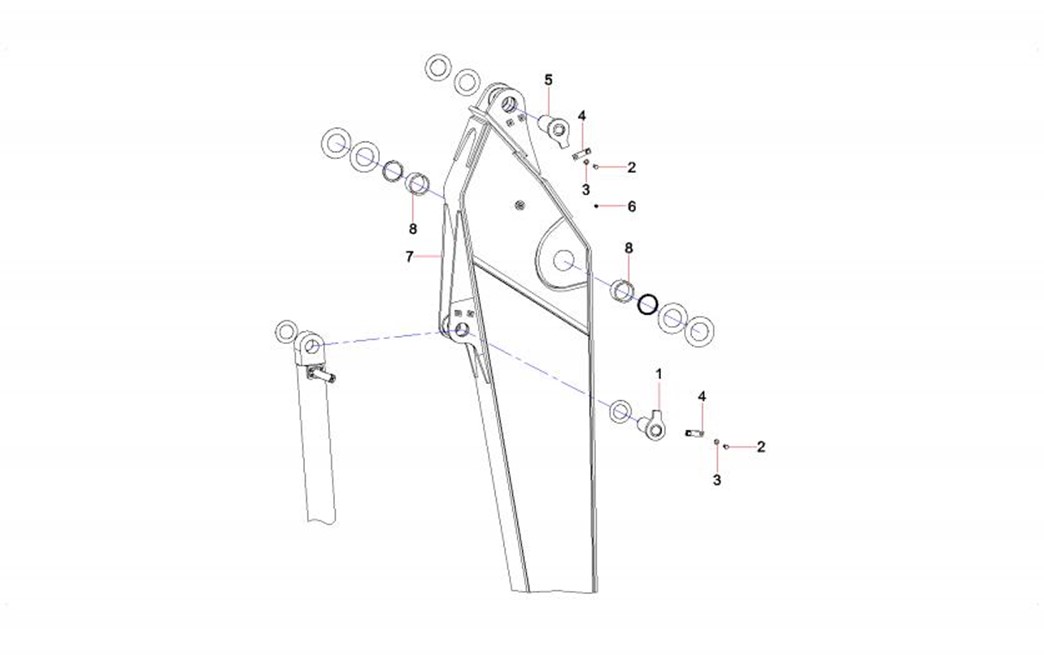

4-5-21

21

A820101322531

2

灯架

Bracket, lamp

4-5-22

22

A820301020461

1

销轴

Roll, pin

4-5-23

23

11112311

2

树脂垫片

Gasket, resin

4-5-24

24

11308781

1

压板

Plate, pressure

4-5-25

25

A210111000212

4

螺栓M16×35GB5783 10.9级

Bolt M16×35GB5783 10.9级

4-5-26

26

24000642

4

垫圈

Washer

4-5-27

27

11272926

2

压板

Plate, pressure

4-5-28

28

11112327

1

树脂垫片

Gasket, resin

4-5-29

29

11307308

2

轴套

Sleeve, shaft
