识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-7-1

1

A810312110015

1

销轴

Roll, pin

4-7-2

2

A210111000202

10

螺栓M12×30GB5783 10.9级

Bolt M12×30GB5783 10.9级

4-7-3

3

变更或见其他配置

10

垫圈

Washer

4-7-4

4

A820101119187

3

板

Plate

4-7-5

5

A810312110021

2

销轴

Roll, pin

4-7-6

6

B229900000686

7

黄油嘴

Fitting, grease

4-7-7

7

11911736

1

斗杆

Arm

4-7-8

8

11216201

2

轴套

Sleeve, shaft

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

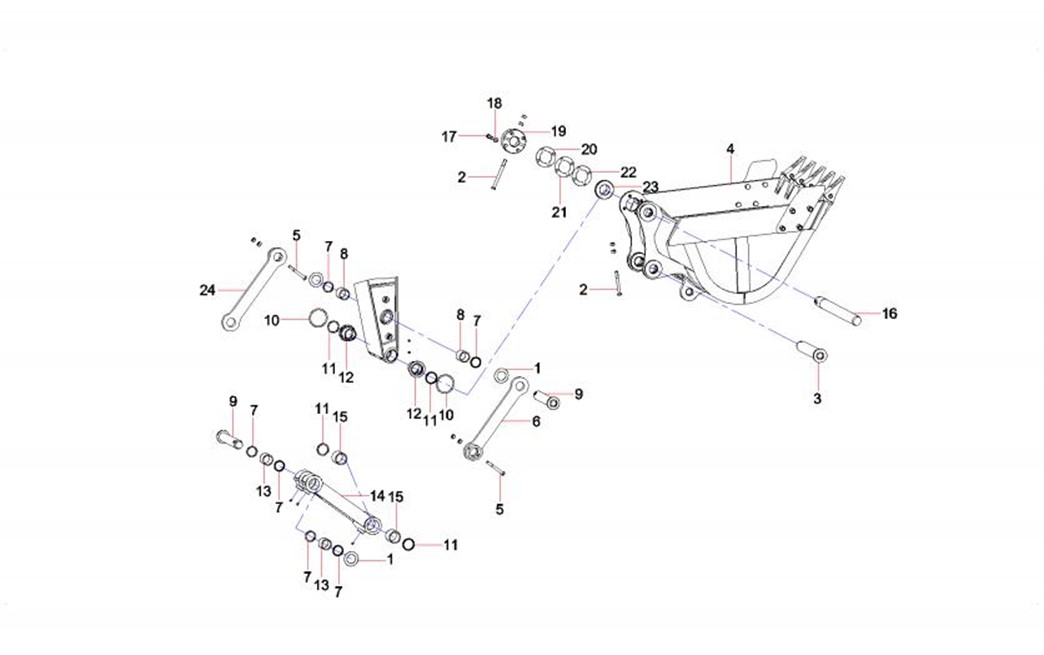

4-9-1

1

10167595

8

垫片

Gasket

4-9-2

2

A210110000352

4

螺栓M20×180GB5782 10.9级

Bolt

4-9-3

3

A810312110014

1

销轴

Roll, pin

4-9-4

4

11859236

1

改进普通铲斗

Bucket, modified

4-9-5

5

A210110000300

2

螺栓M20×160GB5782 10.9级

Bolt

4-9-6

6

11266812

1

左摇杆

Rocker, left

4-9-7

7

B230101000622

6

DSI防尘圈

DSI-ring, dustproof

4-9-8

8

A820202002974

2

轴套

Sleeve, shaft

4-9-9

9

11696987

2

销轴

Roll, pin

4-9-10

10

A210609000324

2

O形圈

O-ring

4-9-11

11

B230101000623

4

DSI防尘圈

DSI-ring, dustproof

4-9-12

12

11751558

2

轴套

Sleeve, shaft

4-9-13

13

A820202002973

2

轴套

Sleeve, shaft

4-9-14

14

12036517

1

连杆

Rod, connecting

4-9-15

15

A820202002972

2

轴套

Sleeve, shaft

4-9-16

16

11795851

1

销轴

Roll, pin

4-9-17

17

A210111000221

4

螺栓M20×50GB5783 10.9级

Bolt

4-9-18

18

24000515

4

垫圈20GB93 达克锈

Washer

4-9-19

19

11795852

1

板

Plate

4-9-20

20

11297643

4

调整垫片

Shim, adjusting

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-11-21

21

11297642

4

调整垫片

Shim, adjusting

4-11-22

22

11297641

4

调整垫片

Shim, adjusting

4-11-23

23

A820202002008

1

套

Sleeve

4-11-24

24

11266813

1

右摇杆

Rocker, right

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

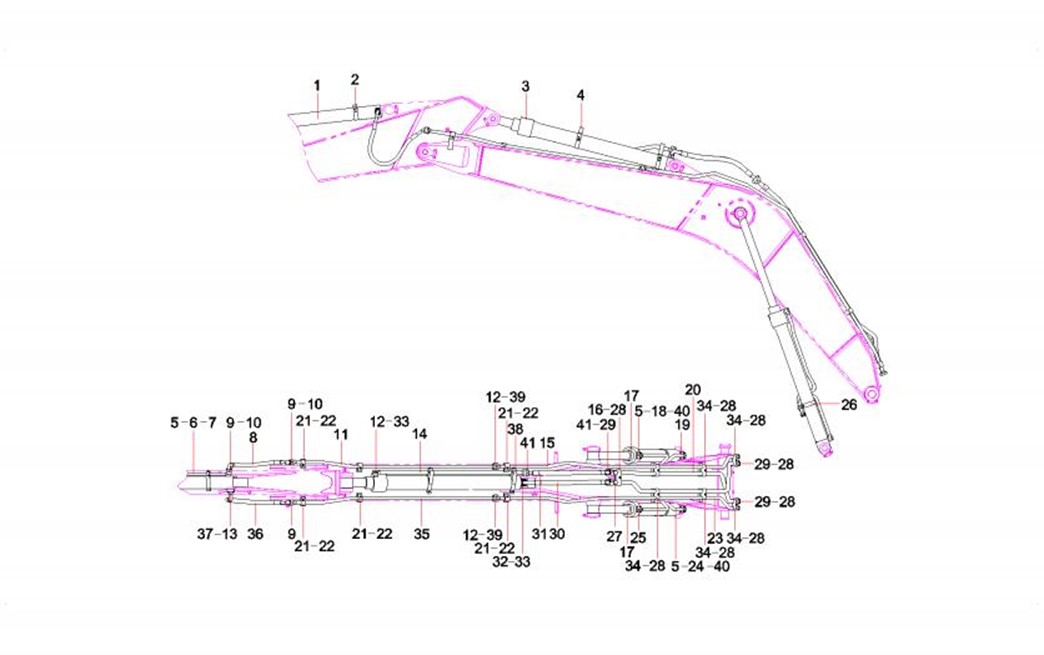

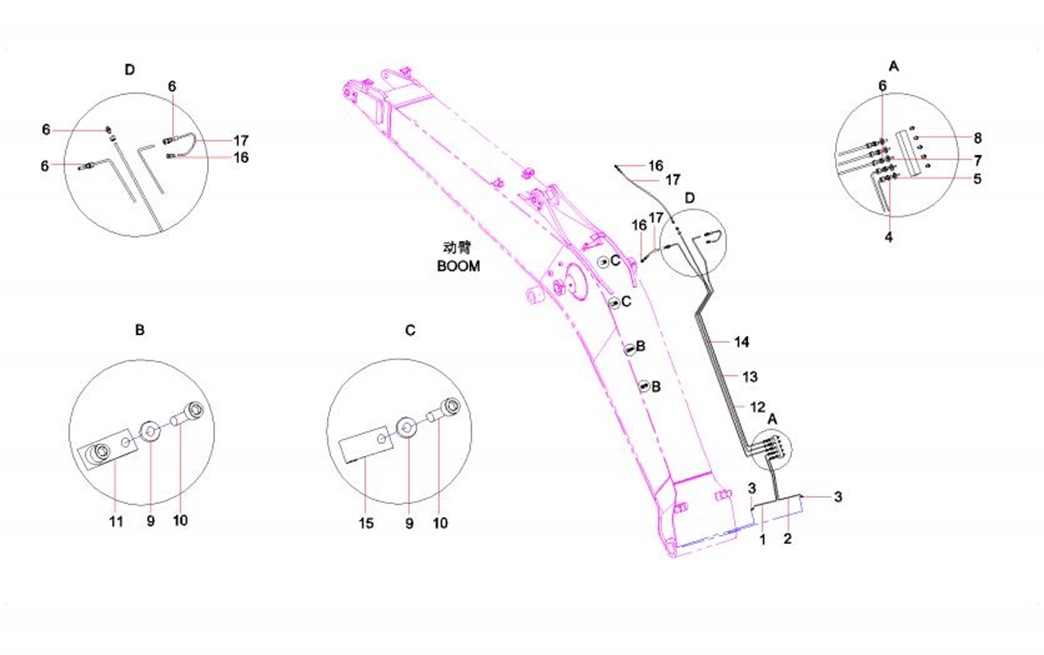

4-13-1

1

60011369

1

铲斗油缸

Cylinder, bucket

4-13-2

2

11149636

1

管卡

Clip

4-13-3

3

60011373

1

斗杆油缸

Cylinder, arm

4-13-4

4

11288840

1

管夹

Clamp

4-13-5

5

A210609000136

3

O形圈

O-ring

4-13-6

6

A210204000357

4

螺钉M10×60GB70.1 10.9级

Screw

4-13-7

7

11418218

1

钢管总成

Pipe GP,steel

4-13-8

8

60142332

1

胶管

Hose

4-13-9

9

B210780000244

10

对开法兰

Flange, split

4-13-10

10

A210204000355

20

螺钉M10×40GB70.1 10.9级

Screw

4-13-11

11

11592616

1

钢管总成

Pipe GP,steel

4-13-12

12

B230101000456

3

O形圈

O-ring

4-13-13

13

A210204000215

4

螺钉M10×35GB70.1 10.9级

Screw

4-13-14

14

12527246

1

钢管总成

Steel Pipe AssySY215C.3.1A.8A

4-13-15

15

11592530

1

钢管总成

Pipe GP, steel

4-13-16

16

11859784

1

管夹

Clamp, pipe

4-13-17

17

11347703

2

动臂油缸总成

Cylinder AS, boom

4-13-18

18

11088310

1

油管组件

Pipe AS, oil

4-13-19

19

11609402

1

油管组件

Pipe AS, oil

4-13-20

20

12524337

1

钢管总成

Steel Pipe AssySY215C.3.1A.1A

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-15-21

21

11881917

6

管夹

Clamp, pipe

4-15-22

22

A210204000351

6

螺钉M12×50GB70.1 12.9级

Screw

4-15-23

23

11592582

1

钢管总成

Pipe GP, steel

4-15-24

24

11088308

1

油管组件

Pipe AS, oil

4-15-25

25

11608938

1

油管组件

Pipe AS, oil

4-15-26

26

11088311

2

管卡

Clip

4-15-27

27

12524341

1

钢管总成

Pipe GP,steel

4-15-28

28

A210204000366

15

螺钉

Screw

4-15-29

29

B210780000693

6

对开法兰

Flange, SAE

4-15-30

30

60068308

1

胶管

Hose

4-15-31

31

60037640

1

胶管

Hose

4-15-32

32

B210780000004

2

对开法兰

Flange, split

4-15-33

33

A210204000462

8

螺钉M12×45GB70.1 10.9级

Screw

4-15-34

34

11881916

6

管夹

Clamp, pipe

4-15-35

35

11592618

1

钢管总成

Pipe GP,steel

4-15-36

36

60142333

1

胶管

Hose

4-15-37

37

B210780000007

2

对开法兰

Flange, split

4-15-38

38

12208107

1

管夹

Clamp

4-15-39

39

A210204000364

8

螺钉M10×45GB70.1 10.9级

Screw

4-15-40

40

A210204000356

16

螺钉M10×50GB70.1 10.9级

Screw

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-17-41

41

A210204000353

12

螺钉M14×50GB70.1 10.9级 Screw
