SANY SY215C SY215C9M2KS EXCAVATOR parts catalog 36
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
5-9-1 |
1 |
60086357 |
5 |
线束固定夹 |
Clamp, harness |
5-9-2 |
2 |
13144774 |
1 |
车身线束 |
Vehicle Body |
5-9-3 |
3 |
60149356 |
5 |
椭圆线夹 |
Clamp, wire, ellipse |
5-9-4 |
4 |
A210111000089 |
2 |
螺栓 |
Bolt |
5-9-5 |
5 |
A210111000195 |
5 |
螺栓M10×16GB5783 10.9级 |
Bolt |
5-9-6 |
6 |
24000637 |
5 |
垫圈10GB97.1 达克锈 |
Washer 10GB97.1 达克锈 |
5-9-7 |
7 |
60114255 |
3 |
工作灯 |
Lamp, work |
5-9-8 |
8 |
A229900001896 |
1 |
喇叭 |
Horn |
5-9-9 |
9 |
24000511 |
2 |
垫圈8GB93 达克锈 |
Washer 8GB93 达克锈 |
5-9-10 |
10 |
B240700000250 |
8 |
中间继电器 |
Relay |
5-9-11 |
11 |
A210202000020 |
6 |
螺钉 |
Screw |
5-9-12 |
12 |
60083322 |
6 |
线夹 |
Clip, wire |
5-9-13 |
13 |
A210202000011 |
8 |
螺钉 |
Screw |
5-9-14 |
14 |
12252560 |
1 |
动臂灯线束 |
Boom lamp harness |
5-9-15 |
15 |
60238782 |
10 |
垫圈5GB96.1 达克锈 |
Washer |
5-9-16 |
16 |
60169136 |
1 |
可编程控制器 |
Control |
5-9-17 |
17 |
A210204000146 |
4 |
螺钉 |
Screw |
第6章
涂装
(Painting)
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

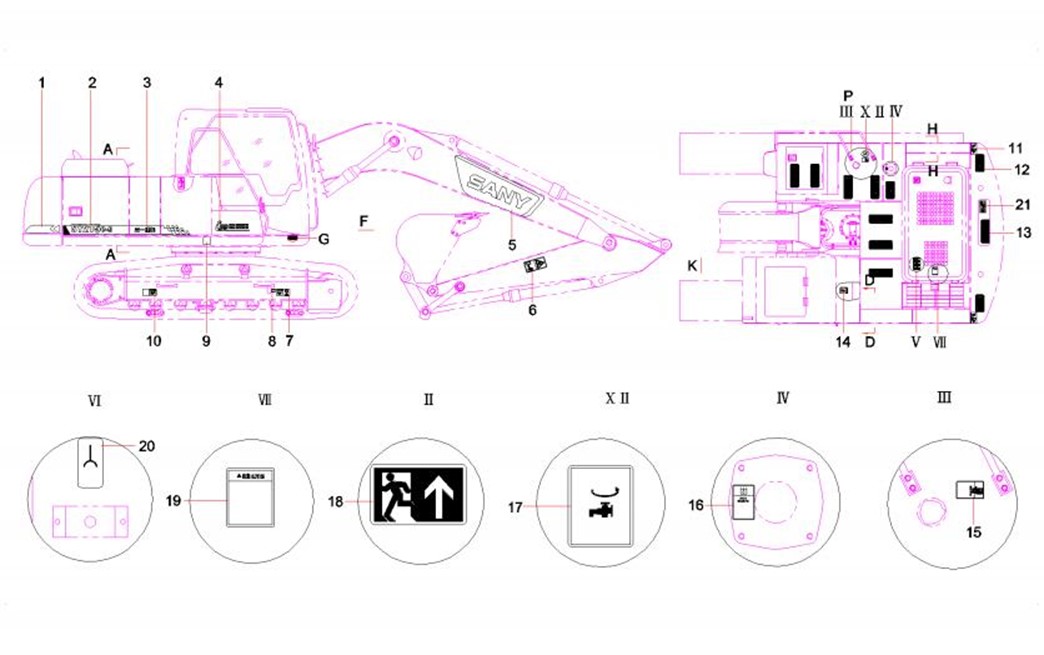

6-3-1 |
1 |
12727593 |
1 |
配重反光膜 |
Film, reflective, counterweight |
6-3-2 |
2 |
12780257 |
1 |
机身右贴花 |
Decal, machine body |
6-3-3 |
3 |
12780274 |
1 |
三一重机贴花 |
Decal |
6-3-4 |
4 |
60202777 |
1 |
服务热线 |
Decal, service hotline |
6-3-5 |
5 |
12722074 |
1 |
动臂右侧贴花 |
Decal, boom, right |
6-3-6 |
6 |
A820601990963 |
2 |
斗杆警示牌 |
Decal, warning, arm |
6-3-7 |
7 |
A820101990552 |
4 |
吊钩点标示图 |
Label, lifting point |
6-3-8 |
8 |
A820601990968 |
2 |
张紧装置警示牌 |
Decal, warning, tensioner |
6-3-9 |
9 |
12033801 |
2 |
重心标牌 |
Decal, center of gravity |
6-3-10 |
10 |
A820601990934 |
4 |
装运固定点标志 |
Decal, tie-down, shipment |
6-3-11 |
11 |
A820601990926 |
3 |
防跌落警示牌 |
Decal, warning, falling |
6-3-12 |
12 |
A820699000370 |
3 |
短防滑贴 |
Anti-skid, short |
6-3-13 |
13 |
A820699000369 |
7 |
长防滑贴 |
Anti-skid, long |
6-3-14 |
14 |
11323371 |
1 |
严禁坐人警示牌 |
Decal, warning, no-sitting |
6-3-15 |
15 |
A820601990965 |
1 |
燃油箱标识牌 |
Decal, fuel tank |
6-3-16 |
16 |
A820603000253 |
1 |
液压油箱指示牌 |
Label, instruction, hydraulic tank |
6-3-17 |
17 |
A820601990929 |
1 |
油箱放水标识 |
Label, drain, fuel tank |
6-3-18 |
18 |
A820601990969 |
1 |
安全出口标志 |
Label, emergency exit |
6-3-19 |
19 |
12725711 |
1 |
风扇轴加注润滑脂警示牌 |
Decal |
6-3-20 |
20 |
A820699001109 |
1 |
电源插座标志 |
Label, power socket |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
6-5-21 |
21 |
12728493 |
1 |
严禁脚踏排气提示 Decal,exhaust |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

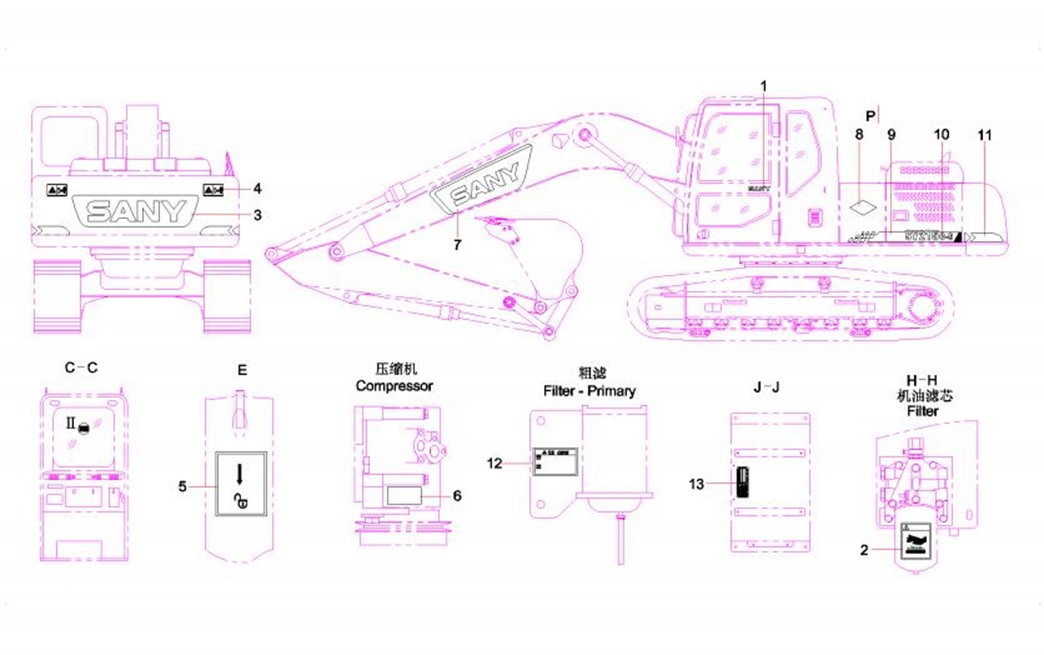

6-7-1 |
1 |
12842974 |
1 |
三一标贴 |
Label, power socket |
6-7-2 |
2 |
A820101050798 |
1 |
烫手警示标牌 |
Decal, warning, hot surface |
6-7-3 |
3 |
12722067 |
1 |
配重贴花 |
Decal, counterweight |
6-7-4 |
4 |
A820699001016 |
2 |
配重警示牌 |
Decal, warning, counterweight |
6-7-5 |
5 |
A820601990927 |
1 |
开锁标识牌 |
Label, UNLOCK |
6-7-6 |
6 |
A820699001284 |
1 |
冷媒更换说明 |
Decal, instruction, refrigerant |
6-7-7 |
7 |
12722073 |
1 |
动臂左侧贴花 |
Decal, boom, left |
6-7-8 |
8 |
60202772 |
1 |
左节能高效 |
Decal |
6-7-9 |
9 |
12780258 |
1 |
机身左贴花 |
Decal, machine body |
6-7-10 |
10 |
12780271 |
2 |
机器型号贴花 |
Decal, machine model |
6-7-11 |
11 |
12727594 |
1 |
配重反光膜 |
Film, reflective, counterweight |
6-7-12 |
12 |
A820601990962 |
1 |
油水分离器放水标识 |
Decal, drain, water separator |
6-7-13 |
13 |
11993325 |
1 |
铭牌 |
Nameplate |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

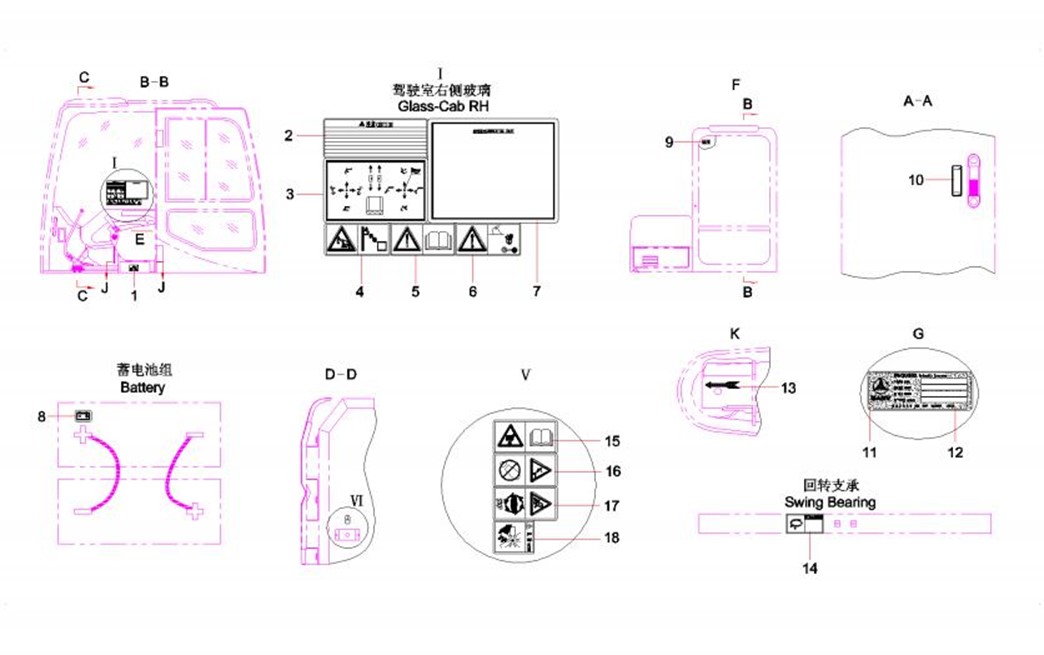

6-9-1 |
1 |
A820601990967 |
1 |
座椅调节指示牌 |
Decal, instruction, seat adjustment |
6-9-2 |
2 |
11648786 |
1 |
启动发动机前注意事项标识牌 |
Decal, warning, pre-start |
6-9-3 |
3 |
A820601990961 |
1 |
操纵标示图 |
Label, instruction, operation |
6-9-4 |
4 |
11464432 |
1 |
高压回避警示牌 |
Decal, warning, high-voltage |
6-9-5 |
5 |
11464425 |
1 |
查阅说明书警示牌 |
Label, warning, READ MANUAL |
6-9-6 |
6 |
11464441 |
1 |
钥匙断电警示牌 |
Decal, warning, power-off |
6-9-7 |
7 |
11464411 |
1 |
润滑图表 |
Graph, lubrication |
6-9-8 |
8 |
A820601990972 |
1 |
电源标志 |
Label, power supply |
6-9-9 |
9 |
A820699001019 |
1 |
前窗锁紧警示牌 |
Decal, warning, front window |
6-9-10 |
10 |
A820601990928 |
1 |
油位标签 |
Label, oil level |
6-9-11 |
11 |
A210510000007 |
4 |
铆钉 |
Rivet |
6-9-12 |
12 |
10251978 |
1 |
铭牌 |
Nameplate |
6-9-13 |
13 |
12057746 |
2 |
前进方向标志 |
Decal, instruction, forward |
6-9-14 |
14 |
12403550 |
1 |
回转支承警示牌 |
Decal, warning,swing bearing |
6-9-15 |
15 |
A820699000948 |
1 |
防喷溅警示牌 |
Decal, warning, anti-spray |
6-9-16 |
16 |
A820601990973 |
1 |
机顶罩警示牌 |
Decal, warning, engine hood |
6-9-17 |
17 |
A820699001017 |
1 |
皮带安全警示牌 |
Decal, warning, belt safety |
6-9-18 |
18 |
A820101050793 |
1 |
风扇打手警示牌 |
Decal, warning, fan |
