SANY SY215C9 SY215C9C3KL EXCAVATOR parts catalog 34
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
6-9-61 |
61 |
11491050 |
1 |
冷媒更换说明 |
Decal |
|
6-9-62 |
62 |
10939368 |
1 |
充电标识 |
Label, instruction, charging |
|
6-9-63 |
63 |
11370770 |
1 |
预热指示灯 |
Indicator, preheating |
|
6-9-64 |
64 |
11053299 |
1 |
发动机警告标识 |
Label, warning, engine |
|
6-9-65 |
65 |
11816507 |
1 |
电源插座标志 |
Decal,socket,power supply |
|
12193515 随机附件 (Accessory) (1/4) |
7-2 |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
7-3-1 |
1 |
B230101000418 |
5 |
O形圈 |
O-ring |
|
7-3-2 |
2 |
B230101000274 |
3 |
O形圈 |
O-ring |
|
7-3-3 |
3 |
B230101000439 |
3 |
O形圈 |
O-ring |
|
7-3-4 |
4 |
B230101000453 |
5 |
O形圈 |
O-ring |
|
7-3-5 |
5 |
B230101000580 |
8 |
O形圈 |
O-ring |
|
7-3-6 |
6 |
B230101000215 |
10 |
O形圈 |
O-ring |
|
7-3-7 |
7 |
B230101000091 |
10 |
O形圈 |
O-ring |
|
7-3-8 |
8 |
B230101000244 |
5 |
O形圈 |
O-ring |
|
7-3-9 |
9 |
A210609000136 |
5 |
O形圈 |
O-ring |
|
7-3-10 |
10 |
B230101000456 |
5 |
O形圈 |
O-ring |
|
7-3-11 |
11 |
B230101000578 |
10 |
O形圈 |
Seal, O-ring |
|
7-3-12 |
12 |
B230101000366 |
3 |
O形圈 |
O-ring |
|
7-3-13 |
13 |
60000846 |
3 |
O形圈 |
O-ring |
|
7-3-14 |
14 |
B230101000047 |
5 |
O形圈 |
O-ring |
|
7-3-15 |
15 |
B230101000049 |
10 |
O形圈 |
O-ring |
|
7-3-16 |
16 |
B230101000356 |
3 |
O形圈 |
O-ring |
|
7-3-17 |
17 |
B230101000090 |
3 |
O形圈 |
O-ring |
|
7-3-18 |
18 |
B230101000050 |
3 |
O形圈 |
O-ring |
|
7-3-19 |
19 |
A230101000247 |
3 |
O形圈 |
O-ring |
|
7-3-20 |
20 |
A230101000243 |
3 |
O形圈 |
O-ring |
|
12193515 随机附件 (Accessory) (1/4) |
7-3 |
|
12193515 随机附件 (Accessory) (2/4) |
7-4 |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
7-5-21 |
21 |
A229900001581 |
3 |
O形圈 |
O-ring |
|
7-5-22 |
22 |
B230101000588 |
3 |
O形圈 |
O-ring |
|
7-5-23 |
23 |
A210609000083 |
3 |
O形圈 |
O-ring |
|
7-5-24 |
24 |
A210609000324 |
2 |
O形圈 |
O-ring |
|
12193515 随机附件 (Accessory) (2/4) |
7-5 |
|

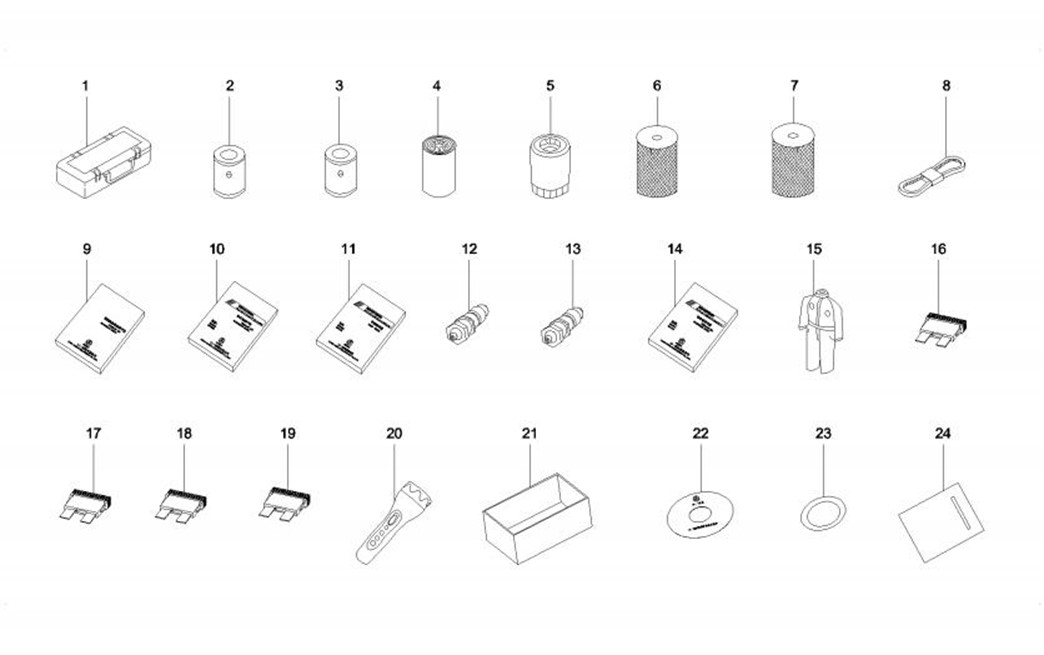

12193515 随机附件 (Accessory) (3/4) |
7-6 |
|
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
|
7-7-1 |
1 |
10442741 |
1 |
随机工具 |
Tool, attached |
|
7-7-2 |
2 |
60035096 |
1 |
柴油滤清器滤芯 |
Element, fuel filter |
|
7-7-3 |
3 |
60033346 |
1 |
燃油预滤芯 |
Element, primary fuel filter |
|
7-7-4 |
4 |
B222100000444 |
1 |
柴油滤清器 |
Filter, fuel |
|
7-7-5 |
5 |
B222100000303 |
1 |
机油滤清器 |
Filter, machine oil |
|
7-7-6 |
6 |
A222100000272 |
1 |
空气滤清器安全滤芯 |
Element, safety, air cleaner |
|
7-7-7 |
7 |
A222100000271 |
1 |
空气滤清器主滤芯 |
Element, primary, air cleaner |
|
7-7-8 |
8 |
A230106000321 |
1 |
V带 |
V-belt |
|
7-7-9 |
9 |
B220299000067 |
1 |
B系列柴油机操作与保养手册 |
Operation Manual |
|
7-7-10 |
10 |
12188798 |
1 |
SY215C9履带式液压挖掘机操作保 |
SY215C9 hydraulic crawler |
|
7-7-11 |
11 |
12188810 |
1 |
SY215C9零部件图册 |
SY215C9 spare parts drawing |
|
7-7-12 |
12 |
B229900000686 |
5 |
黄油嘴 |
Fitting, grease |
|
7-7-13 |
13 |
B229900000379 |
5 |
黄油嘴 |
Fitting, grease |
|
7-7-14 |
14 |
11826337 |
1 |
三一挖掘机保养及保修手册(英) |
Manual, operation and |
|
7-7-15 |
15 |
A550300000008 |
1 |
工作服 售后人员用 |
Suit, working, service worker |
|
7-7-16 |
16 |
A241300000019 |
10 |
片式熔断器 |
Fuse, plate type |
|
7-7-17 |
17 |
A241300000016 |
10 |
片式熔断器 |
Fuse, plate type |
|
7-7-18 |
18 |
A241300000017 |
10 |
片式熔断器 |
Fuse, plate type |
|
7-7-19 |
19 |
A241300000018 |
5 |
片式熔断器 |
Fuse, plate type |
|
7-7-20 |
20 |
A241100000596 |
1 |
手提工作灯 |
Work lamp, portable |
|
12193515 随机附件 (Accessory) (3/4) |
7-7 |
|
12193515 随机附件 (Accessory) (4/4) |
7-8 |
