SANY SY215C9 SY215C9C3KL EXCAVATOR parts catalog 33
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
5-7-41 |
41 |
A240700000302 |
1 |
直流接触器 |
Contactor, direct-current |
5-7-42 |
42 |
A241300000059 |
1 |
熔断器盒 |
Box, fuse |
5-7-43 |
43 |
A241300000031 |
2 |
熔断器 |
Fuse |
5-7-44 |
44 |
A810201058132 |
2 |
电源线 |
Wire, power supply |
5-7-45 |
45 |
60104712 |
1 |
电源线 |
Wire, power supply |
5-7-46 |
46 |
60012791 |
1 |
电源线 |
Line, power |
5-7-47 |
47 |
B241000000022 |
1 |
2芯圆形插座 |
Socket, two-wire |
5-7-48 |
48 |
11707727 |
1 |
保险盒线束 |
Harness,fuse box |
5-7-49 |
49 |
A210111000199 |
20 |
螺栓 |
Bolt |
5-7-50 |
50 |
60086353 |
11 |
线束固定夹 |
Clamp, harness |
5-7-51 |
51 |
60114255 |
3 |
工作灯 |
Lamp, work |
5-7-52 |
52 |
60083322 |
3 |
线夹 |
Clip, wire |
5-7-53 |
53 |
变更或见其他配置 |
1 |
动臂灯线束 |
Harness, boom lamp |

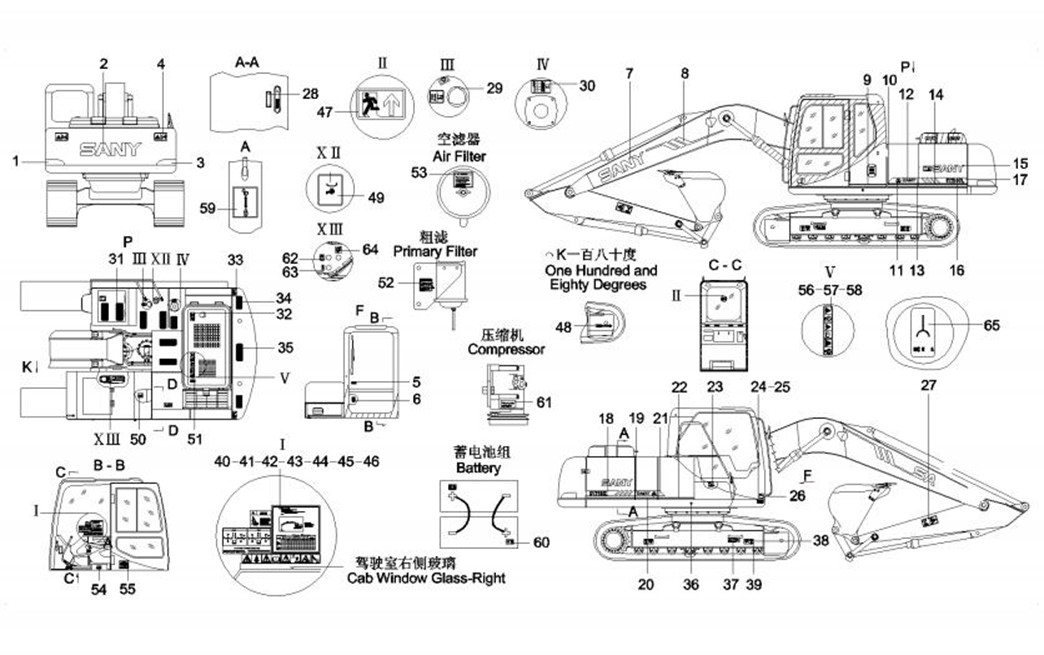

11491634 涂装 (Coating) (1/4) |
6-2 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-3-1 |
1 |
11471948 |
1 |
配重反光膜 |
Film, reflective |
6-3-2 |
2 |
A820699000786 |
1 |
配重贴花 |
Decal, counterweight |
6-3-3 |
3 |
11471950 |
1 |
配重反光膜 |
Film, reflective |
6-3-4 |
4 |
A820699001016 |
2 |
配重警示牌 |
Decal, warning, counterweight |
6-3-5 |
5 |
A820699001019 |
1 |
前窗锁紧警示牌 |
Decal, warning, front window |
6-3-6 |
6 |
11312946 |
1 |
保险盒指示牌 |
Label, instruction, fuse box |
6-3-7 |
7 |
变更或见其他配置 |
2 |
动臂贴花 |
Movable Arm Marking |
6-3-8 |
8 |
11471885 |
2 |
动臂两侧贴花 |
Two sides Marking of Movable Arm |
6-3-9 |
9 |
10220816 |
1 |
机身左侧前部条贴花 |
Decal, left front, strip |
6-3-10 |
10 |
10220831 |
1 |
机身左侧中部条贴花 |
Decal, left middle, strip |
6-3-11 |
11 |
10220833 |
2 |
三一VI标志 |
Decal, SANY logo |
6-3-12 |
12 |
10232562 |
2 |
机身三一贴花 |
Decal, sany logo |
6-3-13 |
13 |
10220818 |
1 |
机身左侧前贴花 |
Decal, left front, machine body |
6-3-14 |
14 |
10220817 |
2 |
机身右侧前部条贴花 |
Decal, right, front |
6-3-15 |
15 |
A820603000251 |
2 |
配重文字 |
Decal, counterweight |
6-3-16 |
16 |
11491341 |
2 |
机器型号贴花 |
Decal,machine model |
6-3-17 |
17 |
10220815 |
1 |
机身左侧后贴花 |
Decal, left rear, machine body |
6-3-18 |
18 |
10220820 |
1 |
机身右侧后贴花 |
Decal, right, rear |
6-3-19 |
19 |
10220832 |
1 |
机身右侧中贴花 |
Decal, right, middle |
6-3-20 |
20 |
10220819 |
1 |
机身右侧中部条贴花 |
Decal, right middle, strip |
11491634 涂装 (Coating) (2/4) |
6-4 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-5-21 |
21 |
10220830 |
1 |
机身右侧前贴花 |
Decal, right, front |
6-5-22 |
22 |
10220814 |
1 |
机身侧后部条状贴花 |
Decal, strip, side rear |
6-5-23 |
23 |
11491612 |
1 |
蓄电池警示牌 |
Decal |
6-5-24 |
24 |
A210510000007 |
4 |
铆钉 |
Rivet |
6-5-25 |
25 |
11491352 |
1 |
出口机铭牌 |
Nameplate |
6-5-26 |
26 |
A820699001107 |
1 |
噪音标志 |
Label, noise |
6-5-27 |
27 |
A820601990963 |
2 |
斗杆警示牌 |
Decal, warning, arm |
6-5-28 |
28 |
A820601990928 |
1 |
油位标签 |
Label, oil level |
6-5-29 |
29 |
11491044 |
1 |
燃油箱标识牌 |
Decal,identification,fuel tank |
6-5-30 |
30 |
11318885 |
1 |
液压油箱指示牌 |
Decal |
6-5-31 |
31 |
10829298 |
2 |
宽防滑贴 |
Anti-skid, wide |
6-5-32 |
32 |
A820101050798 |
1 |
烫手警示标牌 |
Mark, warning, hand burning |
6-5-33 |
33 |
A820601990926 |
3 |
防跌落警示牌 |
Decal, warning, falling |
6-5-34 |
34 |
A820699000370 |
3 |
短防滑贴 |
Anti-skid, short |
6-5-35 |
35 |
A820699000369 |
5 |
长防滑贴 |
Anti-skid, long |
6-5-36 |
36 |
12033801 |
2 |
重心标牌 |
Decal, center of gravity |
6-5-37 |
37 |
11316585 |
2 |
黄油嘴防喷溅警示牌 |
Decal |
6-5-38 |
38 |
A820601990934 |
4 |
装运固定点标志 |
Decal, tie-down, shipment |
6-5-39 |
39 |
A820101990552 |
4 |
吊钩点标示图 |
Mark diagram, hook point |
6-5-40 |
40 |
11464425 |
1 |
查阅说明书警示牌 |
Label, warning, READ MANUAL |
11491634 涂装 (Coating) (2/4) |
6-5 |
11491634 涂装 (Coating) (3/4) |
6-6 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-7-41 |
41 |
11316012 |
1 |
操纵标示图 |
Decal |
6-7-42 |
42 |
11491331 |
1 |
提升能力表 |
Table,lifting capacity |
6-7-43 |
43 |
11464432 |
1 |
高压回避警示牌 |
Decal, warning, high-voltage |
6-7-44 |
44 |
11464441 |
1 |
钥匙断电警示牌 |
Decal, warning, power-off |
6-7-45 |
45 |
11312914 |
1 |
安全带警示牌 |
Decal |
6-7-46 |
46 |
11491559 |
1 |
防铲斗碰撞警示牌 |
Decal |
6-7-47 |
47 |
A820601990969 |
1 |
安全出口标志 |
Label, emergency exit |
6-7-48 |
48 |
12057746 |
2 |
前进方向标志 |
Decal, instruction, forward |
6-7-49 |
49 |
A820601990929 |
1 |
油箱放水标识 |
Label, drain, fuel tank |
6-7-50 |
50 |
11323371 |
1 |
严禁坐人警示牌 |
Decal, warning, no-sitting |
6-7-51 |
51 |
A820601990973 |
1 |
机顶罩警示牌 |
Decal, warning, engine hood |
6-7-52 |
52 |
11344533 |
1 |
油水分离器放水标识 |
Decal |
6-7-53 |
53 |
11316604 |
1 |
空滤器警示牌 |
Decal |
6-7-54 |
54 |
11322982 |
1 |
座椅调节指示牌 |
Decal |
6-7-55 |
55 |
11491615 |
1 |
润滑图表 |
Chart,lubrication |
6-7-56 |
56 |
11316054 |
1 |
风扇打手警示牌 |
Decal |
6-7-57 |
57 |
11316966 |
1 |
皮带安全警示牌 |
Decal |
6-7-58 |
58 |
11491602 |
1 |
防喷溅警示牌 |
Decal |
6-7-59 |
59 |
11316630 |
1 |
开锁标识牌 |
Decal |
6-7-60 |
60 |
A820601991045 |
1 |
电源断开开关标志 |
Label, power OFF switch |
11491634 涂装 (Coating) (4/4) |
