识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-25-21

21

11347702

1

缓冲套

Sleeve, buffer

4-25-22

22

60001446

2

挡圈

Ring, retaining

4-25-23

23

B230101000959

1

O形圈

O-ring

4-25-24

24

11347654

1

活塞杆

Rod, piston

4-25-25

25

11261296

1

导套

Bushing, guide

4-25-26

26

A880808070018

2

DLI防尘圈

Ring, dust

4-25-27

27

A880000000271

1

衬套一

Sleeve

4-25-28

28

11347700

1

缸筒总成

Barrel AS, cylinder

4-25-29

29

A880899010003

1

直通式压注油杯

Oil cup, forced filling, straight-flow

4-25-30

30

A880808070019

2

DLI防尘圈

Ring, dust

4-25-31

31

A880000000226

1

衬套二

Sleeve

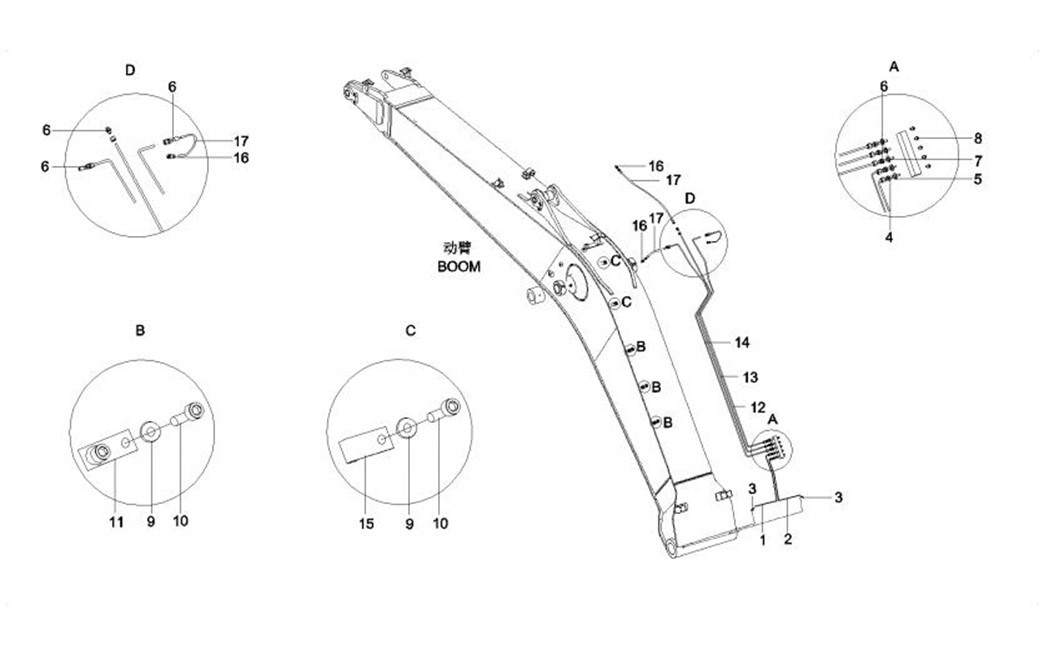

11777805 工作装置润滑管路 (Pipeline, greasing, work equipment) 4-26

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-27-1

1

11594975

1

黄油管

Tube, grease

4-27-2

2

11594962

1

黄油管

Tube, grease

4-27-3

3

11102369

2

接头

Connector

4-27-4

4

11102367

2

接头

Connector

4-27-5

5

A210434000005

2

垫圈

Washer

4-27-6

6

11102368

6

接头

Connector

4-27-7

7

A210434000007

3

垫圈

Washer

4-27-8

8

B229900000379

5

黄油嘴

Fitting, grease

4-27-9

9

A210404000003

6

垫圈

Washer

4-27-10

10

A210204000196

6

螺钉

Screw

4-27-11

11

A820101216696

2

三管管卡

Clamp, 3-pipe

4-27-12

12

11595301

1

黄油管

Tube, grease

4-27-13

13

11595233

1

黄油管

Tube, grease

4-27-14

14

11594983

1

黄油管

Tube, grease

4-27-15

15

A820101216692

3

单管管卡

Clip

4-27-16

16

A820205000858

3

管接头

Joint, pipe

4-27-17

17

B230103000815

3

胶管

Hose, rubber

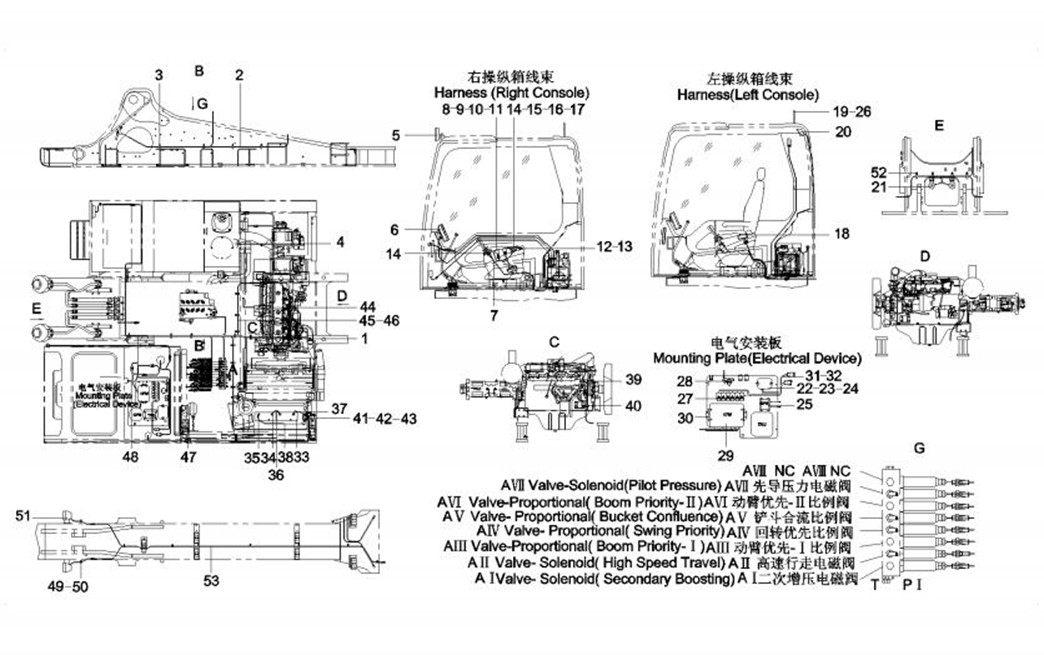

11707840 电气系统 (Electrical system) (1/3)

5-2

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-3-1

1

60086356

7

线束固定夹

Clamp, harness

5-3-2

2

11707741

1

车身线束

Harness,body

5-3-3

3

60086357

7

线束固定夹

Clamp, harness

5-3-4

4

60062068

1

报警器

Alarm

5-3-5

5

B241100000391

3

工作灯

Lamp, working

5-3-6

6

变更或见其他配置

1

三一显示屏

Sany Encourage Control Display

5-3-7

7

11707637

1

驾驶室线束

Harness,cab

5-3-8

8

60117463

1

油门旋钮

Dial, fuel control

5-3-9

9

A241200001217

1

启动开关

Switch, start

5-3-10

10

A210202000011

14

螺钉

Screw

5-3-11

11

60062069

1

12V充电器

Charger, 12V

5-3-12

12

60053220

2

LED指示灯LAS3/24V 红

Lamp, indicator, LED, red

5-3-13

13

60053221

3

LED指示灯LAS3/24V 黄

Lamp, indicator, LED, yellow

5-3-14

14

A230200000170

4

线夹

Clip

5-3-15

15

A210111000011

2

螺栓

Bolt

5-3-16

16

11707736

1

控制开关线束

Harness,switch,control

5-3-17

17

A210111000088

12

螺栓

Bolt

5-3-18

18

A240500000113

1

收音机

Radio

5-3-19

19

60090606

1

天线

Antenna

5-3-20

20

60023703

1

喇叭

Horn

11707840 电气系统 (Electrical system) (1/3)

5-3

11707840 电气系统 (Electrical system) (2/3)

5-4

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-5-21

21

A229900001896

2

喇叭

Horn

5-5-22

22

60062070

1

12V转换器

Converter, 12V

5-5-23

23

A210202000011

14

螺钉

Screw

5-5-24

24

A210401000013

8

垫圈

Washer

5-5-25

25

60023308

1

卫通GPS终端

GPS terminal

5-5-26

26

60060300

1

天线延长线

Extension, antenna

5-5-27

27

B240700000250

8

中间继电器

Relay

5-5-28

28

A240700000339

1

直流接触器

Contactor, direct-current

5-5-29

29

变更或见其他配置

1

控制器

Control

5-5-30

30

A210204000146

4

螺钉

Screw

5-5-31

31

A230200000021

2

PVC电气胶带

Tape, electric, PVC

5-5-32

32

11707751

1

继电器线束

Harness,relay

5-5-33

33

A242200000027

2

蓄电池

Battery

5-5-34

34

60013321

2

A型蓄电池负极接头总成

Connector GP, cathode, battery, A

5-5-35

35

60013322

2

A型蓄电池正极接头总成

Connector GP, anode, battery, A-

5-5-36

36

60012792

1

电源线

Wire, power supply

5-5-37

37

60012803

1

电源线

Wire, power supply

5-5-38

38

60104710

1

电源线

Wire, power supply

5-5-39

39

60086354

3

线束固定夹

Clamp, harness

5-5-40

40

60086355

1

线束固定夹

Clamp, harness

11707840 电气系统 (Electrical system) (2/3)

5-5

11707840 电气系统 (Electrical system) (3/3)

5-6
