SANY SY235C9 SY235C9C3KL EXCAVATOR parts catalog 12
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-99-3 |
3 |
A230200000170 |
7 |
线夹 |
Clip |
2-99-4 |
4 |
A210307000001 |
2 |
螺母 |
Nut |
2-99-6 |
6 |
10125155 |
2 |
门铰链总成 |
Hinge AS |
2-99-12 |
12 |
10463612 |
1 |
前照灯座 |
Support, head lampTJ06.2221.1.1- |
2-99-14 |
14 |
11158300 |
1 |
前下横梁外板 |
External board, cross rail, front |
2-99-20 |
20 |
11649986 |
1 |
左前照灯座 |
Seat,lamp,work |
2-99-27 |
27 |
10144352 |
2 |
支撑管 |
Supporting tube |
2-99-32 |
32 |
11767111 |
1 |
地板总成 |
Assembly, floorTJ06.2221.1D.1.4 |
2-99-33 |
33 |
11158247 |
1 |
右前下加强板 |
Plate,reinforced,lower,front,right |
2-99-34 |
34 |
11158254 |
1 |
左前下加强板 |
Plate,reinforcing,lower |

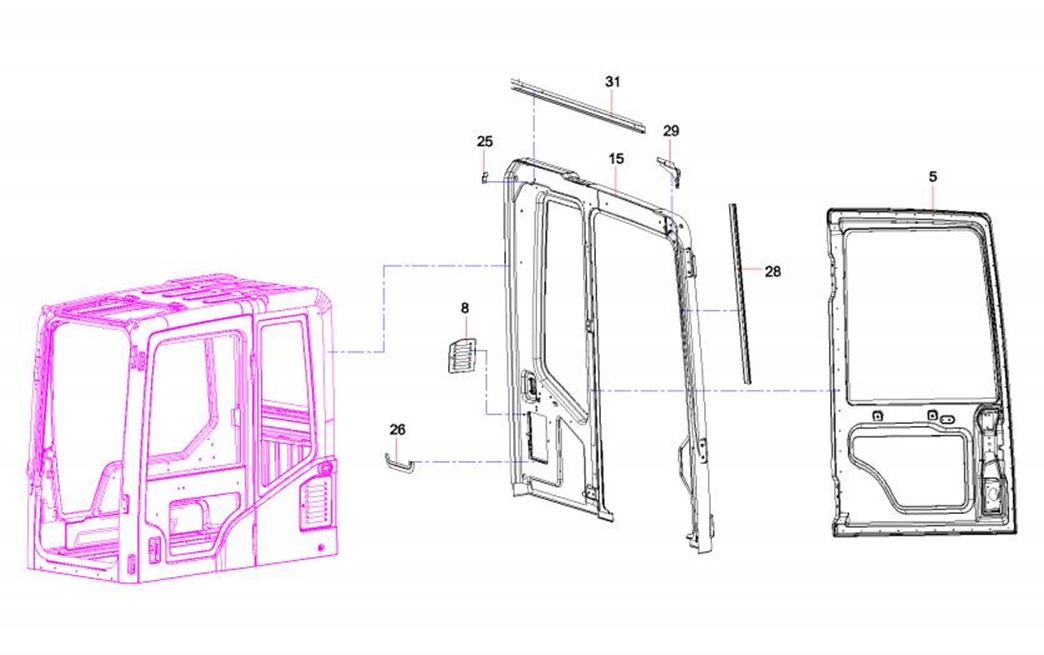

11654149 车身主体 (Bodywork body) (3/4) |
2-100 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-101-5 |
5 |
10137623 |
1 |
门总成 |
Cab door AS |
2-101-8 |
8 |
10137650 |
1 |
风窗盖总成 |
Cover GP,windshield |
2-101-15 |
15 |
10137546 |
1 |
左侧围总成 |
Left side wall assembly |
2-101-25 |
25 |
10138020 |
1 |
拉力器固定板 |
Fixed plate,spring exerciser |
2-101-26 |
26 |
10125135 |
1 |
风道下固定板 |
Fixed plate,lower,wind duct |
2-101-28 |
28 |
10138015 |
1 |
左侧前部导轨 |
Left-hand front guide rail |
2-101-29 |
29 |
A229900008236 |
1 |
导轨左上块总成 |
Block AS, guide rail, upper left |
2-101-31 |
31 |
10138018 |
1 |
左侧上部导轨 |
guide rail, left hand |

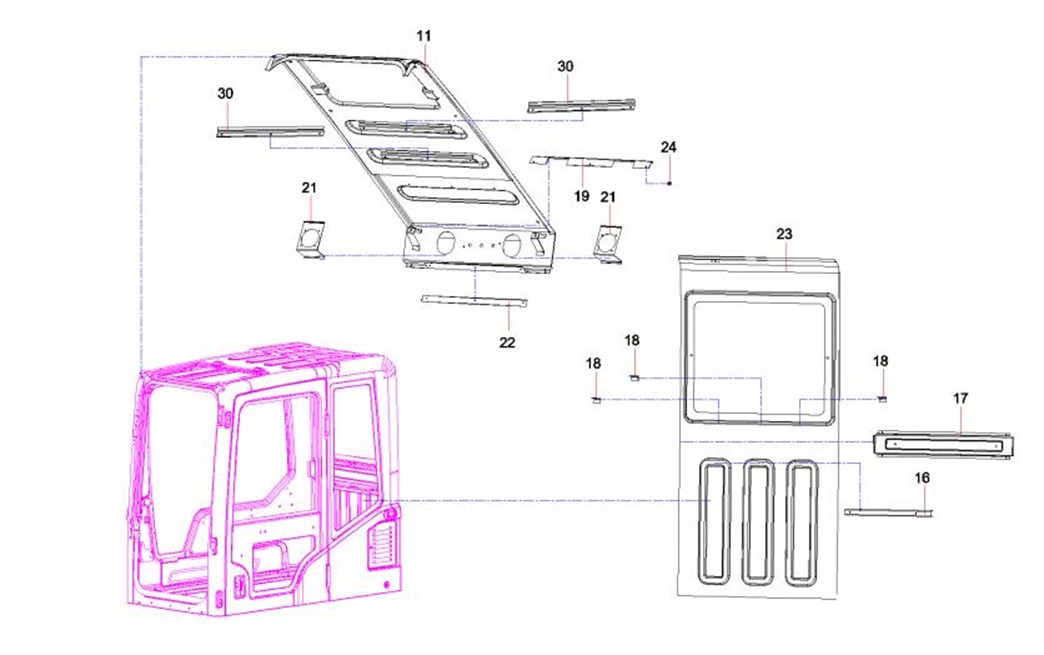

11654149 车身主体 (Bodywork body) (3/4) |
2-101 |
11654149 车身主体 (Bodywork body) (4/4) |
2-102 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-103-11 |
11 |
11156412 |
1 |
顶盖总成 |
Assembly, top |
2-103-16 |
16 |
10683994 |
1 |
储风管安装板总成 |
Plate GP,mounting,air Reservoir |
2-103-17 |
17 |
11156595 |
1 |
后围加强筋 |
Rib,reinforcement,rear wall |
2-103-18 |
18 |
10684003 |
3 |
内饰安装板总成 |
Plate |
2-103-19 |
19 |
11158331 |
1 |
顶棚安装板总成 |
Installation plate assembly, |
2-103-21 |
21 |
10137552 |
2 |
扬声器支架总成 |
Speaker support assembly |
2-103-22 |
22 |
11158302 |
1 |
内饰安装板总成 |
Plate |
2-103-23 |
23 |
11156542 |
1 |
后围板 |
Panel,wall,rear |
2-103-24 |
24 |
A210307000015 |
2 |
螺母 |
Nut |
2-103-30 |
30 |
11158337 |
2 |
顶棚中部安装板 |
Installation plate, ceiling |

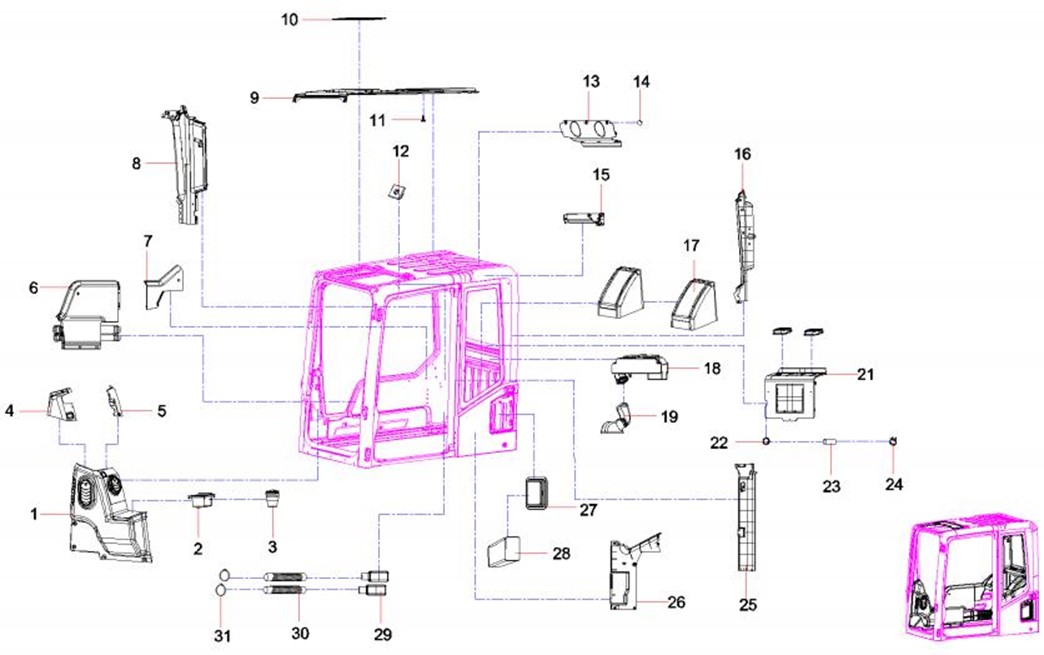

11646101 内饰件总成 (Plate GP,protect,decoration,inner) (1/2) 2-104 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-105-1 |
1 |
11334877 |
1 |
前控箱总成 |
Front, control, box, |
2-105-2 |
2 |
11334825 |
1 |
水杯托 |
Saucer |
2-105-3 |
3 |
11334840 |
1 |
烟灰缸 |
AshtrayTJ06.2221.1.18.7 |
2-105-4 |
4 |
11334843 |
1 |
前控箱上护罩总成 |
Front, control, box, upper, guar, |
2-105-5 |
5 |
11334218 |
1 |
前控箱上护罩盖板 |
Front, controlling, box, upper, |
2-105-6 |
6 |
11334874 |
1 |
右侧围总成 |
Side wall GP,right |
2-105-7 |
7 |
11334865 |
1 |
右侧围后饰板总成 |
Ornamental plate GP,rear,side |
2-105-8 |
8 |
10640038 |
1 |
右后立柱板 |
Plate,upright column,right rear |
2-105-9 |
9 |
11169629 |
1 |
顶棚 |
Liner, ceiling |
2-105-10 |
10 |
11169628 |
1 |
天窗内饰 |
Trim, roof |
2-105-11 |
11 |
11334708 |
9 |
顶棚卡扣 |
Bayonet catch, top |
2-105-12 |
12 |
11209482 |
3 |
方形膨胀卡扣 |
Expansion clip, square |
2-105-13 |
13 |
11169630 |
1 |
扬声器罩 |
Speaker, coverTJ06.2221.1A.18-4 |
2-105-14 |
14 |
10640709 |
12 |
装饰扣 |
Stud |
2-105-15 |
15 |
10640105 |
1 |
左上柱 |
Left, upper, columnTJ06.2221.1.18 |
2-105-16 |
16 |
10640091 |
1 |
左后立柱板 |
Plate,pillar,rear,left |
2-105-17 |
17 |
10639298 |
2 |
工具箱 |
Toolbox |
2-105-18 |
18 |
11169633 |
1 |
储风管 |
Reservoir,air |
2-105-19 |
19 |
11573808 |
1 |
后部风管接头总成 |
Connector GP,ventilation pipe,rear |
2-105-21 |
21 |
11169632 |
1 |
空调罩 |
Cover,air conditioner |
11646101 内饰件总成 (Plate GP,protect,decoration,inner) (1/2) 2-105 |
11646101 内饰件总成 (Plate GP,protect,decoration,inner) (2/2) 2-106 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-107-22 |
22 |
11334721 |
1 |
杂物盒冷藏通风管保护套 |
Protective sleeve,ventilation |
2-107-23 |
23 |
11334726 |
1 |
杂物盒冷藏通风管 |
Ventilation pipeline,cold,case,glove |
2-107-24 |
24 |
60090310 |
1 |
双钢丝式环箍 |
Clamp |
2-107-25 |
25 |
10640108 |
1 |
左中柱 |
Left-middle, |
2-107-26 |
26 |
10640127 |
1 |
左侧围 |
Left, side, wallTJ06.2221.1.18-8 |
2-107-27 |
27 |
10640698 |
1 |
空调进风接口 |
Connection,air inlet,air conditioner |
2-107-28 |
28 |
11169634 |
1 |
空调进风接管 |
Connection pipe,air inlet,air |
2-107-29 |
29 |
11551410 |
1 |
右侧风口接头 |
Joint,air outlet,right-hand |
2-107-30 |
30 |
11551411 |
2 |
波纹连接管 |
Pipe,connection,corrugated |
2-107-31 |
31 |
A210855000012 |
1 |
喉箍 |
Hoop |
11646101 内饰件总成 (Plate GP,protect,decoration,inner) (2/2) 2-107 |

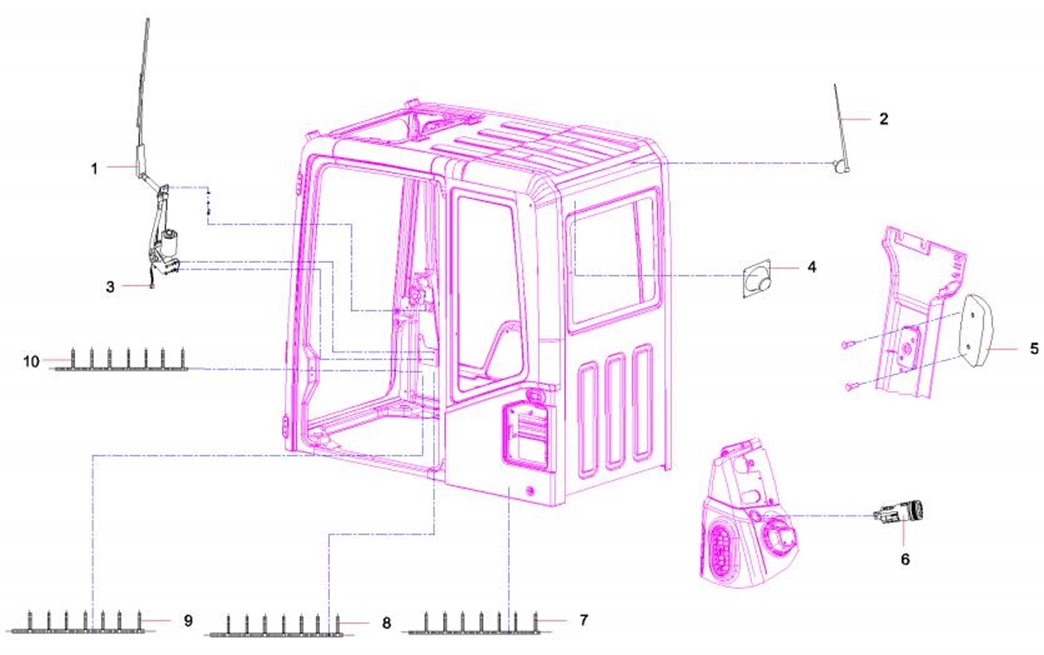

12302091 中挖驾驶室GPS电气总成 (Elctric systerm) 2-108 |
