SANY SY235C9 SY235C9C3KL EXCAVATOR parts catalog 13
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-109-1 |
1 |
A229900008240 |
1 |
刮水器总成 |
Wiper GP |
2-109-2 |
2 |
60090606 |
1 |
天线 |
Antenna |
2-109-3 |
3 |
11541446 |
1 |
雨刮器线束 |
Harness,wiper |
2-109-4 |
4 |
60023703 |
2 |
喇叭 |
Horn |
2-109-5 |
5 |
A229900003178 |
1 |
厢灯 |
Lamp, cab |
2-109-6 |
6 |
A229900003764 |
1 |
点烟器 |
Cigar lighter |
2-109-7 |
7 |
11140229 |
1 |
驾驶室左侧线束 |
Harness,left,cab |
2-109-8 |
8 |
11139788 |
1 |
OPUS显示器线束 |
Harness,monitor |
2-109-9 |
9 |
11822542 |
1 |
GPRS有源线束 |
GPRS active harness |
2-109-10 |
10 |
11822508 |
1 |
GPS有源线束 |
GPS active antenna |
A222200000147 锁体 (Lock AS) |

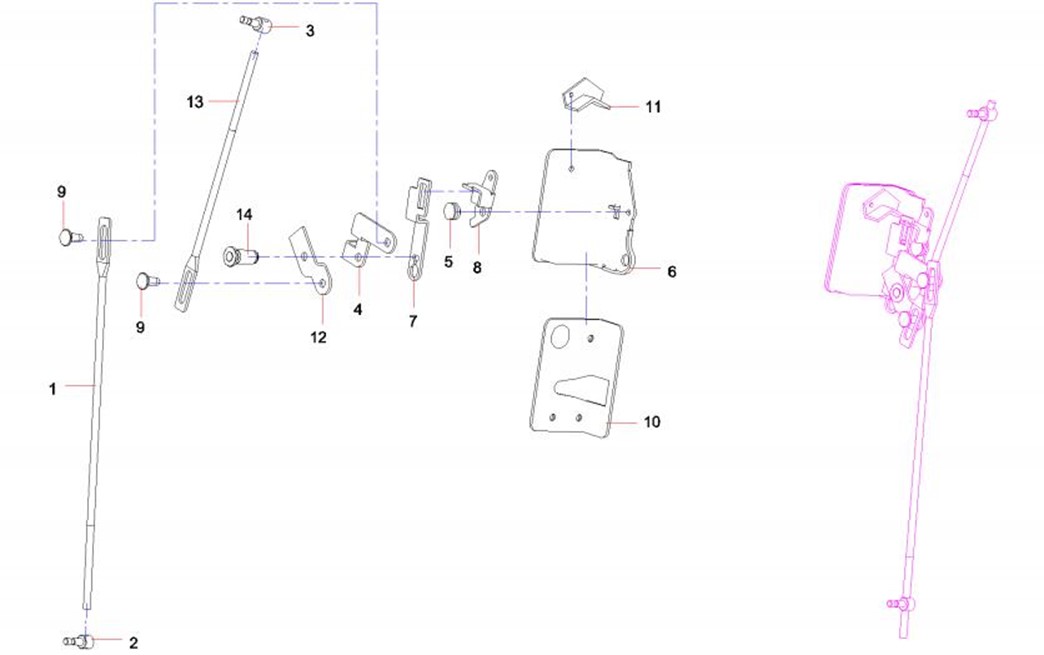

2-110 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-111-1 |
1 |
10708367 |
1 |
推拉杆 |
Bar, sliding |
2-111-2 |
2 |
10708368 |
1 |
推拉杆 |
Bar, sliding |
2-111-3 |
3 |
10708369 |
1 |
固定销 |
Pin, fixing |
2-111-4 |
4 |
10708373 |
1 |
推拉块 |
Block, sliding |
2-111-5 |
5 |
10708376 |
1 |
销 |
Pin |
2-111-6 |
6 |
10708370 |
1 |
锁止机构 |
Lock mechanism |
2-111-7 |
7 |
10708375 |
1 |
推拉块 |
Block, sliding |
2-111-8 |
8 |
10708377 |
1 |
固定座 |
Braket |
2-111-9 |
9 |
10708365 |
2 |
固定销 |
Pin, fixing |
2-111-10 |
10 |
10708364 |
1 |
车门锁固定底板 |
Fixed base plate, cab door lock |
2-111-11 |
11 |
10708371 |
1 |
车门锁固定座 |
Braket, cab door lock |
2-111-12 |
12 |
10708374 |
1 |
推拉块 |
Block, sliding |
2-111-13 |
13 |
10708366 |
1 |
推拉杆 |
Bar, sliding |
2-111-14 |
14 |
10708372 |
1 |
销 |
Pin |
A222200000147 锁体 (Lock AS) |
2-111 |

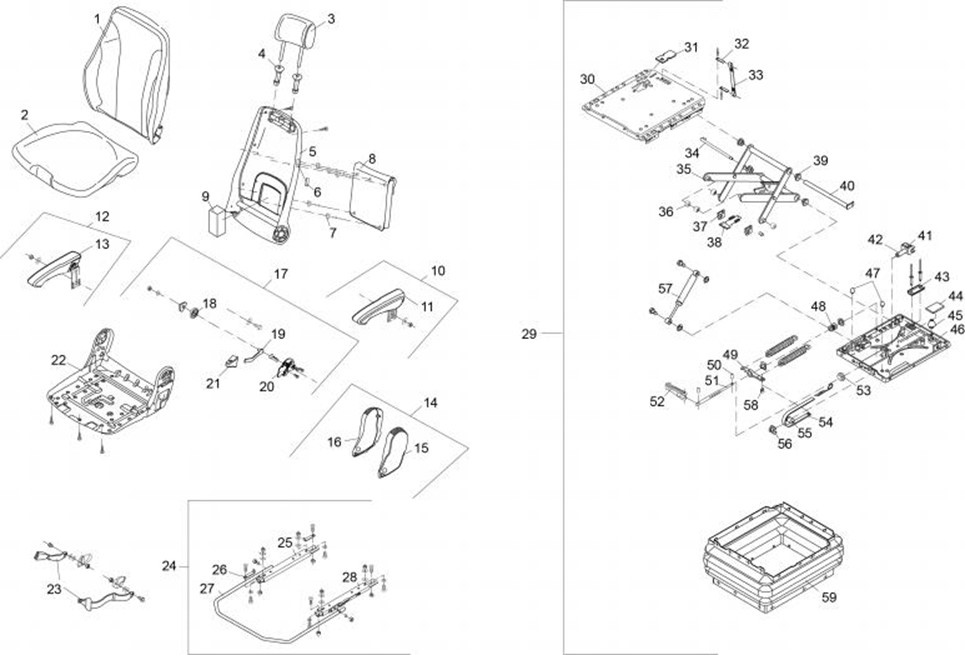

B229900000265 机械悬浮式驾驶座椅 (Seat, cab, mechanical suspension) (1/3) 2-112 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-113-1 |
1 |
60153633 |
1 |
靠垫 |
Cushion, back? |
2-113-2 |
2 |
60153810 |
1 |
座垫 |
Cushion, seat |
2-113-3 |
3 |
60153648 |
1 |
头枕 |
Headrest |
2-113-4 |
4 |
60153704 |
1 |
衬套 |
Bushing |
2-113-5 |
5 |
60153632 |
1 |
靠背 |
Backrest |
2-113-6 |
6 |
60153625 |
1 |
黑色盖子 |
Cover, black |
2-113-7 |
7 |
60153669 |
1 |
套环 |
Ring |
2-113-8 |
8 |
60153650 |
1 |
文件袋 |
Bag, document |
2-113-9 |
9 |
60153643 |
1 |
泡沫块 |
Foam |
2-113-10 |
10 |
60153808 |
1 |
左扶手装置 |
Console AS (LH) |
2-113-11 |
11 |
60153807 |
1 |
左扶手 |
Console (LH) |
2-113-12 |
12 |
60153795 |
1 |
右扶手装置 |
Console AS (RH) |
2-113-13 |
13 |
60153794 |
1 |
右扶手 |
Console (RH) |
2-113-14 |
14 |
60153754 |
1 |
铰链封盖装置 |
Cover AS, hinge |
2-113-15 |
15 |
60153664 |
1 |
左封盖 |
Cover LH |
2-113-16 |
16 |
60153653 |
1 |
右封盖 |
Cover RH |
2-113-17 |
17 |
60153756 |
1 |
靠背角度调节装置 |
Adjuster, backrest angle |
2-113-18 |
18 |
60153711 |
1 |
弹簧支柱 |
Pillar, spring |
2-113-19 |
19 |
60153831 |
1 |
左杠杆 |
Lever, left |
2-113-20 |
20 |
60153626 |
1 |
活动板 |
Plate, movable |
B229900000265 机械悬浮式驾驶座椅 (Seat, cab, mechanical suspension) (1/3) 2-113 |
B229900000265 机械悬浮式驾驶座椅 (Seat, cab, mechanical suspension) (2/3) 2-114 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-115-21 |
21 |
60153751 |
1 |
角度调节手柄 |
Handle, angle adjustment |
2-115-22 |
22 |
60153812 |
1 |
座椅骨架 |
Framework, seat |
2-115-23 |
23 |
60153695 |
1 |
安全带 |
Seat belt |
2-115-24 |
24 |
60153746 |
1 |
滑轨装置 |
Rail AS |
2-115-25 |
25 |
60153796 |
1 |
右滑轨 |
Rail, right |
2-115-26 |
26 |
60153752 |
1 |
角支座 |
Support, angle |
2-115-27 |
27 |
60153651 |
1 |
限位弯杆 |
Bar, limit |
2-115-28 |
28 |
60153809 |
1 |
左滑轨 |
Rail, left |
2-115-29 |
29 |
60153814 |
1 |
座椅悬挂总成 |
Suspension AS, seat |
2-115-30 |
30 |
60153811 |
1 |
座垫固定板 |
Plate, seat-holding |
2-115-31 |
31 |
60153656 |
1 |
整齐嵌板 |
Panel |
2-115-32 |
32 |
60153646 |
1 |
嵌板 |
Panel |
2-115-33 |
33 |
60153696 |
1 |
安全带短带 |
Belt, safety, short |
2-115-34 |
34 |
60153701 |
1 |
插销 |
Pin |
2-115-35 |
35 |
60153790 |
1 |
摇臂总成 |
Rocker AS |
2-115-36 |
36 |
60153739 |
1 |
滚筒 |
Roll |
2-115-37 |
37 |
60153733 |
1 |
隔板 |
Separator |
2-115-38 |
38 |
60153647 |
1 |
条板 |
Strip |
2-115-39 |
39 |
60153822 |
1 |
套筒 |
Sleeve |
2-115-40 |
40 |
60153700 |
1 |
插销 |
Pin |
B229900000265 机械悬浮式驾驶座椅 (Seat, cab, mechanical suspension) (2/3) 2-115 |
B229900000265 机械悬浮式驾驶座椅 (Seat, cab, mechanical suspension) (3/3) 2-116 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-117-41 |
41 |
60153802 |
1 |
轴承滚柱 |
Roller, bearing |
2-117-42 |
42 |
60153657 |
1 |
支端 |
Support |
2-117-43 |
43 |
60153617 |
1 |
U型固定槽 |
Profile, U-shaped |
2-117-44 |
44 |
60153817 |
1 |
橡胶板 |
Plate, rubber |
2-117-45 |
45 |
60153679 |
1 |
缓冲器 |
Damper |
2-117-46 |
46 |
60153813 |
1 |
座椅悬挂底板 |
Plate, bottom, suspension |
2-117-47 |
47 |
60153691 |
1 |
阻尼减震器 |
Damper |
2-117-48 |
48 |
60153801 |
1 |
轴承滚珠保持架 |
Race, ball,bearing |
2-117-49 |
49 |
60153707 |
1 |
弹簧吊架 |
Hanger, spring |
2-117-50 |
50 |
60153712 |
1 |
弹性圆柱销 |
Pin, cylindrical |
2-117-51 |
51 |
60153699 |
1 |
插销 |
Pin |
2-117-52 |
52 |
60153619 |
1 |
触发器 |
Trigger |
2-117-53 |
53 |
60153703 |
1 |
衬套 |
Bushing |
2-117-54 |
54 |
60153799 |
1 |
指示器 |
Indicator |
2-117-55 |
55 |
60153740 |
1 |
滚柱 |
Roller |
2-117-56 |
56 |
60153820 |
1 |
尺标 |
Scale |
2-117-57 |
57 |
60153680 |
1 |
缓冲器 |
Damper |
2-117-58 |
58 |
60153738 |
1 |
固定销 |
Pin, retainer |
2-117-59 |
59 |
60153644 |
1 |
气囊箱 |
Bellow |
B229900000265 机械悬浮式驾驶座椅 (Seat, cab, mechanical suspension) (3/3) 2-117 |

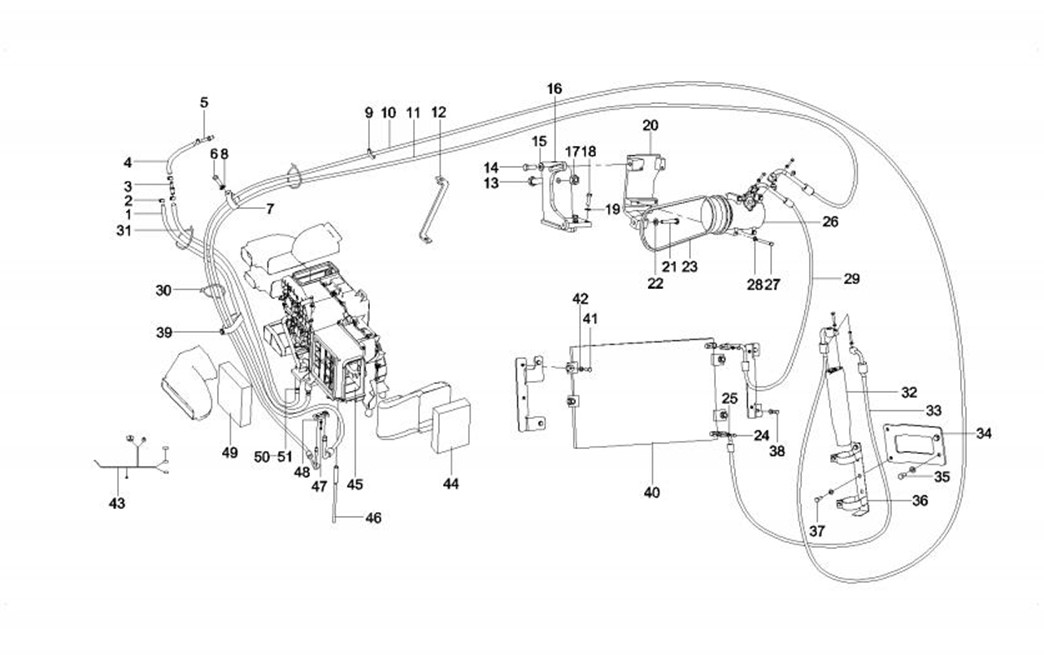

10503360 空调系统 (Air conditioning system) (1/3) |
