识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-7-21

21

B230101000049

3

O形圈

O-ring

5-7-22

22

10807042

3

钢管总成

Pipe GP,steel

5-7-23

23

A820101219653

14

管夹

Clamp

5-7-24

24

A210204000356

28

螺钉

Screw

5-7-25

25

A210401000001

28

垫圈

Nut

5-7-26

26

10456835

8

双孔管夹上

Double-tube clamp upper-

5-7-27

27

24000431

32

螺钉

Screw

5-7-28

28

A210401000017

32

垫圈

Washer

5-7-29

29

A820101332703

2

夹板

Clamp

5-7-30

30

A210204000362

4

螺钉M12×70GB70.1 10.9级

Screw

5-7-31

31

A210401000002

4

垫圈

Washer

5-7-32

32

B230103004608

2

胶管

Pipe, rubber

5-7-33

33

B210780000827

1

管接头

Connector, pipe

5-7-34

34

B210780000170

1

管接头

Connector, pipe

5-7-35

35

B230103002650

1

胶管

Hose

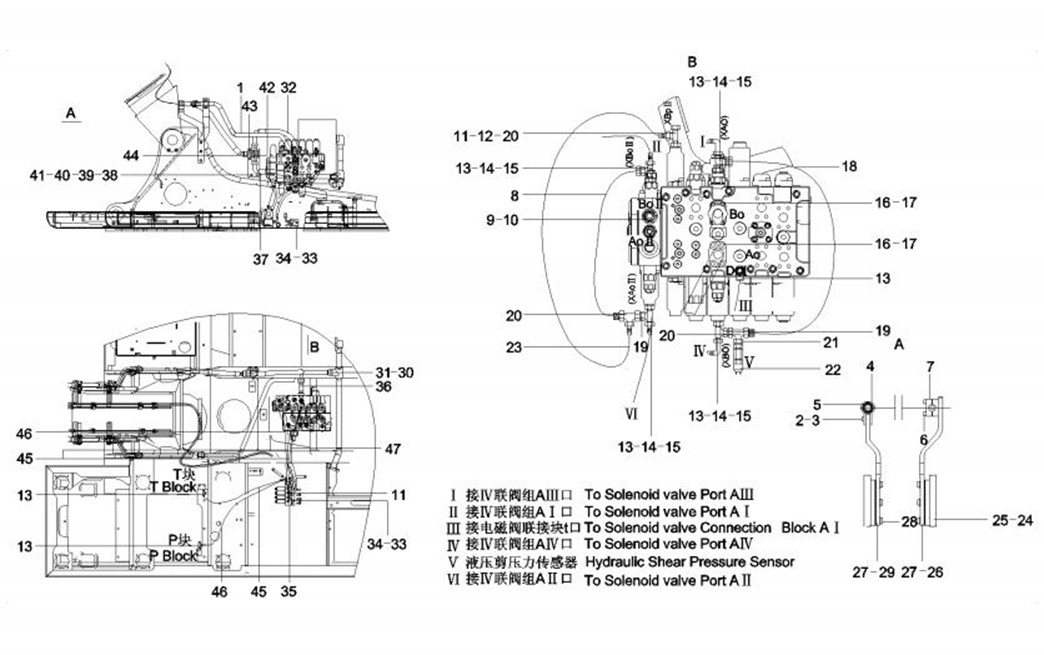

12093990 平台管路 (Pipeline, platform) (1/3)

5-8

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-9-1

1

11455132

1

钢管总成

Pipe GP,steel

5-9-2

2

A210204000215

2

螺钉M10×35GB70.1 10.9级

Screw

5-9-3

3

A210401000001

22

垫圈

Nut

5-9-4

4

A820101219669

2

管夹

Clamp

5-9-5

5

A820606010360

2

衬垫

Gasket

5-9-6

6

A210204000362

2

螺钉M12×70GB70.1 10.9级

Screw

5-9-7

7

A820101344228

1

管夹

Clamp

5-9-8

8

B230103001947

1

胶管

Hose, rubber

5-9-9

9

B230101000356

2

O形圈

O-ring

5-9-10

10

11454532

2

G3/4-M18接头

Connector

5-9-11

11

A820205000940

7

接头

Connector

5-9-12

12

B230101000047

7

O形圈

O-ring

5-9-13

13

B210780000170

7

管接头

Connector, pipe

5-9-14

14

A820205000946

4

接头

Connector

5-9-15

15

B230101000049

4

O形圈

O-ring

5-9-16

16

A210204000355

10

螺钉

Screw

5-9-17

17

B230101000215

2

O形圈

O-ring

5-9-18

18

B230103000817

1

胶管

Hose

5-9-19

19

B210780001045

2

管接头

Connector, pipe

5-9-20

20

B220400000169

3

三通梭阀

Valve, shuttle, tee

12093990 平台管路 (Pipeline, platform) (2/3)

5-10

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-11-21

21

A820205001061

1

负流量传感器接头

Coupler, sensor, negative flow

5-11-22

22

A240600000291

1

压力传感器

Sensor, pressure

5-11-23

23

B230103004282

1

胶管

Hose

5-11-24

24

A210111000053

3

螺栓

Bolt

5-11-25

25

A210491000118

6

垫圈

Washer

5-11-26

26

A810406012729

1

左支承

Bearing, left

5-11-27

27

A820101346017

4

调整垫

Plate, adjusting

5-11-28

28

A210111000212

3

螺栓M16×35GB5783 10.9级

Bolt

5-11-29

29

10764969

1

右支承板

Plate, bearing, right

5-11-30

30

A820205001334

1

G1-M42接头

Connector

5-11-31

31

B230101000050

1

O形圈

O-ring

5-11-32

32

60017883

1

胶管

Hose

5-11-33

33

11454553

1

支架

Bracket

5-11-34

34

23000066

10

螺钉

Screw

5-11-35

35

60110984

1

阀组

Valve GP

5-11-36

36

B230103001920

1

胶管

Hose

5-11-37

37

10760114

1

硬管总成

Pipe, hard GP

5-11-38

38

10760150

1

球阀架

Bracket, ball valve

5-11-39

39

A210204000338

2

螺钉

Screw

5-11-40

40

A210401000002

4

垫圈

Washer

12093990 平台管路 (Pipeline, platform) (2/3)

5-11

12093990 平台管路 (Pipeline, platform) (3/3)

5-12

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

5-13-41

41

A210307000001

2

螺母

Nut

5-13-42

42

B220401001199

1

三通球阀

Valve, ball, three-way

5-13-43

43

10184264

1

上管夹

Clamp, pipe, upper

5-13-44

44

24001376

3

管接头

Joint, pipe

5-13-45

45

B230103000983

3

胶管

Hose

5-13-46

46

A831213135000

2

胶管

Hose

5-13-47

47

B230103002722

1

管

Hose, rubber

12093990 平台管路 (Pipeline, platform) (3/3)

5-13

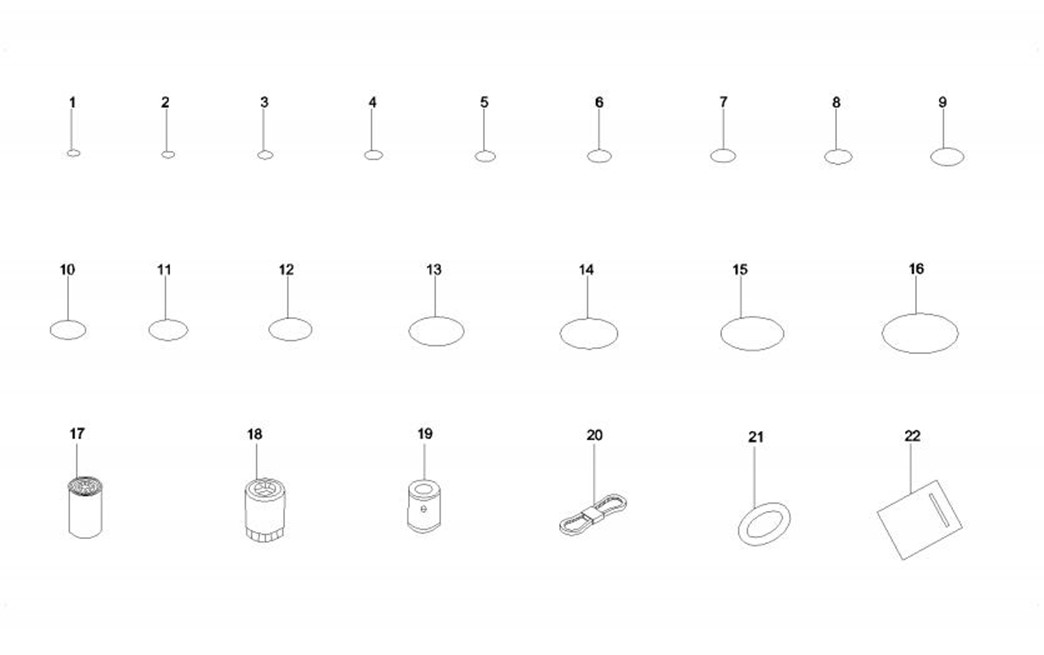

11656554 SY235C9液压挖掘机随机附件 (Accessories) (1/4) 6-2
