SANY SY135C9 SY135C9I2K EXCAVATOR parts catalog 25
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|

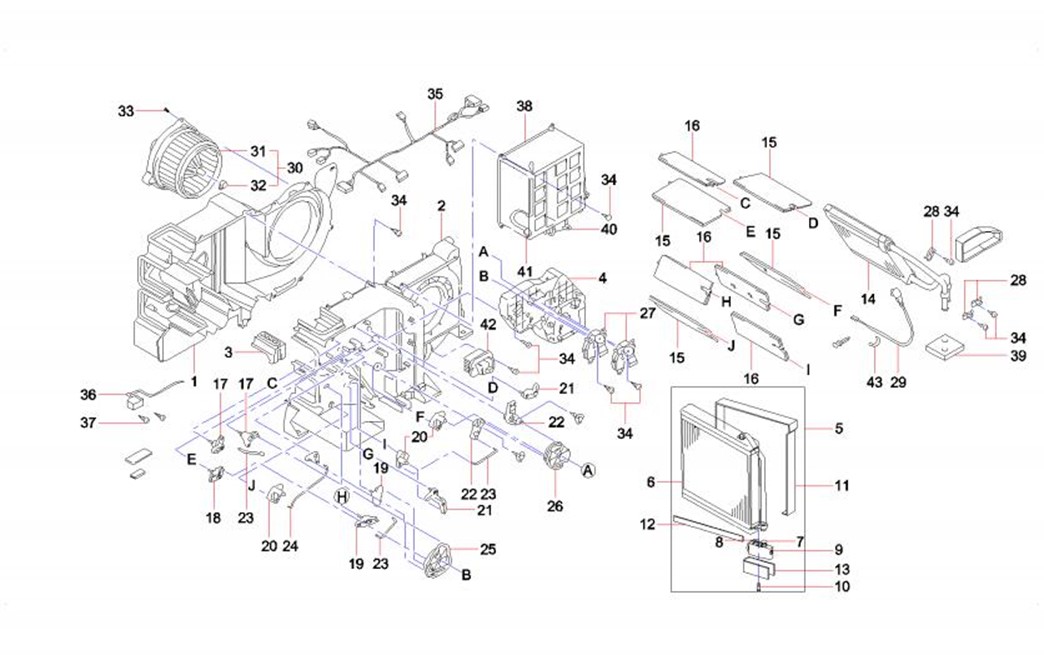

2-265-1 |
1 |
60153212 |
1 |
冷却机组外壳 |
Cooling motor group outer shell |
2-265-2 |
2 |
60153213 |
1 |
冷却机组外壳 |
Cooling motor group outer shell |
2-265-3 |
3 |
60153195 |
1 |
片 |
Plate |
2-265-4 |
4 |
60153196 |
1 |
片 |
Plate |
2-265-5 |
5 |
60153202 |
1 |
带部件蒸发器总成 |
Evaporator assembly with parts |
2-265-6 |
6 |
60153218 |
1 |
蒸发器分总成 |
Evaporator SUB |
2-265-7 |
7 |
60153192 |
1 |
O型环 |
O-type ring |
2-265-8 |
8 |
60153193 |
1 |
O型环 |
O-type ring |
2-265-9 |
9 |
60153197 |
1 |
膨胀阀 |
Valve, expansion |
2-265-10 |
10 |
60153215 |
2 |
螺栓 |
Bolt |
2-265-11 |
11 |
60153203 |
1 |
隔热密封垫 |
Seal, insulation |
2-265-12 |
12 |
60153205 |
3 |
隔热密封垫 |
Seal, insulation |
2-265-13 |
13 |
60153204 |
1 |
隔热密封垫 |
Seal, insulation |
2-265-14 |
14 |
60153242 |
1 |
加热器芯分总成 |
Core SUB, heater |
2-265-15 |
15 |
60049962 |
4 |
门分总成 |
Door SUB |
2-265-16 |
16 |
60153216 |
4 |
门分总成 |
Door SUB |
2-265-17 |
17 |
60049956 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-265-18 |
18 |
60049957 |
1 |
连杆分总成 |
Rod SUB, connecting |
2-265-19 |
19 |
60049958 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-265-20 |
20 |
60049959 |
3 |
连杆分总成 |
Rod SUB, connecting |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-267-21 |
21 |
60049941 |
2 |
杆 |
Rod |
2-267-22 |
22 |
60049960 |
2 |
连杆分总成 |
Rod SUB, connecting |
2-267-23 |
23 |
60049963 |
3 |
轴 |
Shaft |
2-267-24 |
24 |
60049964 |
1 |
轴 |
Shaft |
2-267-25 |
25 |
60049943 |
1 |
片 |
Plate |
2-267-26 |
26 |
60049944 |
1 |
片 |
Plate |
2-267-27 |
27 |
60049947 |
2 |
伺服电机总成 |
Motor AS, servo |
2-267-28 |
28 |
60049955 |
3 |
夹具 |
Clamp |
2-267-29 |
29 |
60033039 |
1 |
水温传感器 |
Sensor, water temperature |
2-267-30 |
30 |
60153199 |
1 |
带风扇电机总成 |
Motor As, with fan |
2-267-31 |
31 |
60049951 |
1 |
风扇叶 |
Blade, fan |
2-267-32 |
32 |
60049954 |
1 |
夹具 |
Clamp |
2-267-33 |
33 |
60049950 |
3 |
带垫圈自攻螺钉 |
Screw, tapping, with washer |
2-267-34 |
34 |
60049965 |
32 |
自攻螺钉 |
Screw, self-tapping |
2-267-35 |
35 |
60049948 |
1 |
空调机电束总成 |
Harness AS, air conditioner |
2-267-36 |
36 |
60049966 |
1 |
防结霜传感器 |
Sensor, anti-frost |
2-267-37 |
37 |
60049949 |
2 |
带垫圈螺钉 |
Screw, with washer |
2-267-38 |
38 |
60049942 |
1 |
盒分总成 |
Box, SUB |
2-267-39 |
39 |
60049953 |
1 |
隔热密封垫 |
Seal, insulation |
2-267-40 |
40 |
60049945 |
1 |
带附件伺服电机总成 |
Motor AS, servo |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-269-41 |
41 |
60153240 |
1 |
热敏电阻总成 |
Thermistor AS |
2-269-42 |
42 |
60049968 |
1 |
空调功率晶体管总成 |
Transistor AS, air conditioner |
2-269-43 |
43 |
60049952 |
1 |
感温包零件支架 |
Bracket, thermo-bulb parts |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
2-271-1 |
1 |
12320466 |
1 |
配重主体 |
Main counterweight |

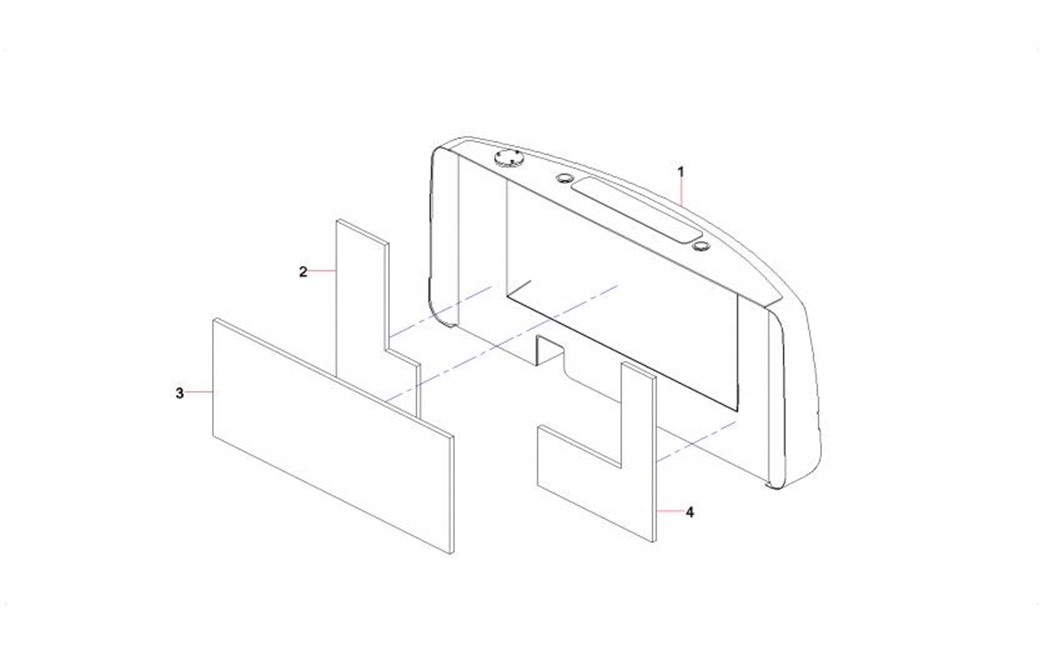

2-271-2 |
2 |
12144050 |
1 |
右部海绵 |
Right part spongeSY135C9I2K.1.9 |
2-271-3 |
3 |
12144051 |
1 |
中部海绵 |
Central spongeSY135C9I2K.1.9-2 |
2-271-4 |
4 |
12144052 |
1 |
左部海绵 |
Left SpongeSY135C9I2K.1.9-3 |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
||

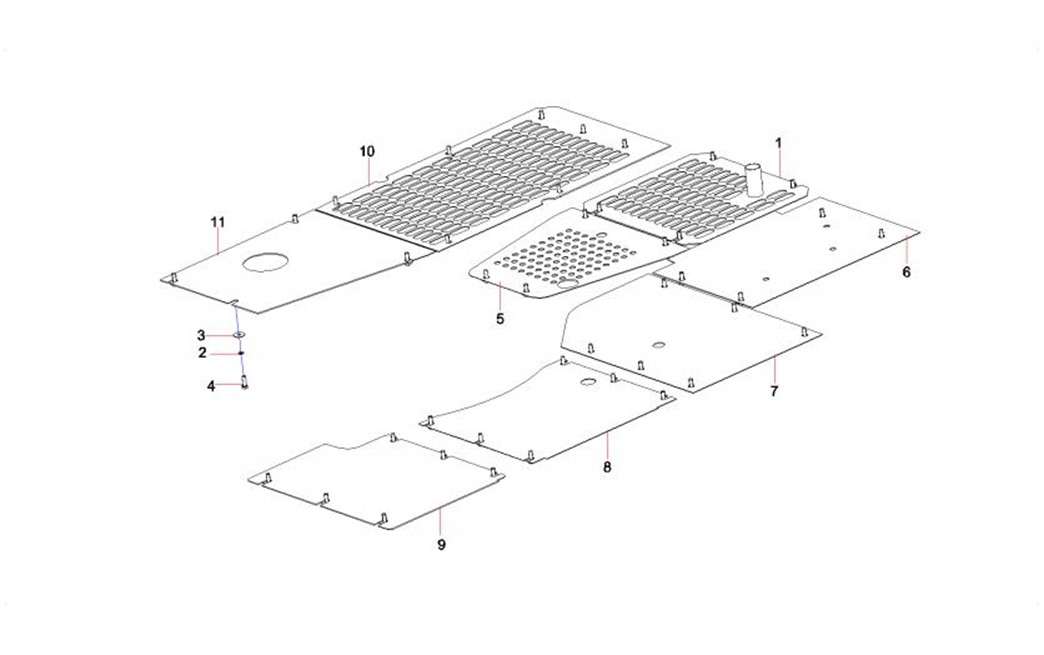

2-273-1 |
1 |
12772929 |
1 |
发动机封板 |
sealing board |
|
2-273-2 |
2 |
A210401000002 |
41 |
垫圈 |
Washer |
|
2-273-3 |
3 |
A210404000004 |
41 |
垫圈 |
Washer |
|
2-273-4 |
4 |
A210111000203 |
41 |
螺栓M12×35GB5783 10.9级 |
Bolt |
|
2-273-5 |
5 |
12058454 |
1 |
中前封板 |
Plate, sealing, |
front middle |
2-273-6 |
6 |
12058456 |
1 |
左中封板 |
Plate, sealing, |
middle left |
2-273-7 |
7 |
12058458 |
1 |
驾驶室后封板 |
Plate, sealing, |
cab rear |
2-273-8 |
8 |
12058459 |
1 |
驾驶室中封板 |
Plate, sealing, |
cab middle |
2-273-9 |
9 |
12058460 |
1 |
驾驶室前封板 |
Plate, sealing, |
cab front |
2-273-10 |
10 |
12108559 |
1 |
右后封板盖 |
Plate, sealing, |
rear right |
2-273-11 |
11 |
12058461 |
1 |
油箱封板 |
Plate, sealing, |
oil tank |
