识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-23-1

1

A210204000164

8

螺钉

Screw

4-23-2

2

60084718

1

有杆腔油管组件

Pipe GP, oil, rod end

4-23-3

3

A210111000028

2

螺栓

Bolt

4-23-4

4

60084714

2

压板

Clamp

4-23-5

5

60084747

1

死缓冲套

Jacket, buffer

4-23-6

6

60084702

1

活塞

Piston

4-23-7

7

60084698

1

缸盖

Head, cylinder

4-23-8

8

60084700

1

缸体

Block, cylinder

4-23-9

9

60084731

2

轴套

Sleeve, shaft

4-23-10

10

A210804000002

2

油杯

Cup, oil

4-23-11

11

60084707

1

活塞杆

Rod, piston

4-23-12

12

60084708

2

卡箍组件

Hoop GP

4-23-13

13

60084713

1

无杆腔油管组件

Pipe GP, oil, head end

4-23-14

14

60080467

1

钢球

Ball, steel

4-23-15

15

60020647

1

凹端紧定螺钉

Set screw, socket head

4-23-16

16

A210204000298

12

螺钉

Screw

4-23-17

17

60021558

4

螺栓

Bolt

4-23-18

18

60038829

1

防尘圈

Ring, dust

4-23-19

19

60084739

1

挡圈

Ring, retaining

4-23-20

20

60080537

1

轴用密封圈

Ring, seal

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

4-25-21

21

60080511

1

开口挡圈

Ring, retainer, switch

4-25-22

22

60084720

1

缓冲圈

Ring, buffer

4-25-23

23

60084728

1

滑动轴套

Sleeve, sliding

4-25-24

24

60084738

1

挡圈

Ring, retaining

4-25-25

25

B230101000983

1

O形圈

O-ring

4-25-26

26

60084725

1

O形圈挡圈

Ring, retaining

4-25-27

27

60084736

1

孔用密封圈

Ring, seal

4-25-28

28

60080415

2

成形导向环

Ring, guide

4-25-29

29

60084722

2

纳污环

Ring, contaminant

4-25-30

30

A880808070030

4

DLI防尘圈

Ring, dust

4-25-31

31

B230101000656

2

O形圈

O-ring

4-25-32

32

A210400000001

4

垫圈

Washer

4-25-33

33

24000867

4

螺母GB6170 10级

Nut

4-25-34

34

60082854

1

铲斗油缸维修包

Repair kit, bucket cylinder

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

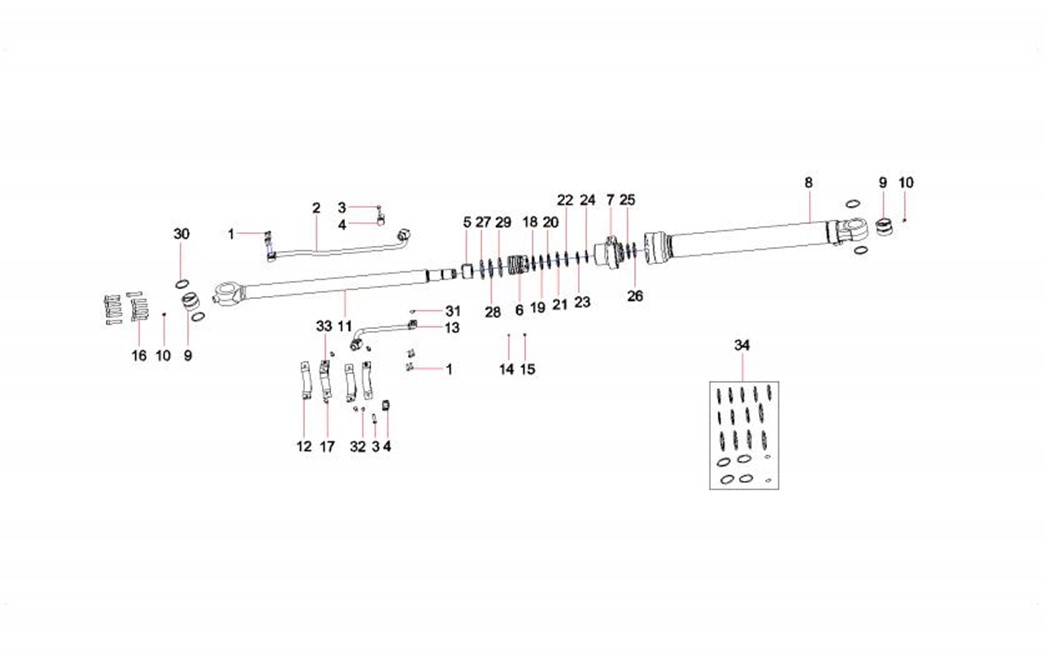

4-27-1

1

60084724

4

B型轴套

Sleeve, shaft

4-27-2

2

60084706

1

活塞杆

Rod, piston

4-27-3

3

60065192

1

铲斗用缓冲套

Jacket, buffer, bucket

4-27-4

4

60084704

1

活塞

Piston

4-27-5

5

21010039

1

钢球

Ball, steel

4-27-6

6

24000487

1

螺钉

Bolt

4-27-7

7

60084721

1

卡圈

Ring, retainer

4-27-8

8

60084697

1

端盖

Cover, end

4-27-9

9

60084717

1

有杆腔油管组件

Pipe GP, oil, rod end

4-27-10

10

A210804000002

2

油杯

Cup, oil

4-27-11

11

60084710

1

卡箍组件

Hoop GP

4-27-12

12

60084699

1

缸体

Block, cylinder

4-27-13

13

24000778

12

螺钉

Bolt

4-27-14

14

60084727

1

挡圈

Ring, retaining

4-27-15

15

60084746

1

后缓冲套

Sleeve, buffer

4-27-16

16

60065311

1

螺母

Nut

4-27-17

17

60084695

1

垫片

Shim

4-27-18

18

60084715

1

压板

Clamp

4-27-19

19

60065244

1

挡圈

Ring, retaining

4-27-20

20

60017174

1

DKBI防尘圈

DKBI-ring, dustproof

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

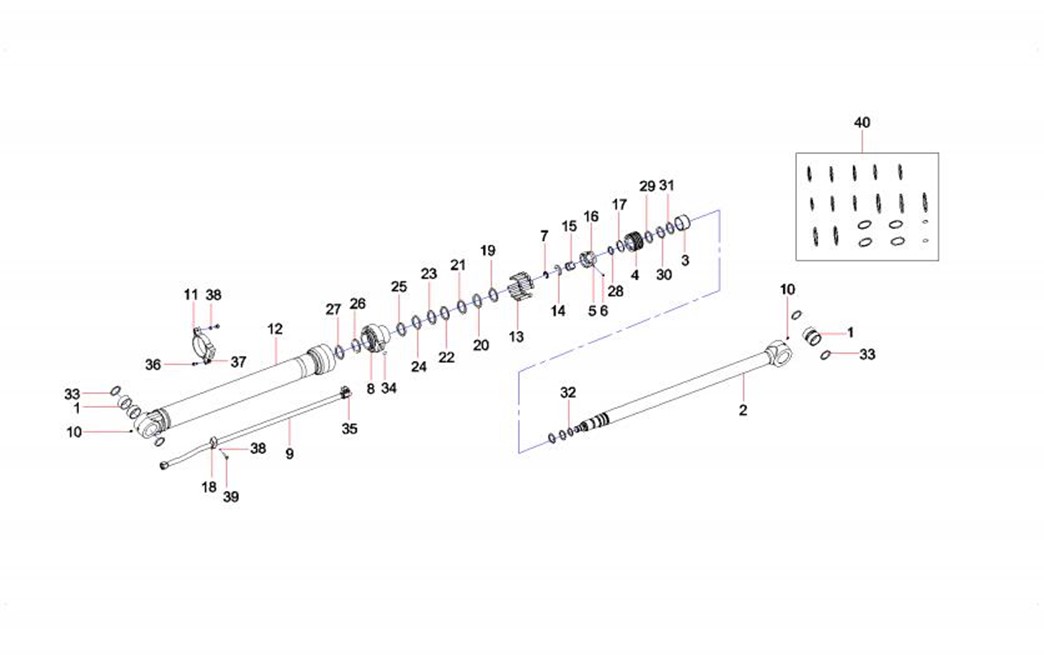

4-29-21

21

60065354

1

轴用密封圈

Ring, seal

4-29-22

22

60065309

1

开口挡圈

Ring, retainer, switch

4-29-23

23

60065201

1

缓冲圈

Ring, buffer

4-29-24

24

60084730

1

滑动轴套

Sleeve, sliding

4-29-25

25

60065243

1

挡圈

Ring, retaining

4-29-26

26

24001034

1

O形圈

O-ring

4-29-27

27

60084726

1

挡圈

Ring, retaining

4-29-28

28

60084735

1

缓冲环

Ring, buffer

4-29-29

29

60065334

2

成型导向环

Ring, guide

4-29-30

30

60065348

1

孔用密封圈

Ring, seal

4-29-31

31

60065214

1

纳污环

Ring, contaminant

4-29-32

32

60084748

1

缓冲环

Ring, buffer

4-29-33

33

60038830

4

防尘圈

Ring, dust

4-29-34

34

21018402

1

O形圈

O-ring

4-29-35

35

A210204000163

4

螺钉

Screw

4-29-36

36

60021558

2

螺栓

Bolt

4-29-37

37

24000867

2

螺母GB6170 10级

Nut

4-29-38

38

A210400000001

3

垫圈

Washer

4-29-39

39

A210108000004

1

螺栓

Bolt

4-29-40

40

60082862

1

斗杆油缸维修包

Repair kit, arm cylinder

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

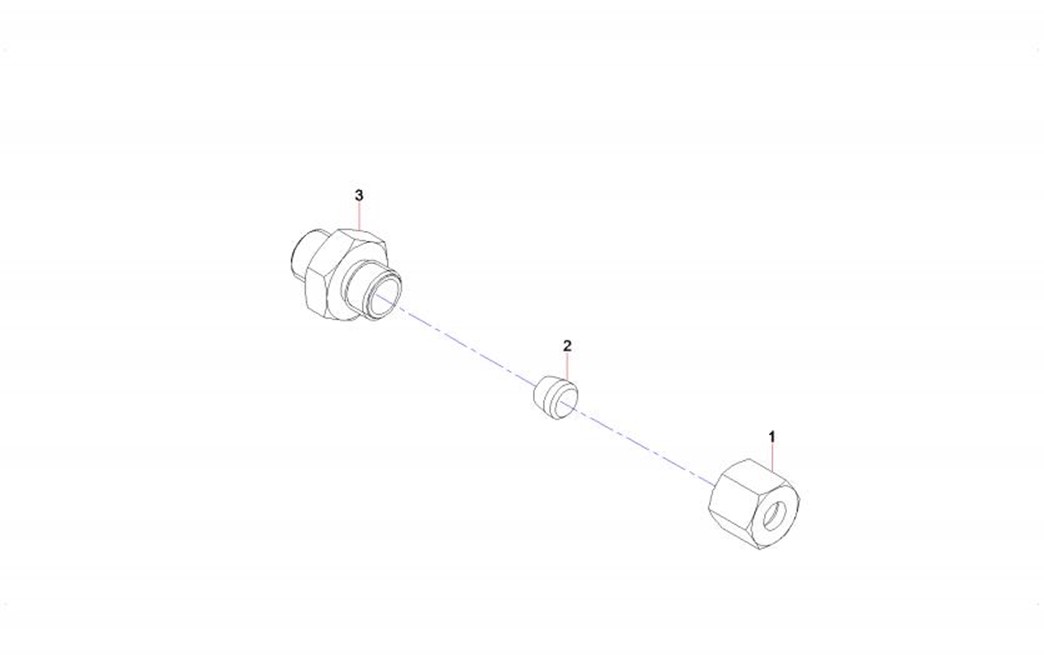

4-31-1

1

B210780000191

1

螺母

Connector, pipe

4-31-2

2

B229900001092

1

特型卡套

Sleeve, special

4-31-3

3

A820205001235

1

管接头

Connector

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

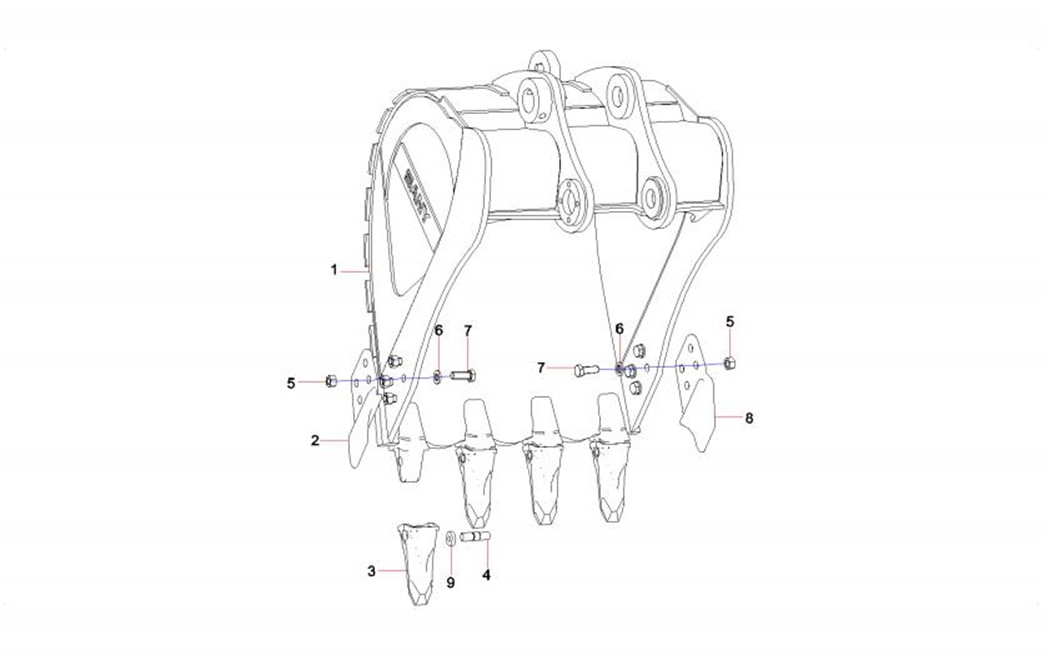

4-33-1

1

12634165

1

铲斗体

bucketSY135C8I2KS.3.4A.1

4-33-2

2

A229900007131

1

左侧齿

Cutter, side

4-33-3

3

12164234

4

斗齿

Bucket ToothSY155C1I2KS.3.4-2

4-33-4

4

12077349

4

斗齿销

Bucket Tooth Pin

4-33-5

5

60012073

8

螺母

Nut

4-33-6

6

A210444000002

8

垫圈

Washer 22GB1230

4-33-7

7

A210111000301

8

螺栓

Screw

4-33-8

8

A229900007130

1

右侧齿

Cutter, side

4-33-9

9

12077355

4

涨套

Tightening cover
