SANY SY135C9 SY135C9I2K EXCAVATOR parts catalog 33

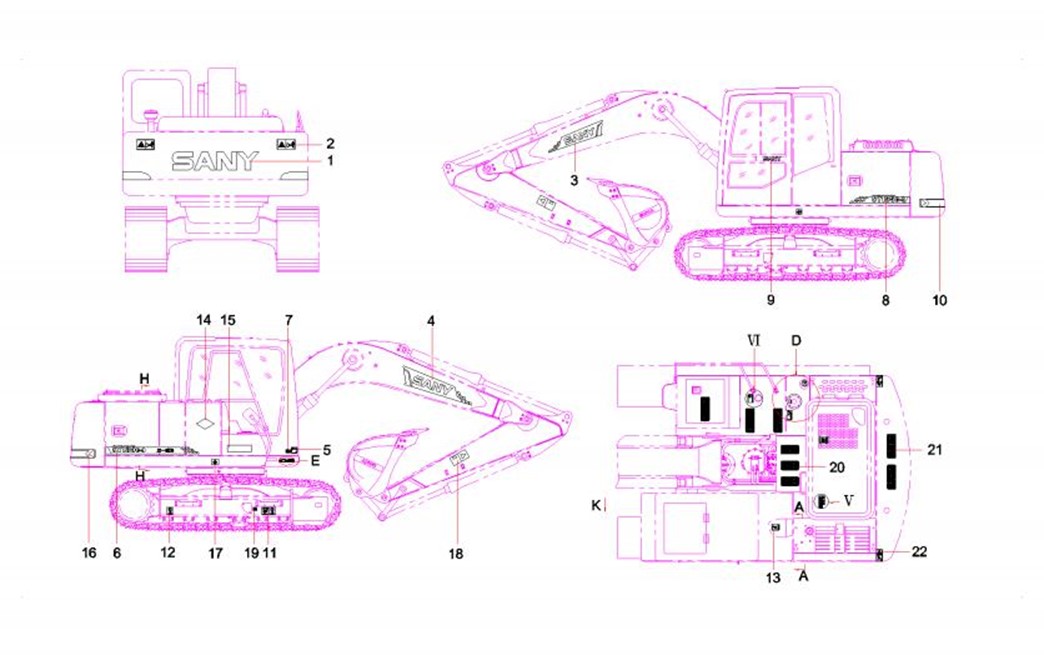

第6章
涂装
(Painting)
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-3-1 |
1 |
12896881 |
1 |
配重贴花 |
Counterweight |
6-3-2 |
2 |
A820699001016 |
2 |
配重警示牌 |
Decal, warning, counterweight |
6-3-3 |
3 |
12985107 |
1 |
动臂左侧贴花 |
Movable Arm Left Side |
6-3-4 |
4 |
12985112 |
1 |
动臂右侧贴花 |
Movable Arm Right Side |
6-3-5 |
5 |
10233764 |
1 |
噪音标志 |
Label, noise |
6-3-6 |
6 |
12896898 |
1 |
机身右贴花 |
Machine right MarkingSY135C9I2K |
6-3-7 |
7 |
12891717 |
1 |
吊装贴花 |
Lifting Marking |
6-3-8 |
8 |
12896891 |
1 |
机身左贴花 |
Machine left MarkingSY135C9I2K- |
6-3-9 |
9 |
12761062 |
1 |
三一标牌 |
Sany scutcheonSY215CAI4KEU- |
6-3-10 |
10 |
12727593 |
1 |
配重反光膜 |
Film, reflective, counterweight |
6-3-11 |
11 |
12052085 |
1 |
装运固定点标志 |
Decal, tie-down, shipment |
6-3-12 |
12 |
12052087 |
4 |
吊钩点标示图 |
Label, lifting point |
6-3-13 |
13 |
A820699001023 |
1 |
严禁坐人警示牌 |
Decal, warning, no-sitting |
6-3-14 |
14 |
60202772 |
1 |
左节能高效 |
Decal |
6-3-15 |
15 |
60202777 |
1 |
服务热线 |
Decal, service hotline |
6-3-16 |
16 |
12727594 |
1 |
配重反光膜 |
Film, reflective, counterweight |
6-3-17 |
17 |
12052090 |
2 |
重心标志 |
Decal, center of gravity |
6-3-18 |
18 |
A820601990963 |
2 |
斗杆警示牌 |
Decal, warning, arm |
6-3-19 |
19 |
A820601990968 |
2 |
张紧装置警示牌 |
Decal, warning, tensioner |
6-3-20 |
20 |
A820699000370 |
3 |
短防滑贴 |
Anti-skid, short |
识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-5-21 |
21 |
A820699000369 |
5 |
长防滑贴 |
Anti-skid, long |
6-5-22 |
22 |
A820601990926 |
3 |
防跌落警示牌 |
Decal, warning, falling |

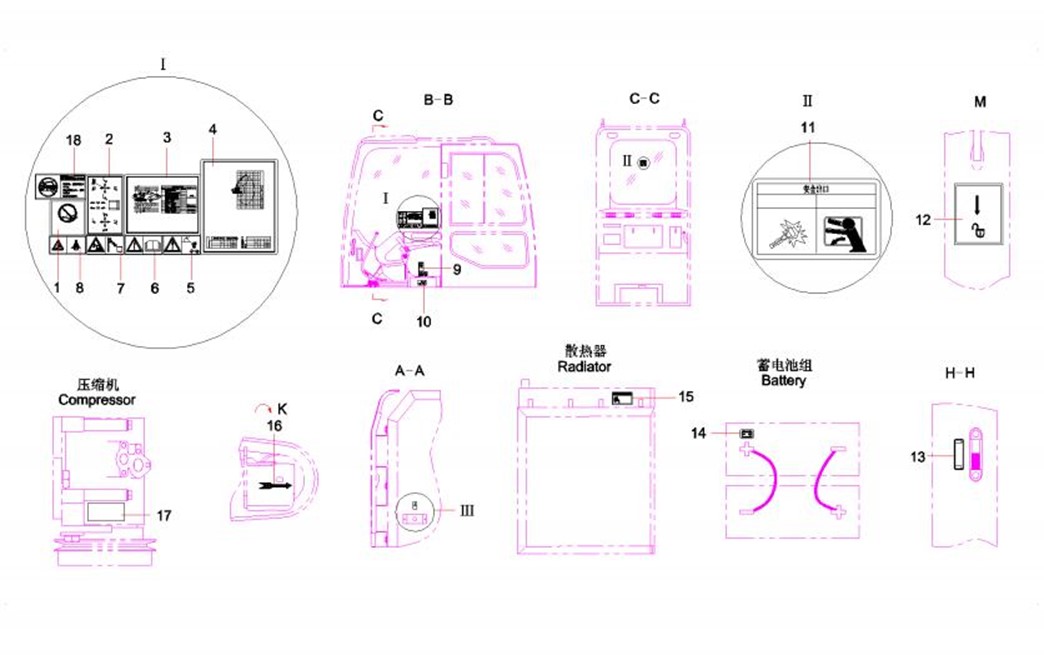

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-7-1 |
1 |
12157387 |
1 |
严禁工作时倾斜机器标识牌 |
Decal, no inclining during operation |
6-7-2 |
2 |
A820601990961 |
1 |
操纵标示图 |
Label, instruction, operation |
6-7-3 |
3 |
11464411 |
1 |
润滑图表 |
Graph, lubrication |
6-7-4 |
4 |
10185368 |
1 |
提升能力表 |
Table, lifting, capacity |
6-7-5 |
5 |
12496541 |
1 |
钥匙断电警示牌 |
Decal, warning, power-off |
6-7-6 |
6 |
12496543 |
1 |
查阅说明书警示牌 |
Label, warning, read manual |
6-7-7 |
7 |
12496542 |
1 |
高压回避警示牌 |
Decal, warning, high-voltage |
6-7-8 |
8 |
12052084 |
1 |
座椅安全警示牌 |
Decal, safety, seat |
6-7-9 |
9 |
12076696 |
1 |
禁止攀扶警示标牌 |
Decal, warning, no climbing |
6-7-10 |
10 |
A820601990967 |
1 |
座椅调节指示牌 |
Decal, instruction, seat adjustment |
6-7-11 |
11 |
12052089 |
1 |
安全出口标志 |
Label, emergency exit |
6-7-12 |
12 |
A820601990927 |
1 |
开锁标识牌 |
Label, UNLOCK |
6-7-13 |
13 |
A820601990928 |
1 |
油位标签 |
Label, oil level |
6-7-14 |
14 |
A820601990972 |
1 |
电源标志 |
Label, power supply |
6-7-15 |
15 |
A820699001284 |
1 |
冷媒更换说明 |
Decal, instruction, refrigerant |
6-7-16 |
16 |
A820699001018 |
2 |
前进方向标志 |
Decal, instruction, forward |
6-7-17 |
17 |
11992504 |
1 |
定期清洗散热器标牌 |
Decal, regular-cleaning, radiator |
6-7-18 |
18 |
12972179 |
1 |
上车警示牌 |
Loading Warning LableSY55-TZ- |

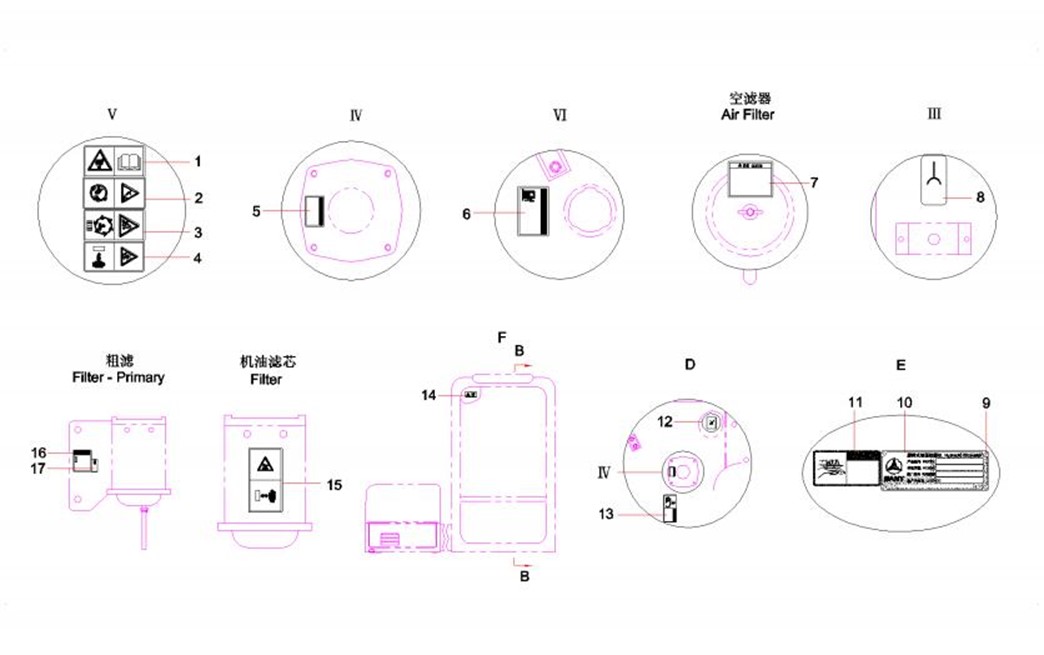

识别码 IC |
序号 INDEX |
零件代码 PART NUMBER |
数量 QTY |
名称 PART NAME |
|
6-9-1 |
1 |
12496540 |
1 |
防喷溅警示牌 |
Decal, warning, anti-spray |
6-9-2 |
2 |
12016795 |
1 |
禁止站人警示标牌 |
Decal, warning, no standing |
6-9-3 |
3 |
12496544 |
1 |
皮带安全警示牌 |
Decal, warning, belt safety |
6-9-4 |
4 |
12052082 |
1 |
风扇打手警示标牌 |
Decal, warning, fan |
6-9-5 |
5 |
A820601991075 |
1 |
液压油箱标识牌 |
Label, identification, hydraulic tank |
6-9-6 |
6 |
A820601991076 |
1 |
燃油箱标识牌 |
Decal, fuel tank |
6-9-7 |
7 |
A820601990975 |
1 |
空滤器警示牌 |
Decal, warning, air cleaner |
6-9-8 |
8 |
A820699001109 |
1 |
电源插座标志 |
Label, power socket |
6-9-9 |
9 |
A210510000007 |
4 |
铆钉 |
Rivet |
6-9-10 |
10 |
10251978 |
1 |
铭牌 |
Nameplate |
6-9-11 |
11 |
12540826 |
1 |
回转支承加注润滑脂 |
Add grease to swing bearing |
6-9-12 |
12 |
A820601990929 |
3 |
油箱放水标识 |
Label, drain, fuel tank |
6-9-13 |
13 |
12185067 |
1 |
液压油加油标识牌 |
Decal, refilling, hydraulic oil |
6-9-14 |
14 |
12052088 |
1 |
前窗锁紧警示牌 |
Decal, warning, front window |
6-9-15 |
15 |
12052083 |
1 |
烫手警示标牌 |
Decal, warning, hot surface |
6-9-16 |
16 |
A820601990962 |
1 |
油水分离器放水标识 |
Decal, drain, water separator |
6-9-17 |
17 |
12648410 |
1 |
燃油滤清放水贴花 |
fuel cleaner decal |

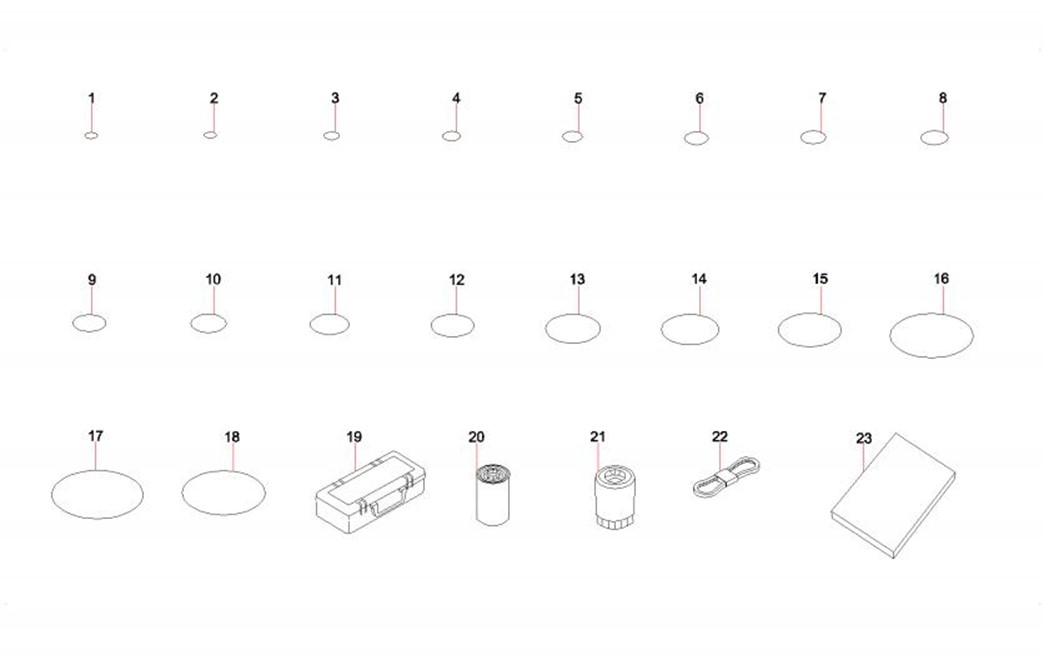

第7章
随机附件
(Accessory)
