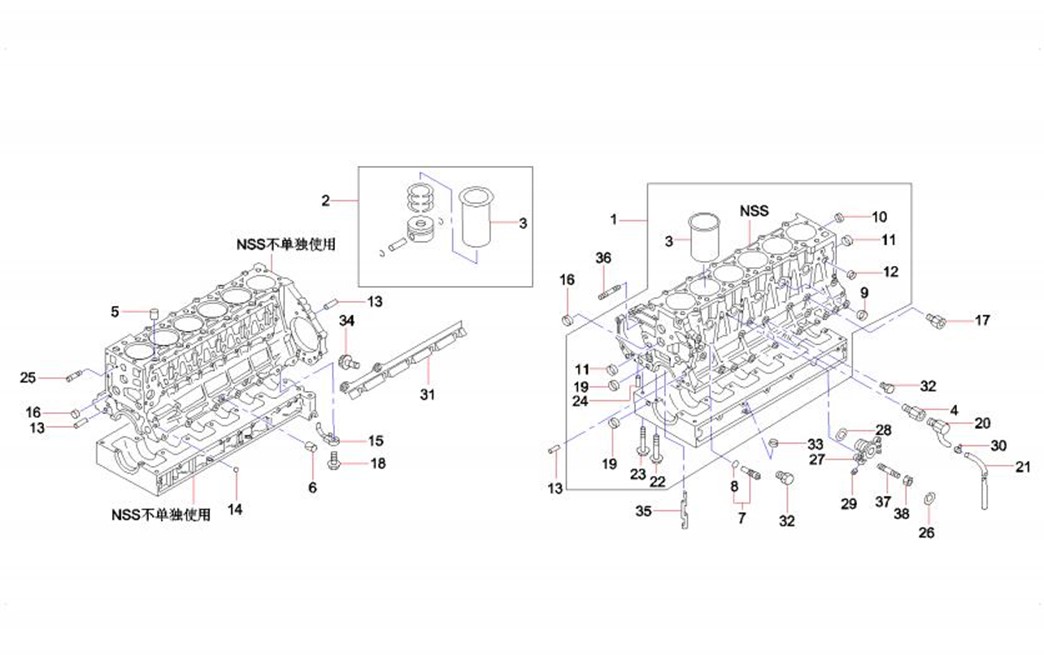

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-61-1

1

B229900005039

1

气缸体总成

Cylinder Block GP

2-61-2

2

B229900003273

6

气缸套组件 1级 四配套

Kits, Piston & Rod

2-61-3

3

B229900003271

6

气缸套1级

Liner, Cylinder (Grade 1)

2-61-4

4

B229900004722

1

过渡接头

Connector

2-61-5

5

B229900005059

2

销

Dowel

2-61-6

6

B229900005060

2

销

Dowel

2-61-7

7

B220401001134

1

阀

Valve

2-61-8

8

B229900004547

1

垫片

Shim

2-61-9

9

B229900004650

5

堵塞

Plug

2-61-10

10

B229900004657

1

堵塞

Plug, Cup

2-61-11

11

B229900004659

4

堵塞

Plug, Cup

2-61-12

12

B229900004652

1

堵塞

Plug

2-61-13

13

B229900005061

2

销

Dowel

2-61-14

14

B229900004661

1

堵塞

Plug

2-61-15

15

B229900004360

6

冷却喷头

Nozzle, Cooling

2-61-16

16

B229900004663

3

堵塞

Plug, Cup

2-61-17

17

B229900004723

1

过渡接头

Connector

2-61-18

18

B220401001135

6

阀

Valve

2-61-19

19

B229900004493

2

衬套

Sleeve

2-61-20

20

B220400000444

1

放水阀

Valve

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-63-21

21

B229900004405

1

软管

Hose

2-63-22

22

B229900004948

14

螺栓 M14×115凸缘

Bolt

2-63-23

23

B229900004951

25

螺栓

Bolt

2-63-24

24

B229900005062

2

销

Dowel

2-63-25

25

B229900005009

1

螺柱

Stud

2-63-26

26

B229900004536

1

垫片

Shim

2-63-27

27

B229900004312

1

过渡块

Block

2-63-28

28

B229900004521

1

垫片

Shim

2-63-29

29

B229900004654

1

堵塞

Plug

2-63-30

30

B229900004754

1

卡箍

Clamp

2-63-31

31

B229900004237

1

防护板

Plate, Guard

2-63-32

32

B229900004658

3

堵塞

Plug

2-63-33

33

B229900004422

1

套

Sleeve

2-63-34

34

B229900004849

5

螺栓 M8×12凸缘

Bolt

2-63-35

35

B229900004226

1

定向杆

Rod

2-63-36

36

B229900005008

2

螺柱

Stud

2-63-37

37

B229900005002

2

螺柱

Stud

2-63-38

38

B229900004802

2

螺母

Nut

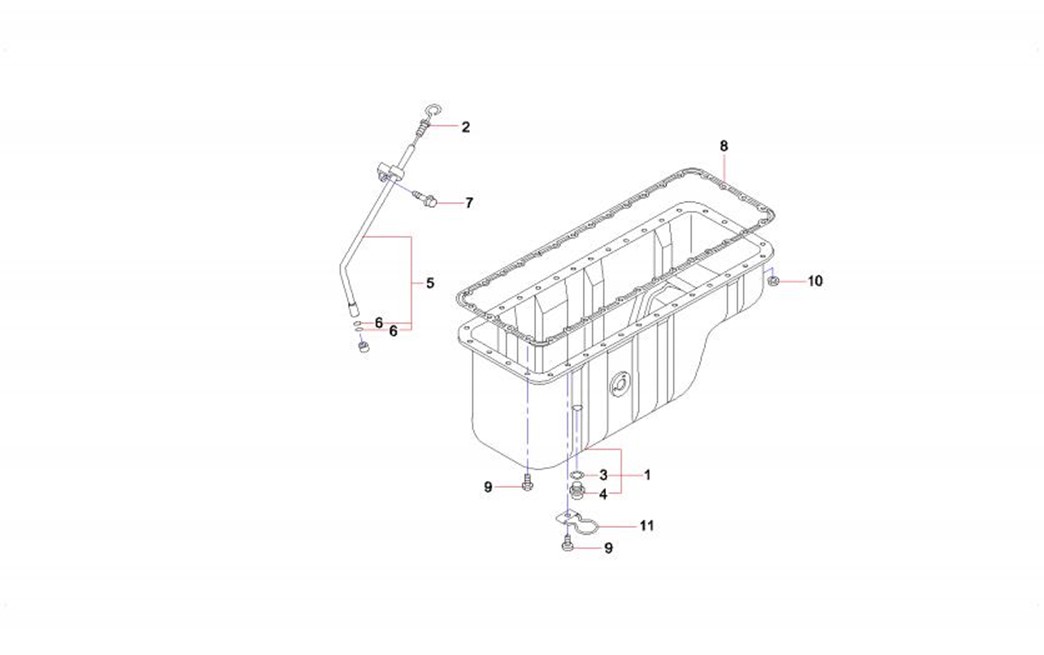

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-65-1

1

B229900004446

1

油底壳

Pan, oil

2-65-2

2

B229900005113

1

油标尺

Gauge, Oil Lever(Engine)

2-65-3

3

B229900004520

1

垫片

Gasket

2-65-4

4

B229900003258

1

放油螺塞

Plug

2-65-5

5

B229900004489

1

标尺导管

Tube, Oil Lever Gauge

2-65-6

6

B229900004546

2

垫片

Shim

2-65-7

7

B229900004850

1

螺栓

Bolt

2-65-8

8

B229900004448

1

油底壳垫

Gasket

2-65-9

9

B229900004871

30

螺栓

Bolt

2-65-10

10

B229900004799

4

螺母

Nut

2-65-11

11

B229900004707

1

管夹

Clip

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-67-1

1

B229900004431

1

凸轮轴

Camshaft

2-67-2

2

B229900004349

12

进气门

Valve, Inlet

2-67-3

3

B229900004386

12

排气门

Valve, Exhaust

2-67-4

4

B229900004949

1

螺栓

Bolt

2-67-5

5

B229900004632

1

垫圈

Washer

2-67-6

6

B221801000032

1

齿轮

Gear

2-67-7

7

B229900005048

4

上轴瓦

Bearing, Upper

2-67-8

8

B229900005051

4

下轴瓦

Bearing, Lower

2-67-9

9

B229900005058

1

销

Dowel

2-67-10

10

B229900004440

1

摇臂轴

Shaft, Rocker Arm

2-67-11

11

B229900004792

12

螺杆

Bolt

2-67-12

12

B229900004824

12

螺母

Nut

2-67-13

13

B229900004442

12

摇臂座

Support, Rocker Arm

2-67-14

14

B222200000044

48

锁扣

Locker

2-67-15

15

B229900004749

12

进气门弹簧

Spring, Valve (Inlet)

2-67-16

16

B229900005021

12

排气门弹簧

Spring, Valve ( Outlet)

2-67-17

17

B229900005041

24

气门弹簧座

Seat, Valve Spring

2-67-18

18

B229900005042

24

气门弹簧座

Seat, Valve Spring

2-67-19

19

B229900004395

24

气门密封

Washer

2-67-20

20

B229900004855

2

螺栓 M8×40凸缘

Bolt

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-69-21

21

B229900004945

5

螺栓

Bolt

2-69-22

22

B229900004437

6

摇臂

Rocker Arm

2-69-23

23

B229900004438

6

摇臂

Rocker Arm

2-69-24

24

B229900005070

12

摇臂螺钉

Screw

2-69-25

25

B229900004795

12

螺母

Nut

2-69-26

26

B229900005076

5

摇臂轴支架

Bracket

2-69-27

27

B229900005075

6

摇臂轴弹簧

Spring

2-69-28

28

B229900004943

12

螺栓

Bolt

2-69-29

29

B229900004258

1

盖

Cover

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

2-71-1

1

B229900004865

3

螺栓 M8×16凸缘

Bolt

2-71-2

2

B229900004846

1

螺栓

Bolt

2-71-3

3

B229900004947

1

螺栓

Bolt

2-71-4

4

B229900004953

1

螺栓

Bolt

2-71-5

5

B229900004585

2

垫圈

Washer

2-71-6

6

B229900004232

1

惰轮轴

Shaft, Idler

2-71-7

7

B229900004233

1

惰轮轴

Shaft, Idler

2-71-8

8

B229900004230

1

惰轮轴

Shaft, Idler

2-71-9

9

B229900004228

1

惰轮圈

Gear Ring, Idler

2-71-10

10

B229900004229

1

惰轮圈

Gear Ring, Idler

2-71-11

11

B221801000038

1

惰齿轮

Gear, Idler

2-71-12

12

B221801000039

1

惰齿轮

Gear, Idler

2-71-13

13

B221801000040

1

惰齿轮

Gear, Idler
