识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-3-1

1

A810401990192

1

黄油池

Chamber, grease

3-3-2

2

A210111000202

6

螺栓

Bolt

3-3-3

3

A210401000002

6

垫圈

Washer

3-3-4

4

11860901

1

履带架

Frame – Track

3-3-5

5

10131971

2

盖板总成

Coverplate GP

3-3-6

6

A210111000204

4

螺栓

Bolt M12×40GB5783 Grade 10.9

3-3-7

7

12804286

1

止动座

Seat, stopping

3-3-8

8

A210491000121

6

垫圈

Washer 12GB1230

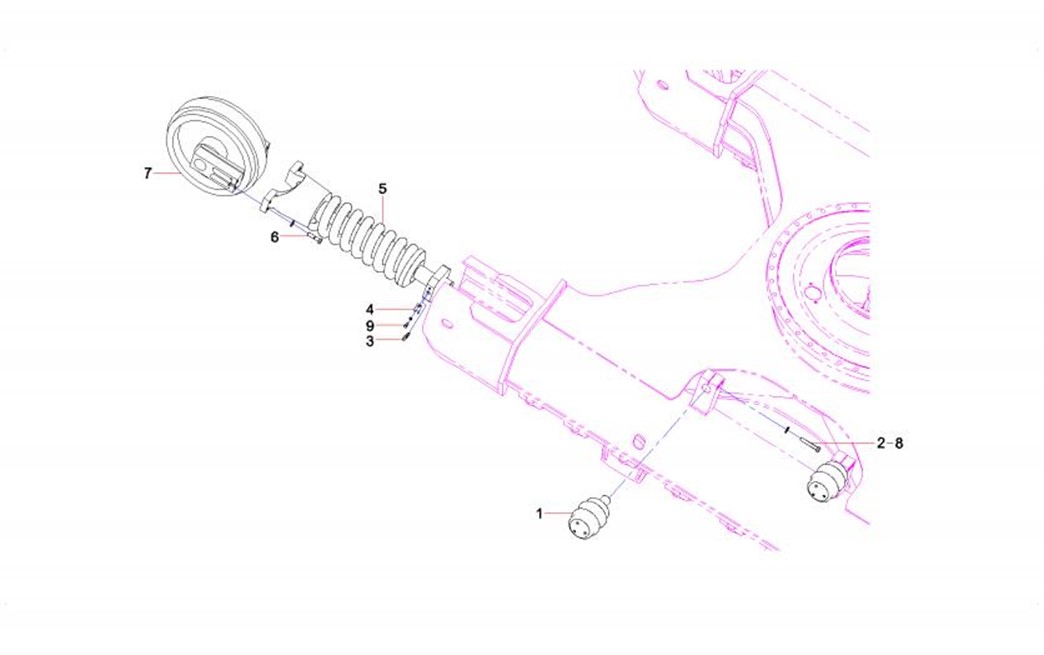

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-5-1

1

12123787

4

托链轮总成

Roller As, carrier

3-5-2

2

A210111000443

8

螺栓M20×120GB5783 10.9级

Bolt M20×120GB5783 Grade 10.9

3-5-3

3

B229900000862

2

黄油阀

Valve, grease

3-5-4

4

A820101010372

2

支板

Plate, support

3-5-5

5

60013106

2

张紧装置

Tensioner

3-5-6

6

A210110000202

8

螺栓M20×80GB5782 10.9级

Bolt M20×80GB5782 Grade 10.9

3-5-7

7

B229900000634

2

引导轮

Idler

3-5-8

8

10167597

12

垫片

Shim

3-5-9

9

A210111000101

2

螺栓M12×25GB5783 10.9级

Bolt

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-7-1

1

A239900000066

4

尼龙扎带

Strap, nylon (black)

3-7-2

2

A820606030424

2

护套

Sheath

3-7-3

3

12116591

1

右马达盖板

Right motor cover

3-7-4

4

A210401000004

12

垫圈

Washer

3-7-5

5

A210111000212

12

螺栓M16×35GB5783 10.9级

Bolt

3-7-6

6

A210491000122

104

垫圈

Washer

3-7-7

7

11296007

2

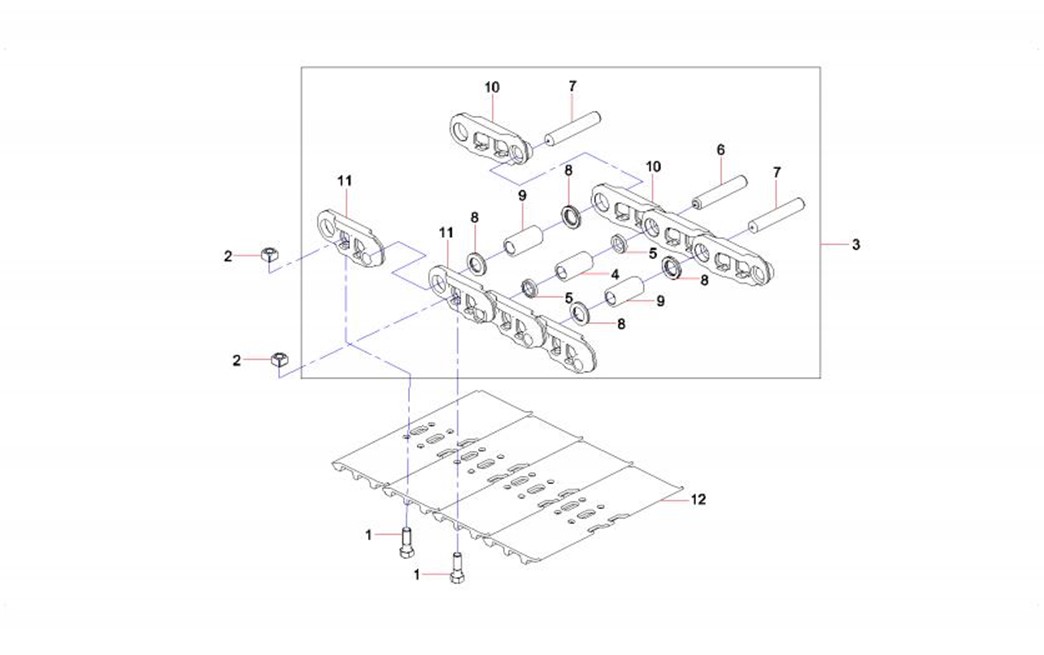

履带总成

Track GP

3-7-8

8

11331867

2

驱动轮

Sprocket

3-7-9

9

A210491000132

80

垫圈

Washer 20GB1230

3-7-10

10

60022788

40

螺栓M24×70DIN933 10.9级

bolt

3-7-11

11

A210110000205

72

螺栓M20×100GB5782 10.9级

Bolt

3-7-12

12

12412117

18

支重轮总成

Track Roller

3-7-13

13

A210111000346

24

螺栓M24×55GB5783 10.9级

Bolt M24×55GB5783 Grade 10.9

3-7-14

14

变更或见其他配置

2

中间护板

Centra guard board

3-7-15

15

11213894

1

行走装置液压管路

Pipeline, hydraulic, lower frame AS

3-7-16

16

变更或见其他配置

4

护板

Protective Plate SY365C8I2KS.2.8

3-7-17

17

60039138

40

螺栓

Bolt

3-7-18

18

12116553

1

左马达盖板

Left motor cover

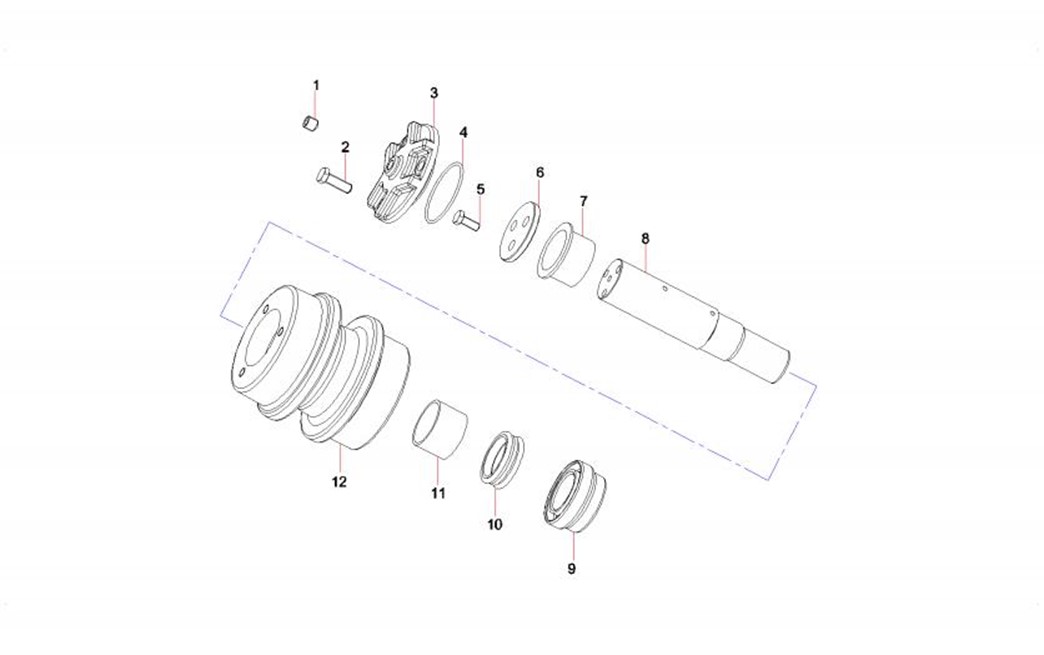

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-9-1

1

60027515

1

闷头螺塞

Plug, screw

3-9-2

2

A210111000024

3

螺栓

Bolt

3-9-3

3

11900624

1

侧盖

Side Cover

3-9-4

4

A210608000002

1

O形圈

O-ring

3-9-5

5

A210111000197

3

螺栓

Bolt

3-9-6

6

11358194

1

垫片

Gasket

3-9-7

7

60047778

1

托衬套一

Sleeve

3-9-8

8

12066060

1

轴

shaft

3-9-9

9

11358192

1

浮封座

Carrier，seal，floating

3-9-10

10

60047792

1

托浮动油封

Seal, oil, float

3-9-11

11

60047777

1

托衬套二

Sleeve

3-9-12

12

11358190

1

托链轮轮体

Wheel,support chain

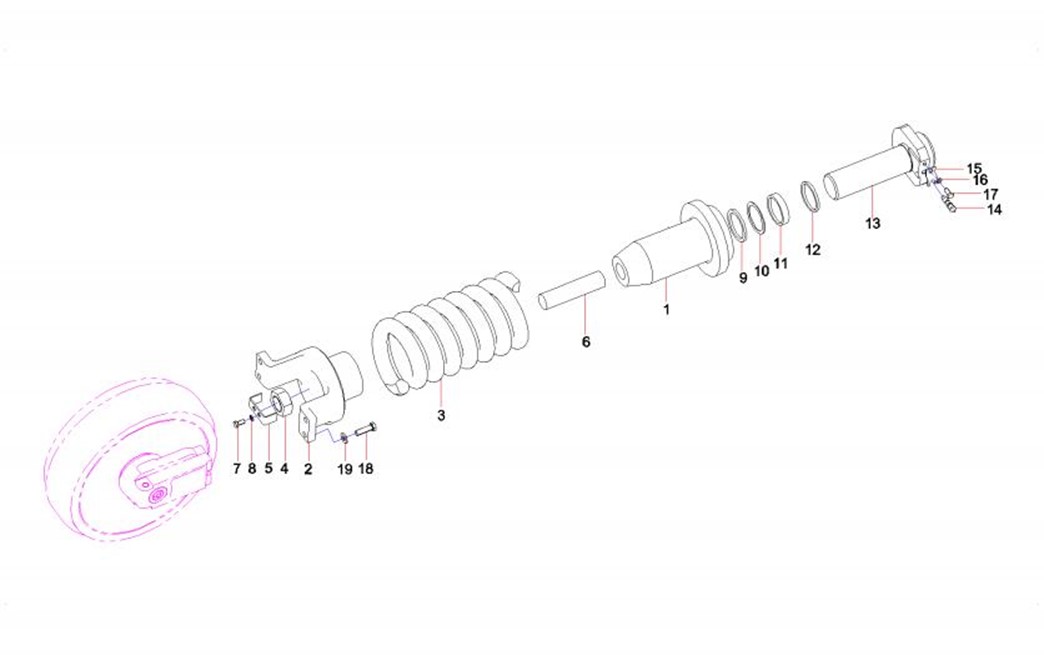

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-11-1

1

60083627

1

缸体

Block, cylinder

3-11-2

2

60083636

1

支座

Support

3-11-3

3

60083624

1

弹簧

Spring

3-11-4

4

60083629

1

螺母

Nut

3-11-5

5

60083623

1

锁片

Plate, lock

3-11-6

6

60083628

1

拉杆

Rod, pull

3-11-7

7

60083631

2

螺栓

Bolt

3-11-8

8

A229900000869

2

垫片

Shim

3-11-9

9

60083625

1

挡圈

Ring, retaining

3-11-10

10

60083644

1

密封圈

Ring, sealing

3-11-11

11

60083622

1

抗磨圈

Ring, wear

3-11-12

12

60083643

1

防尘圈

Ring, dust

3-11-13

13

60083637

1

轴

Shaft

3-11-14

14

B229900000862

1

黄油阀

Valve, grease

3-11-15

15

A229900000710

1

板

Plate

3-11-16

16

24000611

1

垫圈

Washer

3-11-17

17

23000015

1

螺栓

Bolt

3-11-18

18

A210110000202

4

螺栓M20×80GB5782 10.9级

Bolt M20×80GB5782 Grade 10.9

3-11-19

19

A210491000132

4

垫圈

Washer 20GB1230

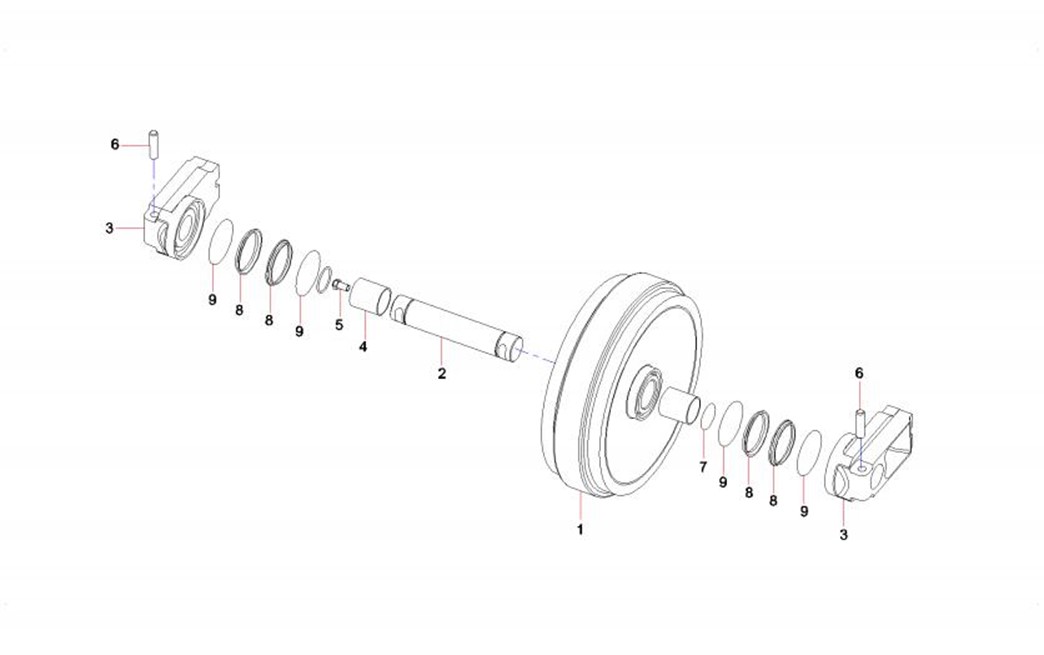

识别码

IC

序号

INDEX

零件代码

PART NUMBER

数量

QTY

名称

PART NAME

3-13-1

1

60047974

1

引导轮

Wheel, idler

3-13-2

2

60047975

1

引导轮轴

Body, idler wheel

3-13-3

3

60047978

2

支座

Support

3-13-4

4

60047982

2

轴套

Sleeve, shaft

3-13-5

5

60047967

1

螺塞

Plug, screw

3-13-6

6

60047972

2

销

Pin

3-13-7

7

60047987

2

O形圈

O-ring

3-13-8

8

60047993

4

浮动油封

Seal, oil

3-13-9

9

60047986

4

O形圈

O-ring
