SANY SY465C SY465C2M2H EXCAVATOR parts catalog 28
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

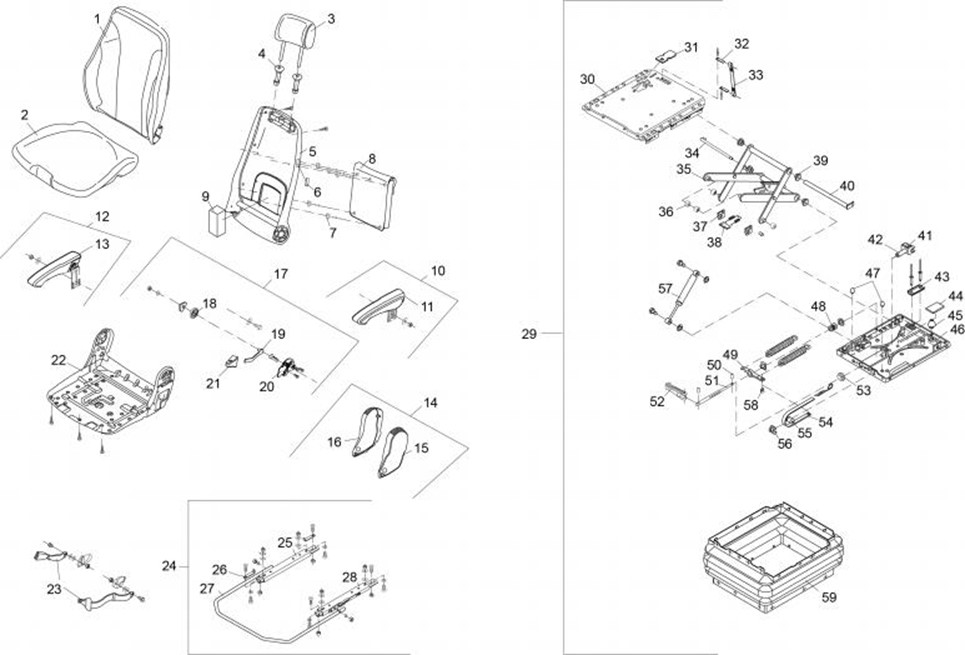

2-313-21 |
21 |
60153751 |
1 |
Handle, angle adjustment |
2-313-22 |
22 |
60153812 |
1 |
Framework, seat |
2-313-23 |
23 |
60153695 |
1 |
Seat belt |
2-313-24 |
24 |
60153746 |
1 |
Rail AS |
2-313-25 |
25 |
60153796 |
1 |
Rail, right |
2-313-26 |
26 |
60153752 |
1 |
Support, angle |
2-313-27 |
27 |
60153651 |
1 |
Bar, limit |
2-313-28 |
28 |
60153809 |
1 |
Rail, left |
2-313-29 |
29 |
60153814 |
1 |
Suspension AS, seat |
2-313-30 |
30 |
60153811 |
1 |
Plate, seat-holding |
2-313-31 |
31 |
60153656 |
1 |
Panel |
2-313-32 |
32 |
60153646 |
1 |
Panel |
2-313-33 |
33 |
60153696 |
1 |
Belt, safety, short |
2-313-34 |
34 |
60153701 |
1 |
Pin |
2-313-35 |
35 |
60153790 |
1 |
Rocker AS |
2-313-36 |
36 |
60153739 |
1 |
Roll |
2-313-37 |
37 |
60153733 |
1 |
Separator |
2-313-38 |
38 |
60153647 |
1 |
Strip |
2-313-39 |
39 |
60153822 |
1 |
Sleeve |
2-313-40 |
40 |
60153700 |
1 |
Pin |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-315-41 |
41 |
60153802 |
1 |
Roller, bearing |
2-315-42 |
42 |
60153657 |
1 |
Support |
2-315-43 |
43 |
60153617 |
1 |
Profile, U-shaped |
2-315-44 |
44 |
60153817 |
1 |
Plate, rubber |
2-315-45 |
45 |
60153679 |
1 |
Damper |
2-315-46 |
46 |
60153813 |
1 |
Plate, bottom, suspension |
2-315-47 |
47 |
60153691 |
1 |
Damper |
2-315-48 |
48 |
60153801 |
1 |
Race, ball,bearing |
2-315-49 |
49 |
60153707 |
1 |
Hanger, spring |
2-315-50 |
50 |
60153712 |
1 |
Pin, cylindrical |
2-315-51 |
51 |
60153699 |
1 |
Pin |
2-315-52 |
52 |
60153619 |
1 |
Trigger |
2-315-53 |
53 |
60153703 |
1 |
Bushing |
2-315-54 |
54 |
60153799 |
1 |
Indicator |
2-315-55 |
55 |
60153740 |
1 |
Roller |
2-315-56 |
56 |
60153820 |
1 |
Scale |
2-315-57 |
57 |
60153680 |
1 |
Damper |
2-315-58 |
58 |
60153738 |
1 |
Pin, retainer |
2-315-59 |
59 |
60153644 |
1 |
Bellow |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

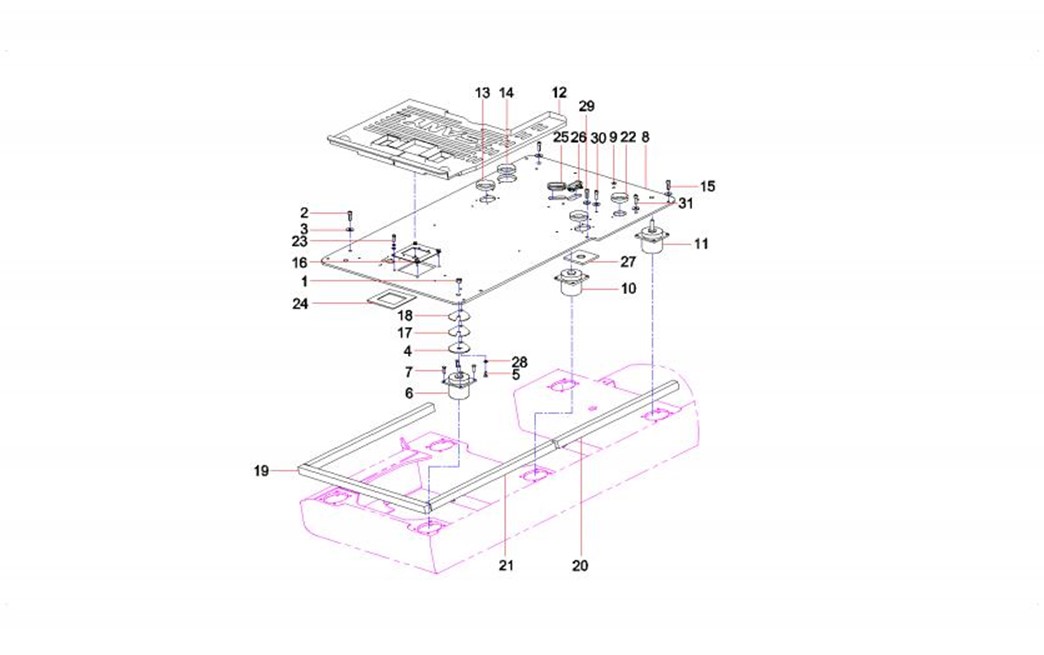

2-317-1 |
1 |
A210307000028 |
4 |
Nut M16GB617010 |
2-317-2 |
2 |
A210111000204 |
4 |
Bolt M12×40GB5783 10.9 |
2-317-3 |
3 |
A210491000121 |
7 |
Washer 12GB1230 |
2-317-4 |
4 |
11546613 |
4 |
Plate |
2-317-5 |
5 |
A210111000195 |
4 |
Bolt M10×16GB5783 10.9 |
2-317-6 |
6 |
B229900000244 |
2 |
Support, cab |
2-317-7 |
7 |
A210111000026 |
24 |
Bolt |
2-317-8 |
8 |
13264757 |
1 |
Base Plate SY465C2M2H.1.5.6.1 |
2-317-9 |
9 |
A210491000118 |
3 |
Washer 16GB1230 |
2-317-10 |
10 |
A222000000019 |
2 |
Damper |
2-317-11 |
11 |
B229900000245 |
2 |
Support, cab |
2-317-12 |
12 |
A820606030753 |
1 |
Mat, floor |
2-317-13 |
13 |
A820606030056 |
2 |
Grommet |
2-317-14 |
14 |
12831478 |
1 |
Rubber Sleeve |
2-317-15 |
15 |
A210204000359 |
1 |
Screw M12×60GB70.1 10.9 |
2-317-16 |
16 |
A820101025902 |
1 |
Plate, mounting, foot valve |
2-317-17 |
17 |
A820101210709 |
4 |
Gasket |
2-317-18 |
18 |
A820101210710 |
4 |
Gasket |
2-317-19 |
19 |
A820699000677 |
1 |
Sponge, bottom plate, cab |
2-317-20 |
20 |
A820699000678 |
2 |
Sponge, bottom plate, cab |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-319-21 |
21 |
A820699000679 |
1 |
Sponge, bottom plate, cab |
2-319-22 |
22 |
12831476 |
1 |
Jacket, rubber, wire hole sealing |
2-319-23 |
23 |
A210111000018 |
4 |
Bolt M10×25GB5783 |
2-319-24 |
24 |
11459077 |
1 |
Sponge, back |
2-319-25 |
25 |
11963757 |
1 |
Sleeve, rubber, sealing |
2-319-26 |
26 |
11963758 |
1 |
Sleeve, rubber, sealing |
2-319-27 |
27 |
11963760 |
1 |
Sponge, sealing |
2-319-28 |
28 |
24000639 |
1 |
Washer |
2-319-29 |
29 |
A210204000028 |
2 |
Screw M12×75(GB70.1) |
2-319-30 |
30 |
A210204000162 |
3 |
Screw M8×25GB70.1 |
2-319-31 |
31 |
A210111000202 |
1 |
Bolt |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

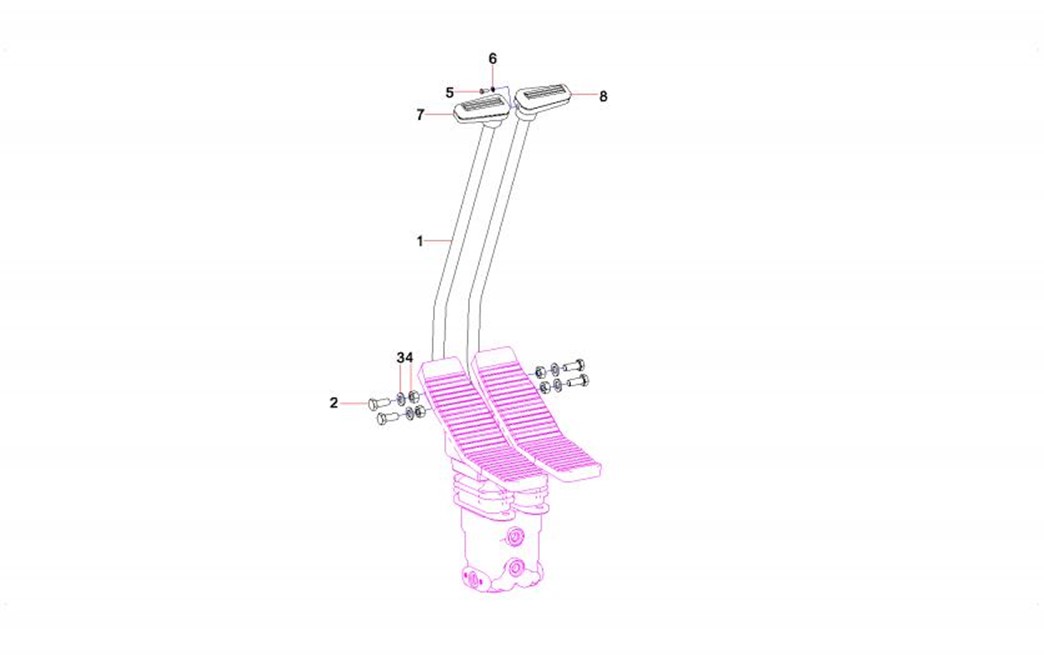

2-321-1 |
1 |
13280675 |
2 |
Control Lever |
2-321-2 |
2 |
A210111000197 |
4 |
Bolt M10×25GB5783 10.9 |
2-321-3 |
3 |
24000637 |
4 |
Washer |
2-321-4 |
4 |
A210307000036 |
4 |
Nut M10GB6170 10 |
2-321-5 |
5 |
A210210000030 |
2 |
Screw |
2-321-6 |
6 |
60060562 |
2 |
Washer |
2-321-7 |
7 |
12688927 |
1 |
Handle, left |
2-321-8 |
8 |
12691132 |
1 |
Handle, right |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

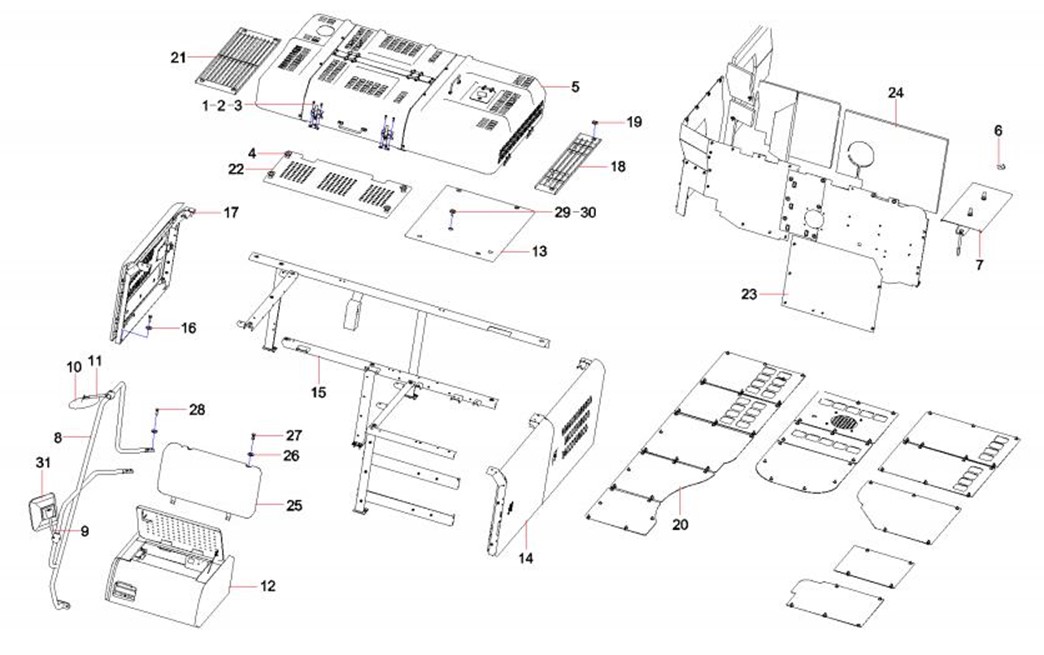

2-323-1 |
1 |
A210111000293 |
8 |
Bolt M8×30GB5783 10.9 |
2-323-2 |
2 |
24000633 |
8 |
Washer |
2-323-3 |
3 |
24000511 |
8 |
Washer |
2-323-4 |
4 |
11678878 |
23 |
Plug, rubber |
2-323-5 |
5 |
11845898 |
1 |
Engine hood GP |
2-323-6 |
6 |
12640895 |
1 |
Reserve Tank |
2-323-7 |
7 |
11864444 |
1 |
Protection AS, battery box |
2-323-8 |
8 |
11168860 |
1 |
Handhold AS |
2-323-9 |
9 |
12046539 |
1 |
Bracket, mirror |
2-323-10 |
10 |
60121095 |
1 |
Mirror, rear view,counterweight |
2-323-11 |
11 |
12046505 |
1 |
support assemble-rear view mirror |
2-323-12 |
12 |
12673959 |
1 |
Toolbox AS |
2-323-13 |
13 |
12581245 |
1 |
Cover, front, left |
2-323-14 |
14 |
12772176 |
1 |
Left Door Assy |
2-323-15 |
15 |
12761888 |
1 |
Bracket GP |
2-323-16 |
16 |
24000639 |
24 |
Washer |
2-323-17 |
17 |
12770891 |
1 |
Right Door Assy. |
2-323-18 |
18 |
11168199 |
1 |
Cover, upper, rear left |
2-323-19 |
19 |
60060548 |
19 |
Washer 12GB96.1 |
2-323-20 |
20 |
12855875 |
1 |
Bottom cover plate assembly |
