SANY SY465C SY465C2M2H EXCAVATOR parts catalog 30
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-337-1 |
1 |
11845473 |
1 |
Beam, cross, rear |
2-337-2 |
2 |
11208991 |
1 |
Bracket, engine shutdown device |
2-337-3 |
3 |
11168093 |
1 |
Beam, mounting, muffler |
2-337-4 |
4 |
11845247 |
1 |
Beam, cross, main |
2-337-5 |
5 |
11824931 |
1 |
Pillar, rear, right |
2-337-6 |
6 |
11168271 |
1 |
Pillar, rear, left |
2-337-7 |
7 |
12581220 |
1 |
Beam, cross, front |
2-337-8 |
8 |
12581211 |
1 |
Beam, mounting, front left cover |
2-337-9 |
9 |
12170358 |
1 |
Pillar, front |
2-337-10 |
10 |
11168365 |
1 |
Pillar, middle |
2-337-11 |
11 |
12207207 |
1 |
U-beam |
2-337-12 |
12 |
12207223 |
1 |
U-beam |
2-337-13 |
13 |
60060546 |
1 |
Washer 10GB96.1 |
2-337-14 |
14 |
60060548 |
21 |
Washer 12GB96.1 |
2-337-15 |
15 |
24000639 |
2 |
Washer |
2-337-16 |
16 |
A210111000023 |
2 |
Bolt M10×30GB5783 |
2-337-17 |
17 |
A210111000038 |
15 |
Bolt M12×30GB5783 |
2-337-18 |
18 |
A210111000040 |
7 |
Bolt M12×40GB5783 |
2-337-19 |
19 |
11416341 |
1 |
Plate |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-339-1 |
1 |
A810502010207 |
1 |
Block, buffer |
2-339-2 |
2 |
12770892 |
1 |
right door frame |
2-339-3 |
3 |
12770893 |
1 |
Right |
2-339-4 |
4 |
12769206 |
1 |
fixed blockSY385C2M2KS.1.6.3.5 |
2-339-5 |
5 |
12018543 |
1 |
Catch |
2-339-6 |
6 |
A210405000006 |
4 |
Washer 6GB97.1 |
2-339-7 |
7 |
A210405000001 |
8 |
Washer 12GB97.1 |
2-339-8 |
8 |
A222200000012 |
1 |
Door Lock |
2-339-9 |
9 |
A210307000017 |
1 |
Nut M10GB6170 |
2-339-10 |
10 |
A210307000001 |
4 |
Nut M12GB6170 |
2-339-11 |
11 |
A210111000101 |
8 |
Bolt M12×25GB5783 10.9 |
2-339-12 |
12 |
A210307000016 |
6 |
Nut M6GB6170 |
2-339-13 |
13 |
A210111000079 |
4 |
Bolt M6×16GB5783 |
2-339-14 |
14 |
A820405000009 |
1 |
Holder |
2-339-15 |
15 |
A820101118440 |
1 |
Plate, locking |
2-339-16 |
16 |
A810502019056 |
1 |
Setscrew |
2-339-17 |
17 |
10911866 |
4 |
Anchor, clamp |

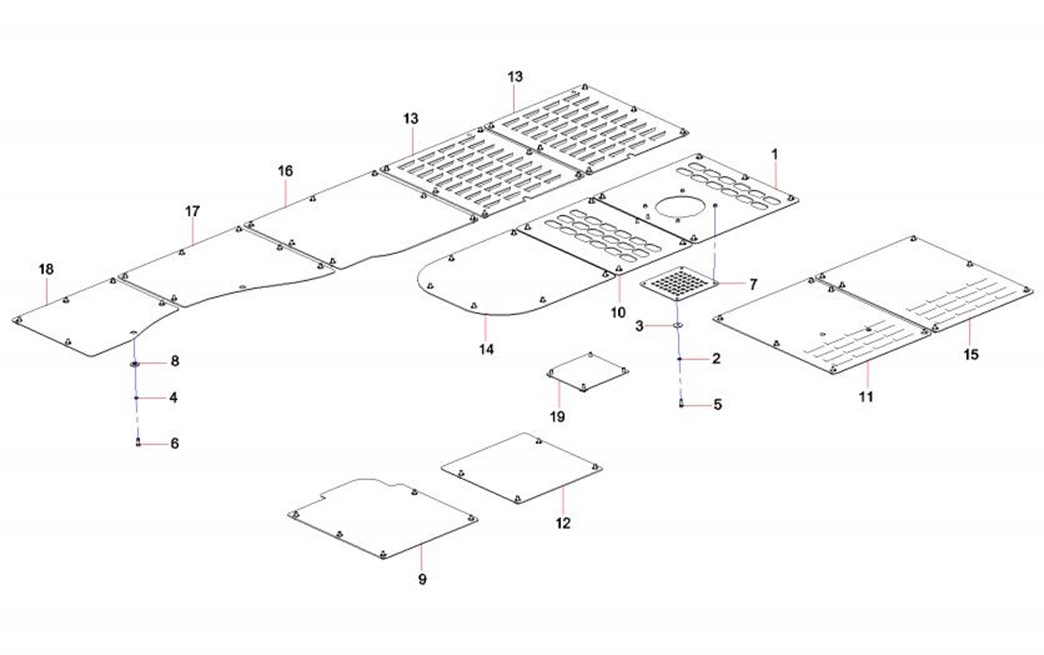

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-341-1 |
1 |
11168922 |
1 |
Cover, bottom, middle |
2-341-2 |
2 |
24000512 |
4 |
Washer |
2-341-3 |
3 |
60060546 |
4 |
Washer 10GB96.1 |
2-341-4 |
4 |
24000513 |
75 |
Washer |
2-341-5 |
5 |
A210111000197 |
4 |
Bolt M10×25GB5783 10.9 |
2-341-6 |
6 |
A210111000038 |
73 |
Bolt M12×30GB5783 |
2-341-7 |
7 |
A820101117947 |
1 |
Cover |
2-341-8 |
8 |
A820299000383 |
75 |
Sleeve |
2-341-9 |
9 |
11168895 |
1 |
Plate |
2-341-10 |
10 |
11168896 |
1 |
Plate |
2-341-11 |
11 |
11820583 |
1 |
Plate |
2-341-12 |
12 |
11168897 |
1 |
Plate |
2-341-13 |
13 |
11735809 |
2 |
Plate |
2-341-14 |
14 |
11168900 |
1 |
Plate |
2-341-15 |
15 |
11735812 |
1 |
Plate |
2-341-16 |
16 |
11168902 |
1 |
Plate |
2-341-17 |
17 |
11168903 |
1 |
Plate |
2-341-18 |
18 |
11168904 |
1 |
Plate |
2-341-19 |
19 |
12855817 |
1 |
Cover palte |

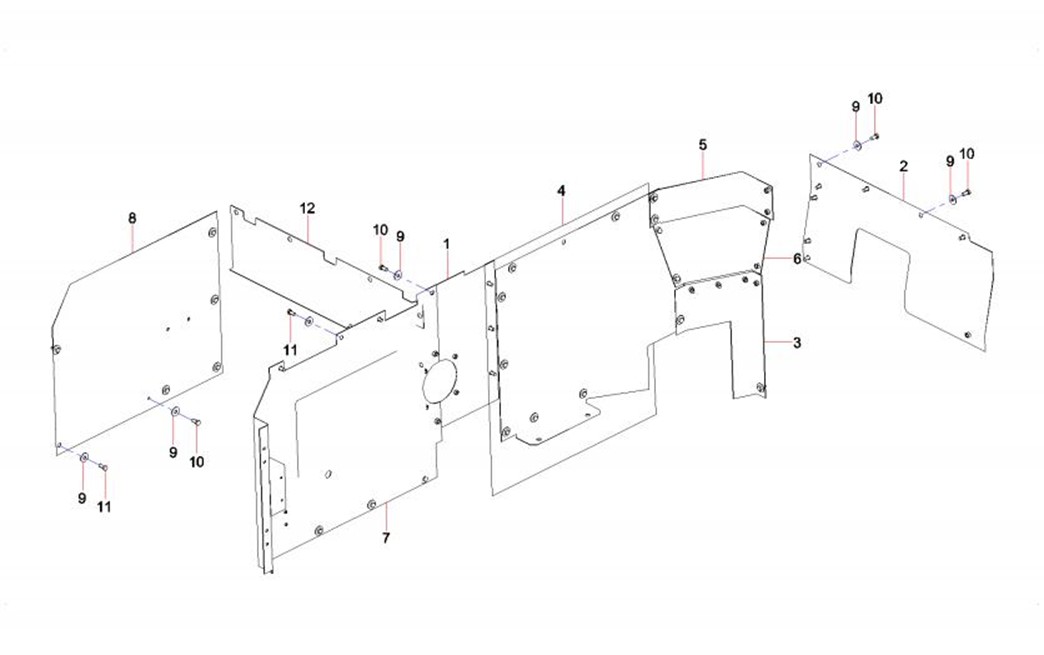

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-343-1 |
1 |
11168713 |
1 |
Partition, left |
2-343-2 |
2 |
12871296 |
1 |
Right |
2-343-3 |
3 |
11168716 |
1 |
Partition, lower, right |
2-343-4 |
4 |
11168717 |
1 |
Partition, left |
2-343-5 |
5 |
11421009 |
1 |
Partition, corner |
2-343-6 |
6 |
11421010 |
1 |
Partition, corner |
2-343-7 |
7 |
12481000 |
1 |
Left clapboard Ⅰ |
2-343-8 |
8 |
11987181 |
1 |
Partition AS, front |
2-343-9 |
9 |
60060548 |
45 |
Washer 12GB96.1 |
2-343-10 |
10 |
A210111000037 |
40 |
Bolt M12×25GB5783 |
2-343-11 |
11 |
A210111000101 |
5 |
Bolt M12×25GB5783 10.9 |
2-343-12 |
12 |
12309046 |
1 |
Plate, retaining, air cleaner |

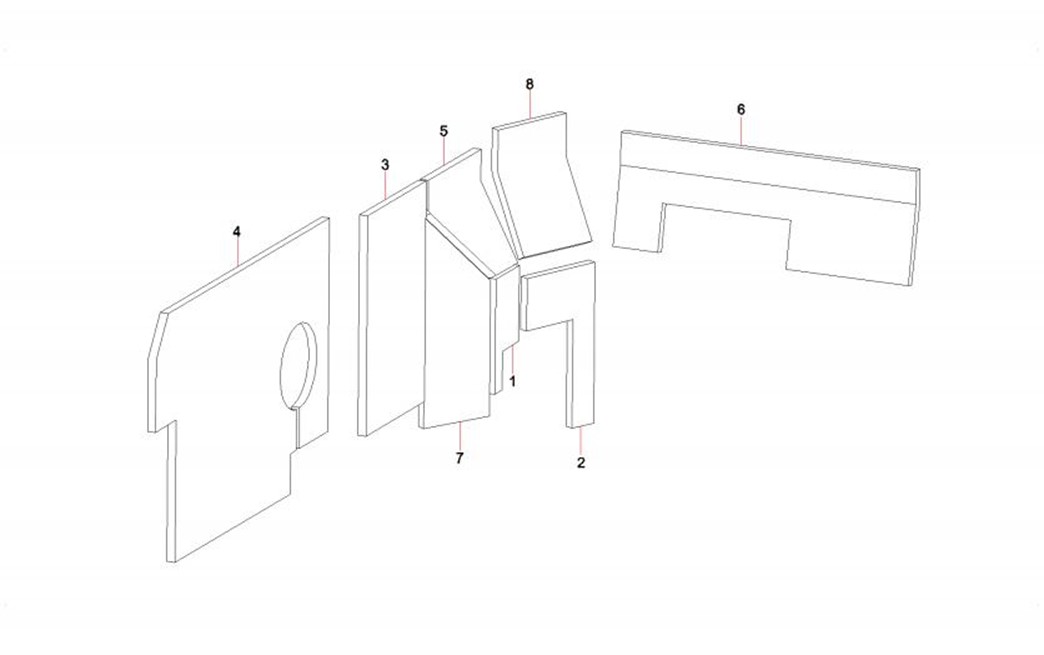

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-345-1 |
1 |
Modification or other |
1 |
Sponge, noise-absorption |
2-345-2 |
2 |
Modification or other |
1 |
Sponge, noise-absorption |
2-345-3 |
3 |
11169075 |
1 |
Sponge, noise-absorption |
2-345-4 |
4 |
Modification or other |
1 |
Sponge,denoising |
2-345-5 |
5 |
11169082 |
1 |
Sponge, noise-absorption |
2-345-6 |
6 |
12929444 |
1 |
Right part |
2-345-7 |
7 |
11169076 |
1 |
Sponge, noise-absorption |
2-345-8 |
8 |
Modification or other |
1 |
Sponge, noise-absorption |

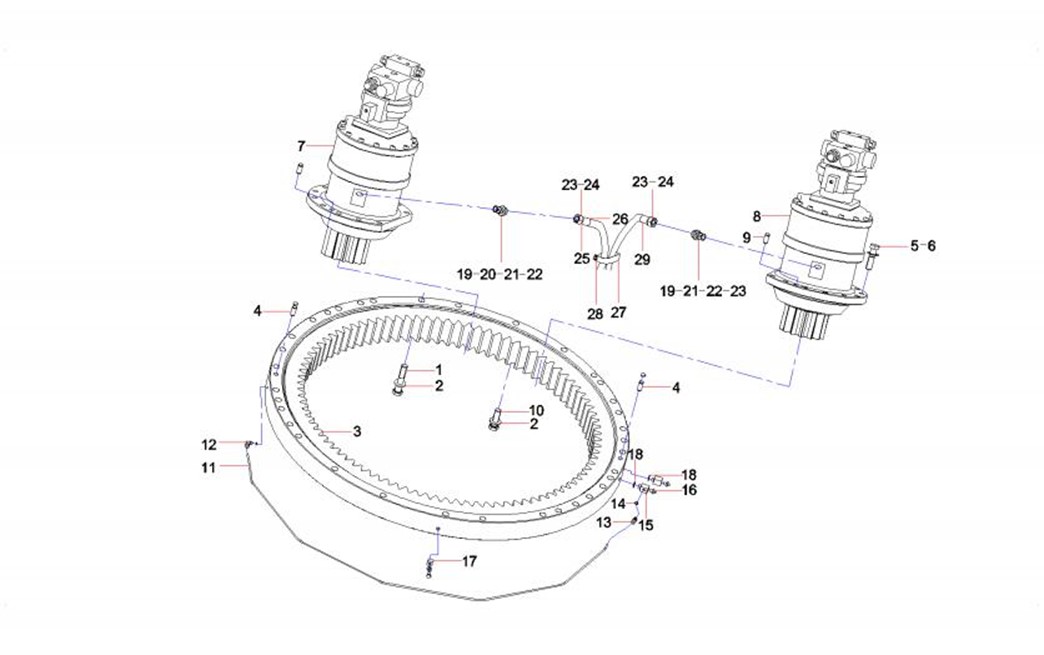

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-347-1 |
1 |
60185751 |
40 |
Bolt |
2-347-2 |
2 |
A210491000122 |
75 |
Washer 24GB1230 |
2-347-3 |
3 |
11217896 |
1 |
Bearing,slewing |
2-347-4 |
4 |
A820301016458 |
2 |
Dowel |
2-347-5 |
5 |
A210204000348 |
22 |
Screw M20×65GB70.1 10.9 |
2-347-6 |
6 |
A210491000132 |
22 |
Washer 20GB1230 |
2-347-7 |
7 |
60017763 |
1 |
Reducer AS |
2-347-8 |
8 |
60017764 |
1 |
Reducer AS |
2-347-9 |
9 |
A820301016459 |
2 |
Dowel |
2-347-10 |
10 |
60039137 |
35 |
Bolt |
2-347-11 |
11 |
11169695 |
2 |
Pipe, hard |
2-347-12 |
12 |
A210770000195 |
2 |
Connector, pipe |
2-347-13 |
13 |
A210711000010 |
2 |
Connector, pipe |
2-347-14 |
14 |
A820102010474 |
4 |
Washer |
2-347-15 |
15 |
A820205000954 |
2 |
Joint, square |
2-347-16 |
16 |
B229900000686 |
3 |
Fitting, grease |
2-347-17 |
17 |
A820101118370 |
2 |
Clamp, pipe |
2-347-18 |
18 |
A820102010428 |
2 |
Seal, ring |
2-347-19 |
19 |
A820205002283 |
2 |
Connector |
2-347-20 |
20 |
B210780000024 |
1 |
Connector, pipe |
