SANY SY465C SY465C2M2H EXCAVATOR parts catalog 39
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-7-1 |
1 |
13245076 |
1 |
Arm SY465C5M2KS.3.3K |
4-7-2 |
2 |
A210804000002 |
6 |
Cup, oil |
4-7-3 |
3 |
11171876 |
2 |
Sleeve, shaft |
4-7-4 |
4 |
60044259 |
4 |
MCS-ring, dustproof |
4-7-5 |
5 |
A210111000212 |
16 |
Bolt M16×35GB5783 10.9 |
4-7-6 |
6 |
24000642 |
18 |
Washer |
4-7-7 |
7 |
11347579 |
3 |
Roll, pin |
4-7-8 |
8 |
Modification or other |
2 |
Plate, pressure |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

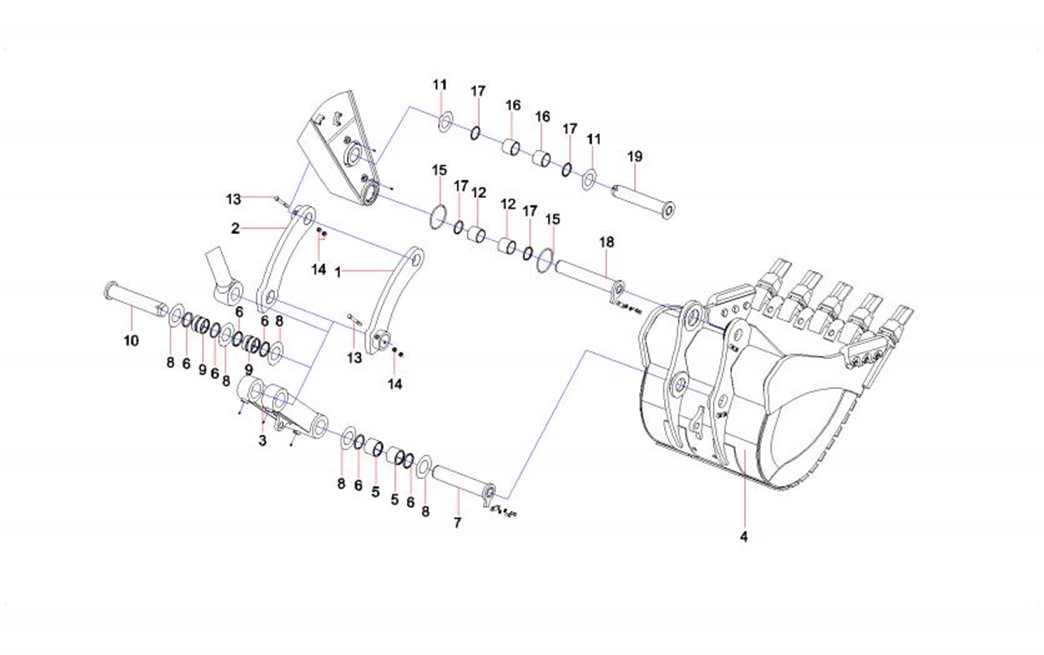

4-9-1 |
1 |
11630558 |
1 |
Rocker arm, left |
4-9-2 |
2 |
11630559 |
1 |
Rocker arm, right |
4-9-3 |
3 |
11142177 |
1 |
Rod, connecting |
4-9-4 |
4 |
13239657 |
1 |
Bucket(2.9) |
4-9-5 |
5 |
A820208000357 |
2 |
Sleeve, shaft |
4-9-6 |
6 |
B230101000963 |
6 |
AF-ring, dustproof |
4-9-7 |
7 |
11630974 |
1 |
Roll, pin |
4-9-8 |
8 |
A820102010676 |
16 |
Shim |
4-9-9 |
9 |
A820208000358 |
2 |
Sleeve, shaft |
4-9-10 |
10 |
11631941 |
1 |
Roll, pin |
4-9-11 |
11 |
10135677 |
20 |
Gasket |
4-9-12 |
12 |
12252981 |
2 |
Sleeve, shaft |
4-9-13 |
13 |
A210110000347 |
2 |
Bolt M20×200GB5782 10.9 |
4-9-14 |
14 |
A210307000029 |
4 |
Nut M20GB6170 10 |
4-9-15 |
15 |
A210609000343 |
2 |
O-ring 190×10(GB3452.1) |
4-9-16 |
16 |
A820208000360 |
2 |
Sleeve, shaft |
4-9-17 |
17 |
60044257 |
4 |
Ring, dustproof |
4-9-18 |
18 |
12033800 |
1 |
Roll, pin |
4-9-19 |
19 |
11631942 |
1 |
Roll, pin |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

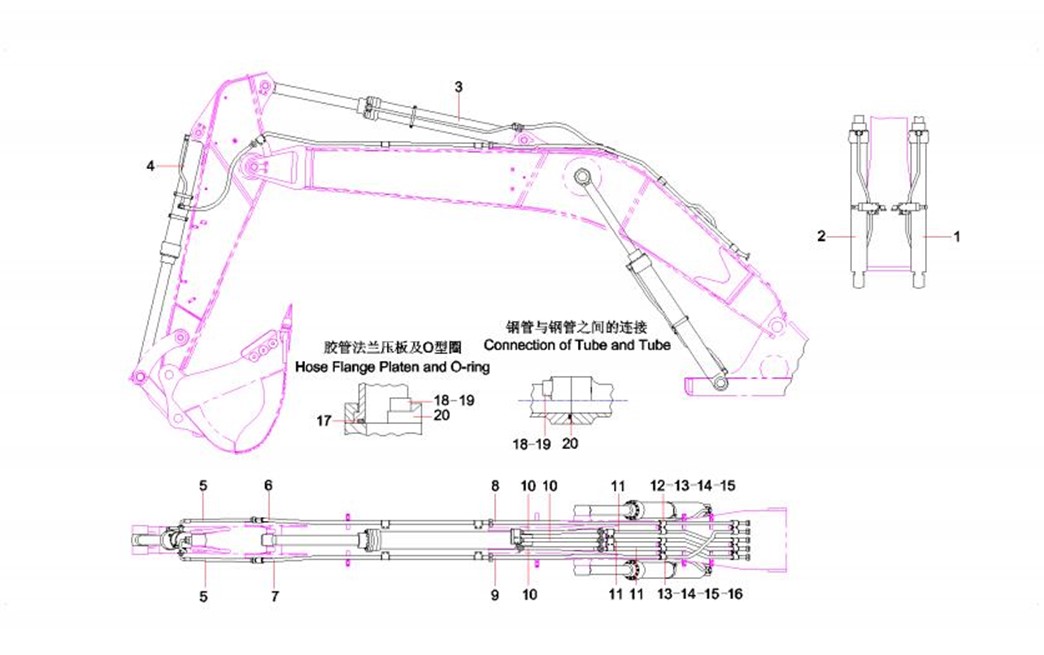

4-11-1 |
1 |
11827220 |
1 |
Cylinder AS, boom |
4-11-2 |
2 |
11827360 |
1 |
Cylinder AS, boom |
4-11-3 |
3 |
12829673 |
1 |
Arm cylinder assembly |
4-11-4 |
4 |
12829660 |
1 |
Bucket cylinder assembly |
4-11-5 |
5 |
60042169 |
1 |
Hose, rubber |
4-11-6 |
6 |
12217398 |
1 |
Bucket steel pipe |
4-11-7 |
7 |
12217275 |
1 |
Bucket steel pipe |
4-11-8 |
8 |
12218669 |
1 |
Bucket steel pipe |
4-11-9 |
9 |
12217336 |
1 |
Bucket steel pipe |
4-11-10 |
10 |
60040628 |
3 |
Hose, rubber |
4-11-11 |
11 |
12218734 |
3 |
Arm steel pipe |
4-11-12 |
12 |
11167545 |
10 |
Clamp, pipe |
4-11-13 |
13 |
11168201 |
19 |
Gasket |
4-11-14 |
14 |
24000642 |
28 |
Washer |
4-11-15 |
15 |
A210111000053 |
28 |
Bolt M16×40GB5783 10.9 |
4-11-16 |
16 |
11167527 |
18 |
Clamp, pipe |
4-11-17 |
17 |
B230101000578 |
12 |
O-ring 40.7×3.5JISB2401 |
4-11-18 |
18 |
A210401000003 |
48 |
Washer 14GB93 |
4-11-19 |
19 |
A210204000353 |
48 |
Screw |
4-11-20 |
20 |
B210780000693 |
20 |
Flange, SAE |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

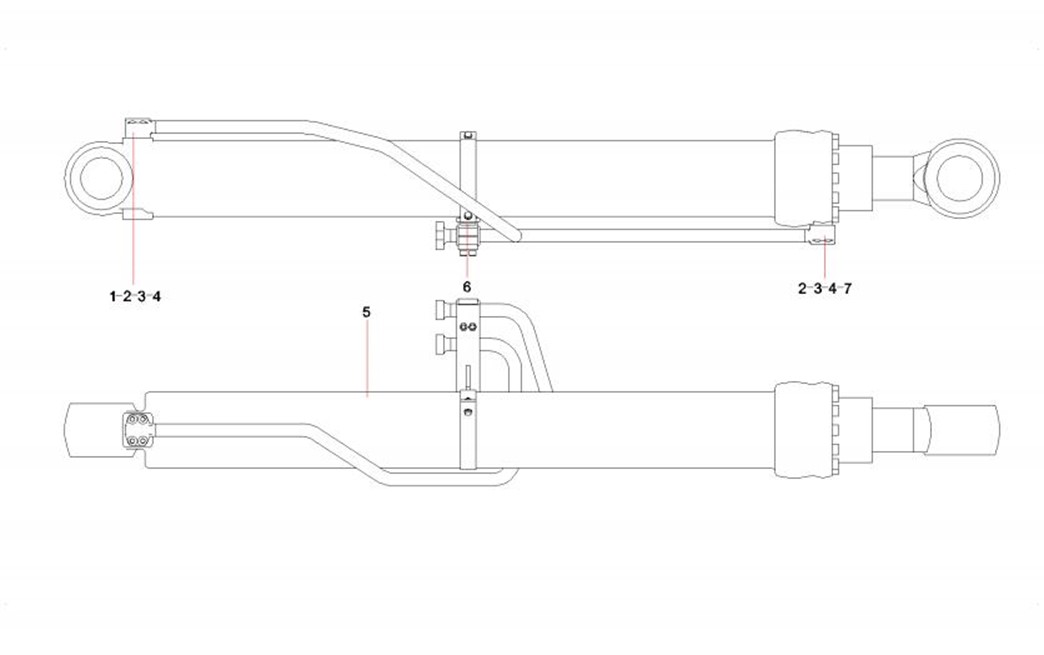

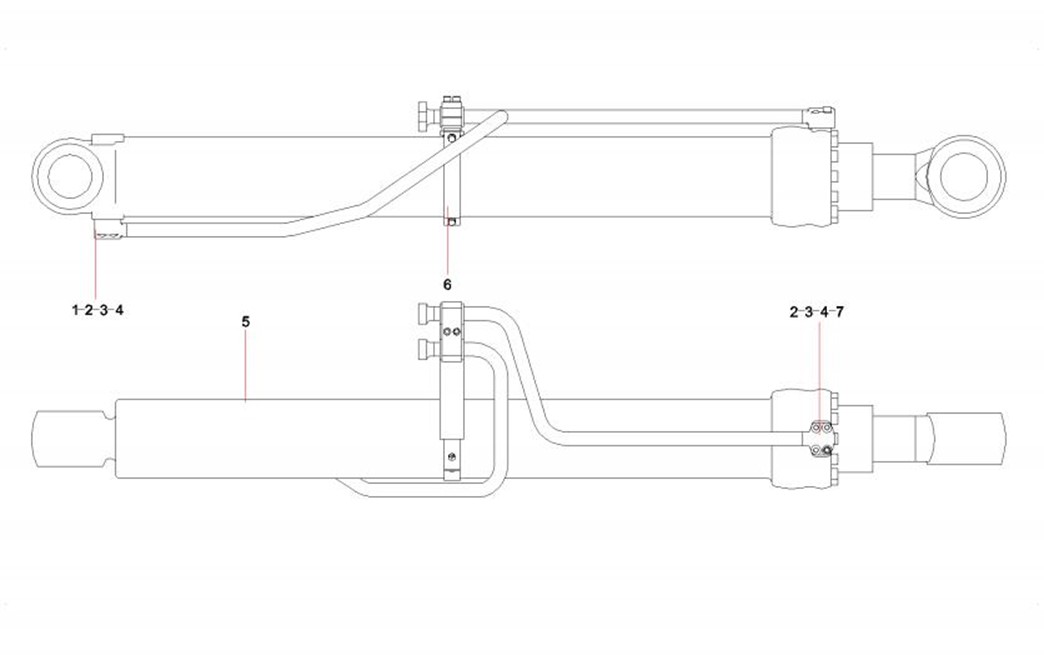

4-13-1 |
1 |
12218762 |
1 |
Steel pipe |
4-13-2 |
2 |
A210204000255 |
8 |
Screw M12×55GB70.1 12.9 |
4-13-3 |
3 |
A210405000001 |
8 |
Washer 12GB97.1 |
4-13-4 |
4 |
B230101000456 |
2 |
O-ring 29.7×3.5JISB2401 |
4-13-5 |
5 |
60110358 |
1 |
Boom Cylinder |
4-13-6 |
6 |
12199304 |
1 |
Pipe clamp |
4-13-7 |
7 |
12218925 |
1 |
Steel pipe |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

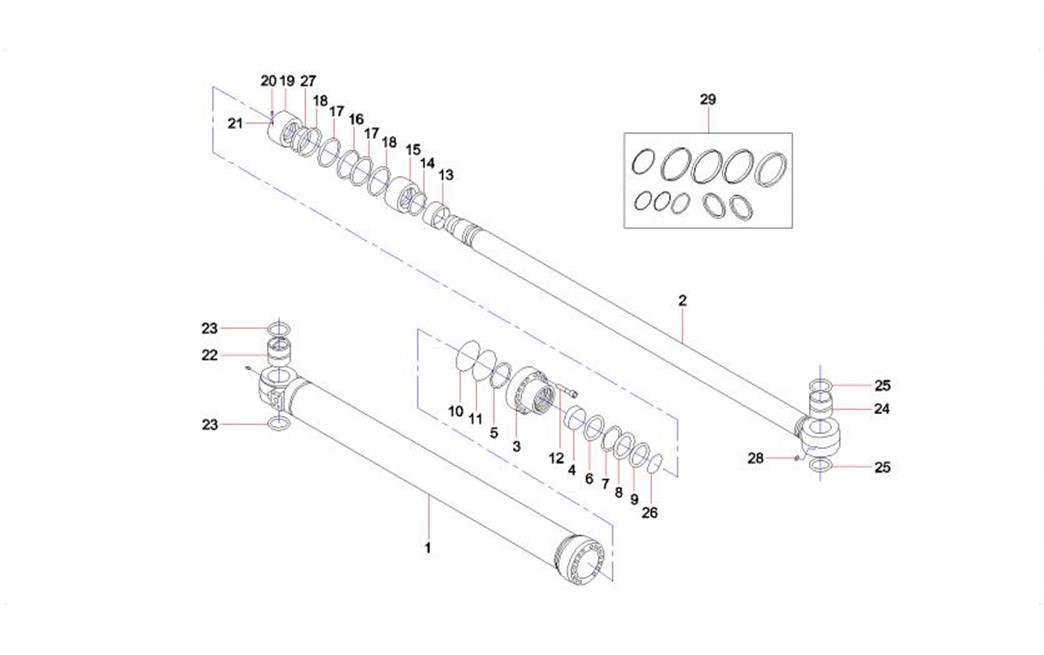

4-15-1 |
1 |
60154004 |
1 |
cylinder body |
4-15-2 |
2 |
60154017 |
1 |
piston rod |
4-15-3 |
3 |
60154001 |
1 |
end cover |
4-15-4 |
4 |
60154011 |
1 |
shaft sleeve |
4-15-5 |
5 |
60153991 |
1 |
Retaining Ring |
4-15-6 |
6 |
60153979 |
1 |
Bumper Sleeve |
4-15-7 |
7 |
60154048 |
1 |
Seal Ring |
4-15-8 |
8 |
60154024 |
1 |
Retaining Ring |
4-15-9 |
9 |
60154002 |
1 |
Retaining Ring |
4-15-10 |
10 |
60154032 |
1 |
O-ring |
4-15-11 |
11 |
60153988 |
1 |
O-ring |
4-15-12 |
12 |
21029919 |
14 |
Bolt |
4-15-13 |
13 |
60153981 |
1 |
Bumper Sleeve |
4-15-14 |
14 |
60154042 |
1 |
Bumper Sleeve |
4-15-15 |
15 |
60154016 |
1 |
piston rod |
4-15-16 |
16 |
60154045 |
1 |
Seal Ring |
4-15-17 |
17 |
60154038 |
2 |
Guide ring |
4-15-18 |
18 |
60153985 |
2 |
RING |
4-15-19 |
19 |
60154029 |
1 |
Nut |
4-15-20 |
20 |
60154026 |
1 |
Screw |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-17-21 |
21 |
21010039 |
1 |
Steel Ball |
4-17-22 |
22 |
60154030 |
1 |
shaft sleeve |
4-17-23 |
23 |
60044360 |
2 |
Ring, dust |
4-17-24 |
24 |
60046228 |
1 |
Sleeve, shaft |
4-17-25 |
25 |
60046231 |
2 |
Ring, dust |
4-17-26 |
26 |
60154040 |
1 |
Dust Ring |
4-17-27 |
27 |
60153996 |
1 |
washer |
4-17-28 |
28 |
A880899010002 |
2 |
Cup, oil |
4-17-29 |
29 |
60180068 |
1 |
Boom cylinder sealing element |
