SANY SY465C SY465C2M2H EXCAVATOR parts catalog 38
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-51-21 |
21 |
60118441 |
15 |
Bolt |
3-51-22 |
22 |
60118448 |
2 |
Screw, cylinder head |
3-51-23 |
23 |
60118444 |
2 |
Plug, screw |
3-51-24 |
24 |
60118454 |
1 |
O-ring |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

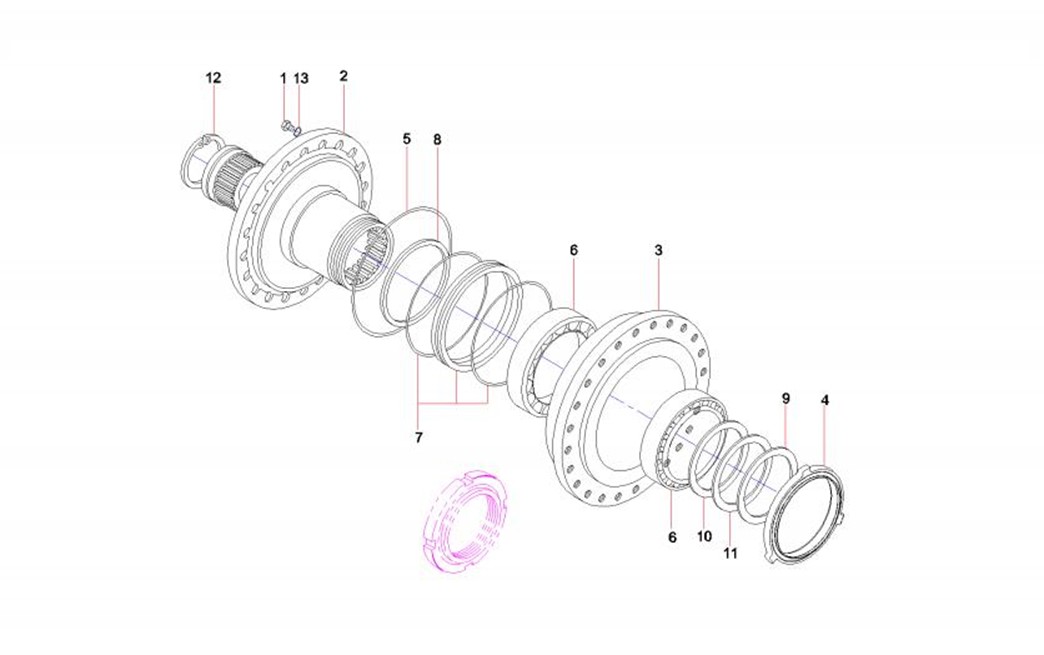

3-53-1 |
1 |
60118443 |
1 |
Plug, screw |
3-53-2 |
2 |
60118407 |
1 |
Hub |
3-53-3 |
3 |
60118406 |
1 |
Hub |
3-53-4 |
4 |
60118439 |
1 |
Nut, ring |
3-53-5 |
5 |
60118408 |
1 |
Ring |
3-53-6 |
6 |
60118418 |
2 |
Bearing, roller |
3-53-7 |
7 |
60118457 |
1 |
Ring, sealing, double-cone |
3-53-8 |
8 |
60118401 |
1 |
Ring, V-shaped |
3-53-9 |
9 |
60118402 |
1 |
Ring, adjusting |
3-53-10 |
10 |
60118403 |
1 |
Ring, adjusting |
3-53-11 |
11 |
60118438 |
1 |
Gasket, circular |
3-53-12 |
12 |
60118410 |
1 |
Circlip |
3-53-13 |
13 |
60118432 |
3 |
Gasket |

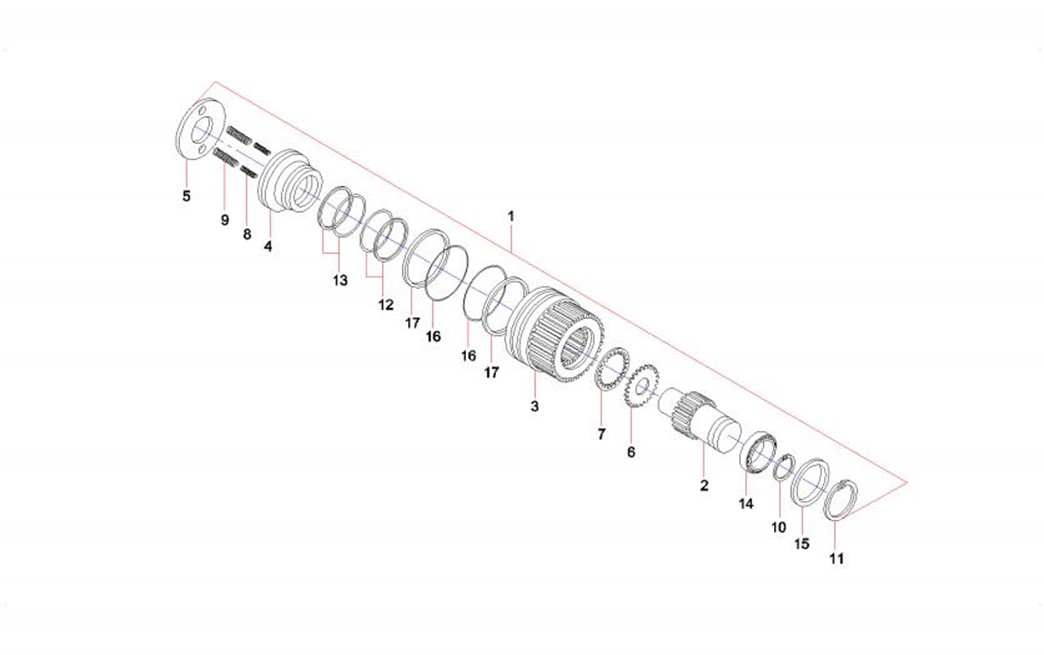

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
3-55-1 |
1 |
60118452 |
1 |
Brake mechanism |
3-55-2 |
2 |
60118435 |
1 |
Sleeve |
3-55-3 |
3 |
60118415 |
1 |
Body, outer |
3-55-4 |
4 |
60118440 |
1 |
Piston |
3-55-5 |
5 |
60118404 |
1 |
Cover |
3-55-6 |
6 |
60118414 |
10 |
Disc, outer |
3-55-7 |
7 |
60118413 |
9 |
Disc, inner |
3-55-8 |
8 |
60118436 |
14 |
Spring |
3-55-9 |
9 |
60118450 |
14 |
Spring, pressure |
3-55-10 |
10 |
60118411 |
1 |
Circlip |
3-55-11 |
11 |
60118412 |
1 |
Circlip |
3-55-12 |
12 |
60118433 |
1 |
Gasket |
3-55-13 |
13 |
60118434 |
1 |
Gasket |
3-55-14 |
14 |
60118417 |
1 |
Bearing, ball |
3-55-15 |
15 |
60118437 |
2 |
Washer |
3-55-16 |
16 |
60118456 |
2 |
O-ring |
3-55-17 |
17 |
60118451 |
2 |
Ring, support |

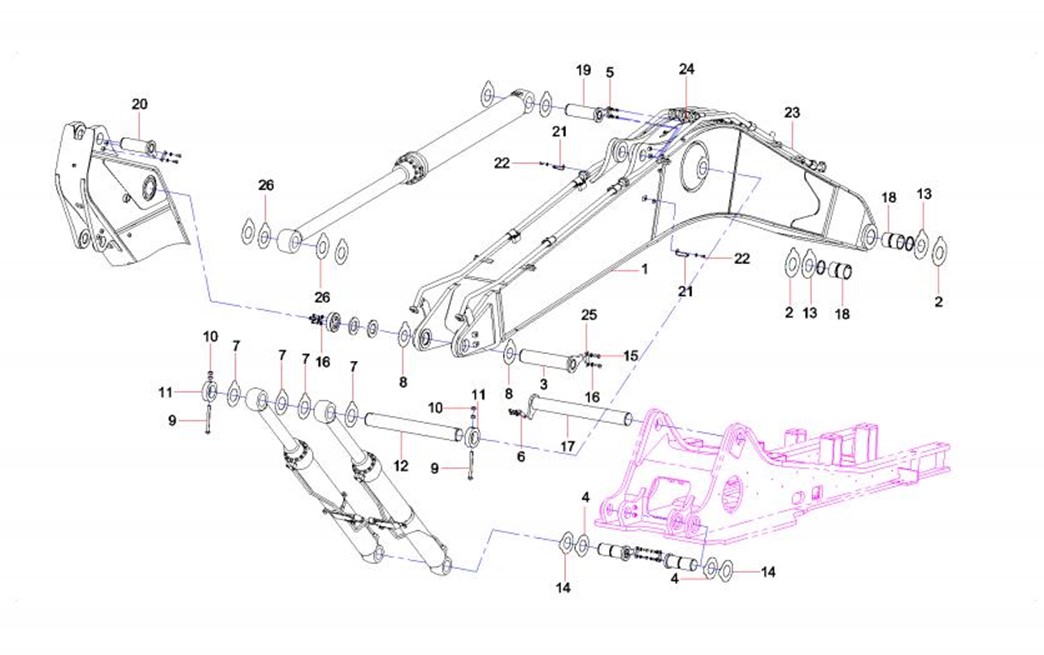

Chapter 4
Work device
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-3-1 |
1 |
12837594 |
1 |
Boom |
4-3-2 |
2 |
10254241 |
4 |
Gasket |
4-3-3 |
3 |
11255732 |
1 |
Roll, pin |
4-3-4 |
4 |
A820102010760 |
6 |
Shim |
4-3-5 |
5 |
A820101211710 |
5 |
Plate, pressure |
4-3-6 |
6 |
Modification or other |
1 |
Plate, pressure |
4-3-7 |
7 |
10254335 |
8 |
Gasket |
4-3-8 |
8 |
A820102010678 |
8 |
Gasket |
4-3-9 |
9 |
A210110000108 |
2 |
Bolt M24×240GB5782 10.9 |
4-3-10 |
10 |
A210307000007 |
4 |
Nut M24GB6170 Grade 10 |
4-3-11 |
11 |
11325610 |
2 |
Ring, retaining |
4-3-12 |
12 |
11823196 |
1 |
Roll, pin |
4-3-13 |
13 |
10254242 |
4 |
Gasket |
4-3-14 |
14 |
A820102010744 |
20 |
Gasket |
4-3-15 |
15 |
A210111000289 |
2 |
Bolt M20×45GB5783 Grade 10.9 |
4-3-16 |
16 |
A210406000014 |
2 |
Washer 20GB97.1 300HV |
4-3-17 |
17 |
11347587 |
1 |
Roll, pin |
4-3-18 |
18 |
11172131 |
2 |
Sleeve, shaft |
4-3-19 |
19 |
11347590 |
1 |
Roll, pin |
4-3-20 |
20 |
11347592 |
1 |
Roll, pin |

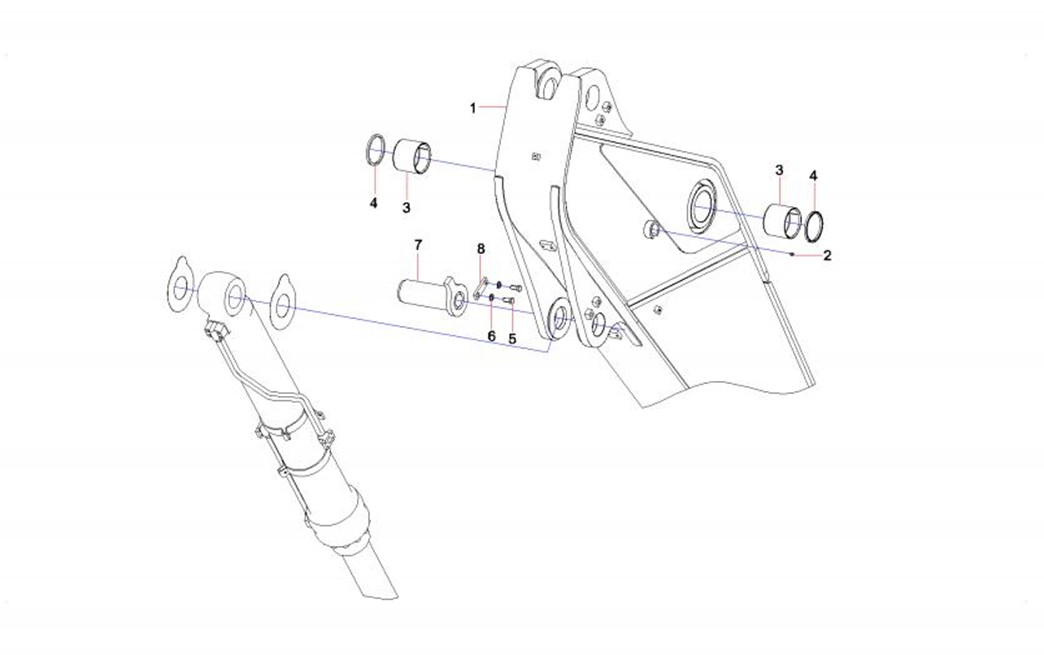

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
4-5-21 |
21 |
A820101322531 |
2 |
Bracket, lamp |
4-5-22 |
22 |
A210111000263 |
2 |
Bolt M16×30GB5783 10.9 |
4-5-23 |
23 |
12829804 |
1 |
Work device Tube |
4-5-24 |
24 |
11630772 |
1 |
Lubricating system |
4-5-25 |
25 |
10951430 |
1 |
Plate, pressure |
4-5-26 |
26 |
A820101041077 |
4 |
Shim |
