SANY SY465C SY465C2M2H EXCAVATOR parts catalog 37

Meppon Co., Ltd Posted on by







IC

INDEX

PART NUMBER

QTY

PART NAME

3-39-21

21

60089952

1

Seal ring, O-type

3-39-22

22

60089951

1

O-ring

3-39-23

23

60089894

5

Plug

3-39-24

24

60089921

1

LOCKING SCREW

3-39-25

25

60089894

5

Plug

3-39-26

26

60089834

2

ORIFICE

3-39-27

27

60195765

1

BREAK RELEASE VALVE

3-39-28

28

60089841

2

VALVE

















IC

INDEX

PART NUMBER

QTY

PART NAME

3-41-1

1

60089938

1

BRAKE PISTON

3-41-2

2

60089924

2

LOCKING SCREW

3-41-3

3

60089867

2

PRESSURE SPRING

3-41-4

4

60089831

2

SHIM

3-41-5

5

60089939

1

THROTTLE SCREW

3-41-6

6

60089940

1

THROTTLE SCREW

3-41-7

7

60089943

2

THROTTLE PIN

3-41-8

8

60089953

2

O-ring

















IC

INDEX

PART NUMBER

QTY

PART NAME

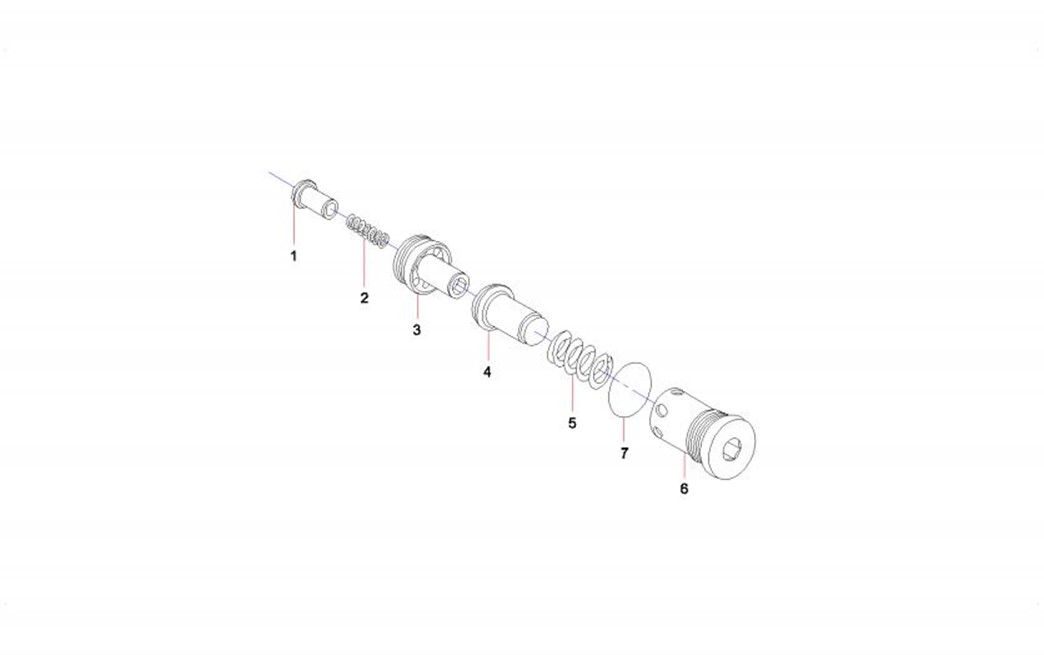

3-43-1

1

60089844

1

VALVE POPPET

3-43-2

2

60089865

1

PRESSURE SPRING

3-43-3

3

60089897

1

POPPET SEAT

3-43-4

4

60089842

1

VALVE POPPET

3-43-5

5

60089933

1

PRESSURE SPRING

3-43-6

6

60089923

1

LOCKING SCREW

3-43-7

7

60089954

1

O-ring

















IC

INDEX

PART NUMBER

QTY

PART NAME

3-45-1

1

60089843

1

VALVE SCREW

3-45-2

2

60089836

1

BALL

3-45-3

3

60089895

1

BUSH

















IC

INDEX

PART NUMBER

QTY

PART NAME

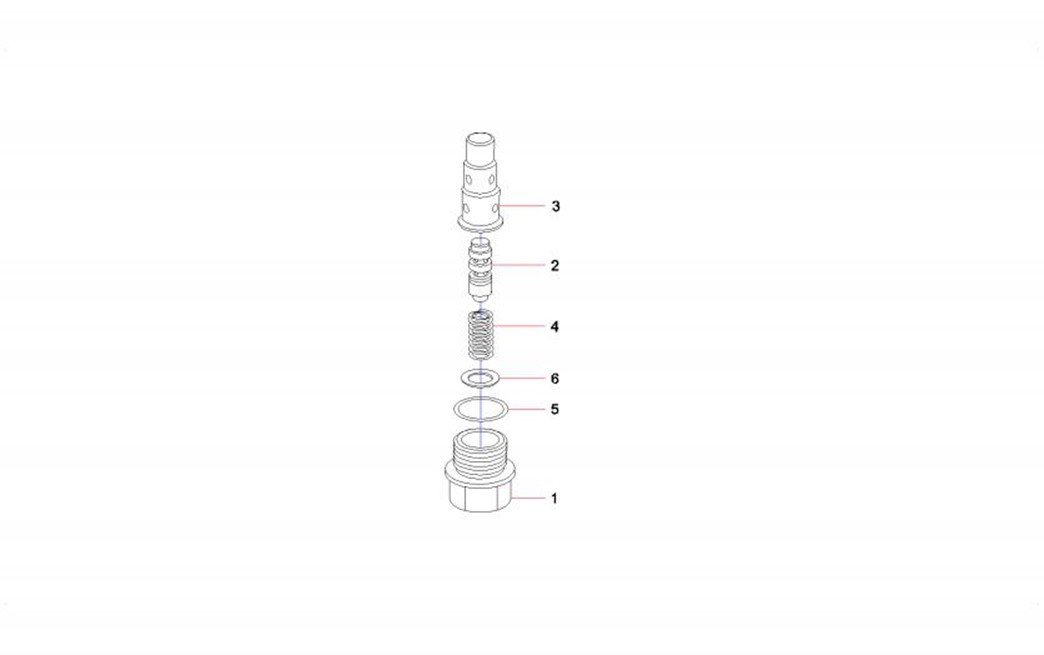

3-47-1

1

60089901

1

LOCKING SCREW

3-47-2

2

60157314

1

PressureReducingValveCore

3-47-3

3

60089963

1

Control

3-47-4

4

60089866

1

PRESSURE SPRING

3-47-5

5

60089950

1

O-ring

3-47-6

6

60195766

1

SHIM

















IC

INDEX

PART NUMBER

QTY

PART NAME

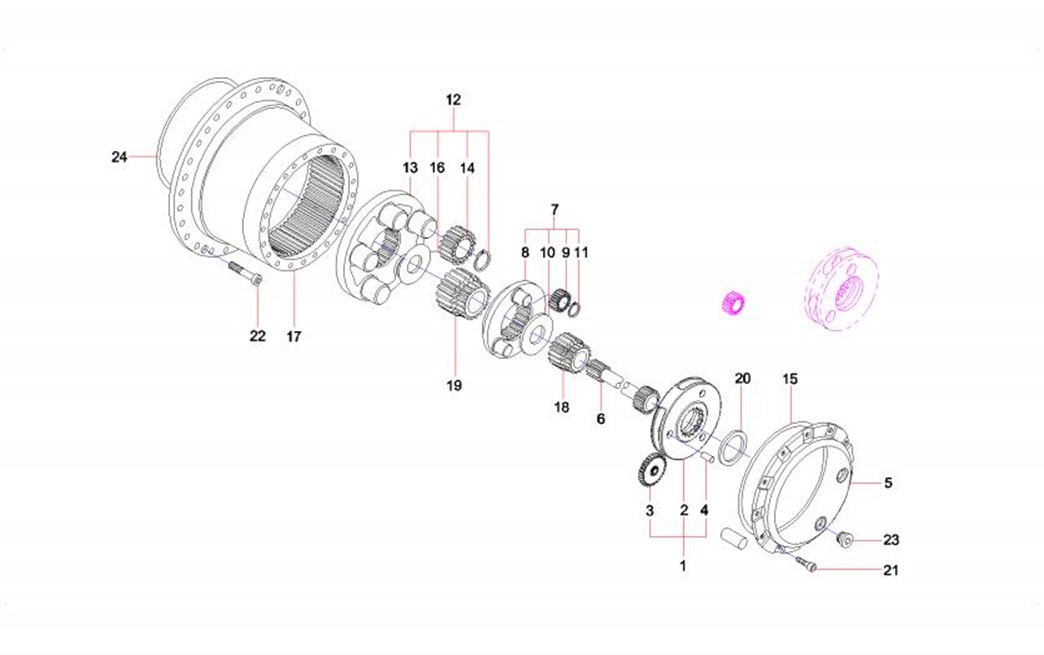

3-49-1

1

60118424

1

Carrier AS, planetary gear

3-49-2

2

60118422

1

Carrier, planetary gear

3-49-3

3

60118429

3

Gear AS, spur

3-49-4

4

60118449

3

Pin

3-49-5

5

60118405

1

Cover

3-49-6

6

60118420

1

Pinion

3-49-7

7

60118426

1

Carrier AS, planetary gear

3-49-8

8

60118423

1

Carrier, planetary gear

3-49-9

9

60118431

3

Gear AS, spur

3-49-10

10

60118445

1

Washer

3-49-11

11

60118409

3

Circlip

3-49-12

12

60118425

1

Carrier AS, planetary gear

3-49-13

13

60118421

1

Carrier, planetary gear

3-49-14

14

60118430

5

Gear AS, spur

3-49-15

15

60118455

1

O-ring

3-49-16

16

60118446

1

Washer

3-49-17

17

60118419

1

Gear, crown

3-49-18

18

60118427

1

Gear, spur

3-49-19

19

60118428

1

Gear, spur

3-49-20

20

60118447

1

Washer
