SANY SY465C SY465C2M2H EXCAVATOR parts catalog 42

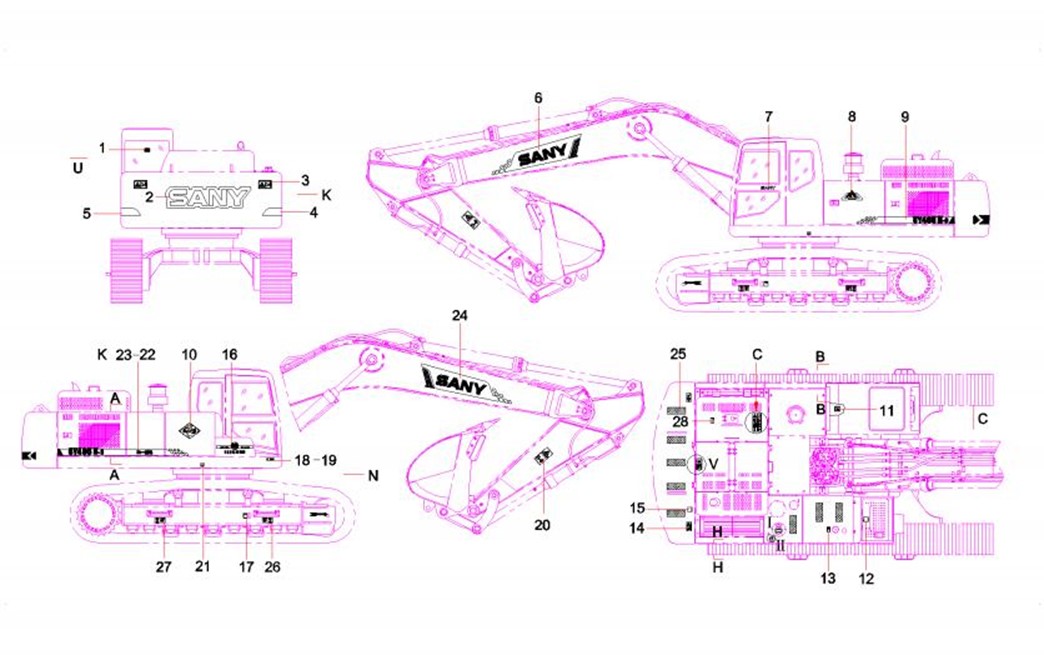

Chapter 6
Coating
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-3-1 |
1 |
A820601990969 |
1 |
Label, emergency exit |
6-3-2 |
2 |
12886967 |
1 |
Counterweight |
6-3-3 |
3 |
A820699001016 |
2 |
Decal, warning, counterweight |
6-3-4 |
4 |
12727594 |
1 |
Film, reflective, counterweight |
6-3-5 |
5 |
12727593 |
1 |
Film, reflective, counterweight |
6-3-6 |
6 |
12889306 |
1 |
Coating |
6-3-7 |
7 |
12842974 |
1 |
Label, power socket |
6-3-8 |
8 |
12256696 |
1 |
Decal, big, mining machine |
6-3-9 |
9 |
12754047 |
1 |
Left mark |
6-3-10 |
10 |
12753962 |
1 |
Decal, information, energy saving & |
6-3-11 |
11 |
A820699001023 |
1 |
Decal, warning, no-sitting |
6-3-12 |
12 |
11214851 |
1 |
Label, warning, oil feed pump |
6-3-13 |
13 |
11176411 |
1 |
Decal, fuel tank |
6-3-14 |
14 |
A820601990926 |
2 |
Decal, warning, falling |
6-3-15 |
15 |
10765072 |
1 |
Decal, warning, counterweight |
6-3-16 |
16 |
12753900 |
1 |
Decal, service hotline |
6-3-17 |
17 |
A820601990968 |
2 |
Decal, warning, tensioner |
6-3-18 |
18 |
10251978 |
1 |
Nameplate |
6-3-19 |
19 |
A210510000007 |
4 |
Rivet |
6-3-20 |
20 |
A820601990963 |
2 |
Decal, warning, arm |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-5-21 |
21 |
12033801 |
2 |
Decal, center of gravity |
6-5-22 |
22 |
12905767 |
1 |
Right mark |
6-5-23 |
23 |
12908538 |
1 |
Right mark |
6-5-24 |
24 |
12889359 |
1 |
Left mark of boomSY465C5M2KS- |
6-5-25 |
25 |
A820699000369 |
7 |
Anti-skid, long |
6-5-26 |
26 |
A820101990552 |
4 |
Diagram, hoisting point |
6-5-27 |
27 |
A820601990934 |
4 |
Decal,tie-down,shipment |
6-5-28 |
28 |
12254087 |
1 |
Decal, instruction, fan greasing |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

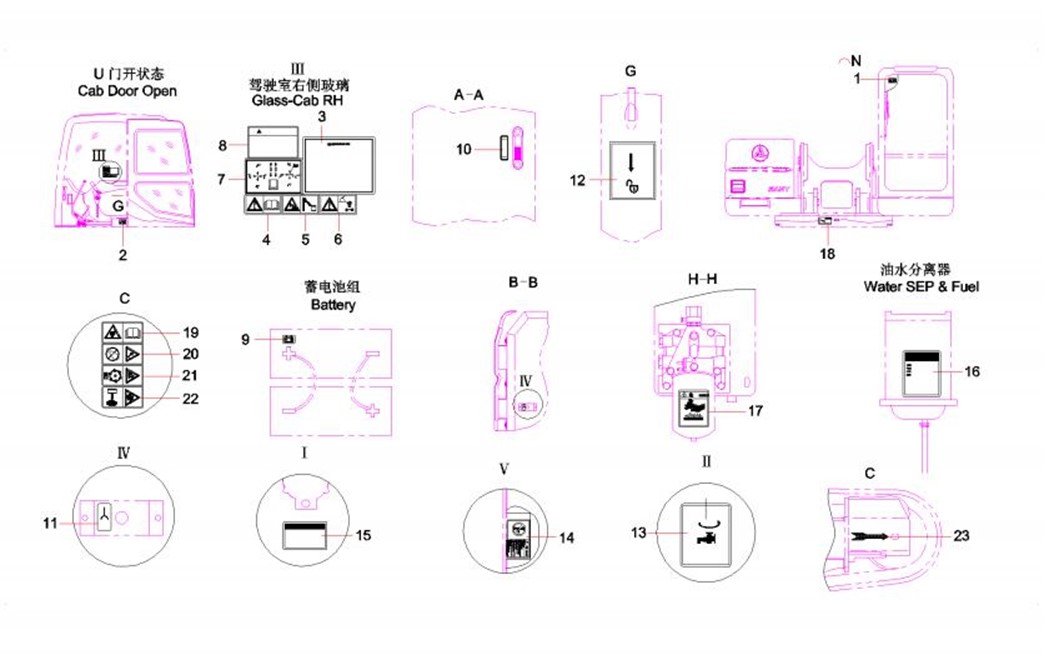

6-7-1 |
1 |
A820699001019 |
1 |
Decal, warning, front window |
6-7-2 |
2 |
A820601990967 |
1 |
Decal, instruction, seat adjustment |
6-7-3 |
3 |
10765070 |
1 |
Graph, lubrication |
6-7-4 |
4 |
11464425 |
1 |
Label, warning, READ MANUAL |
6-7-5 |
5 |
11464432 |
1 |
Decal, warning, high-voltage |
6-7-6 |
6 |
11464441 |
1 |
Decal, warning, power-off |
6-7-7 |
7 |
A820601990961 |
1 |
Label, instruction, operation |
6-7-8 |
8 |
12357871 |
1 |
Start-in-winter sign |
6-7-9 |
9 |
A820601990972 |
1 |
Label, power supply |
6-7-10 |
10 |
A820601990928 |
1 |
Label, oil level |
6-7-11 |
11 |
A820699001109 |
1 |
Label, power socket |
6-7-12 |
12 |
A820601990927 |
1 |
Label, UNLOCK |
6-7-13 |
13 |
A820601990929 |
1 |
Label, drain, fuel tank |
6-7-14 |
14 |
12889837 |
1 |
forbidden stepping the priming |
6-7-15 |
15 |
A820601991065 |
1 |
Label, identification, hydraulic tank |
6-7-16 |
16 |
A820601990962 |
1 |
Decal, drain, water separator |
6-7-17 |
17 |
A820101050798 |
1 |
Decal, warning, hot surface |
6-7-18 |
18 |
12409907 |
1 |
Decal, warning, swing bearing |
6-7-19 |
19 |
A820699000948 |
1 |
Decal, warning, anti-spray |
6-7-20 |
20 |
A820601990973 |
1 |
Decal, warning, engine hood |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
6-9-21 |
21 |
A820699001017 |
1 |
Decal, warning, belt safety |
6-9-22 |
22 |
A820101050793 |
1 |
Label, warning, hand injury by fan |
6-9-23 |
23 |
A820699001018 |
2 |
Decal, instruction, forward |

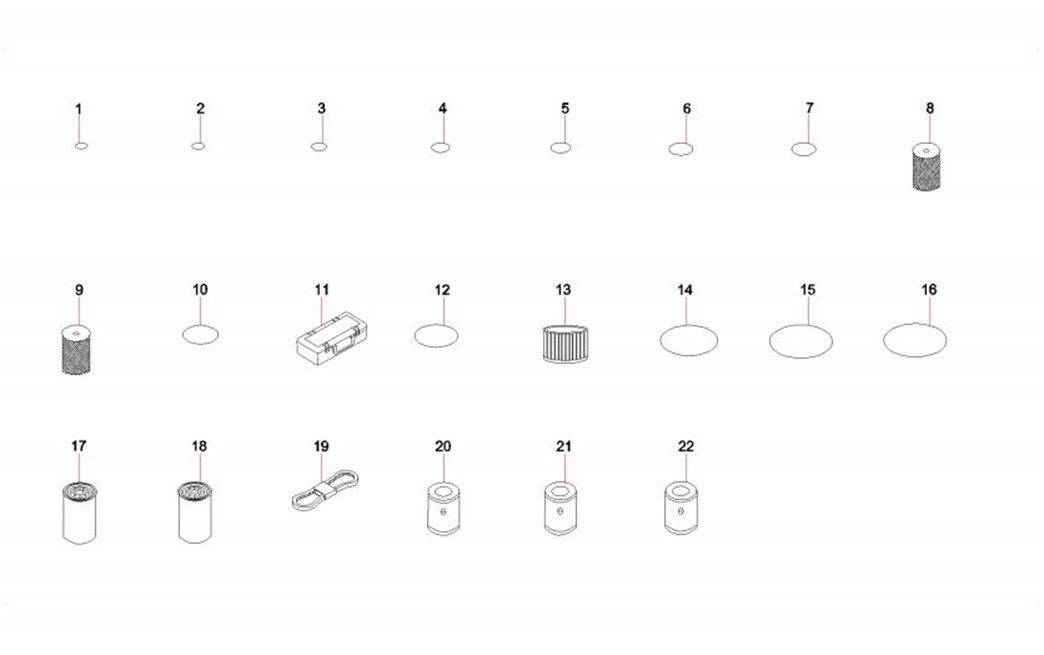

Chapter 7
Accessories
