SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 02

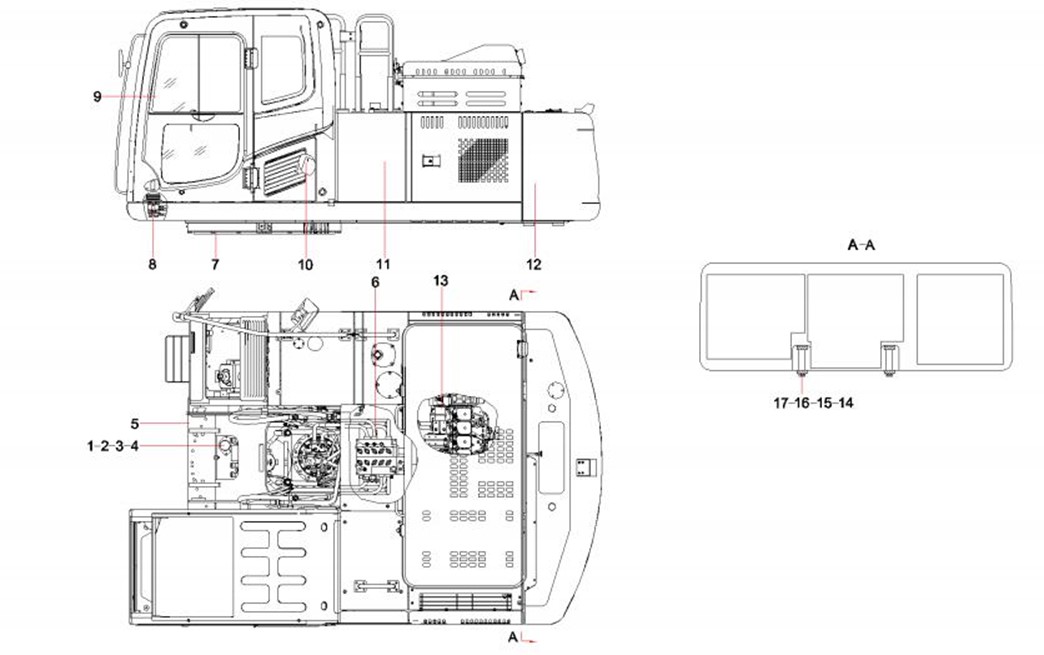

Chapter 2
Slewing device SY215C9C5K(EU).1
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-3-1 |
1 |
A820606030364 |
1 |
Gasket, seal |
2-3-2 |
2 |
A820101117871 |
1 |
Cover |
2-3-3 |
3 |
Modification or other |
2 |
Bolt M12×30GB578310.9 |
2-3-4 |
4 |
Modification or other |
2 |
Washer 12GB97.1 |
2-3-5 |
5 |
13360990 |
1 |
revolving frame SY215C9C5KL.1.1 |
2-3-6 |
6 |
13708758 |
1 |
Hydraulic main pipeline |
2-3-7 |
7 |
10473822 |
1 |
Bearing AS, swing |
2-3-8 |
8 |
13709009 |
1 |
piliot pipeline |
2-3-9 |
9 |
13707127 |
1 |
Cab SY335C9C5K.1.5A |
2-3-10 |
10 |
13353337 |
1 |
Air conditioning system |
2-3-11 |
11 |
13382168 |
1 |
General assembly of covering parts |
2-3-12 |
12 |
13344859 |
1 |
Counterweight SY215C9C5Kl.1.9 |
2-3-13 |
13 |
13709898 |
1 |
Power System |
2-3-14 |
14 |
A210110000354 |
4 |
Screw M30×300GB5782 |
2-3-15 |
15 |
A210444000003 |
4 |
Washer 30GB1230 |
2-3-16 |
16 |
11508248 |
3 |
Shim, adjusting, counterweight |
2-3-17 |
17 |
Modification or other |
3 |
Shim, adjusting, counterweight |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

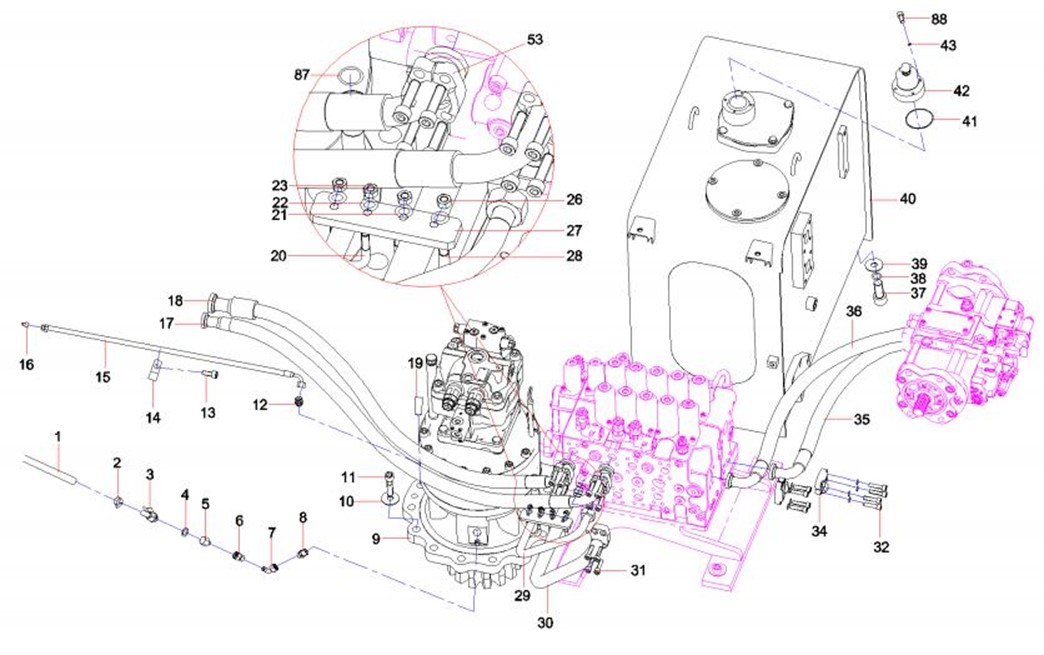

2-5-1 |
1 |
10192981 |
1 |
Hose, oil outlet |
2-5-2 |
2 |
A229900001345 |
1 |
Clamp, hose |
2-5-3 |
3 |
B220401000916 |
1 |
Valve AS, shut off, engine oil |
2-5-4 |
4 |
60006360 |
1 |
Washer, copper |
2-5-5 |
5 |
10137010 |
1 |
Connector |
2-5-6 |
6 |
B210780001426 |
1 |
Connector |
2-5-7 |
7 |
B210780000024 |
1 |
Connector, pipe |
2-5-8 |
8 |
A820205002283 |
1 |
Connector |
2-5-9 |
9 |
B229900003821 |
1 |
Reducer,swing GP |
2-5-10 |
10 |
A210491000132 |
17 |
Washer 20GB1230 |
2-5-11 |
11 |
Modification or other |
13 |
Bolt M20×60GB5783 10.9 |
2-5-12 |
12 |
A820205002483 |
1 |
Connector |
2-5-13 |
13 |
A210111000199 |
1 |
Bolt M12×20GB5783 10.9 |
2-5-14 |
14 |
Modification or other |
1 |
Clamp, harness |
2-5-15 |
15 |
B230103003046 |
1 |
Hose |
2-5-16 |
16 |
B229900000686 |
1 |
Fitting, grease |
2-5-17 |
17 |
60041191 |
1 |
Hose |
2-5-18 |
18 |
60083336 |
1 |
Hose |
2-5-19 |
19 |
A820301012852 |
1 |
Dowel, swing mechanism |
2-5-20 |
20 |
11539392 |
1 |
U-bolt |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-7-21 |
21 |
60060546 |
4 |
Washer 10GB96.1 |
2-7-22 |
22 |
24000633 |
2 |
Washer |
2-7-23 |
23 |
A210307000012 |
4 |
Nut M8GB6170 |
2-7-26 |
26 |
Modification or other |
6 |
Nut M10GB6170 |
2-7-27 |
27 |
11539370 |
1 |
Clamp |
2-7-28 |
28 |
11160698 |
2 |
U-bolt |
2-7-29 |
29 |
11539375 |
1 |
Pipe GP,steel |
2-7-30 |
30 |
11531616 |
1 |
Pipe GP,steel |
2-7-31 |
31 |
A210204000215 |
12 |
Screw M10×35GB70.1 10.9 |
2-7-32 |
32 |
Modification or other |
8 |
Screw M12×45GB70.1 12.9 |
2-7-34 |
34 |
B210780000004 |
4 |
Flange, split |
2-7-35 |
35 |
60171012 |
1 |
Rubber Hose |
2-7-36 |
36 |
60171011 |
1 |
Rubber Hose |
2-7-37 |
37 |
A210204000198 |
6 |
Screw M16×35GB70.1 10.9 |
2-7-38 |
38 |
A210491000118 |
6 |
Washer 16GB1230 |
2-7-39 |
39 |
Modification or other |
12 |
Gasket |
2-7-40 |
40 |
13344439 |
1 |
Hydraulic Fuel Tank Assy. |
2-7-41 |
41 |
B230101000366 |
1 |
O-ring 59.4×3.1JISB2401 |
2-7-42 |
42 |
60129702 |
1 |
Valve, breather |
2-7-43 |
43 |
24000632 |
4 |
Washer |

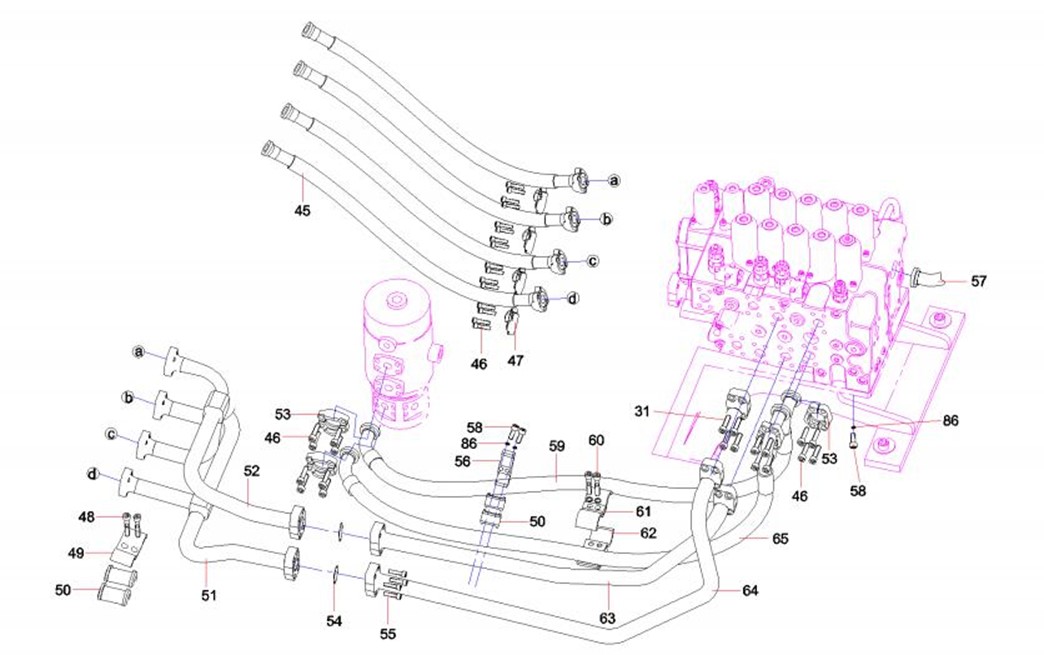

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-9-87 |
87 |
60000846 |
1 |
O-Ring |
2-9-88 |
88 |
A210204000130 |
4 |
Screw M6×16GB70.1 |
