SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 12
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-101-3 |
3 |
B210780000170 |
4 |
Connector, pipe |
2-101-21 |
21 |
B210780000418 |
18 |
Connector, pipe |
2-101-30 |
30 |
A210204000358 |
4 |
Screw M10×80GB70.1 10.9 |
2-101-31 |
31 |
60060546 |
4 |
Washer 10GB96.1 |
2-101-32 |
32 |
10077269 |
1 |
Adapter |
2-101-33 |
33 |
A820205000947 |
16 |
Plug |
2-101-34 |
34 |
B230101000049 |
30 |
O-ring 13.8×2.4JISB2401 |
2-101-35 |
35 |
21030937 |
1 |
Hose, rubber |
2-101-36 |
36 |
B220400000169 |
1 |
Valve, shuttle, tee |
2-101-37 |
37 |
B210780001045 |
1 |
Connector, pipe |
2-101-38 |
38 |
A820205001061 |
1 |
Coupler, sensor, negative flow |
2-101-39 |
39 |
B210780001045 |
1 |
Connector, pipe |
2-101-40 |
40 |
11457002 |
2 |
Plate |
2-101-42 |
42 |
A820205000946 |
18 |
Connector |

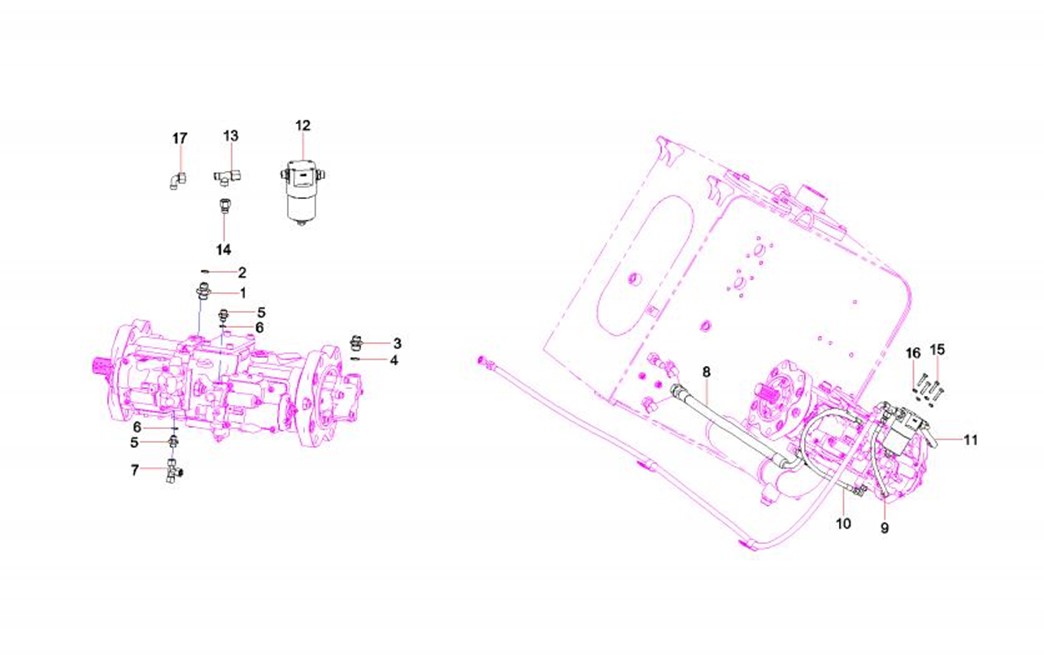

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-103-1 |
1 |
A820205000942 |
1 |
Connector |
2-103-2 |
2 |
B230101000356 |
1 |
O-ring 23.7×3.5JISB2401 |
2-103-3 |
3 |
A820205000941 |
1 |
Connector |
2-103-4 |
4 |
B230101000090 |
1 |
O-ring 17.8×2.4JISB2401 |
2-103-5 |
5 |
60020078 |
2 |
Connector, filter |
2-103-6 |
6 |
B230101000047 |
2 |
O-ring |
2-103-7 |
7 |
B210780000170 |
1 |
Connector, pipe |
2-103-8 |
8 |
B230103004318 |
1 |
Hose, rubber |
2-103-9 |
9 |
12755513 |
1 |
Rubber Hose2SN6-DKOL- |
2-103-10 |
10 |
B230103004593 |
1 |
Hose |
2-103-11 |
11 |
60268641 |
1 |
Hydraulic Hose Assembly |
2-103-12 |
12 |
B229900000063 |
1 |
Filter, oil |
2-103-13 |
13 |
B210780000016 |
1 |
Connector, pipe |
2-103-14 |
14 |
B210780000827 |
1 |
Connector, pipe |
2-103-15 |
15 |
Modification or other |
4 |
Screw M8×12GB70.1 10.9 |
2-103-16 |
16 |
24000511 |
4 |
Washer |

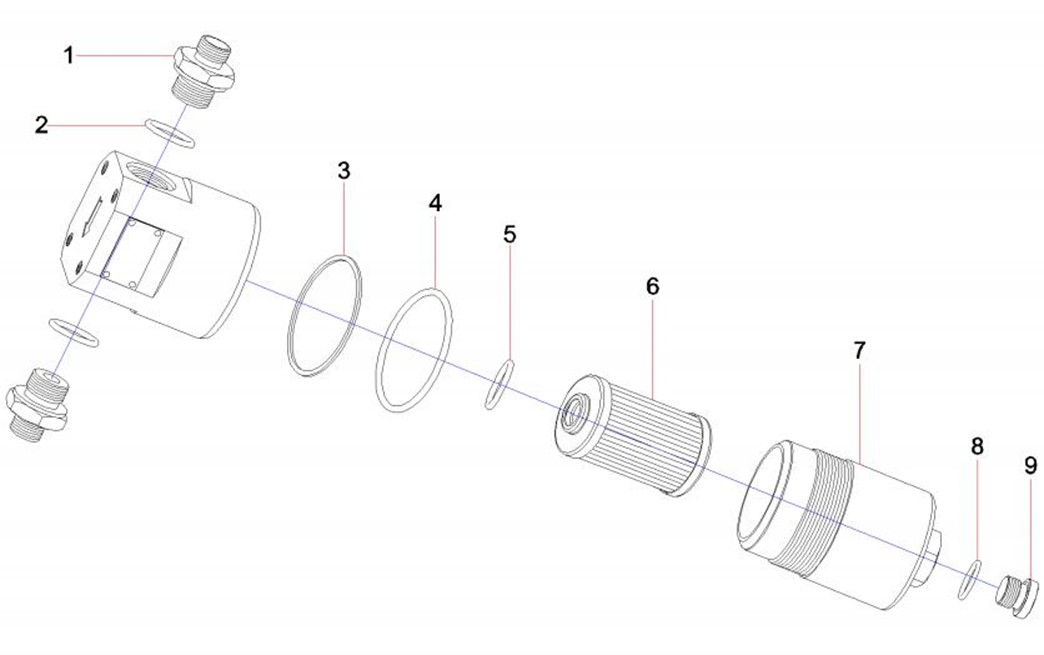

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-105-1 |
1 |
60294881 |
2 |
adaptor |
2-105-2 |
2 |
29010015 |
2 |
O-ring |
2-105-3 |
3 |
60294882 |
1 |
sealing cushion |
2-105-4 |
4 |
A230101000563 |
1 |
Seal,O-ring |
2-105-5 |
5 |
24002612 |
1 |
O-Ring-20×2.4(GB1235) |
2-105-6 |
6 |
A222100000119 |
1 |
Element, pilot filter |
2-105-7 |
7 |
60294883 |
1 |
housing |
2-105-8 |
8 |
21000077 |
1 |
O-ring |
2-105-9 |
9 |
60294884 |
1 |
screw plug |

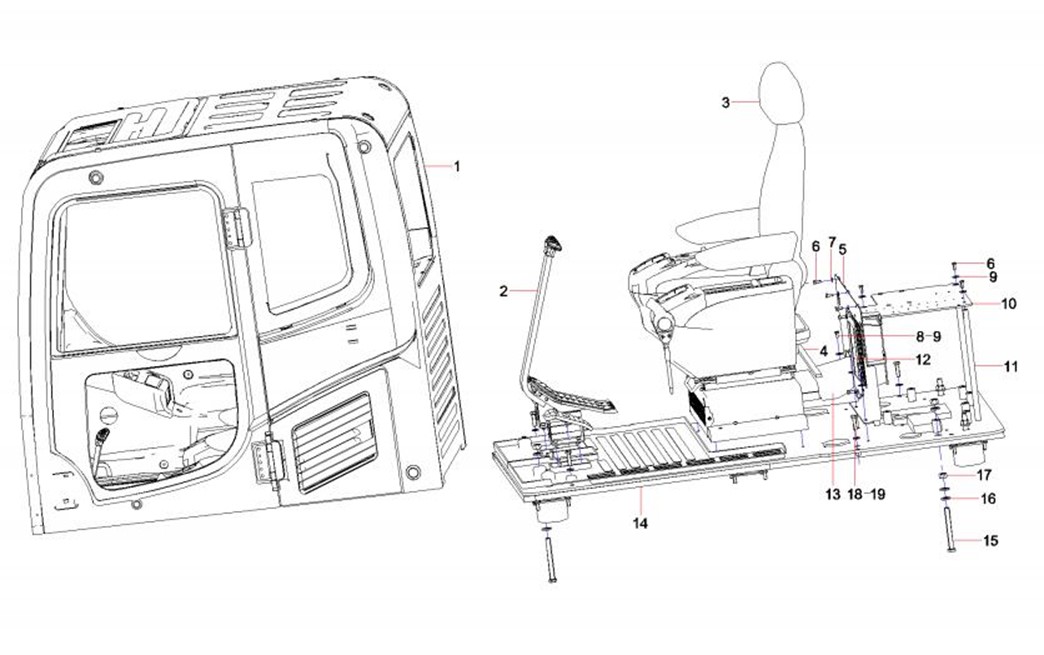

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-107-1 |
1 |
60260990 |
1 |
cab |
2-107-2 |
2 |
13387426 |
1 |
Running control mechanism |
2-107-3 |
3 |
13707126 |
1 |

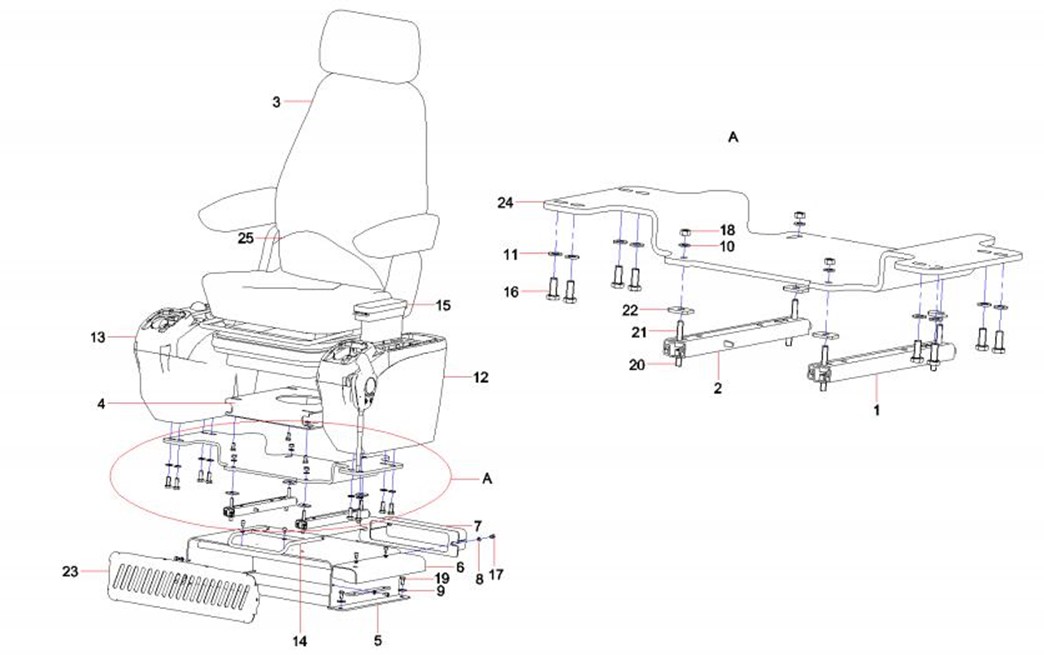

seat and control cabinet |
2-107-4 |
4 |
10567493 |
1 |
Sponge, sealing, floor air outlet |
2-107-5 |
5 |
12845620 |
1 |
frameSY215C9.1.5.7D |
2-107-6 |
6 |
A210111000343 |
8 |
Bolt M8×20GB5783 10.9 |
2-107-7 |
7 |
24000633 |
5 |
Washer |
2-107-8 |
8 |
A210111000342 |
3 |
Bolt M8×16GB5783 10.9 |
2-107-9 |
9 |
60060565 |
6 |
Washer |
2-107-10 |
10 |
13297018 |
1 |
Installation plate for electrical |
2-107-11 |
11 |
12752753 |
3 |
Brace |
2-107-12 |
12 |
10244287 |
1 |
Plate, cover, air, inner |
2-107-13 |
13 |
A229900010630 |
1 |
Passage, air, foot-blowing |
2-107-14 |
14 |
13296815 |
1 |
Floor SY335C9C5K.1.5.1 |
2-107-15 |
15 |
A210111000210 |
2 |
Bolt M16×150GB5783 10.9 |
2-107-16 |
16 |
A210491000118 |
6 |
Washer 16GB1230 |
2-107-17 |
17 |
Modification or other |
4 |
Nut M16GB6170 |
2-107-18 |
18 |
Modification or other |
4 |
Bolt M12×45GB5783 10.9 |
2-107-19 |
19 |
24000639 |
4 |
Washer |

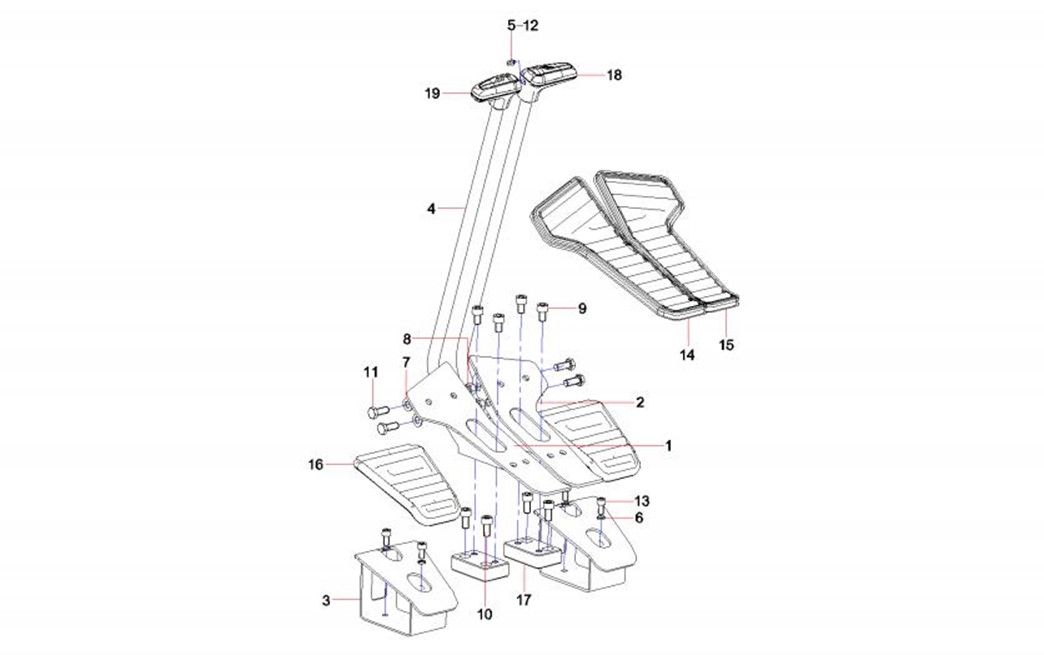

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-109-1 |
1 |
12003641 |
1 |
Plate GP,foot valve |
2-109-2 |
2 |
12009972 |
1 |
Plate GP,foot valve |
2-109-3 |
3 |
12004584 |
2 |
Foot rest |
2-109-4 |
4 |
13387427 |
2 |
joystick SY215C9C5KL.1.5.2.1 |
2-109-5 |
5 |
60060562 |
2 |
Washer |
2-109-6 |
6 |
24000511 |
4 |
Washer |
2-109-7 |
7 |
24000637 |
4 |
Washer |
2-109-8 |
8 |
A210307000036 |
4 |
Nut M10GB6170 10 |
2-109-9 |
9 |
A210204000334 |
4 |
Screw |
2-109-10 |
10 |
Modification or other |
4 |
Screw M10×20GB70.1 |
2-109-11 |
11 |
Modification or other |
4 |
Bolt M10×25GB5783 10.9 |
2-109-12 |
12 |
A210210000030 |
2 |
Screw M4×12GB818 |
2-109-13 |
13 |
A210204000340 |
4 |
Screw M8×16GB70.1 10.9 |
2-109-14 |
14 |
12009258 |
1 |
Sheath, plate, butterfly footrest |
2-109-15 |
15 |
12010268 |
1 |
Sleeve, plate,foot valve |
2-109-16 |
16 |
12002592 |
2 |
Sleeve, foot valve |
2-109-17 |
17 |
11571909 |
2 |
Block, connection |
2-109-18 |
18 |
12691132 |
1 |
Handle, right |
2-109-19 |
19 |
12688927 |
1 |
Handle, left |
