SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 13
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

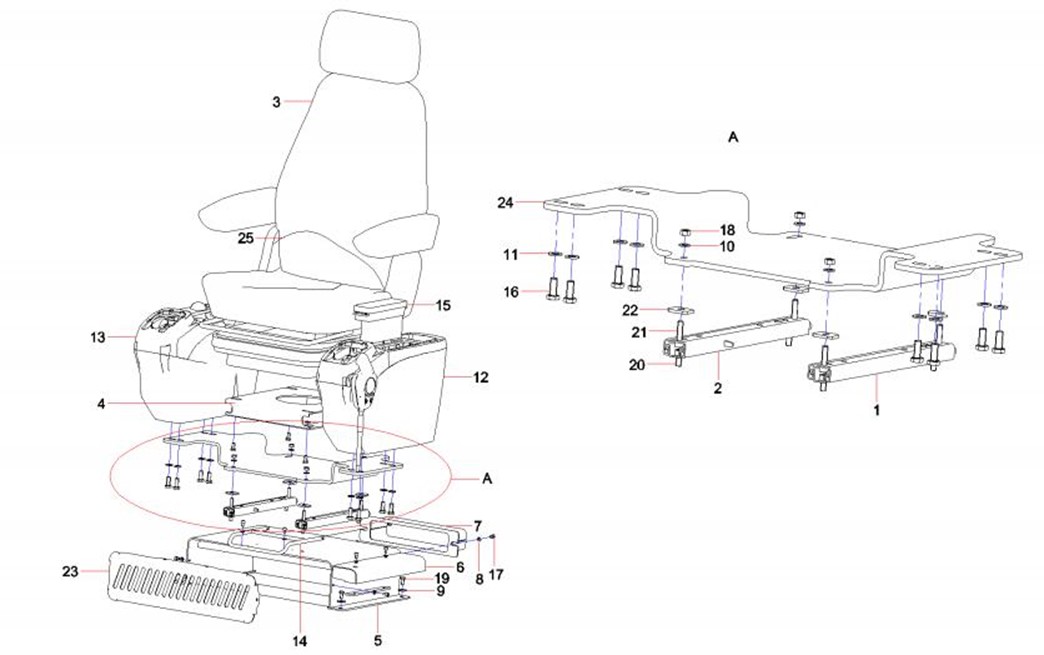

2-111-1 |
1 |
60033205 |
1 |
Guide rail, seat, left |
2-111-2 |
2 |
60033517 |
1 |
Guide rail, seat, right |
2-111-3 |
3 |
60252387 |
1 |
Pneumatic suspension driver seat |
2-111-4 |
4 |
10115295 |
1 |
Bracket, upper base, seat |
2-111-5 |
5 |
10428097 |
1 |
Bracket, lower base, seat |
2-111-6 |
6 |
11371476 |
1 |
Hood, outer |
2-111-7 |
7 |
10241175 |
1 |
Flange, coupling, air duct |
2-111-8 |
8 |
24000632 |
8 |
Washer |
2-111-9 |
9 |
60060565 |
4 |
Washer |
2-111-10 |
10 |
24000633 |
8 |
Washer |
2-111-11 |
11 |
24000637 |
8 |
Washer |
2-111-12 |
12 |
60243680 |
1 |
Left armrest box assembly |
2-111-13 |
13 |
60181292 |
1 |
Armrest GP, right |
2-111-14 |
14 |
B229900000494 |
1 |
Pull rod, seat |
2-111-15 |
15 |
60240844 |
1 |
Panel control |
2-111-16 |
16 |
A210111000197 |
8 |
Bolt M10×25GB5783 10.9 |
2-111-17 |
17 |
Modification or other |
8 |
Screw M6×10GB70.1 |
2-111-18 |
18 |
A210307000012 |
4 |
Nut M8GB6170 |
2-111-19 |
19 |
A210111000342 |
8 |
Bolt M8×16GB5783 10.9 |
2-111-20 |
20 |
A210204000340 |
4 |
Screw M8×16GB70.1 10.9 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-113-21 |
21 |
24000431 |
4 |
Screw M8×30GB70.1 10.9 |
2-113-22 |
22 |
10130346 |
4 |
Adjuster, guide rail, seat |
2-113-23 |
23 |
10140450 |
1 |
Cover, seat bracket, front |
2-113-24 |
24 |
13526417 |
1 |
Supporting Plate |
2-113-25 |
25 |
60281487 |
1 |
Ordinary Seat Safety Belt AQD01A |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-115-1 |
1 |
60153648 |
1 |
Headrest |
2-115-2 |
2 |
60153633 |
1 |
Cushion, back |
2-115-3 |
3 |
60153794 |
1 |
Armrest (RH) |
2-115-4 |
4 |
60153807 |
1 |
Armrest (LH) |
2-115-5 |
5 |
60153653 |
1 |
Cover RH |
2-115-6 |
6 |
60153664 |
1 |
Cover LH |
2-115-7 |
7 |
60153796 |
1 |
Rail, right |
2-115-8 |
8 |
60153809 |
1 |
Rail, left |
2-115-9 |
9 |
60153812 |
1 |
Framework, seat |
2-115-10 |
10 |
60153810 |
1 |
Cushion, seat |
2-115-11 |
11 |
60153651 |
1 |
Bar, limit |
2-115-12 |
12 |
60313243 |
1 |
Seat Suspension AS |
2-115-13 |
13 |
60153632 |
1 |
Backrest |
2-115-14 |
14 |
60153650 |
1 |
Bag, document |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

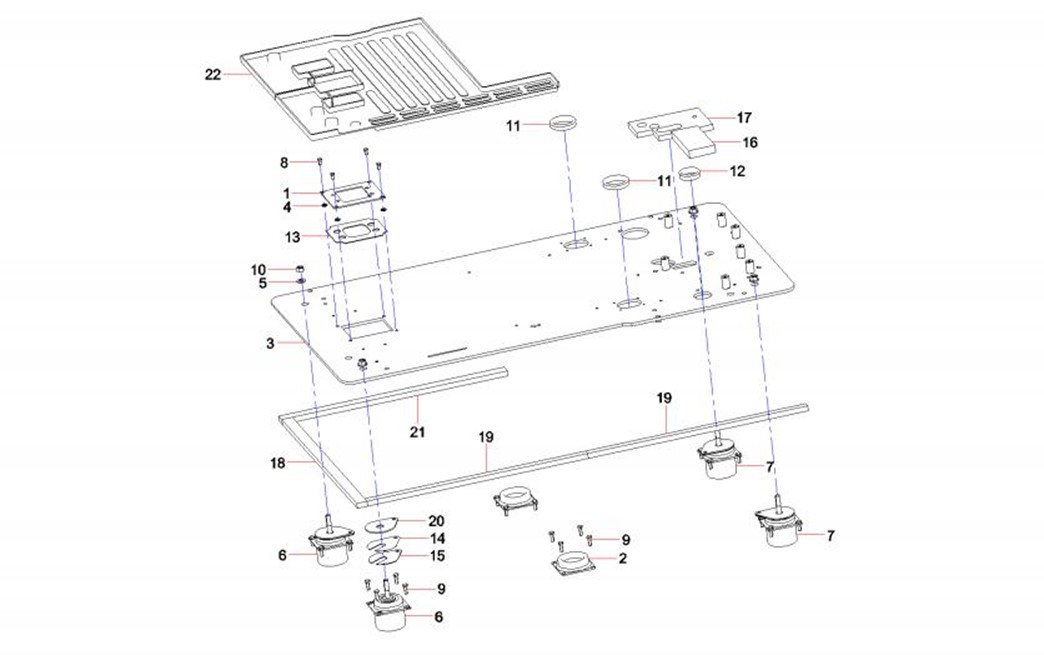

2-117-1 |
1 |
A810402050021 |
1 |
Board, connecting |
2-117-2 |
2 |
12827984 |
2 |
Rubber pad |
2-117-3 |
3 |
13296817 |
1 |
Base Plate SY335C9C5K.1.5.1.1 |
2-117-4 |
4 |
24000637 |
8 |
Washer |
2-117-5 |
5 |
A210491000118 |
4 |
Washer 16GB1230 |
2-117-6 |
6 |
B229900000244 |
2 |
Support, cab |
2-117-7 |
7 |
B229900000245 |
2 |
Support, cab |
2-117-8 |
8 |
A210111000195 |
8 |
Bolt M10×16GB5783 10.9 |
2-117-9 |
9 |
Modification or other |
24 |
Bolt M10×30GB5783 10.9 |
2-117-10 |
10 |
A210307000028 |
4 |
Nut M16GB617010 |
2-117-11 |
11 |
A820606030056 |
2 |
Grommet |
2-117-12 |
12 |
A820606030059 |
1 |
Grommet |
2-117-13 |
13 |
11937141 |
1 |
Gasket, foot valve |
2-117-14 |
14 |
11593942 |
4 |
Shim |
2-117-15 |
15 |
11594064 |
4 |
Shim |
2-117-16 |
16 |
A820699000215 |
2 |
Foam, back |
2-117-17 |
17 |
11935737 |
1 |
Foam, sealing |
2-117-18 |
18 |
12768939 |
1 |
Foam, bottom plate, cab |
2-117-19 |
19 |
12768943 |
2 |
Sponge, bottom plate, cab |
2-117-20 |
20 |
11546613 |
4 |
Plate |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-119-21 |
21 |
12385099 |
1 |
Sponge, bottom plate, cab |
2-119-22 |
22 |
13296814 |
1 |
Floor Pad SY335C9C5K.1.5.1-1 |
