SANY SY215C SY215C9 SY215C9C5KL EXCAVATOR parts catalog 14

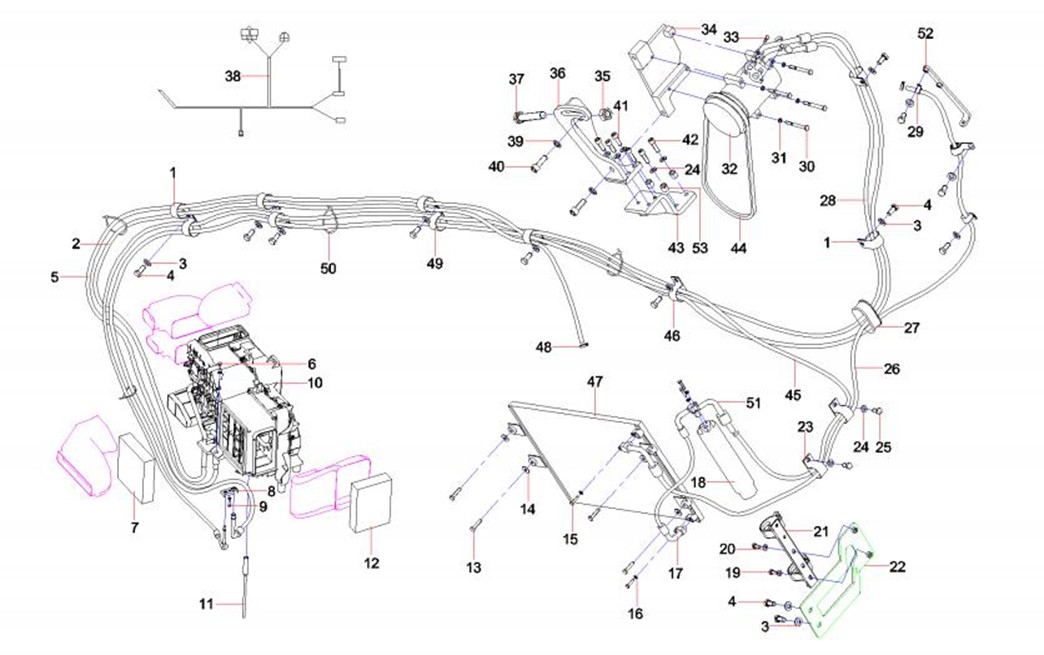

IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-121-1 |
1 |
60149606 |
5 |
Clamp, harness |
2-121-2 |
2 |
12926943 |
1 |
Hose SY215C9M2K.1.8-10 |
2-121-3 |
3 |
24000639 |
13 |
Washer |
2-121-4 |
4 |
A210111000101 |
13 |
Bolt M12×25GB5783 10.9 |
2-121-5 |
5 |
10491107 |
1 |
Hose, rubber |
2-121-6 |
6 |
Modification or other |
6 |
Bolt M8×25GB5783 10.9 |
2-121-7 |
7 |
B222100000711 |
1 |
Filter, air, inner |
2-121-8 |
8 |
60250668 |
1 |
Connected plate |
2-121-9 |
9 |
Modification or other |
1 |
Screw M6×25GB70.1 |
2-121-10 |
10 |
60168171 |
1 |
Assembly, air conditioner unit |
2-121-11 |
11 |
A229900009481 |
1 |
Pipe, drainage |
2-121-12 |
12 |
60250669 |
1 |
Filter |
2-121-13 |
13 |
Modification or other |
4 |
Bolt M8×35GB5783 |
2-121-14 |
14 |
60060565 |
4 |
Washer |
2-121-15 |
15 |
Modification or other |
4 |
Bolt M6×25GB5783 |
2-121-16 |
16 |
24000632 |
7 |
Washer |
2-121-17 |
17 |
60263922 |
1 |
Liquid rubber hose |
2-121-18 |
18 |
B229900005141 |
1 |
Container, liquid storage |
2-121-19 |
19 |
A210111000343 |
3 |
Bolt M8×20GB5783 10.9 |
2-121-20 |
20 |
24000633 |
3 |
Washer |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-123-21 |
21 |
A229900008784 |
1 |
Support, container, liquid storage |
2-123-22 |
22 |
13588649 |
1 |
Drying bottle support |
2-123-23 |
23 |
Modification or other |
2 |
Clamp, harness |
2-123-24 |
24 |
24000637 |
8 |
Washer |
2-123-25 |
25 |
A210111000012 |
2 |
Bolt M10×20GB5783 10.9 |
2-123-26 |
26 |
60001234 |
1 |
Hose |
2-123-27 |
27 |
11779657 |
1 |
Sleeve, rubber |
2-123-28 |
28 |
60086679 |
1 |
Hose |
2-123-29 |
29 |
Modification or other |
4 |
Clamp, harness |
2-123-30 |
30 |
Modification or other |
4 |
Bolt M8×80GB5782 |
2-123-31 |
31 |
24000511 |
4 |
Washer |
2-123-32 |
32 |
B220203000007 |
1 |
Compressor |
2-123-33 |
33 |
A210111000082 |
2 |
Bolt M6×30GB5783 |
2-123-34 |
34 |
10062285 |
1 |
Plate, adjusting |
2-123-35 |
35 |
A210307000029 |
1 |
Nut M20GB6170 10 |
2-123-36 |
36 |
13427537 |
1 |
CompressorBracket |
2-123-37 |
37 |
A210111000443 |
1 |
Bolt M20×120GB5783 10.9 |
2-123-38 |
38 |
10473304 |
1 |
Electrical system, air conditioner |
2-123-39 |
39 |
A210444000001 |
2 |
Washer 14(GB1230) |
2-123-40 |
40 |
A210204000343 |
2 |
Screw |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-125-41 |
41 |
A210204000354 |
3 |
Screw M10×30GB70.1 10.9 |
2-125-42 |
42 |
A210204000335 |
3 |
Screw M10×55GB70.1 10.9 |
2-125-43 |
43 |
13344162 |
1 |
Supporting plate |
2-125-44 |
44 |
B230106000108 |
1 |
V-belt |
2-125-45 |
45 |
60070589 |
1 |
Hose |
2-125-46 |
46 |
60208141 |
2 |
the fixity of line |
2-125-47 |
47 |
A220700000028 |
1 |
Assembly, condenser |
2-125-48 |
48 |
A210855000005 |
4 |
Hoop |
2-125-49 |
49 |
Modification or other |
3 |
Clamp, harness |
2-125-50 |
50 |
A239900000066 |
40 |
Strap, nylon (black) |
2-125-51 |
51 |
60034037 |
1 |
Connector |
2-125-52 |
52 |
13588647 |
1 |
Pipe Bracket SY215C9C5KL.1.8.3 |
2-125-53 |
53 |
13588642 |
3 |
bush SY215C9C5KL.1.8-1 |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |

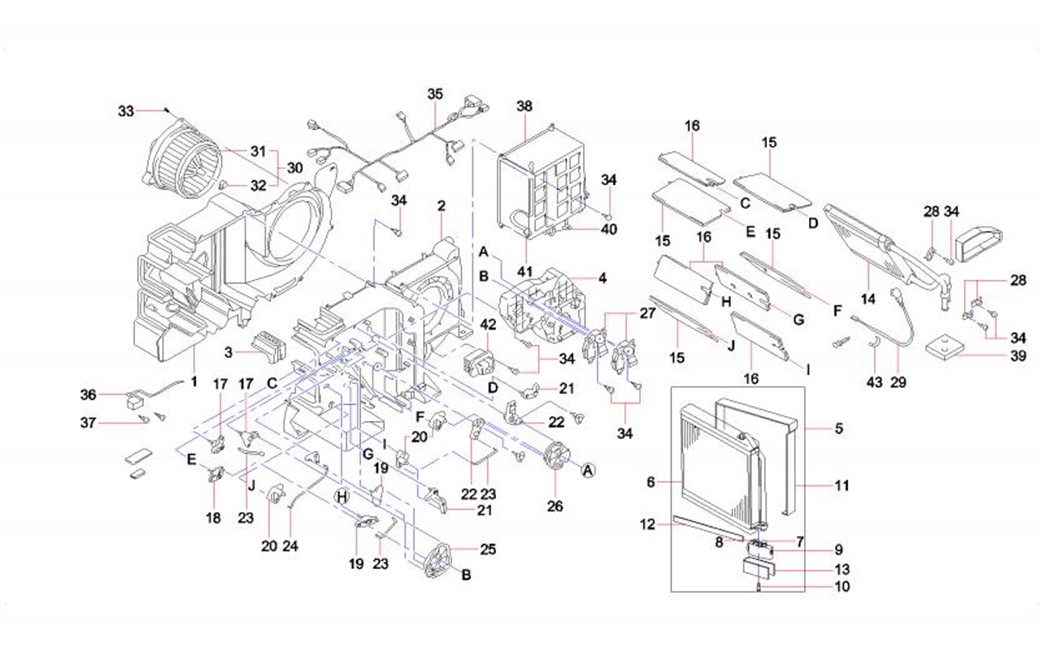

2-127-1 |
1 |
60153212 |
1 |
Outer shell, cooling motor group |
2-127-2 |
2 |
60153213 |
1 |
Outer shell, cooling motor group |
2-127-3 |
3 |
60153195 |
1 |
Plate |
2-127-4 |
4 |
60153196 |
1 |
Plate |
2-127-5 |
5 |
60153202 |
1 |
Evaporator assembly with parts |
2-127-6 |
6 |
60153218 |
1 |
Evaporator sub-assembly |
2-127-7 |
7 |
60153192 |
1 |
O-type ring |
2-127-8 |
8 |
60153193 |
1 |
O-type ring |
2-127-9 |
9 |
60153197 |
1 |
Valve, expansion |
2-127-10 |
10 |
60153215 |
2 |
Bolt |
2-127-11 |
11 |
60153203 |
1 |
Seal, insulation |
2-127-12 |
12 |
60153205 |
3 |
Seal, insulation |
2-127-13 |
13 |
60153204 |
1 |
Seal, insulation |
2-127-14 |
14 |
60153242 |
1 |
Core SUB, heater |
2-127-15 |
15 |
60049962 |
4 |
Door SUB |
2-127-16 |
16 |
60153216 |
4 |
Door SUB |
2-127-17 |
17 |
60049956 |
2 |
Rod SUB, connecting |
2-127-18 |
18 |
60049957 |
1 |
Rod SUB, connecting |
2-127-19 |
19 |
60049958 |
2 |
Rod SUB, connecting |
2-127-20 |
20 |
60049959 |
3 |
Rod SUB, connecting |
IC |
INDEX |
PART NUMBER |
QTY |
PART NAME |
2-129-21 |
21 |
60049941 |
2 |
Rod |
2-129-22 |
22 |
60049960 |
2 |
Rod sub-assembly, connecting |
2-129-23 |
23 |
60049963 |
3 |
Shaft |
2-129-24 |
24 |
60049964 |
1 |
Shaft |
2-129-25 |
25 |
60049943 |
1 |
Plate |
2-129-26 |
26 |
60049944 |
1 |
Plate |
2-129-27 |
27 |
60049947 |
2 |
Motor AS, servo |
2-129-28 |
28 |
60049955 |
3 |
Clamp |
2-129-29 |
29 |
60033039 |
1 |
Sensor, water temperature |
2-129-30 |
30 |
60153199 |
1 |
Motor As, with fan |
2-129-31 |
31 |
60049951 |
1 |
Blade, fan |
2-129-32 |
32 |
60049954 |
1 |
Clamp |
2-129-33 |
33 |
60049950 |
3 |
Screw, tapping, with washer |
2-129-34 |
34 |
60049965 |
32 |
Screw, self-tapping |
2-129-35 |
35 |
60049948 |
1 |
Harness AS, air conditioner |
2-129-36 |
36 |
60049966 |
1 |
Sensor, anti-frost |
2-129-37 |
37 |
60049949 |
2 |
Screw, with washer |
2-129-38 |
38 |
60049942 |
1 |
Box, SUB |
2-129-39 |
39 |
60049953 |
1 |
Seal, insulation |
2-129-40 |
40 |
60049945 |
1 |
Motor AS, servo |
